5342-3501 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5342-3501

5342-3501: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size90KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric View All

5342-3501 Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

5342-3501 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
subject depth	0.669 inch
body length	3.174 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	8.0064 N
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5342
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation option 2	SHORT LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.134 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	50
Evacuation force-minimum value	.7784 N

Preview

Download Datasheet

View All

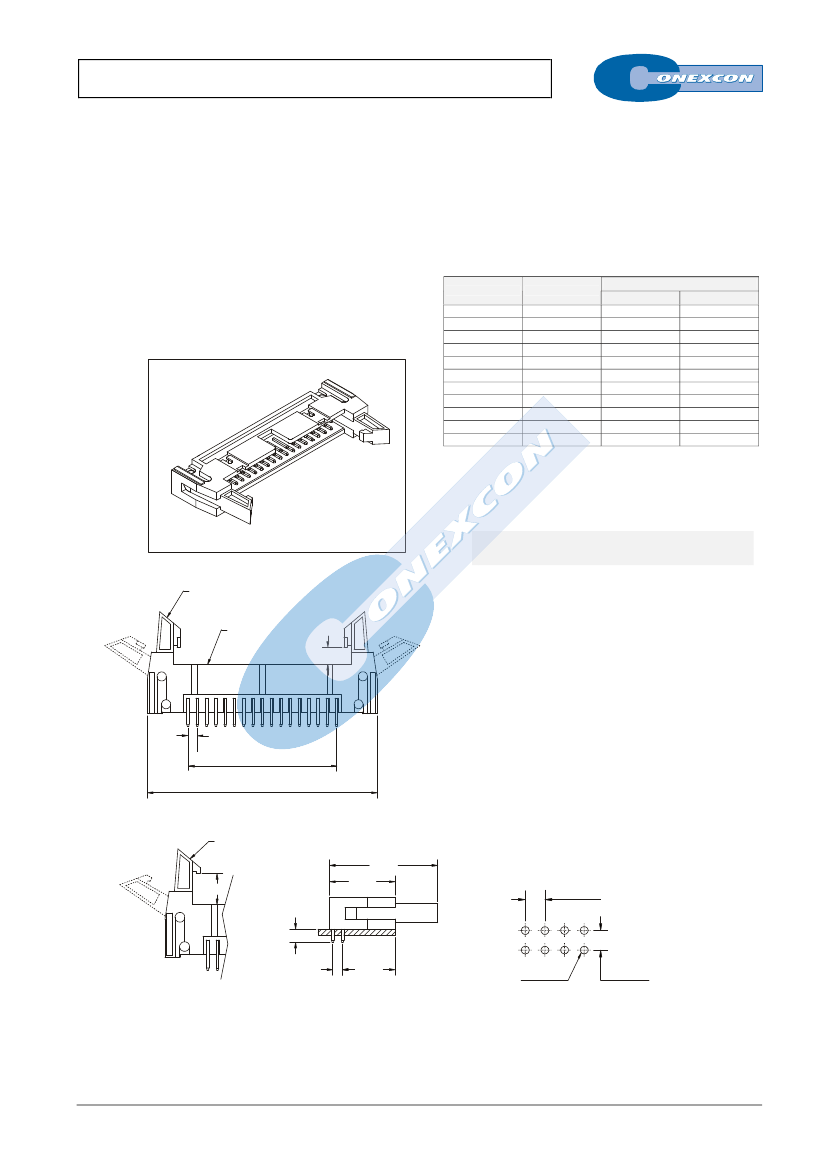

2.54mm RIGHT ANGLE SHROUDED HEADER

5342 SERIES.

2.54 x 2.54mm(0.100 x 0.100”). With Eject Latch Levers

Features





Available in 10, 14, 16, 20, 26, 30, 34, 40, 50, 60

And 64 circuits

Insulator Material: P.B.T UL 94V-0

Contact Material: 0.64mm square pin in copper alloy



Mates with 5440 series I.D.C connector

Short and long latches available

Fully shrouded. Provides fast connection / disconnection of

Flat cable assembly

Ordering and Dimensional Information

Dimension

10,16(0,400)

15,24(0,600)

17,78(0,700)

22,86(0,900)

30,48(1,200)

35,56(1,400)

40,64(1,600)

48,26(1,900)

60,96(2,400)

73,66(2,900)

78,74(3,100)

29.82 (1.174)

34.90 (1.374)

37.44 (1.474)

42.52 (1.674)

50.14 (1.974)

55.22 (2.174)

60.30 (2.374)

67.92 (2.674)

80.62 (3.174)

93.32 (3.674)

98.40 (3.874)

Dimensional Information

Circuit Size

Part Number

5342-T10X

5342-T14X

5342-T16X

5342-T20X

5342-T26X

5342-T30X

5342-T34X

5342-T40X

5342-T50X

5342-T60X

5342-T64X

T = Contact Plating



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

Short latch

X = Latch type

Sq. Pin 0.64 mm.

4.30

X =

Without Eject Latch

X =

Short. For use without strain relief

X =

Long. For use with strain relief

2.54

Long latch

28.00

8.20

17.00

2.54±0.05

.100±.002

3.4

2.54

13.64

RECOMMENDED HOLE PATTERN

1.02±0.05

.040±.002

2.54±0.05

.100±.002

FULL LINE CATALOGUE

E-XX
