8082-3151: DescriptionD Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size183KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8082-3151 Overview

D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug

8082-3151 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknow
ECCN code	EAR99
body width	0.494 inch
subject depth	0.197 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact style	RND PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8082
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Plating thickness	FLASH inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.126 inch
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

SOLDER HIGH DENSITY D-SUB PLUG

SERIES.

8082 SERIES

Features

PCB Solder Termination. High Density D-Sub Plug

#

!

Shell Material: Steel, tin plated as standard

Optional: #4-40 UNC hexagonal standoff or clinch nuts

Other options: Hoods, mounting screw and accessories

For other options consult the Sales Office

Ordering and Dimensional Information

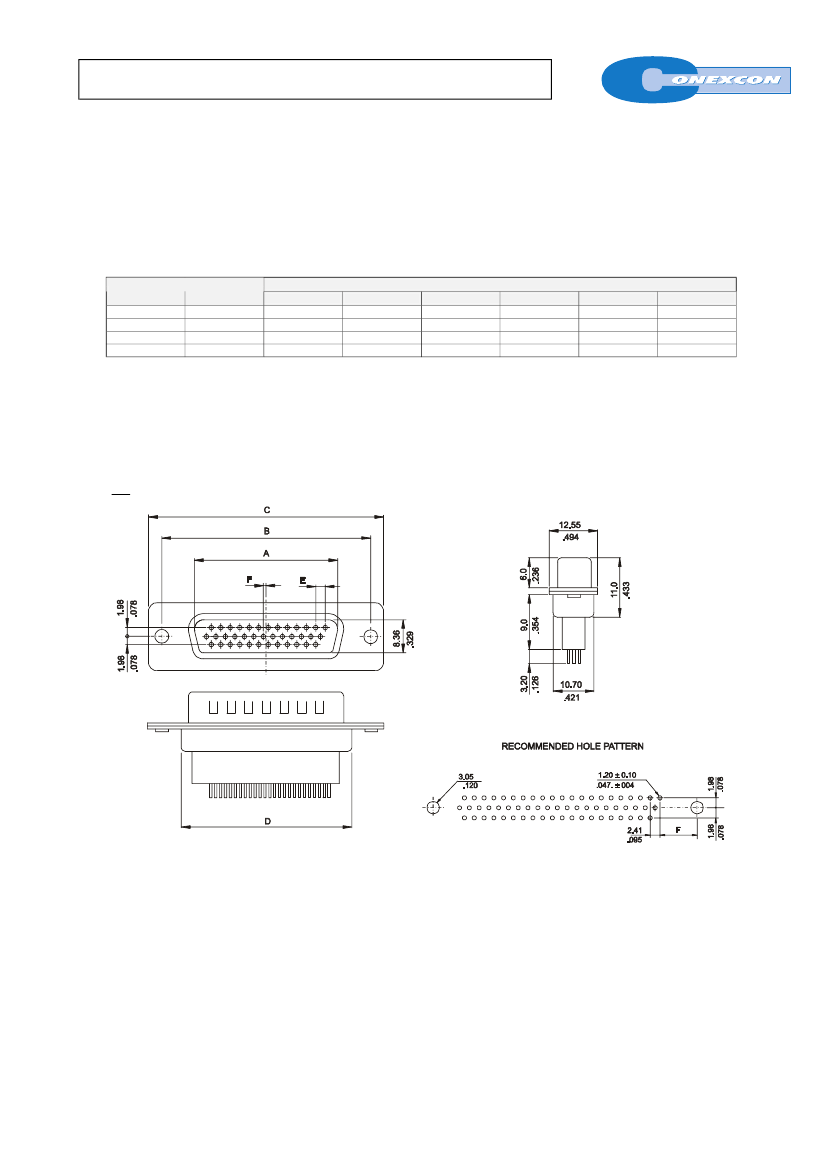

Dimensions

A

16.92 (0.666)

25.25 (0.994)

38.96 (1.534)

55.42 (2.182)

B

24.99 (0.984)

33.32 (1.312)

47.04 (1.852)

63.50 (2.500)

C

30.81 (1.213)

39.14 (1.541)

53.04 (2.088)

69.32 (2.729)

D

19.23 (0.757)

27.56 (1.085)

41.28 (1.625)

57.73 (2.273)

E

2.290 (0.090)

2.410 (0.095)

F

7.67 (0.302)

6.99 (0.275)

7.07 (0.278)

!

Available in 15, 26, 44, and 62 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Brass, Colour: Black

Different plating options are available

Dimensional Information

Circuit Size

15

26

44

62

Part Number

8082 –

T151

8082 –

T261

8082 –

T441

8082 –

T621

T = Contact Plating

!

T =

3.

Gold flash over 50µ” nickel

!

T =

4.

10µ” gold over 50µ” nickel

mm.

Inch.

!

T =

5.

15µ” gold over 50µ” nickel

!

T =

6.

30µ” gold over 50µ” nickel

Unit:

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8082-3151 Related Products

	8082-3151	Z201LT7R2300BB	8082-5151	8082-4621	8082-4151	8082-6151	8082-3261	8082-6261
Description	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	Fixed Resistor, Metal Foil, 0.6W, 7.23ohm, 300V, 0.1% +/-Tol, -.2,.2ppm/Cel, 3011,	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 62 Contact(s), Male, 0.095 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 15 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug	D Type Connector, 26 Contact(s), Male, 0.09 inch Pitch, Solder Terminal, #4-40, Plug
Reach Compliance Code	unknow	compliant	unknown	unknow	unknow	unknown	unknown	unknown
ECCN code	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
body width	0.494 inch	-	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.197 inch	-	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
body length	1.213 inch	-	1.213 inch	2.729 inch	1.213 inch	1.213 inch	1.541 inch	1.541 inch
Body/casing type	PLUG	-	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contact to complete cooperation	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	-	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Insulator color	BLACK	-	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYESTER	-	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8082	-	8082	8082	8082	8082	8082	8082
Plug contact pitch	0.09 inch	-	0.09 inch	0.095 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.078 inch	-	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch	0.078 inch
Installation option 1	#4-40	-	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	3	-	3	3	3	3	3	3
Number of rows loaded	3	-	3	3	3	3	3	3
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.9812 mm	-	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm	1.9812 mm
Plating thickness	FLASH inch	-	15u inch	10u inch	10u inch	30u inch	FLASH inch	30u inch
Guideline	UL	-	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	-	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	-	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.126 inch	-	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.286 mm	-	2.286 mm	2.413 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	-	15	62	15	15	26	26
