TITLE:
PART IDENTIFIER:
SPECIFICATION CONTROL DRAWING
KTVAXX00NXXX
(X) FREQUENCY RANGE SEE TABLE 2
(XX) TCA (dB/dB/C) x 10
3
SEE TABLE 1
TCA SLOPE (N=NEGATIVE)
(XX) NOMINAL ATTENUATION SEE TABLE 1
TABLE 1
NOMINAL
ATTENUATION
(dB)
02
03
AVAILABLE
TCA
(dB/dB/C)
-0.005
-0.005
-0.006
-0.007
-0.005
-0.006
-0.007
-0.005
-0.006
-0.007
-0.005
-0.007
TABLE 2
NUMBER
CODE
1
2
3
4
5
FREQUENCY
RANGE (GHZ)
16-22
18-32
28-31
32-36
16-36
04
05
06
DESCRIPTION:
EXAMPLE: KTVA0300N052 = 3 dB ATTENUATION, -.005 dB/dB/C, FREQUENCY 18-32.
[SEE TABLE 1 AND TABLE 2]
TEMPERATURE VARIABLE CHIP ATTENUATOR (K-BAND).
ASSEMBLY DWG:
1901934
1.0
SPECIFICATIONS:
1.1
ELECTRICAL:
1.1.1
OPERATING FREQUENCY RANGE (BANDWIDTH): SEE TABLE 2.
1.1.2
ATTENUATION VALUE: SEE TABLE 1.
1.1.3
ATTENUATION TOLERANCE AT 25°C:
1.0
dB .
1.1.4
POWER DISSIPATION: 100 mW @ +100°C, DERATED LINEARLY TO ZERO WATT @ +150°C.
1.1.5
TEMPERATURE COEFFICIENT OVER OPERATING TEMPERATURE RANGE:
SEE TABLE 1, TEMPERATURE COEFFICIENT: ±0.001 dB/dB/C.
NOTE: -0.007 TCA ± 0.002 dB/dB/C.
1.1.6
VSWR: 1.35:1 TYPICAL
1.2
MECHANICAL:
1.2.1

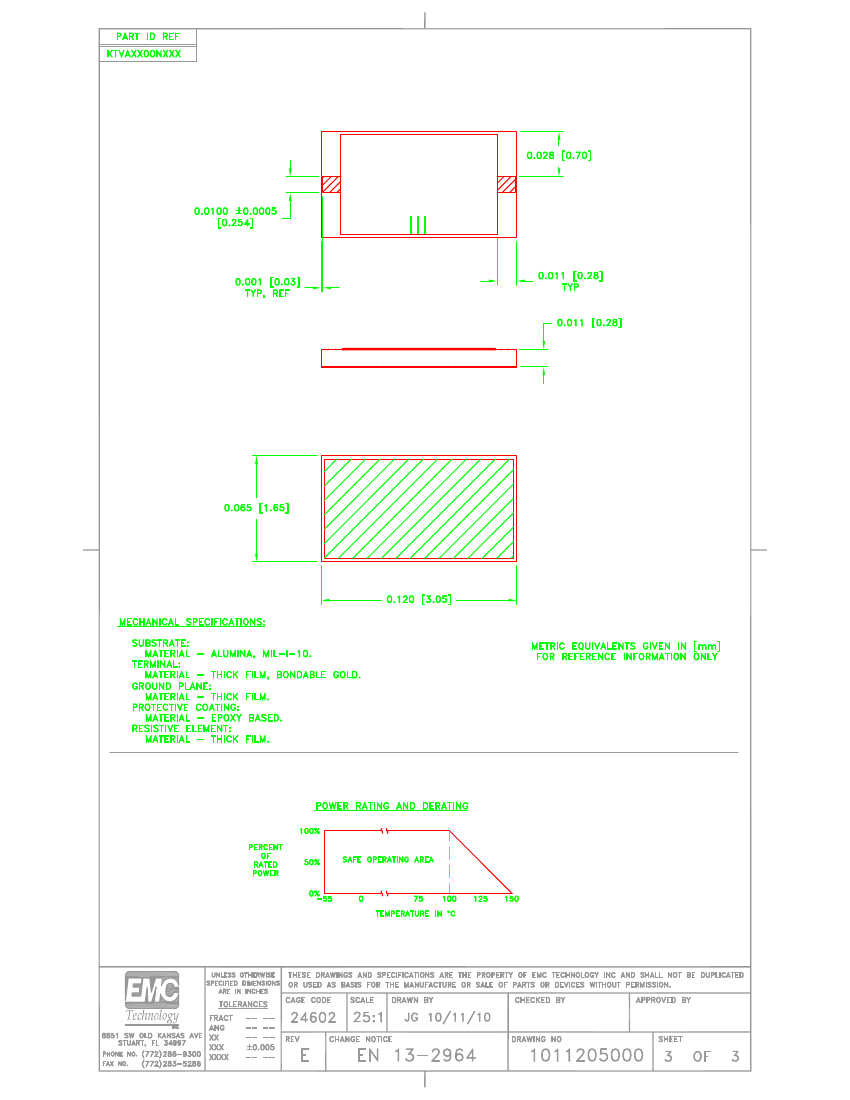

OUTLINE DWG AND DERATING CURVE: SEE SHEET 3.
1.2.2
WORKMANSHIP: PER MIL-PRF-55342.
1.3
ENVIRONMENTAL:
1.3.1
OPERATING TEMPERATURE RANGE: -55°C TO +150°C.
1.3.2
STORAGE TEMPERATURE: -55C TO +150C.
UNIT MARKING:
PART MARKING, VERTICAL “I” FOR EACH dB. I.E. 3 dB = “III”
2.0
3.0
QUALITY ASSURANCE:
3.1
1.0 AQL INSPECTION:
3.1.1
VISUAL AND MECHANICAL EXAMINATION FOR CONFORMANCE TO OUTLINE DWG REQUIREMENTS.
3.2
MEASURE RESISTOR DATA AND APPLY FIRST-PASS ATTENUATION AND VSWR CRITERIA:
3.2.1
ATTENUATION:
3.2.1.1 GdB =0.0648 * RTOTAL + 0.1818, WHERE R TOTAL IS THE DC RESISTANCE MEASURED BETWEEN
INPUT AND OUTPUT TERMINALS
3.2.1.2 ACCEPTANCE LIMITS: PER TABLE 1, WHERE “GdB” REFERS TO “NOMINAL ATTENUATION (dB).
3.3
SAMPLE INSPECTION:
3.3.1
DESTRUCTIVE TESTING:
3.3.1.1 SELECT THREE (3) UNITS FROM LOT AND MEASURE TOTAL DCR EVERY 20ºC OVER THE
TEMPERATURE RANGE FROM -55ºC THROUGH +125ºC.
3.3.1.2 CALCULATE DCA BY FOR EACH MEASUREMENT, USING EQUATION 3.2.1.1
3.3.1.3 CALCULATE, USING LINEAR REGRESSION, THE SLOPE OF THE ATTENUATION VS.
TEMPERATURE CURVE.
3.3.1.4 CALCULATE TCA USING THE FOLLOWING FORMULA:
TCA =
SLOPE
ATTENUATION @ 25ºC
3.3.1.5 ACCEPTANCE LIMITS: PER 1.1.5
EMC TECHNOLOGY
8851 SW OLD KANSAS AVE.
STUART, FL 34997
CAGE CODE # 24602
CHANGE NOTICE
EN 13-2964
DWG #
REV LVL
SHEET
1011205000
E
1
OF
3
3.3.2
RF TESTING:
3.3.2.1 SELECT THREE (3) UNITS FROM LOT AND MEASURE ATTENUATION AND VSWR
VERSUS FREQUENCY OVER THE OPERATING FREQUENCY RANGE.
3.3.2.2 ACCEPTANCE LIMITS: PER TABLE 1
3.4
TEST DATA REQUIREMENTS:
3.4.1
NO TEST DATA REQUIRED FOR CUSTOMER.
3.4.2
DATA RETENTION – 24 MONTHS.
STANDARD WAFFLE PACKING PER 755W002.
