21XBXP33-120VAC: DescriptionPower/Signal Relay, DPDT, Momentary, 2400mW (Coil), 20A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size4MB，2 Pages; ManufacturerStruthers-Dunn; Environmental Compliance

Download Datasheet Parametric Compare View All

21XBXP33-120VAC Overview

Power/Signal Relay, DPDT, Momentary, 2400mW (Coil), 20A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Panel Mount, ROHS COMPLIANT

21XBXP33-120VAC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Struthers-Dunn
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	COIL OPERATE VOLTAGE(AC): 90 V; COIL RELEASE VOLTAGE(AC): 12 V
body width	44.5 mm
body height	82.4 mm
Body length or diameter	60.3 mm
Coil current (AC) maximum value	0.02 A
Coil power	2400 mW
Maximum coil voltage (AC)	120 V
Coil/Input Power Type	AC
Contact (AC) maximum rated R load	30A@240VAC
Maximum contact current (AC)	30 A
Maximum contact current (DC)	20 A
Contact (DC) maximum rated R load	20A@28VDC
Maximum contact voltage (AC)	240 V
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	AC/DC
Electrical life	200000 Cycle(s)
Manufacturer's serial number	21
Installation features	PANEL MOUNT
operating hours	20 ms
Maximum operating temperature	74 °C
Minimum operating temperature	-34 °C
physical size	60.3mm X 44.5mm X 82.4mm
Relay action	MOMENTARY
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	20 ms
surface mount	NO
Termination type	SOLDER

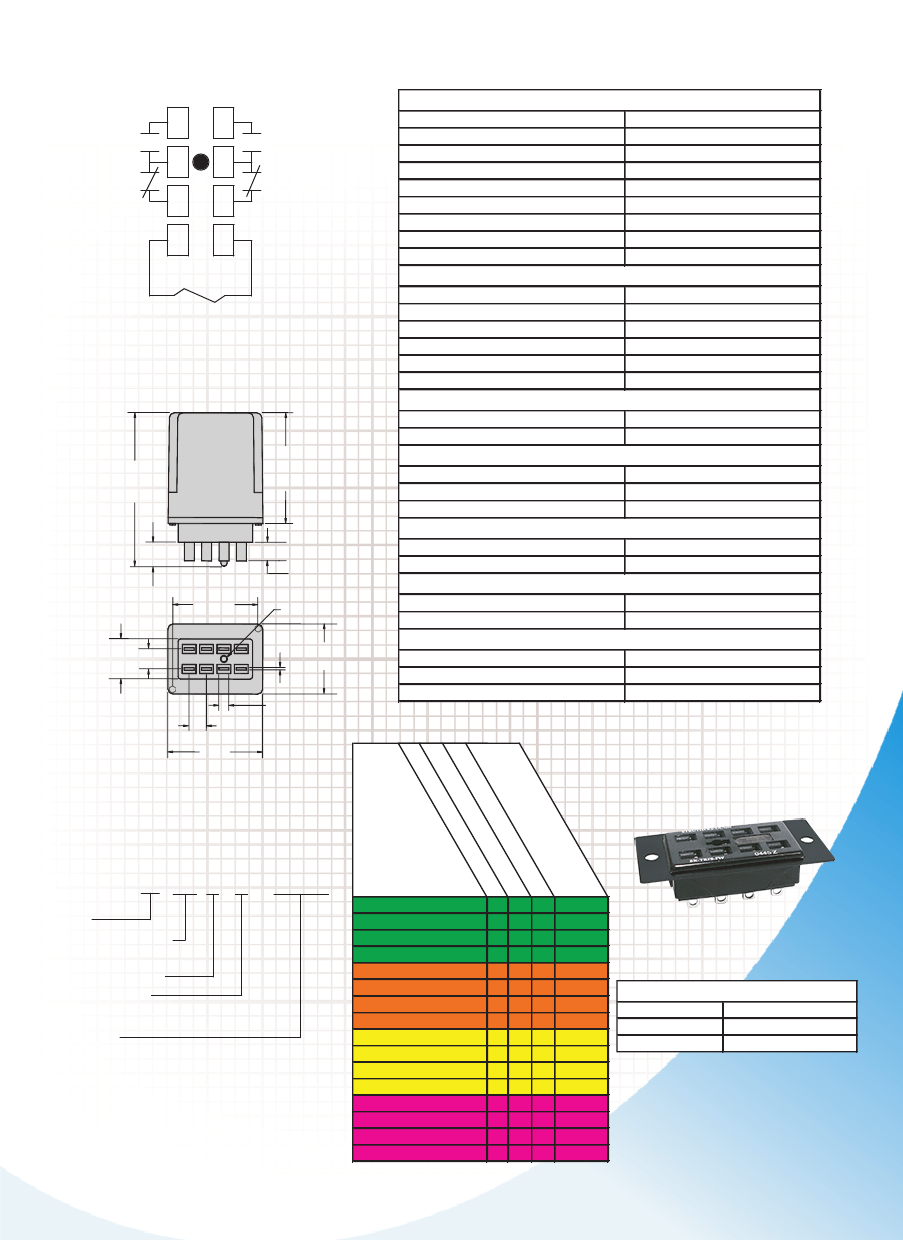

Preview

Download Datasheet

View All

For switching

both

Tungsten and LED Lamps

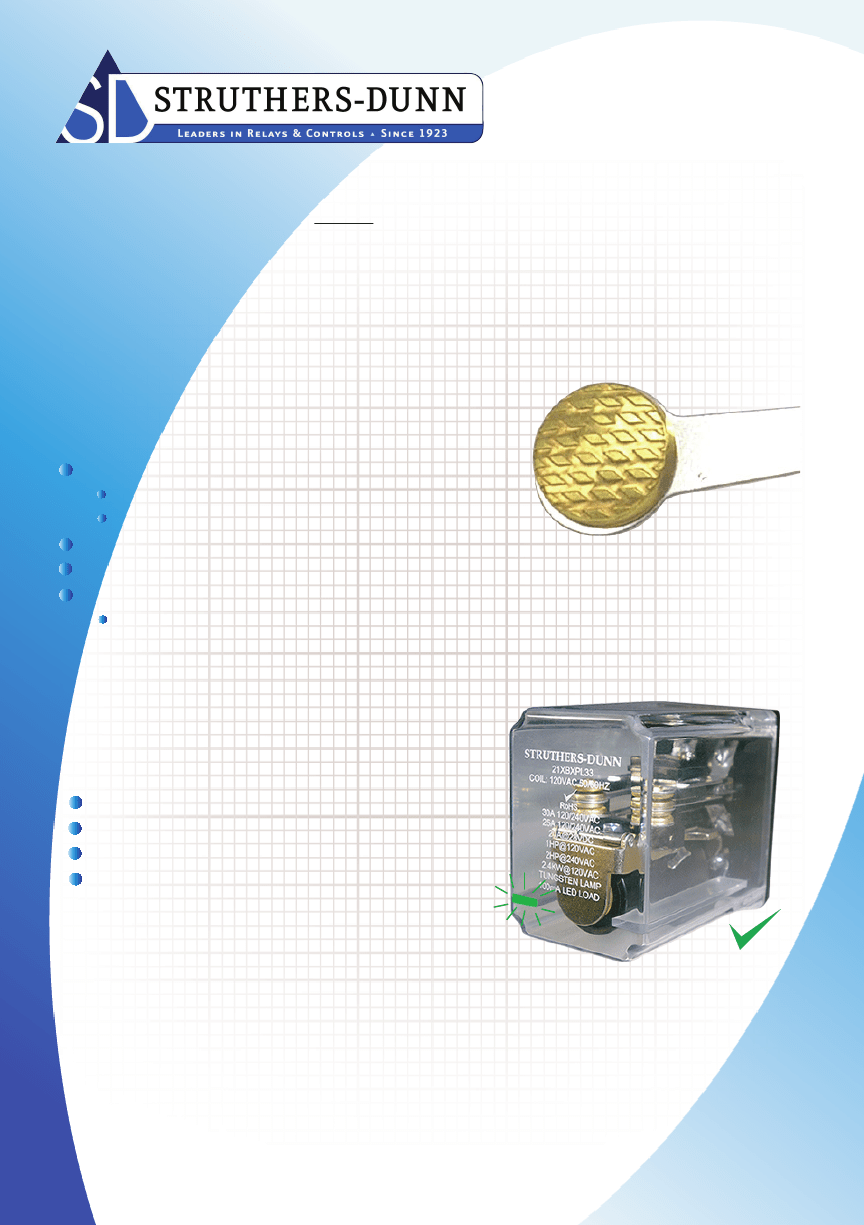

The 21 Series Relay has a proven industry record of reliability. The recent changes

in traffic signal lighting techniques from incandescent to LED has created the need

for a relay to handle low currents associated with LED lamps, while still handling

the requirements of high current Tungsten lamps. We have responded to those

market requirements by redesigning our proven 21 series to switch both Tungsten

and LED lamps interchangeably within the same relay.

The Solution

New Contact Design

Gold diffused (not plated) into Silver/Alloy

Lower contact resistance

Higher resistance to oxidation

“Multipoint” contact surface for low current LED lamps

Robust Silver/Alloy contact for high current Tungsten lamps

One part number to interchangeably switch Tungsten and LED lamps

Test Sequence: 100,000 cycles @ 10mA,

100,000 cycles @ 15A,

repeat 100,000 cycles @ 10mA

New Coil LED Feature

Confirms coil voltage applied

Simplifies field maintenance trouble-shooting

Decreased field service time

Super bright LED is visible in sun light

RoHS
