236TD /237 Series - Time Delay Relay
DPDT, 10 Amp
E13224

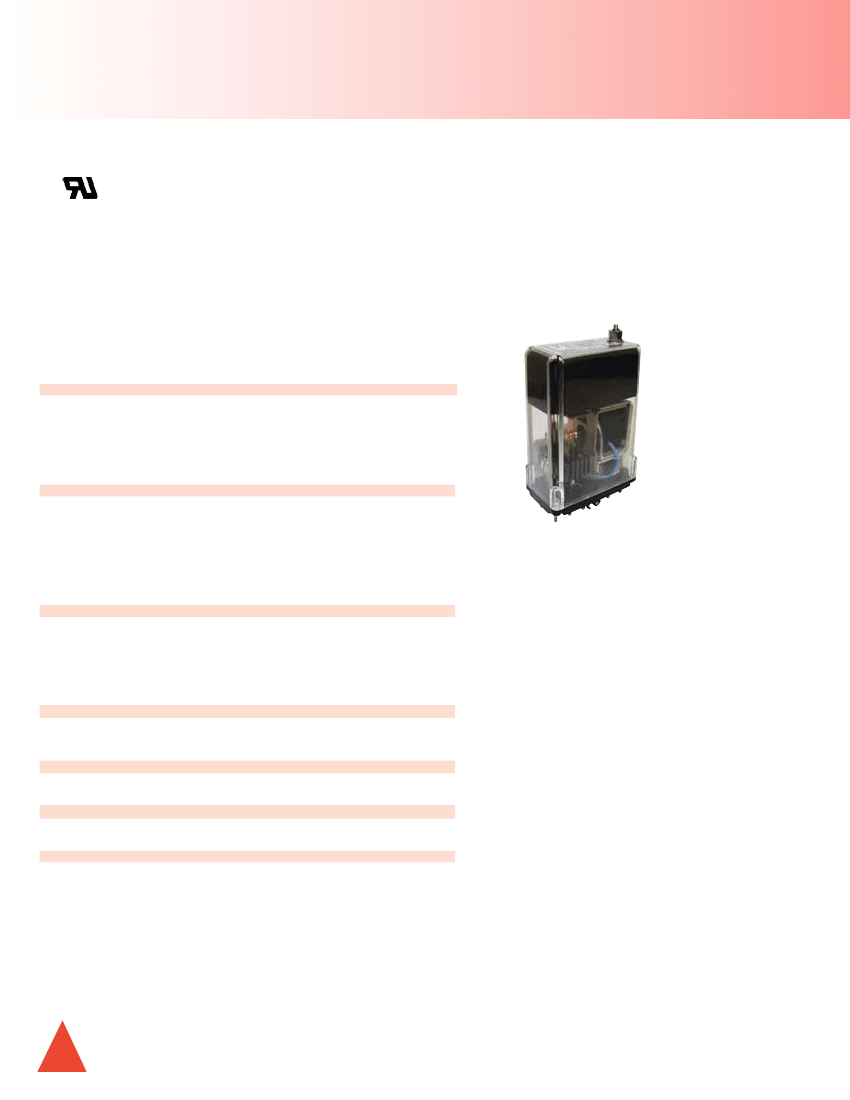

Rugged, industrial time delay versions of the popular 219 series. On delay, off delay and interval
timing is available. Contacts can be configured up to four pole double throw or six pole single
throw. Blow out magnets can be added to increase DC switching capability. Time ranges are
adjustable over a 1:100 range. Locking shaft potentiometer and integral hold down clip are
standard. A large option list makes this product easily customized for special applications.
**Nuclear versions available**
GENERAL SPECIFICATIONS (@ 25° C)
Timing:
Functions Available
Time Range
Timing Adjustment
Timing Repeatability
(Constant voltage and temperature)
Reset Time maximum
Input Pulse Length minimum
Contacts:
Contact Configuration
Contact Material
Contact Rating
120 / 240VAC Resistive
28VDC Resistive
Motor 120VAC
Motor 240VAC
Minimum Contct Load
Contact Resistance, Initial
Coil:
Coils Available
Nominal Coil Power
Input Voltage Tolorance -AC
Input Voltage Tolorance -DC
Transient Protection
Reverse Polarity Protection
Duty
Dielectric Strength:
Across Open Contacts
Between Mutally Insulated Points
Insulation Resistance
Temperature:
Operating
Storage
Life Expectancy:
Electrical (full load operations)
Mechanical (no load operations)
Miscellaneous:
Mounting Position
Mating Socket
Accessories
Enclosure
Weight
On-delay, Off-delay, Interval
Up to 7 hours
Locking shaft potentiometer
3%
150mS
50mS
DPDT, DPDT+NO
Silver Alloy Gold Diffused
10 Amp / 5 Amp
10 Amp
-
-
500mW
100 milliohms max @ 6VDC, 1A
AC and DC
5VA 2.5W
85% to 110% of nominal
80% to 110% of nominal
Yes
Yes
Continuous
500Vrms
1500Vrms
1,000 Mohms min @ 500VDC
-20 to 70°C (-4 to 158°F)
-40 to 105°C (-40 to 221°F)
100,000
10,000,000
Any
12 pin = 27390D
14 pin = 33377D
Hold down clip integral to relay
Clear Polycarbonate
8.6oz (244 grams)
7/7
www.struthers-dunn.com
(843) 664-3303
Timer / Sensor - Time Delay & Sensor Relays
5 - 25 Amp
Dimensions Shown in inches & (millimeters)

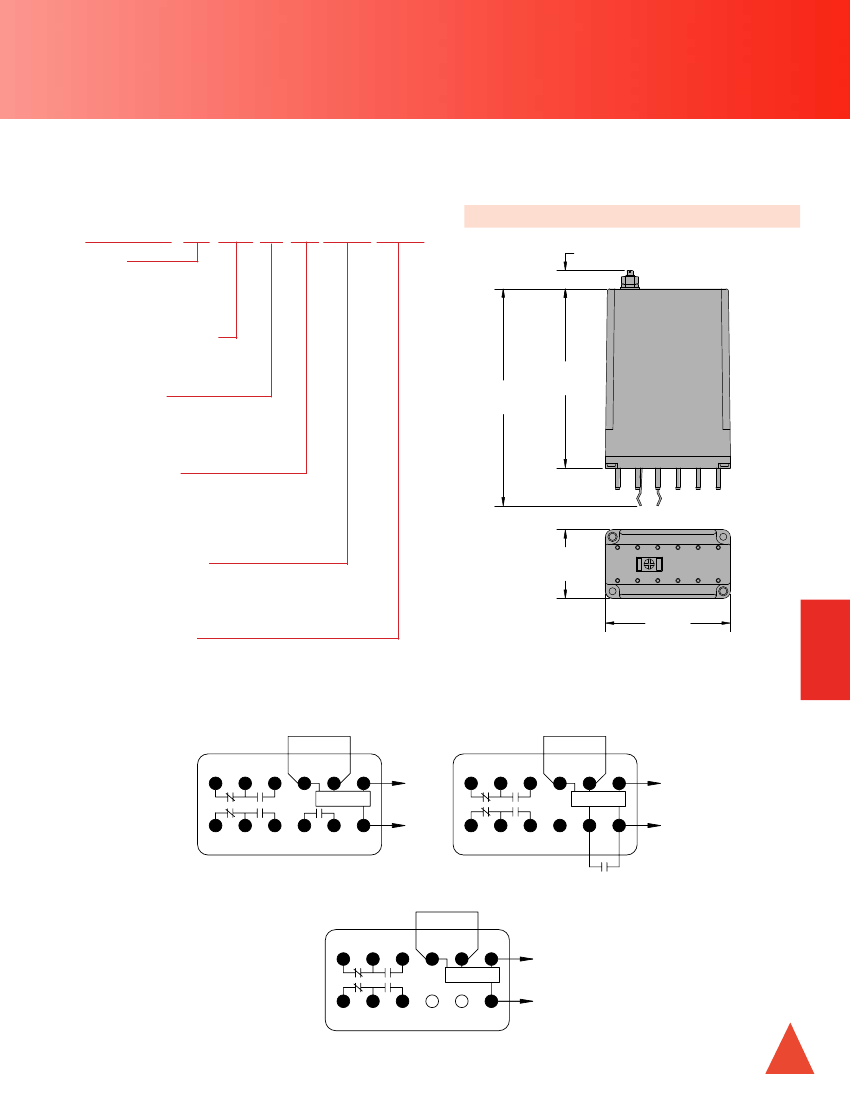

Outline Dimensions
Ordering Code
Series
236 - On delay
237 - Off delay
236
ABX
P
020
120VAC
0.31
(7.95)
Contact Arrangement
ABX (1 N.O. + DPDT)
XBX (DPDT) - (2 form C)
Construction
Blowout Magnet - CODE 69
Bifurcated contacts CODE 33
Plug-in CODE P
Timing Ranges
0.2 - 12 seconds - CODE 012
0.2 - 20 seconds - CODE 020
2.0 - 200 seconds - CODE 200
Fixed = No CODE
Adjustment Options
Locking shaft potentiometer - No CODE
Fixed delay - CODE F
(Call for more information)
Operating Voltage
AC: 24, 120, 240 (Add VAC)
DC: 12, 24, 115-125 (Add VDC)
4.56
(115.8)
3.75
(95.2)
1.46
(37.2)
6
5
4
3
2
1
2.63
(66.8)
236ABXP
† Jumper or
external resistor
12
11
10
9
8
Timing
Modul
236/237 Wire Diagram
237XBXP
†Jumper or
external resistor
7-
12
11
10
9
8
Timing
Modul
7-
INPUT
INPUT
OFF DELAY
1
2
3
4
5
6+
1
2
3
4
5
6+
DOUBLE POLE DOUBLE THROW
WITH NORMALLY OPEN CONTACT
DOUBLE POLE DOUBLE THROW
INPUT
†If the jumper wire shown in each diagram is
replaced by a resistor, delay time will be added
to that which is produced by an internal fixed
resistor on fixed time models (Code F) or any
setting on screwdriver adjustable models.
237XBXP
†Jumper or
external resistor
12
11
10
9
8
Timing
Modul
7-
BATCH CONTROL
INTERVAL
1
2
3
4
5
7
6+
DOUBLE POLE DOUBLE THROW
www.struthers-dunn.com
(843) 664-3303
7/8
Section 7
12
11
10
9
8
7
