DAC87 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC87

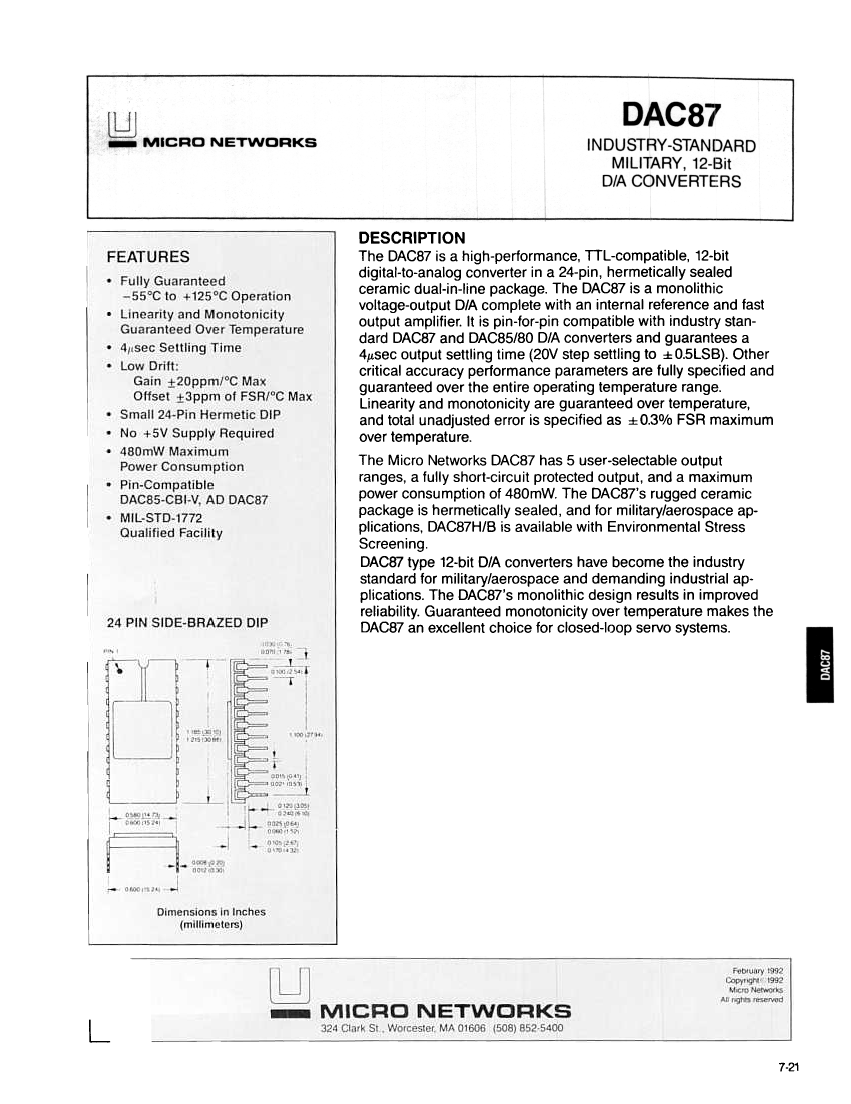

Preview

DAC87: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-24; CategoryAnalog mixed-signal IC converter; File Size1MB，4 Pages; ManufacturerSpectrum Microwave

Download Datasheet Parametric Compare View All

DAC87 Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-24

DAC87 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Spectrum Microwave
Parts packaging code	DIP
package instruction	DIP, DIP24,.6
Contacts	24
Reach Compliance Code	unknow
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T24
JESD-609 code	e0
length	30.48 mm
Maximum linear error (EL)	0.0183%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-15 V
Certification status	Not Qualified
Maximum seat height	4.32 mm
Maximum stabilization time	4 µs
Nominal settling time (tstl)	3 µs
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

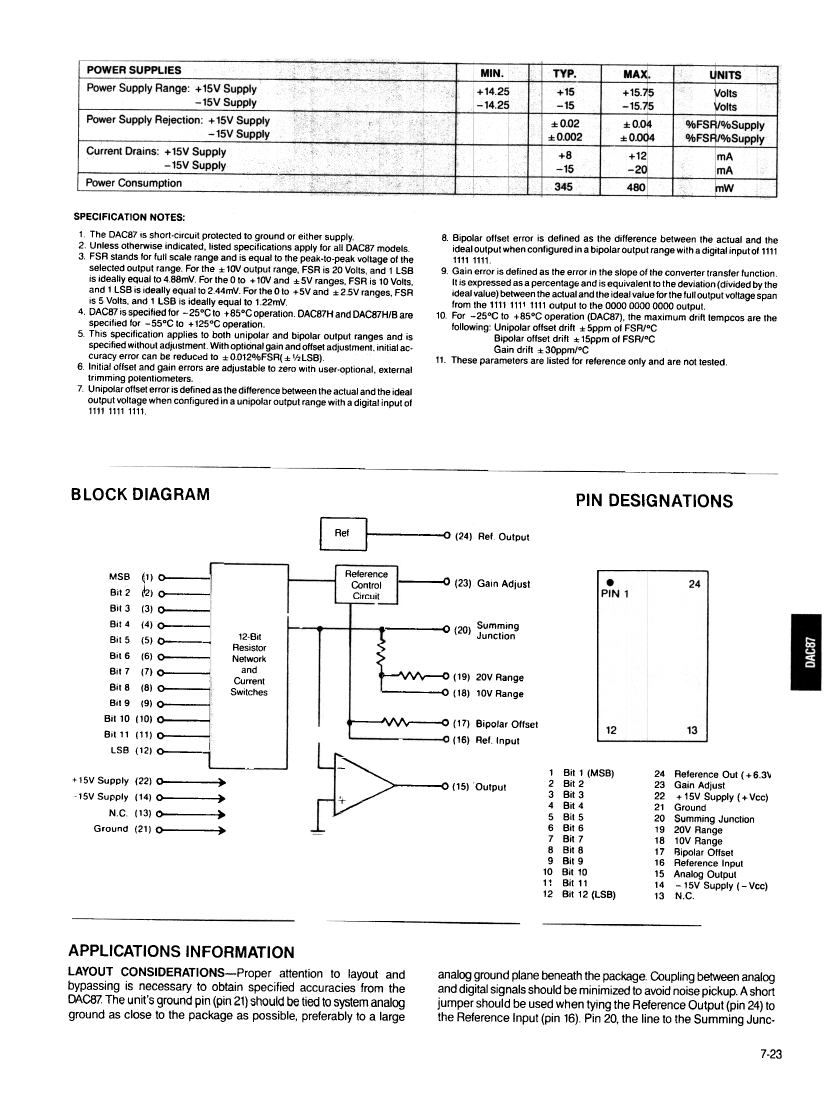

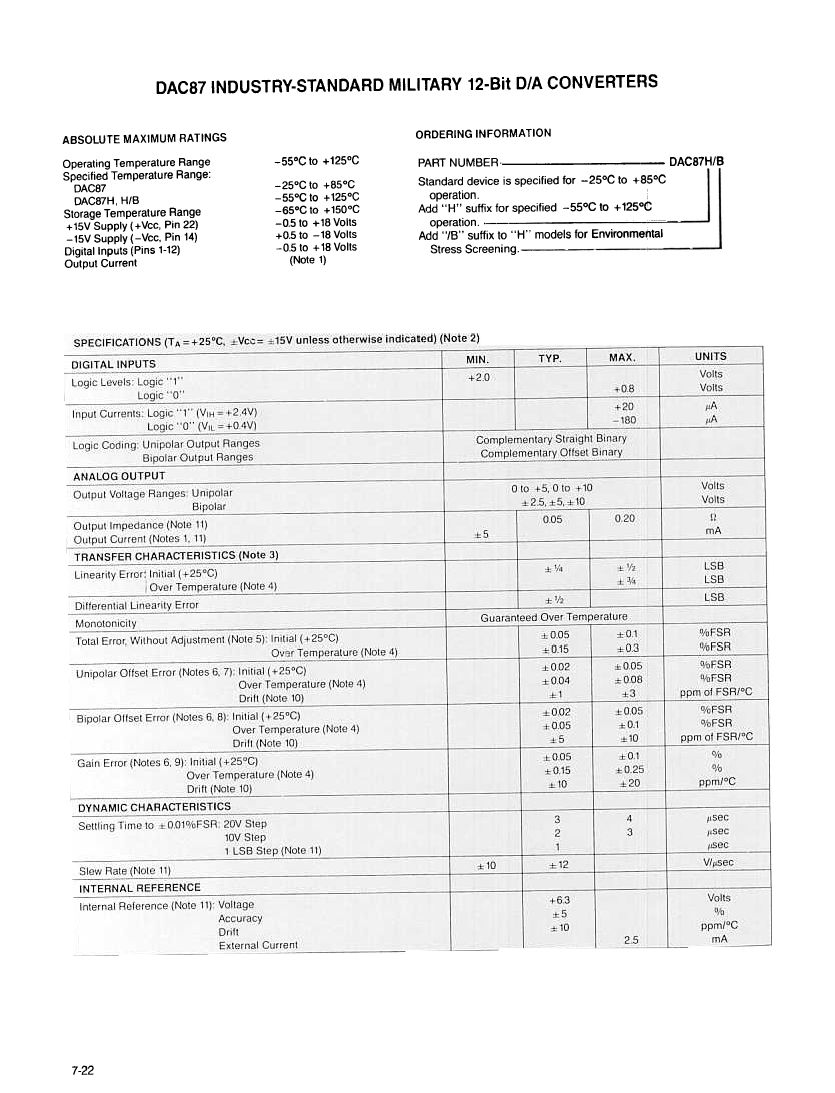

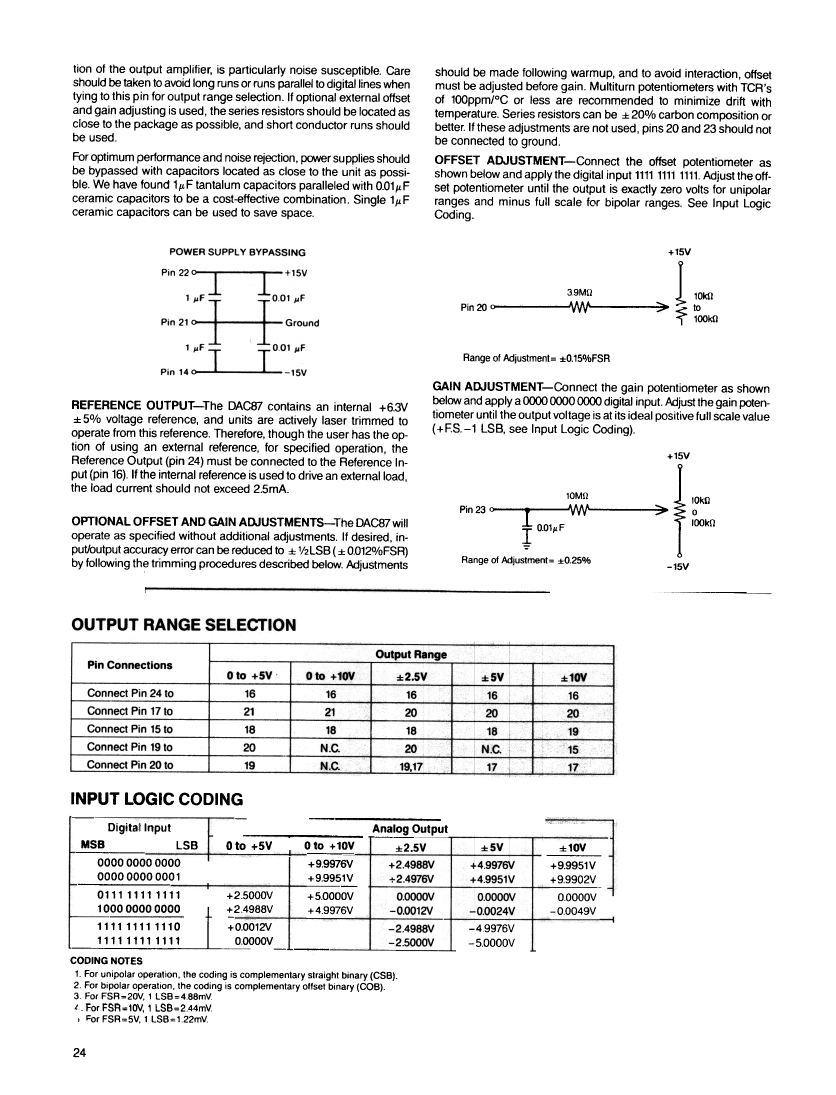

Preview

Download Datasheet

View All

DAC87 Related Products

	DAC87	DAC87H
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, 3us Settling Time, CDIP24, HERMETIC SEALED, SIDE BRAZED, CERAMIC, DIP-24
Parts packaging code	DIP	DIP
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Contacts	24	24
Reach Compliance Code	unknow	unknown
Maximum analog output voltage	10 V	10 V
Minimum analog output voltage	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY	COMPLEMENTARY BINARY, COMPLEMENTARY OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-T24	R-CDIP-T24
length	30.48 mm	30.48 mm
Maximum linear error (EL)	0.0183%	0.0183%
Nominal negative supply voltage	-15 V	-15 V
Number of digits	12	12
Number of functions	1	1
Number of terminals	24	24
Maximum operating temperature	85 °C	125 °C
Minimum operating temperature	-25 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.32 mm	4.32 mm
Maximum stabilization time	4 µs	4 µs
Nominal settling time (tstl)	3 µs	3 µs
Nominal supply voltage	15 V	15 V
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Temperature level	OTHER	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
width	15.24 mm	15.24 mm
