5201-37TBK: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Receptacle; CategoryThe connector The connector; File Size204KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5201-37TBK Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Lug Terminal, Receptacle

5201-37TBK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.197 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5201
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation type	PANEL
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Termination type	SOLDER LUG
Total number of contacts	37

Preview

Download Datasheet

View All

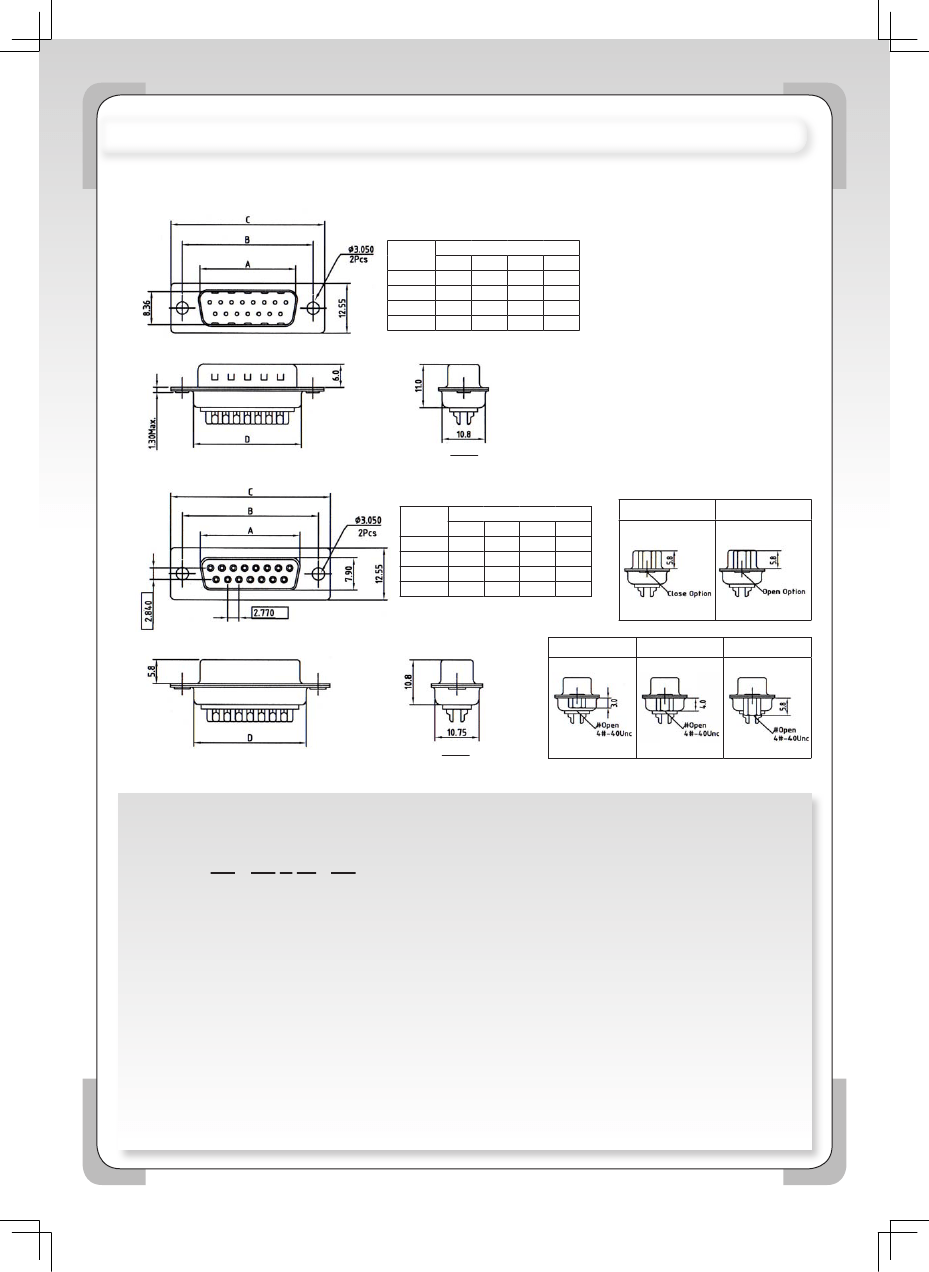

D-SUB. CONNECTOR SOLDER TYPE

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.92 24.99 30.81 19.23

25.25 33.32 39.14 27.56

38.96 47.04 53.04 41.28

55.42 63.50 69.32 57.33

Current Rating:

3A or 5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

SPECIFICATIONS

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5201

No. of

Contacts

09

15

25

37

Dimensions(mm)

A

B

C

D

16.33 24.99 30.81 19.23

24.66 33.32 39.14 27.56

38.38 47.04 53.04 41.28

54.84 63.50 69.32 57.33

J

JT

K3

K

K6

5202

ORDERING INFORMATION:

P/N 5 2 x x - x x T W / x x

1

2 3 4

5

1. CONNECTOR TYPE:

"01" MALE WITH FULL GOLD

PLATED STAMPED CONTACTS (3A)

"02" FEMALE WITH FULL GOLD

PLATED STAMPED CONTACTS (3A)

"05" MALE WITH SELECTIVE GOLD

PLATED STAMPED CONTACTS (3A)

"06" FEMALE WITH SELECTIVE GOLD

PLATED STAMPED CONTACTS (3A)

"07" MALE WITH FULL GOLD

PLATED MACHINED CONTACTS (5A)

"08" FEMALE WITH FULL GOLD

PLATED MACHINED CONTACTS (5A)

2. NO. OF CONTACTS:

09, 15, 25, 37, 50

3. SHELL FINISH:

"T" TIN PLATED

4. INSULATOR COLOR:

"W" WHITE (STANDARD)

"B" BLACK

"U" BLUE

5. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

OTHERS: K, K3, K6, J, JT, J4
