5214-37CS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5214-37CS

5214-37CS: DescriptionD Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size240KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

5214-37CS Overview

D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug

5214-37CS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.607 inch
body length	2.732 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5214
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Termination type	IDC
Total number of contacts	37

Preview

Download Datasheet

View All

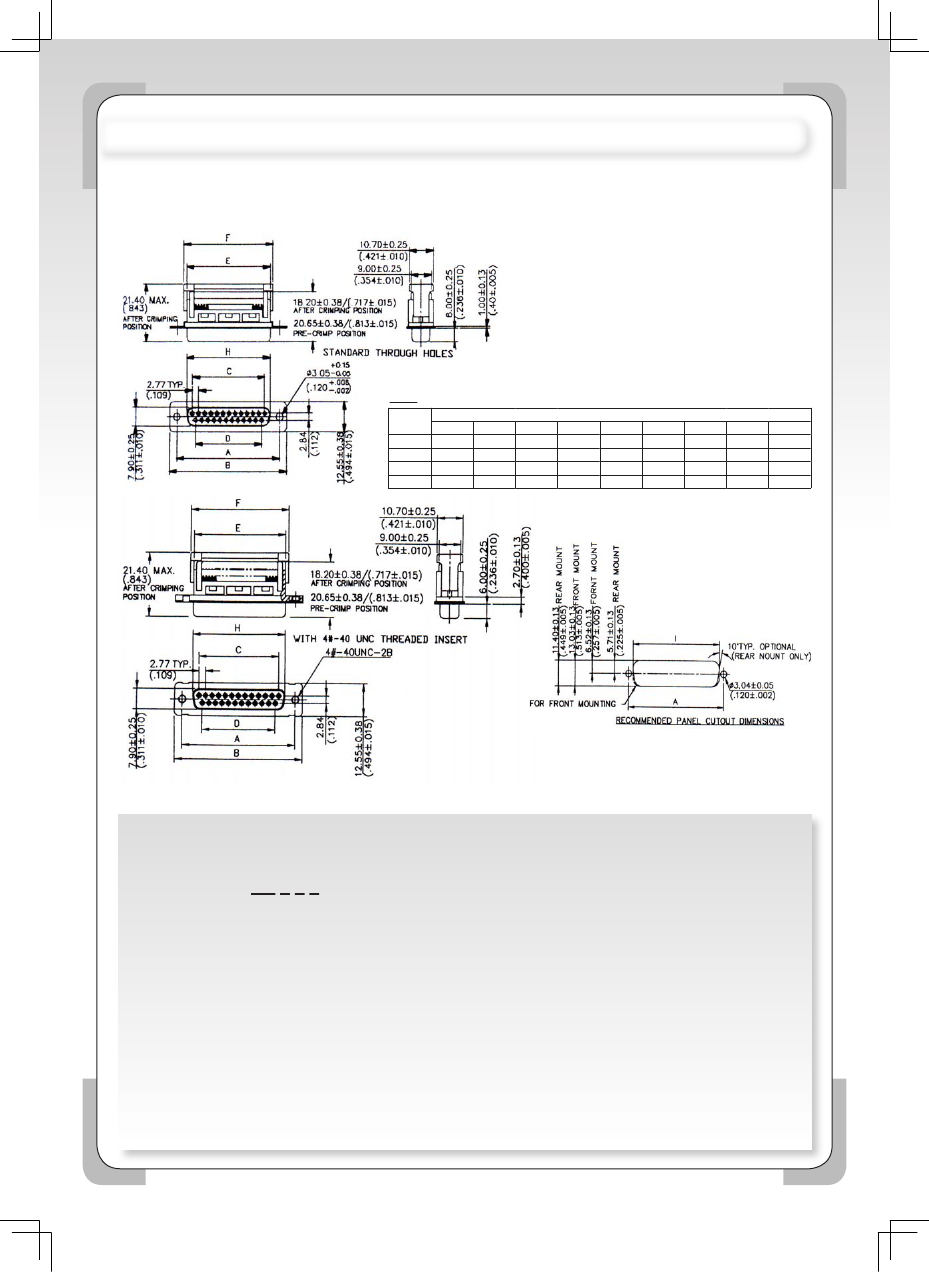

D-SUB. FEMALE CONNECTOR WITH METAL SHELL I.D.C. TYPE

SPECIFICATIONS

Current Rating:

Contact Resistance:

15mΩ Max.

Insulation Resistance:

1000MΩ Min.

Dielectric Wistanding:

500V AC

Operating Temperature:

-55ºc to +105ºc

MATERIALS

Insulator:

PBT, UL94V-0 Rated

Contact:

Phosphor Bronze

*RoHS & REACH compliant.

5214

Dimensions(mm)

No. of

Contacts

A ±0.13 B ±0.25 C ±0.13 D ±0.13 E ±0.25 F ±0.25 H ±0.25 I ±0.13

24.99

30.80

11.08

8.31

16.10

18.60

16.33

20.47

33.32

39.10

33.24

16.62

24.00

26.60

24.66

42.52

47.04

53.09

19.39

30.47

38.14

40.90

38.38

28.80

63.50

69.40

11.08

47.09

54.60

57.10

54.84

20.47

J ±0.13

22.20

30.53

44.27

60.73

ORDERING INFORMATION:

P/N 5 2 1 4 - x x x x x

1 234

1. NO. OF CONTACTS:

09, 15, 25, 37

2. HOUSING CONSTRUCTION TYPE:

"C" STANDARD THROUGH HOLES

"D" UNC4-40 THREADED INSERTS

3. STRAIN RELIEF TYPE:

"P" PLASTIC STRAIN RELIEF

"S" STEEL STRAIN RELIEF

4. HOUSING COLOR:

" " BLUE(STANDARD)

"B" BLACK

C0026

5214-37CS Related Products

	5214-37CS	5214-37CP	5214-37DP	5214-37CPB	5214-37DS	5214-37CSB	5214-37DPB	5214-37DSB
Description	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Type Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch	0.494 inch
subject depth	0.607 inch	0.607 inch	0.607 inch	0.607 inch	0.607 inch	0.607 inch	0.607 inch	0.607 inch
body length	2.732 inch	2.732 inch	2.732 inch	2.732 inch	2.732 inch	2.732 inch	2.732 inch	2.732 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ	25 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	BLUE	BLUE	BLACK	BLUE	BLACK	BLACK	BLACK
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5214	5214	5214	5214	5214	5214	5214	5214
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	37	37	37	37	37	37	37	37
