MJTDHT-88BB93: DescriptionTelecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size202KB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJTDHT-88BB93 Overview

Telecom and Datacom Connector, 8 Contact(s), Male, Straight, Solder Terminal, Locking, Jack

MJTDHT-88BB93 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compli
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.657 inch
subject depth	0.65 inch
body length	0.632 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	CSA, UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRASS
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

TOP ENTRY MODULAR PCB JACK WITH LED 8P PROFILE=16.50MM

(FULLY SHIELDED)

SPECIFICATIONS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

MATERIALS

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

Shield:

Brass plating Nickel Alloy

All materials must be RoHS compliant.

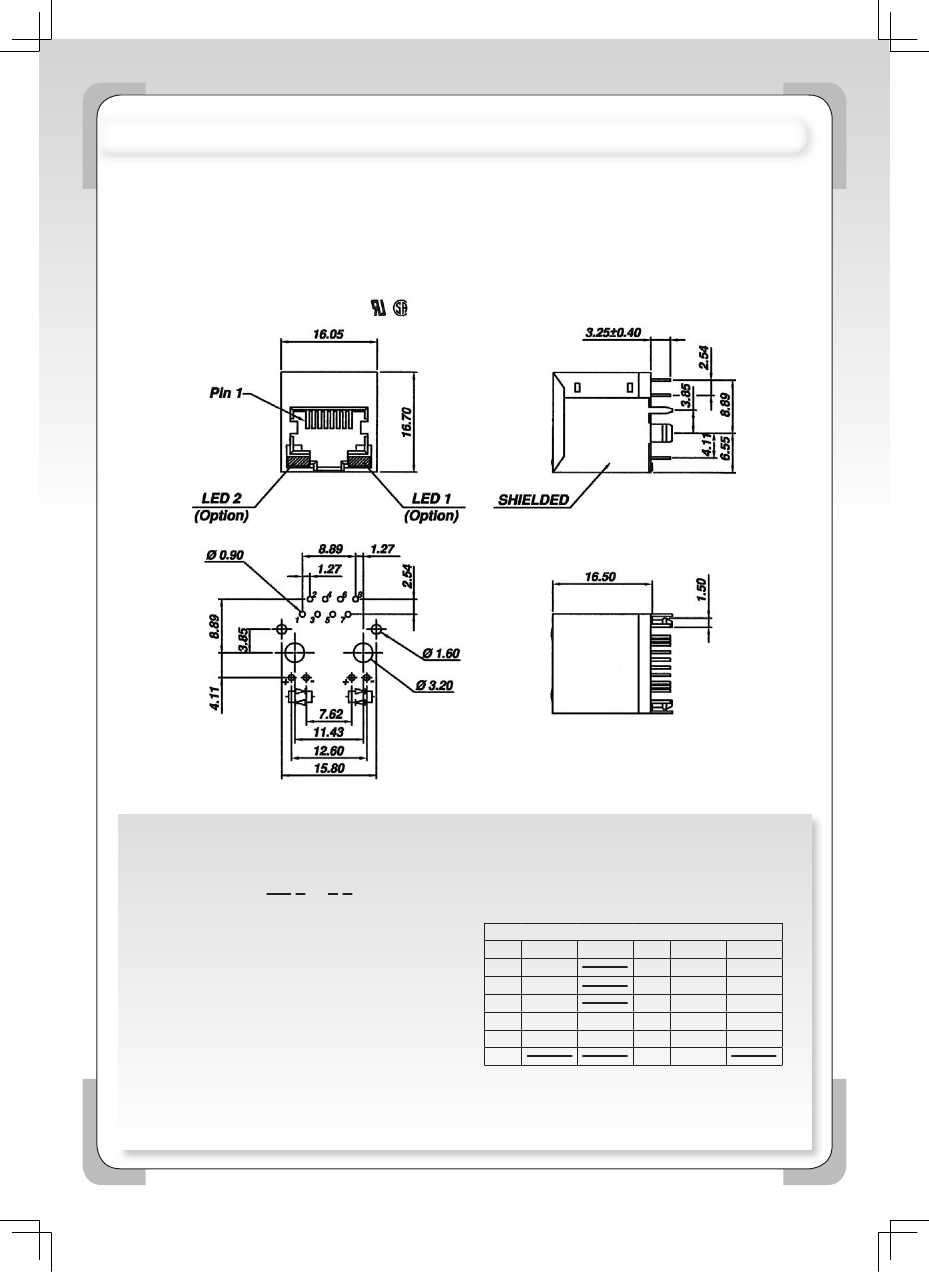

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J T D - 8 8 x B x x

1 2 34

1. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

2. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

3. CODE OF LED1 DESIGNATION:

N, Y, R, X, 3, 4, 5, 6, 9, 0, 8

4. CODE OF LED2 DESIGNATION:

N, Y, R, X, 3, 4, 5, 6, 9, 0, 8

NOTE: P/N MJTDHT-88xBxx for High Temp. Version

LED Designation:

Code Forward Reverse Code Forward

N

Green

4

Yellow

Y

Yellow

5

Green

R

Red

6

Yellow

1

Green Orange

9

Red

3

Green

Red

0

Red

X

8

Orange

Reverse

Red

Yellow

Green

Yellow

J397
