HV731JTTDD1004J datasheet, PDF

Datasheet> All Categories > Passive components> HV731JTTDD1004J

HV731JTTDD1004J: DescriptionRESISTOR, 0.125 W, 1 %, 100 ppm, 1000000 ohm, SURFACE MOUNT, 0805; CategoryPassive components; File Size85KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

HV731JTTDD1004J Overview

RESISTOR, 0.125 W, 1 %, 100 ppm, 1000000 ohm, SURFACE MOUNT, 0805

HV731JTTDD1004J Parametric

Parameter Name	Attribute value
Maximum operating temperature	155 Cel
Minimum operating temperature	-55 Cel
Processing package description	Chip, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
packaging shape	Rectangular PACKAGE
Terminal shape	WRAPAROUND
terminal coating	MATTE Tin OVER Nickel
Installation features	surface mount
Rated temperature	70 Cel
Manufacturer Series	HV73
size code	0805
deviation	1 %
resistance	1.00E6 ohm
Resistor type	resistance
Operating Voltage	400 V
Temperature Coefficient	100
Rated power P	0.1250 W

Preview

Download Datasheet

View All

HV73

resistors

flat chip resistors for high voltage

features

•

Superior to RK73 series in maximum working voltage

•

Suitable for flow and reflow solderings

•

Marking: White three-digit on black protective coat

1J: no marking

•

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

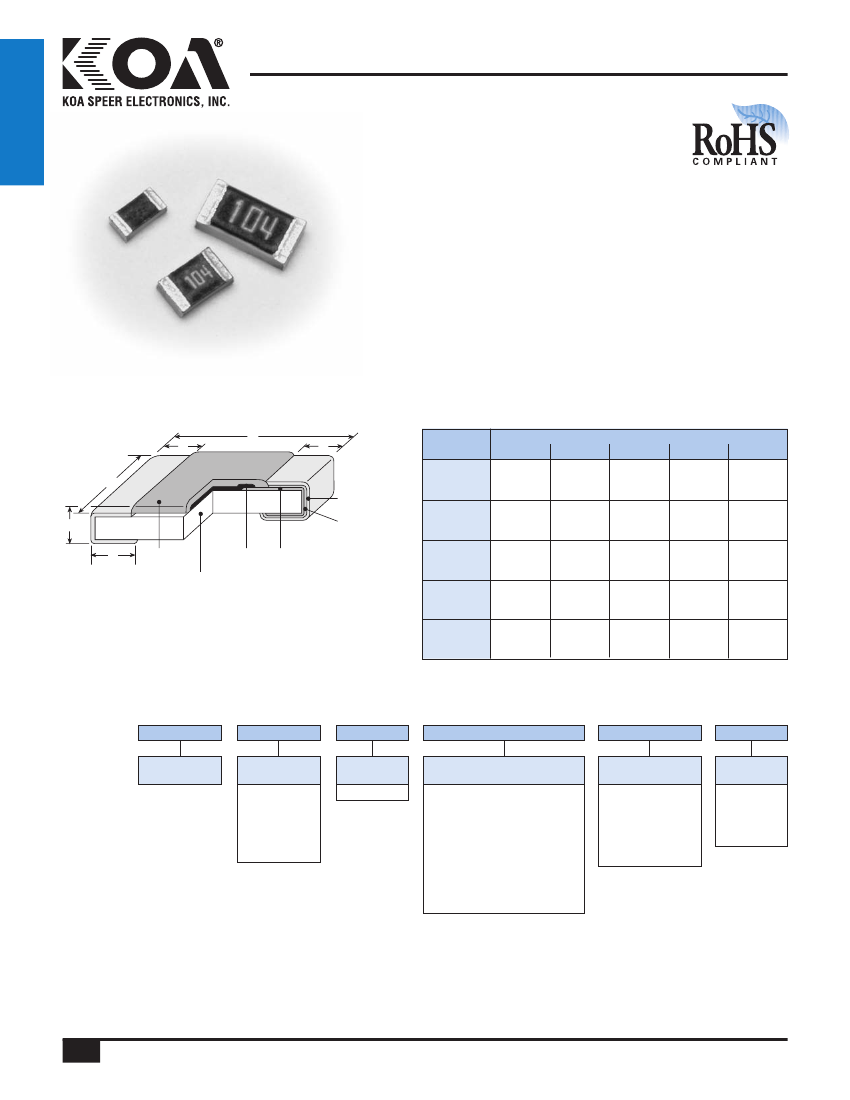

dimensions and construction

Type

(Inch Size Code)

Dimensions

inches

(mm)

Solder

Plating

Protective

Coating

Resistive Inner

Film

Electrode

Plating

(0603)

(0805)

(1206)

(2010)

(2512)

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1)

(0.3±0.1) (0.45±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.126±.008 .063±.008

(1.6±0.2)

(3.2±0.2)

.197±.008 .098±.008

(2.5±0.2)

(5.0±0.2)

.248±.008 .122±.008

(3.1±0.2)

(6.3±0.2)

.02±.012

(0.5±0.3)

.02±.012

(0.5±0.3)

.02±.012

(0.5±0.3)

.012

(0.3

.016

(0.4

.016

+.008

-.004

+0.2

)

-0.1

+.008

-.004

+0.2

)

-0.1

.02±.004

(0.5±0.1)

.024±.004

(0.6±0.1)

.024±.004

(0.6±0.1)

.024±.004

(0.6±0.1)

Ceramic

Substrate

+.008

-.004

+0.2

(0.4

-0.1

)

.016

+.008

-.004

(0.4

+0.2

)

-0.1

ordering information

New Part #

HV73

Type

Size

1J: 0.1W

2A: 0.125W

2B: 0.25W

2H: 0.5W

3A: 1W

Termination

Material

T: Sn

Packaging

TD: 0603, 0805, 1206:

7" 2mm pitch punched paper

TDD: 0603, 0805, 1206:

10" paper tape

TE: 2010 & 2512:

7" punched plastic

TED: 2010 & 2512:

10" punched plastic

For further information on packaging,

please refer to Appendix A

1004

Nominal

Resistance

±0.5%, ±1%:

3 significant figures

+ 1 multiplier

±2%, ±5%:

2 significant figures

+ 1 multiplier

Resistance

Tolerance

D: ±0.5%

F: ±1%

G: ±2%

J: ±5%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

12/16/08

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
