SM53204407UF6UU
March 30, 2000
16MByte (4M x 32) Synchronous DRAM Module - 4Mx4 based
100-pin DIMM, Unbuffered
Features
Standard
Configuration
Cycle Time
CAS# Latency
Burst Length
Burst Type
No. of Internal
Banks per SDRAM
• Operating Voltage
• Refresh
• Device Physicals
•
•
•
•
•
•
•
:
:
:
:
:
:
:
:
:
:
JEDEC
Non-ECC
10/12/15ns
1, 2 & 3 / 2 & 3
1, 2, 4, 8 or Page
Linear/Interleave
2
3.3V
2K/4K
400mil TSOP
•
•
•
•
Lead Finish
:
Gold
Length x Height
:
90.19mm x 29.21mm
No. of sides
:
Double-sided
Mating Connector (Examples)
Vertical
:
AMP-390070-6 (3.3V, Gold)

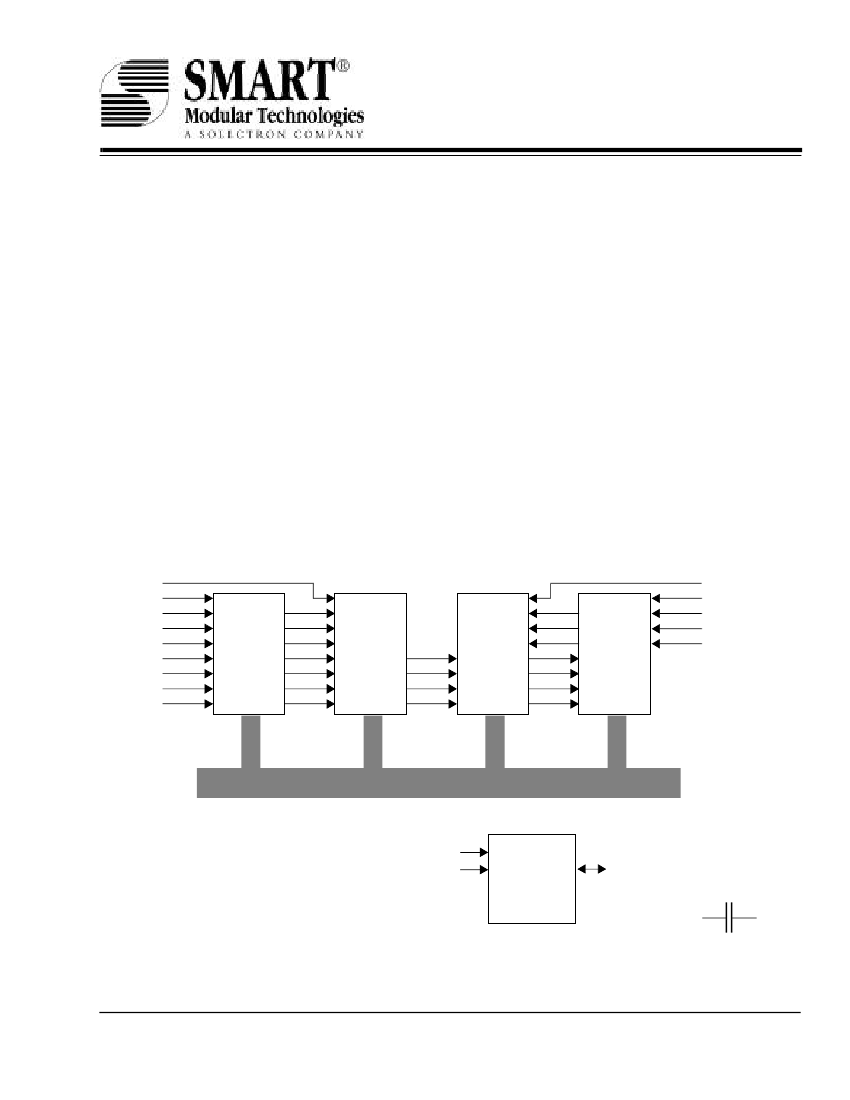

Functional Diagram
DQMB1
DQMB0
CS0#
CLK0
CKE0
RAS#
CAS#
WE#
BA0
4Mx8
Block
4Mx8
Block
4Mx8
Block
4Mx8
Block
DQMB2
DQMB3
CS2#
CLK1
CKE1
DQ0~DQ7
DQ8~DQ15
DQ16~DQ23
DQ24~DQ31
DQ0~DQ31
SA0~SA2
Notes :
SCL
1.
A0~A9 and A10/AP to all SDRAMs.
2.
Data and CLKs are terminated using 10Ω
series resistors.
3.
Each 4Mx8 Block comprises of two 4Mx4 SDRAM.
A0~A2
SCL
SDA
SERIAL PD
EEPROM
SDA
V
CC
V
SS
Decoupling capacitors
to all devices.
( All specifications of this device are subject to change without notice.)
C
orporate Headquarters:
P. O. Box 1757, Fremont, CA 94538, USA • Tel:(510) 623-1231 • Fax:(510) 623-1434 • E-mail: info@smartm.com
Europe:
36 Linford Forum, Rockingham Dr., Linford Wood, Milton Keynes, MK14 6LY, UK • Tel: +44-1908 234030 • Fax: +44-1908-234191
Asia/Pacific:
Plot 18, Lrg Jelawat 4, Kawasan Perindustrian Seberang Jaya 13700, Prai, Penang, Malaysia • Tel: +604-3992909 • Fax: +604-3992903
2
SM53204407UF6UU
March 30, 2000
Pin Name
A0~A10
A0~A9
BA0
DQ0~DQ31
CLK0, CLK1
RAS#
CAS#
CKE0, CKE1
DQMB0~DQMB3
Row Addresses
Column Addresses
Bank Select Address
Data Inputs/Outputs
Clock Inputs
Row Address Strobe
Column Address Strobe
Clock Enable
DQ Mask Enables
CS0#, CS2#
WE#
SA0~SA2
SDA
SCL
V
CC
V
SS
NC
Chip Selects
Write Enable
Decode Inputs
Serial Data Input/Output
Serial Clock
Power Supply
Ground
No Connection
Pin
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Pin
Designation
V
SS
DQ0
DQ1
DQ2
DQ3
V
CC
DQ4
DQ5
DQ6
DQ7
DQMB0
V
SS
A0
A2
A4
A6
A8
A10/AP(Note*)
NC
NC
V
CC
NC
NC
NC
CLK0
Pin
No.
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Pin
Designation
V
SS
CKE0
WE#
CS0#
CS2#
V
CC
NC
NC
NC
NC
V
SS
DQMB2
DQ16
DQ17
DQ18
DQ19
V
CC
DQ20
DQ21
DQ22
DQ23
V
SS
SDA
SCL
V
CC
Pin
No.
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
Pin
Designation
V
SS
DQ8
DQ9
DQ10
DQ11
V
DD
DQ12
DQ13
DQ14
DQ15
DQMB1
V
SS
A1
A3
A5
A7
A9
BA0
NC
NC
V
CC
RAS#
CAS#
NC
CLK1
Pin
No.
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
Pin
Designation
V
SS
CKE1
NC
NC
NC
V
CC
NC
NC
NC
NC
V
SS
DQMB3
DQ24
DQ25
DQ26
DQ27
V
CC
DQ28
DQ29
DQ30
DQ31
V
SS
SA0
SA1
SA2
Note* : A10/AP initiates auto-precharge.
