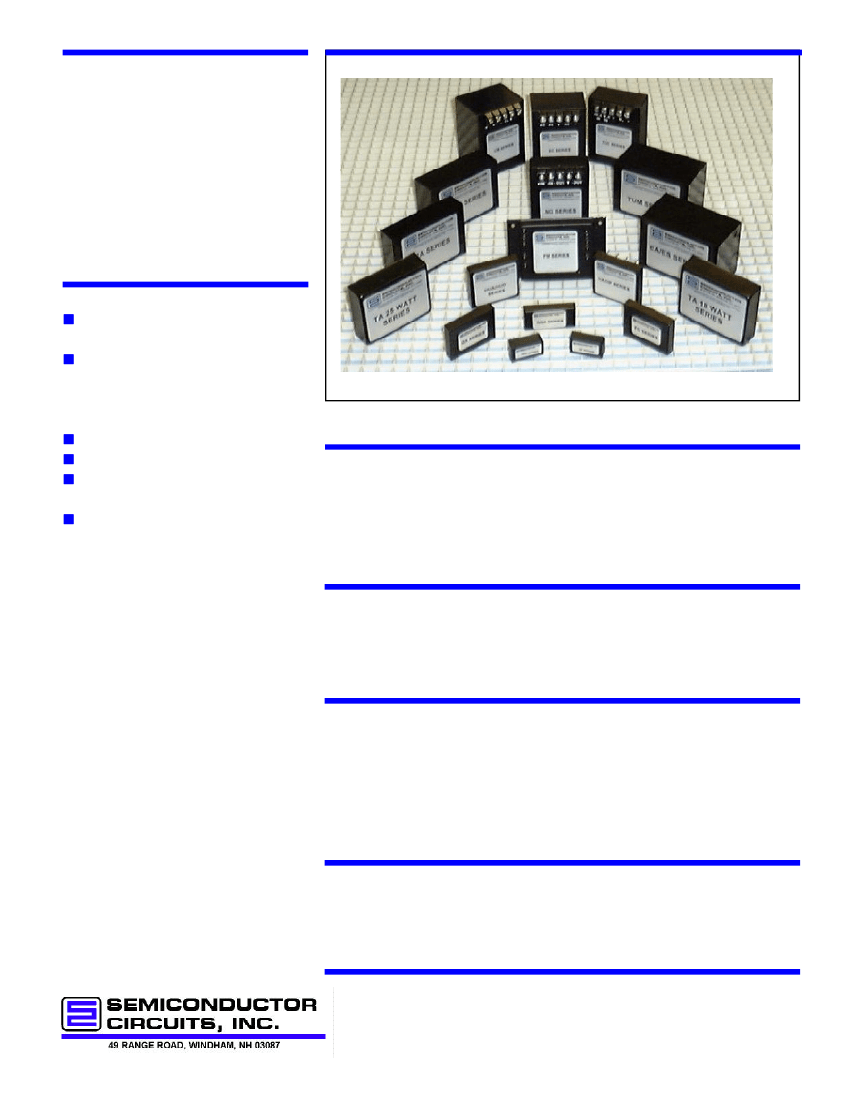

DC/DC
10 Watts
Single/Dual
Outputs
SC10A Series
Industry standard form
factor 2 x 1x 0.40
Wide input voltage range
9-18 Vdc
18-36 Vdc
36-75 Vdc
Remote shutdown
400kHz switching frequency
Continuous short circuit
protection
Six-sided Shielding
Specifications
INPUT
Voltage Range
9-18 Vdc
18-36 Vdc
36-75 Vdc
To Nominal Input Current -
External Fuse Required
Optional
Reverse Polarity Protected
T
he SC10A series of cost
sensitive single and dual output
10 watt DC/DC converters are
specifically designed for critical appli-
cations requiring a compact, low profile
case.
These high performance 10 watt
converters offer a high switching
frequency topology, 1500 Vdc isolation,
and efficiences to 85%.
Eighteen models available: three input
voltage ranges of 9-18 Vdc, 18-36 Vdc,
and 36-75 Vdc provide regulated
outputs of 3.3, 5, 12, 15 and ±12 and
±15 Vdc.
Remote On/Off Control
OUTPUT
Voltage Tolerance
Ripple and Noise
Short Circuit Protection
Temperature Coefficient
± 1%
50mV pk-pk (typ)
Continuous Power Cycle
0.02% / °C
GENERAL
Regulation:
Line
Load
Switching Frequency
Efficiency
I/O Isolation
0.25%
0.5% (singles)
1.0% (duals)
400 kHz (±10%)
80-85% (typ)
1500 Vdc
Applications
These units are ideally suited for
telecommunications, distributed power
systems, automatic test equipment,
medical and process control.
ENVIRONMENTAL
Operating Temperature Range
Max Baseplate Temperature
Storage Temperature Range
Cooling
-40°C to +60°C
105°C
-55°C to +105°C
Free-air Convection
All specifications are typical at nominal line and full load at 25°C unless otherwise noted and
are subject to change without notice.
SC10A Series Ordering Information
Input Voltage
Range
9-18 Vdc
9-18 Vdc
9-18 Vdc
9-18 Vdc
9-18 Vdc
9-18 Vdc
9-18 Vdc
18-36 Vdc
18-36 Vdc
18-36 Vdc
18-36 Vdc
18-36 Vdc
18-36 Vdc
18-36 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
36-75 Vdc
Output
Voltage
3.3 Vdc
5 Vdc
12 Vdc
15 Vdc
±5 Vdc
±12 Vdc
±15 Vdc
3.3 Vdc
5 Vdc
12 Vdc
15 Vdc
±5 Vdc
±12 Vdc
±15 Vdc
3.3 Vdc
5 Vdc
12 Vdc
15 Vdc
±5 Vdc
±12 Vdc
±15Vdc
Output
Current
3000mA
3000 mA
1250mA
1000mA
±1500mA
±625mA
±500mA
3000mA
3000mA
1250mA
1000mA
±1500mA
±625mA
±500mA
3000mA
3000mA
1250mA
1000mA
±1500mA
±625mA
±500mA
Model
Number
SC10A17-300-12
SC10A11-300-12
SC10A12-125-12
SC10A13-100-12
SC10A21-300-12
SC10A22-125-12
SC10A23-100-12
SC10A17-300-24
SC10A11-300-24
SC10A12-125-24
SC10A13-100-24
SC10A21-300-24
SC10A22-125-24
SC10A23-100-24
SC10A17-300-48
SC10A11-300-48
SC10A12-125-48
SC10A13-100-48
SC10A21-300-48
SC10A22-125-48
SC10A23-100-48
.40
(10.16)
Dimensions and Connections
.040 DIA. TYP.
(1.01)
3
.15 MIN.
(3.81)
1.00 .200
(25.40) (5.08)
.40
(10.16)
1
2
6
.60
(15.24)
.800
(20.32)
2.00
(50.80)
BOTTOM VIEW
ALL DIMENSIONS ARE IN INCHES (mm)
4
.400
(10.16)
.400
(10.16)
5
.10
(2.54)
NOTES:
1. Ripple measured with a 3.3 mf tantalum capacitor
across each output.
2. Minimum load 10% of full load. Load regulation
from full load to minimum load.
3. The SC10A series requires an external filter
capacitor across the input valued at 2.2µF @
100Vdc such as ITW/Paktron part# 225k100RA4 or
equiv.
4. Case connected to pin #1 on -48 models. Case
connected to pin #2 on -12 and -24 models
PIN CONNECTIONS
Single Output
1. +Input
2. -Input
3. + Vdc Out
4. No Pin
5. Output Common
6. Remote On/Off
PIN CONNECTIONS
Dual Outputs
1. +Input
2. -Input
3. + Vdc Out
4. Output Common
5. - Vdc Out
6. Remote On/Off
For Optional Remote On/Off add suffix “E”
(i.e. SC10A11-300-48E)
Remote ON/Off Control (pin 6) common referenced
to - Input (pin 2).
On greater than 2.5 Vdc or open circuit
Off less than 0.8 Vdc
06/09/2000
All specifications are typical at nominal line and full load at 25°C unless otherwise noted and
are subject to change without notice.
49 Range Road
Windham, NH 03087
(603) 893-2330
FAX (603) 893-6280
