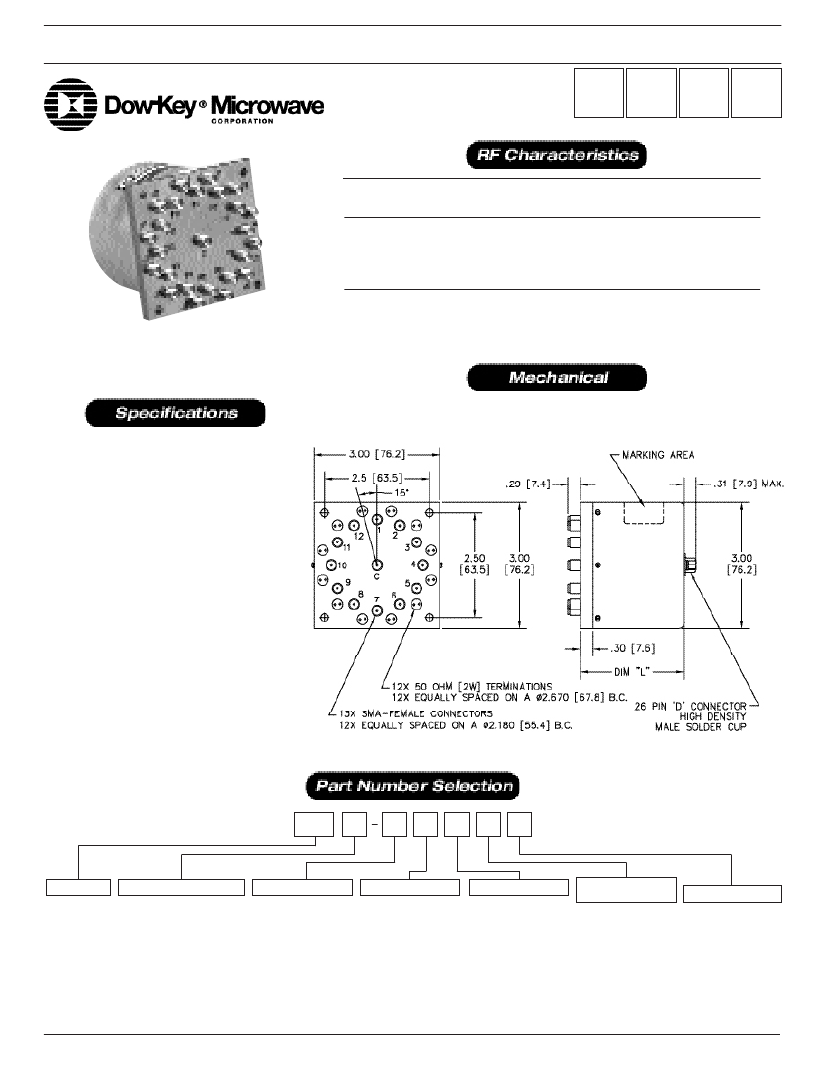

5C1 Series SP12T Latching
Commercial
SMA
C
Military
M
Avionics
A
Space
S
Frequency
GHz
DC-4
4-8
8-12.4
12.4-18
VSWR
(max)
1.20
1.40
1.50
1.80
Isolation
dB (min)
70
65
60
60
Ins. Loss RF Power
dB (max) Watts (CW)
0.20
0.40
0.60
0.80
100
70
60
50
5C1 Series Latching Self Cutoff, SMA
with Optional SMA’s
Operating Voltage:
(across temperature range)
12 Vdc (11-14 Vdc)
28 Vdc (24-32 Vdc)
Coil Current (max @ nom.Vdc & 20°C):
12 Vdc 310 mA
28 Vdc 130 mA
Switching Time:
15 mS maximum
Operating Temperature:
-25ºC to +65ºC (Standard)
-55ºC to +85ºC (Extended
“T” Option)
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
50G, 1/2 Sine, 11 mS
Nominal Weight:
7.0 oz., (200g.)
For Electrical Schematic
see page # 3-21
5C1
J
5
2
08
02
A
Family
Special Options
Actuator
Coil Voltage
Connectors
Indicators/
Terminations
Circuit Option
5B1 = SP11T
5C1 = SP12T
J = 15 or 26* Pin ‘D’
Connector
S = Epoxy Seal
T = -55OC to +85OC
4 = Latcing Self Cutoff
2 = 12 Vdc
3 = 28 Vdc
8 = 24 Vdc
9 = 15 Vdc
08 = SMA Female
*26-Pin ‘D’ Connector is 3 row high density
02 = No Indicators
52 = SPST Indicators
08 = No Indicators,
SMA Female
58 = Indicators,
SMA Female
03 = No Indicators
2W Terminations
53 = SPST Indicators
2W Terminations
A = TTL High
E = BCD Decoding
N = CANBus
T = Ethernet
ISO 9001 Certified
