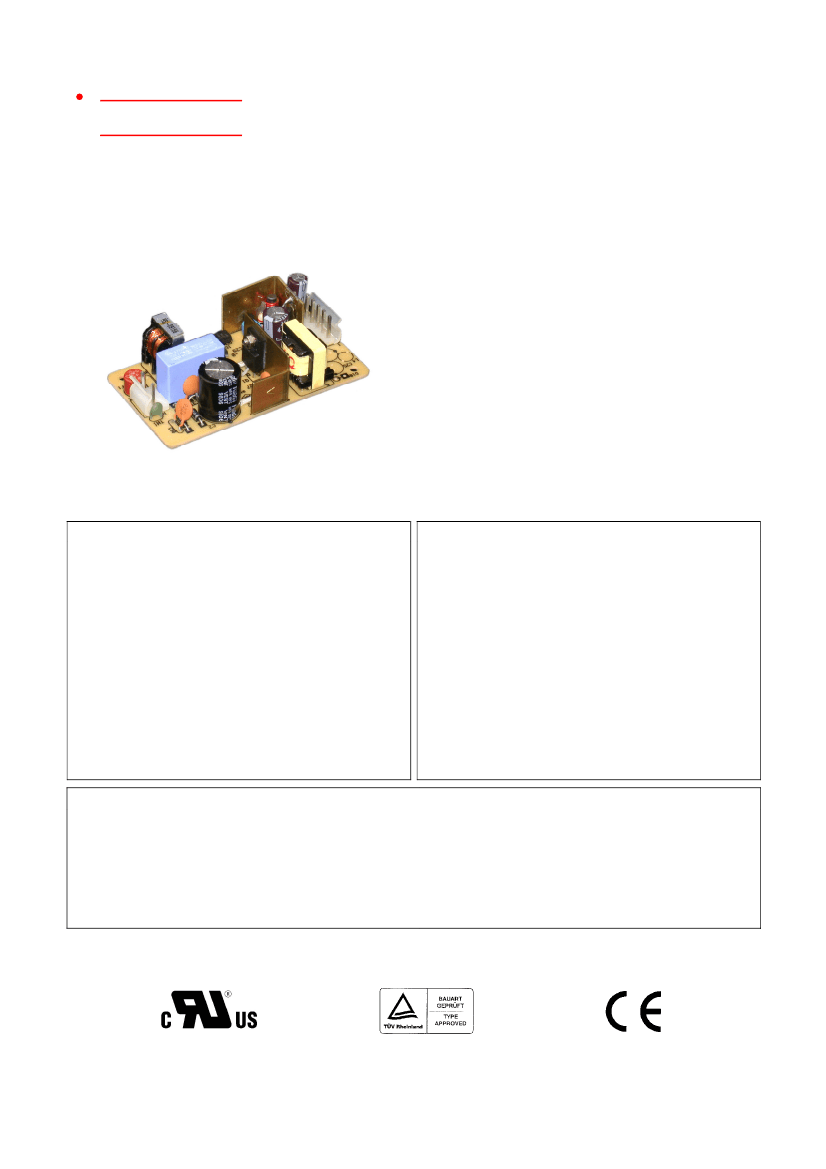

UNIVERSAL INPUT AC-DC PCB OPEN FRAME SINGLE &
DUAL OUTPUT 13-15 WATTS INTERNAL SWITCHING
POWER SUPPLIES HVI13 SERIES
FEATURES:
ACCOMMODATE UNIVERSAL AC SOURCES
LOW-PROFILE & COMPACT PCB FORMAT
MEET UNIVERSAL SAFETY STANDARDS
EMI MEET CISPR PUB. 22 & FCC CLASS B
CE MARKING COMPLIANCE
SPECIFICATION
INPUT SPECIFICATION
Input Voltage:
Range typ. 90-264Vac.
Rating 100 to 240Vac.
Input Connector:
Molex # 5045.
Input Frequency:
47-63Hz
Inrush Current:
Typ. 26.0A @230Vac.
Input Current:
Typ. 0.30A @115Vac, 0.15A@230Vac.
Dielectric Withstand:
Meet IEC 60950-1.
EMI:
Meet CISPR PUB. 22 & FCC Class B.
Hold-up Time:
Typ. 10mS @115Vac, 40mS @230Vac.
Earth Leakage:
Typ. 0.25mA @230Vac.
OUTPUT SPECIFICATION
Output Voltage:
See Ratings Chart.
Output Current:
See Ratings Chart.
Output Wattage:
Typ. 13-15watts.
Output Connector:
Molex # 5045.
Line Regulation:
Typ. 0.1%.
Load Regulation:
Main VO1 typ. ±2.0%.
Aux. VO2 typ. ±5.0% (stacked on).
Noise & Ripple:
Typ. 1.0% peak to peak.
OVP:
Built-in at VO1 (Zener diode).
Adjustability:
Available at VO1.
Overload Protection (OLP):
Fully protected against output overload and short circuit.
OLP set at about 125-150% rating output wattage.
Consult the factory for OLP setting.
GENERAL SPECIFICATION
Efficiency:
Typ. 70-80%.
Switching Frequency:
40 KHz.
Circuit Topology:
Fixed Frequency Flyback Circuit.
Transient Response:
Output voltage returns in
less than 3mS following
a 25% load change.
Safety Standard:
IEC 60950-1/UL 60950-1 Class II.
Operating Temperature:
0 to +50°C.
Storage Temperature:
-20 to +85°C.
Temperature Coefficient:
Typ. 0.04%/°C.
Cooling:
Free air convection.
Construction:
PCB open frame format.
Power Density:
2.12 Watts / Cubic Inch.
Note: Due to requests in market and advances in technology, specifications subject to change without notification.
In application
-5-
OUTPUT VOLTAGE / CURRENT RATINGS CHART
SINGLE OUTPUT
MAIN VO1
MODEL NO.
HVI13-S033030
HVI13-S050028
HVI13-S120012
HVI13-S150010
HVI13-S240006
HVI13-S480003
Typ.
3.0A
2.8A
1.2A
1.0A
0.6A
0.3A
Volt
3.3V
5.0V
12.0V
15.0V
24.0V
48.0V
Peak
3.7A
3.4A
1.5A
1.2A
0.8A
0.4A
MODEL NO.
HVI13-D033I
HVI13-D033K
HVI13-D033M
HVI13-D050I
HVI13-D050K
HVI13-D050M
DUAL OUTPUT
MAIN VO1
Typ.
2.5A
2.5A
2.5A
2.0A
2.0A
2.0A
Volt.
+3.3V
+3.3V
+3.3V
+5.0V
+5.0V
+5.0V
Max.
3.5A
3.5A
3.5A
2.5A
2.5A
2.5A
AUX. VO2
†
Typ.
0.4A
0.3A
0.2A
0.4A
0.3A
0.2A
Volt.
+12V
+15V
+24V
+12V
+15V
+24V
Max.
0.5A
0.4A
0.2A
0.5A
0.4A
0.2A
Symbol:
" " OVP built-in. "†" Stacked on main output.
Remark:
(1) At least 20% of typical main output current is required to maintain stated regulation.
(2) Peak output, less than 60 Sec. with 10% duty cycle.
(3) Max. current can't be drawn from all output at the same time.

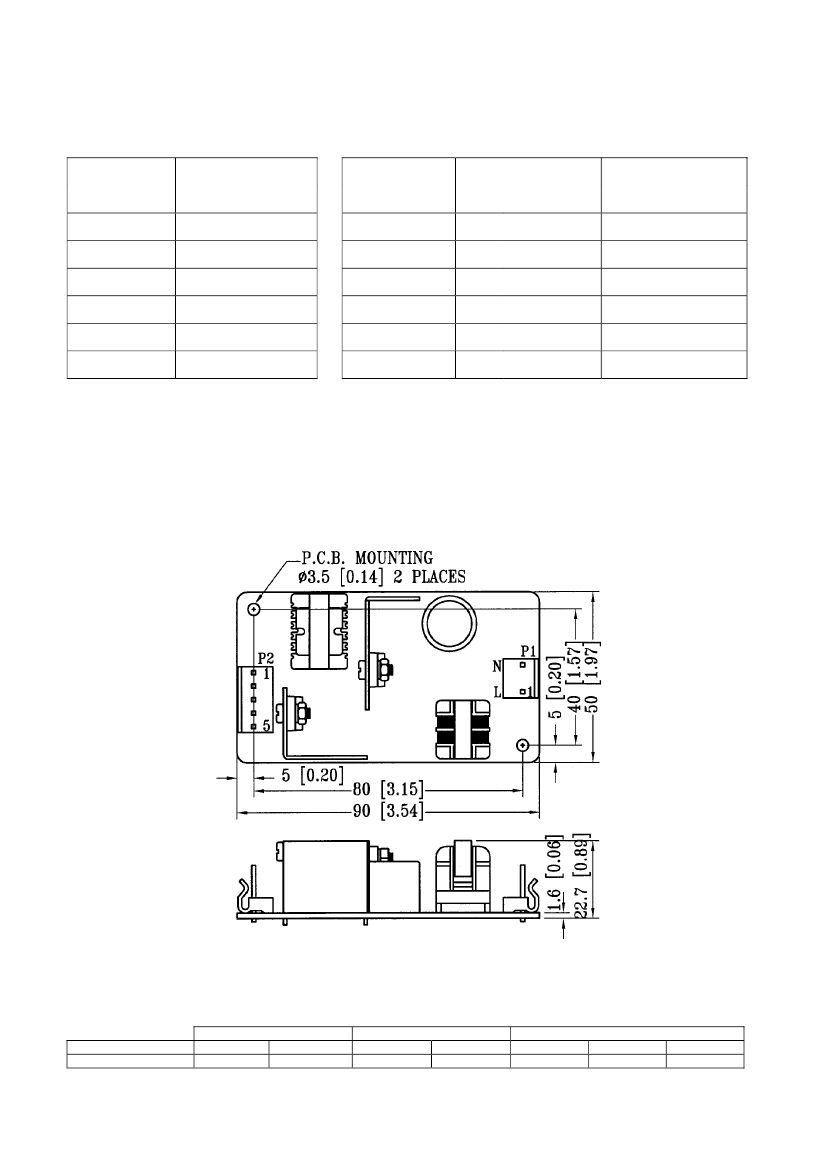

MECHANICAL DIMENSIONS:
MM [INCHES]
WEIGHT:
62.0g (2.19 Oz.)
INPUT & OUTPUT CONNECTORS PIN ASSIGNMENT
AC INPUT
ASSIGNMENT
AC-LINE
AC-NEUTRAL
P1-L
P1-N
CONNECTOR & PIN #
Mating connector:
Molex 5051series or equivalent.
SINGLE OUTPUT
+VO1
DC-COM
P2-4,5
P2-1,2
VO1
P2-4,5
DUAL OUTPUT
VO2
P2-3
DC-COM
P2-1,2
-6-
