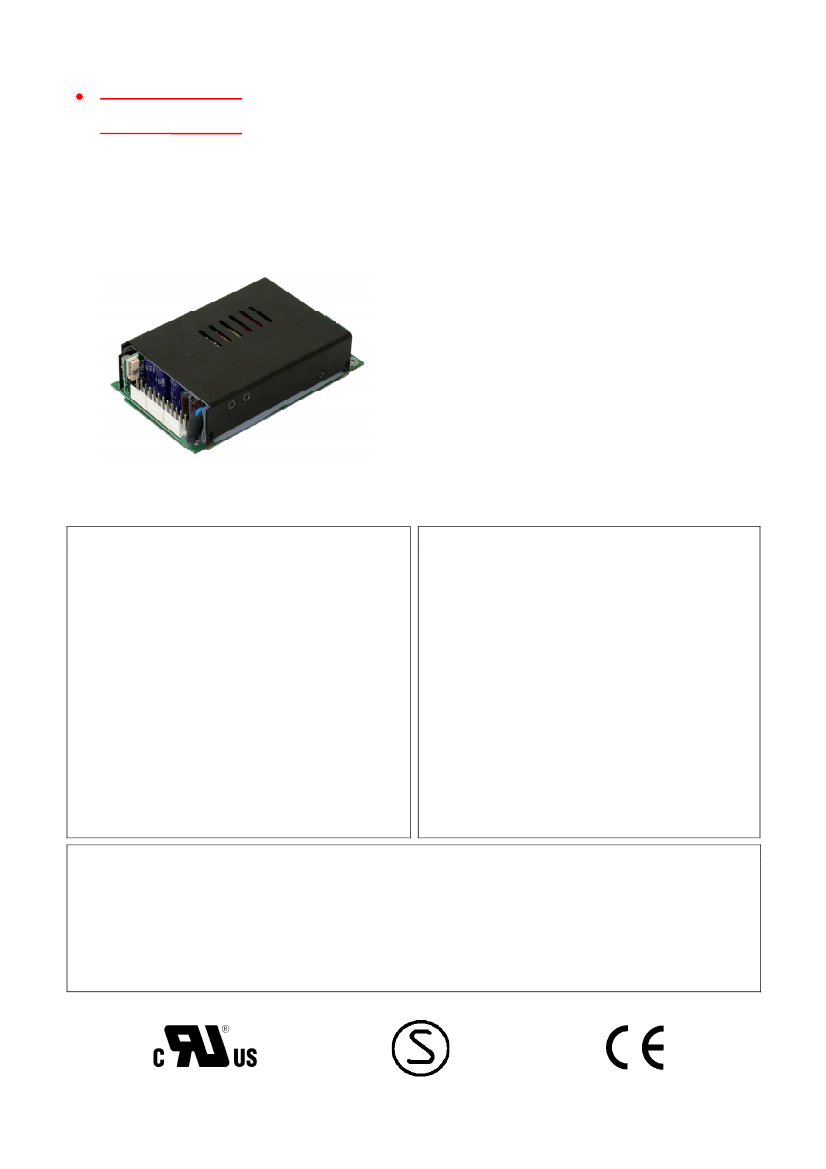

H HiTRON

UNIVERSAL INPUT HARMONIC CORRECTION

AC-DC OPEN FRAME SINGLE & MULTI-OUTPUT 100 WATTS

INTERNAL SWITCHING POWER SUPPLIES HVP101 SERIES

FEATURES:

ACCOMMODATE UNIVERSAL AC SOURCES

PCB VERSION FORMAT

MEET IEC 61000-3-2 HARMONIC

CORRECTION

MEET UNIVERSAL SAFETY STANDARDS

EMI MEET CISPR PUB. 22 & FCC CLASS B

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Typ. 90-264Vac with PFC.

Input Connector:

V-M connector & GND tag.

Input Frequency:

47-63Hz.

Inrush Current:

Typ. 29A@230Vac.

Input Current:

Typ. 1.3A @115Vac, 0.65A @230Vac.

Dielectric Withstand:

Meet IEC 60950-1.

EMI:

Meet CISPR EN 55022 & FCC Class B.

Hold-up Time:

Typ. 18-25mS @ 115Vac & 230Vac.

Power Factor & Harmonic Correction:

Meet IEC 61000-3-2, PF typ. 0.97-0.99 @ full load.

Power OK:

Installed in VO1 & VO2.

Over Temperature Protection (OTP):

By NTC at quad

output only.

Earth Leakage:

Less than 0.75mA @230Vac.

OUTPUT SPECIFICATION

Output Voltage:

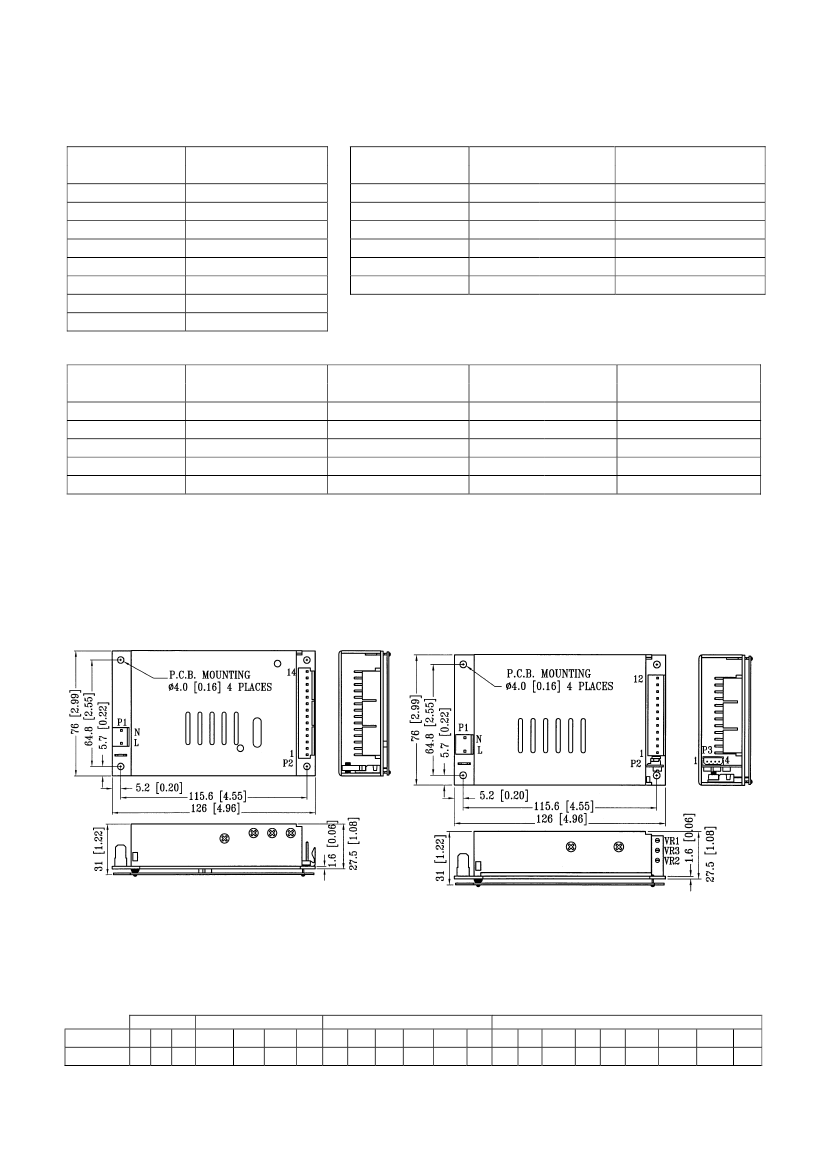

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Connector:

V-M connector.

Output Wattage:

Typ. 100 Watts.

Line Regulation:

Typ. 0.1%.

Load Regulation:

Main VO1 typ. ±1-2%.

Aux. VO2 typ. ±1-2% (Magnetic Amp.).

Aux. VO3 typ. ±1-2% (Magnetic Amp.).

Aux. VO4 typ. ±2-3% (P.R.).

Noise & Ripple:

Typ. 1% peak to peak.

OVP:

Built-in at main VO1 & Aux.VO2 & VO3 (latch).

Remote Sensing:

Available at VO1 & VO2.

Adjustability:

Available at VO1,VO2 & VO3.

Over Current Protection:

Built-in at all output.

Overload Protection (OLP):

Fully protected against output overload and short circuit.

OLP set at about 125-150% rating output wattage.

Consult the factory for OLP setting.

Operating Temperature:

0 to +50°C under forced air

flow for full load.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

0.04% /°C.

Cooling:

At least 30 cfm direct forward air flow is

required to achieve full rating power.

Construction:

PCB format.

Power Density:

5.6 Watts / Cubic Inch.

GENERAL SPECIFICATION

Efficiency:

Typ. 75-80%.

Switching Frequency:

PFC ckt. 75K Hz.

PWM ckt. 170-180K Hz.

Circuit Topology:

Fixed frequency forward circuit.

Transient Response:

Output voltage returns in

less than 0.3mS following

a 25% load change.

Safety Standard:

IEC 60950-1/UL 60950-1 Class I.

Note: Due to requests in market and advances in technology, specifications subject to change without notification.
