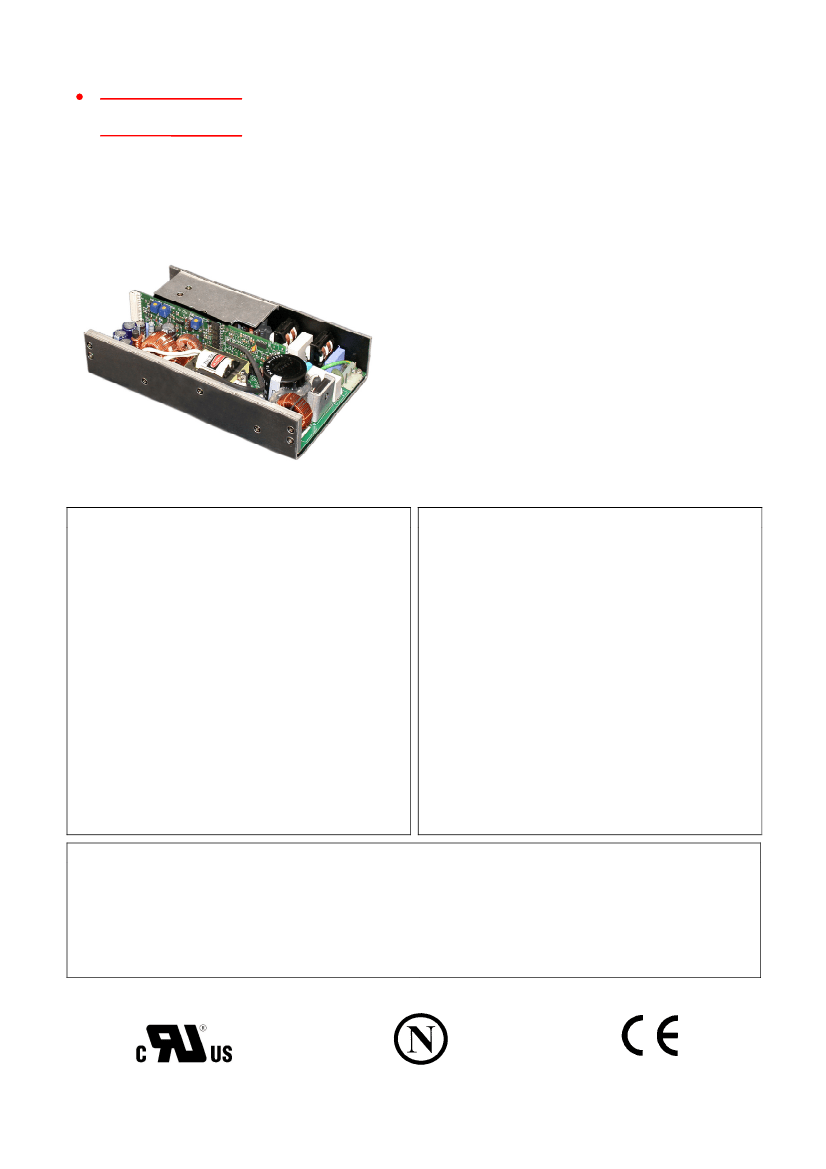

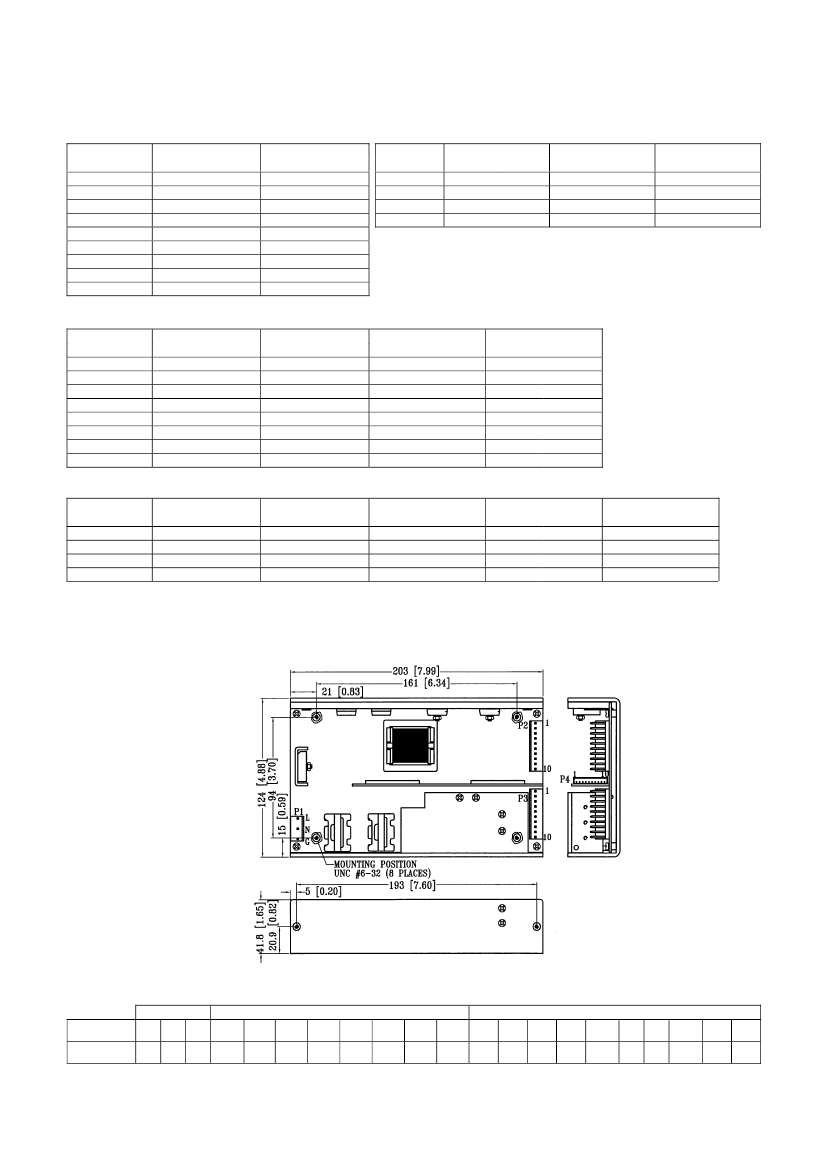

UNIVERSAL INPUT HARMONIC CORRECTION AC-DC OPEN FRAME

AND ACTIVE CURRENT SHARING MULTI-OUTPUT 200 WATTS

INTERNAL SWITCHING POWER SUPPLIES HVP200 SERIES

FEATURES:

ACCOMMODATE UNIVERSAL AC SOURCES

MEET IEC 61000-3-2 HARMONIC CORRECTION

THIRD-WIRE LOADING SHARING

MEET UNIVERSAL SAFETY STANDARDS

EMI MEET CISPR PUB.22 CLASS B

+5V STAND-BY GREEN POWER

CE MARKING COMPLIANCE

SPECIFICATION

INPUT SPECIFICATION

Input Voltage:

Typ. 90-264Vac with PFC.

Input Connector:

Molex #5273 V-M connector.

Input Frequency:

47-63Hz.

Inrush Current:

Typ. 33A @230Vac.

Input Current:

2.25A @115Vac, 1.0 A@230Vac.

Dielectric Withstand:

Meet IEC 60950-1.

EMI:

Meet CISPR PUB.22 Class B.

Hold-up Time:

18mS @115Vac & 230Vac.

Power Fail Signal:

Installed.

DC OK Signal:

Installed in VO1 & VO2.

Power Factor Correction:

Meet Harmonic Correction

per IEC 61000-3-2 PF typ. 0.97-0.99.

Remote Inhibit:

Installed. Enable active high.

Over Temperature Protection:

Thermostat @ 95°C.

Earth Leakage:

Less than 0.75mA.

OUTPUT SPECIFICATION

Output Voltage:

See Ratings Chart.

Output Current:

See Ratings Chart.

Output Connector:

Molex #5273 V-M connector.

Output Wattage:

Convection 150 watts.

With 30 cfm forced air 200W.

Line Regulation:

Typ. 0.1%.

Load Regulation:

Main O/P VO1: Typ. ±1.0%.

Aux. O/P VO2: Typ. ±1.0%. (Magnetic Amp).

Aux. O/P VO3,4,5: Typ. ±2-3.0%. (P.R.).

Stand-By Green Power:

+5V/50mA available.

Noise & Ripple:

Typ. 1.0% peak to peak.

OVP:

Available at VO1 & VO2.

Remote Sense:

Installed in VO1 & VO2.

Adjustability:

Available at VO1 & VO2.

Load Sharing:

Active current sharing circuit at VO1.

Overload Protection (OLP):

Fully protected against output

overload and short circuit.

Consult the factory for OLP setting.

Operating Temperature:

0 to +50°C under forced air flow

for full load.

Storage Temperature:

-20 to +85°C.

Temperature Coefficient:

Typ. ±0.04%/ °C.

Cooling:

30 cfm air flow is required to deliver

the full power 200W.

Construction:

U-bracket construction format.

GENERAL SPECIFICATION

Efficiency:

Typ. 65-70%.

Switching Frequency:

Fixed frequency at 70K Hz.

Circuit Topology:

PWM fixed-frequency forward circuit.

Transient Response:

Output voltage returns in less than

3mS following a 25% load change.

Safety Standard:

UL 60950-1/EN 60950-1 Class I.

Power Density:

3.0 Watts / Cubic Inch.

Note: Due to requests in market and advances in technology, specifications subject to change without notification.

For the details of safety approval, please consult the factory.
