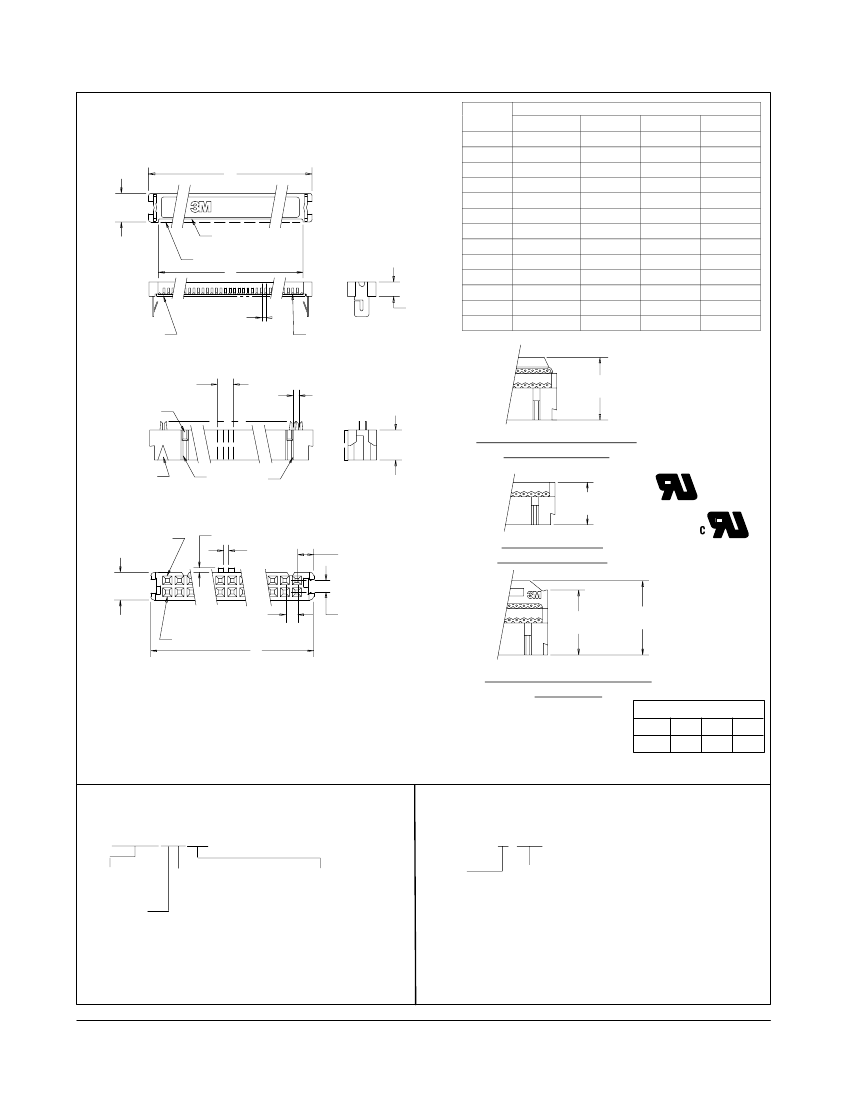

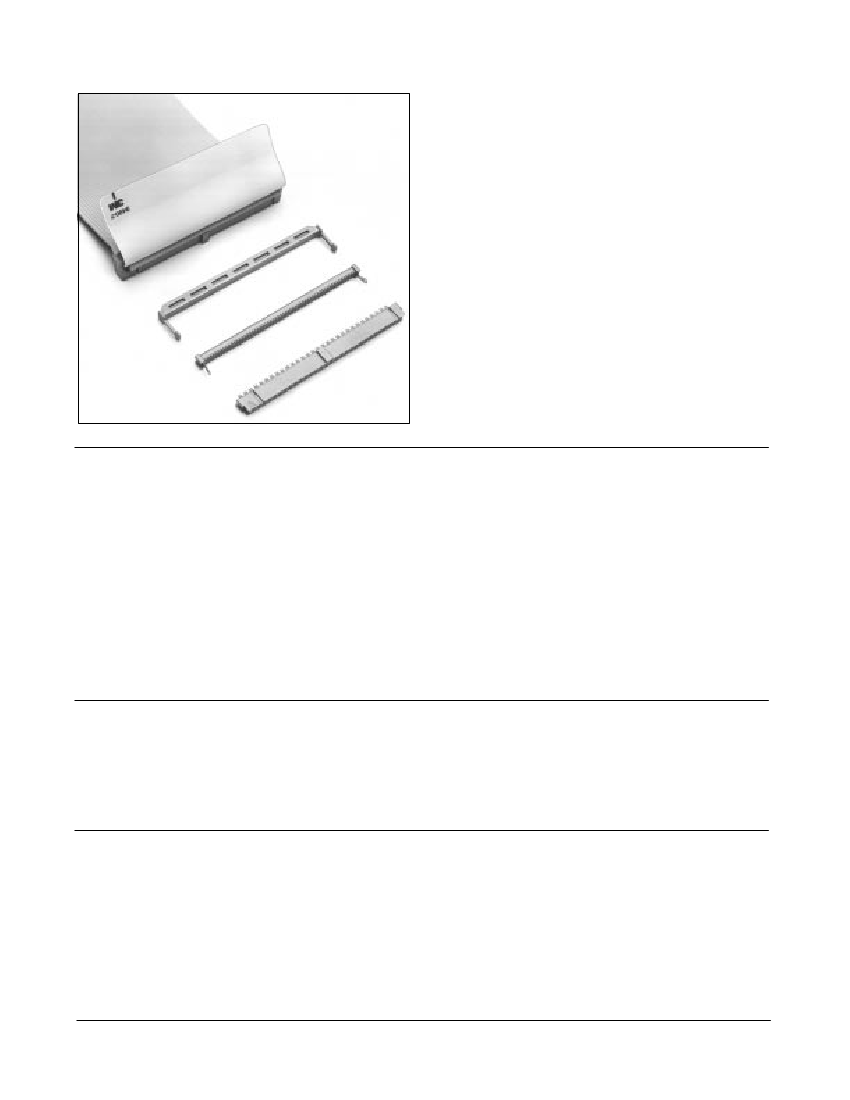

.100″
.100″ Wiremount Socket
.050″ Pitch Cable (Optional Plastic or Metal Strain Relief)
3000 Series
S
Industry standard IDC socket
S
Optional plastic or low profile metal strain relief
S
Positive locking metal ‘‘J’’ clips provide high
cover retention
S
Mates with 3M headers, plugs and pin strips for
quick connect/disconnect capability
S
Open or closed end covers available
S
Accepts flat cable or discrete wire
S
Military polarization, with or without
centerbump
Date Modified: September 17, 1999
4
TS-0718-04
Sheet 1 of 2
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplate & U-Slot:
Wiping Area:
Wire Accommodation:
Marking:
Glass Filled Polyester (PBT)
UL 94V-0
Gray
Copper Alloy
100
µ″
[ 2.54
µm
] Nickel — QQ-N-290, Class 2
30
µ″
[ 0.76
µm
] Gold — MIL-G-45204, Type II, Grade C
26 & 28 AWG Solid or Stranded
3M Logo, Part Identification Number and Orientation Triangle
Electrical
Current Rating:
1 A
Insulation Resistance:
> 1
×
10
9
Ω
at 500 Vdc
Withstanding Voltage:
1000 Vrms at Sea Level
Environmental
Temperature Rating:
–55°C to +105°C
UL File No.: E68080
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
.100″
.100″ Wiremount Socket
.050″ Pitch Cable (Optional Plastic or Metal Strain Relief)
Contact
Quantity
10
14
A
.24
[ 6.1 ]
16
20
NO.3XXX
Recessed for
Cable Exit
See Note 2
B
.15
[ 3.8 ]
Nonconductive
Transfer Adhesive
with Liner
24
26
30
34
36
40
44
.050 Typ*
[ 1.27 ]
50
60
Socket Series
3473
3385
3452
3421
3626
3399
3419
3414
9436
3417
9444
3425
3334
Dimensions
A
0.68 [ 17.3 ]
0.88 [ 22.4 ]
0.98 [ 24.9 ]
1.18 [ 30.0 ]
1.38 [ 35.1 ]
1.48 [ 37.6 ]
1.68 [ 42.7 ]
1.88 [ 47.7 ]
1.98 [ 50.3 ]
2.18 [ 55.4 ]
2.38 [ 60.5 ]
2.68 [ 68.1 ]
3.18 [ 80.8 ]
B
3000 Series
C
0.62 [ 15.7 ]
0.82 [ 20.8 ]
0.92 [ 23.4 ]
1.12 [ 28.4 ]
1.32 [ 33.5 ]
1.42 [ 36.1 ]
1.62 [ 41.1 ]
1.82 [ 46.2 ]
1.92 [ 48.8 ]
2.12 [ 53.8 ]
2.32 [ 58.9 ]
2.62 [ 66.5 ]
3.12 [ 79.2 ]
0.54 [ 13.7 ]
0.74 [ 18.8 ]
0.84 [ 21.3 ]
1.04 [ 26.4 ]
1.24 [ 31.5 ]
1.34 [ 34.0 ]
1.54 [ 39.1 ]
1.74 [ 44.2 ]
1.84 [ 46.7 ]
2.04 [ 51.8 ]
2.24 [ 56.9 ]
2.54 [ 64.5 ]
3.04 [ 77.2 ]
Optional
Closed End
Cover
.14
[ 3.6 ]
See Note 1
.050 Ref
[ 1.27 ]
.54 Ref
[ 13.7 ]
.26
[ 6.6 ]
Triangle
Indicates
Position 1
Military:
Dual Polarization
Slots
Assembled Height with Metal
Profile Strain Relief
.41 Ref
[ 10.4 ]
®
®
Position 1
.06 [ 1.5 ] Centerbump (Optional)
.035
[ 0.89 ]
.14
[ 3.6 ]
Assembled Height
without Strain Relief
.24
[ 6.1 ]
.100 Typ
[ 2.54 ]
Position 2
A
.100
[ 2.54 ]
.565 Ref
[ 14.35 ]
.64 Ref
[ 16.3 ]
Notes:
1. This polarizing groove is non-existent on 3385 and 3473 Series.
2. The optional high cable-profile cover for cable thicker than .040 [ 1.02 ] (does not have
cable exit recess).
3. The low profile strain relief can be used with the 4600 Series Plug and .1 x .1 Headers
with ejector latches. The latches will only function as an ejector.
4. See TS-0721 for mating post pattern.
Assembled Height with Plastic
Strain Relief
.0
Inch
Inch
[mm]
.00
.000
Tolerance Unless Noted
±
.1
±
.01
±
.005
[ ] Dimensions for
Reference only
Ordering Information
Sockets
XXXX-XXXX
Socket Series:
See Table for
3M Part Number
Polarization:
0 = Military (Dual Slot)
6 = Centerbump and
Military
Strain Relief:
00 = No Strain Relief
XX = “Contact Quantity”
for Plastic
Strain Relief
(i.e. 50 for a 50
Position Strain Relief)
Strain Relief
(Order Separately)
3448-X0XX
Type:
2 = Low Profile
(Metal)
3 = Plastic
Keying Plug
(Order Separately)
3435-0
Cover:
6 = Open End
(For Daisy Chaining or Bussing)
7 = Closed End
(For End Cable Termination)
8 = Open End for Higher Profile Cables
(60 Pos Only)
9 = Closed End for Higher Profile Cables
(60 Pos Only)
XX = ‘‘Contact Quantity’’
See Table
(i.e. 50 for
a 50 Position
Strain Relief)
See TS-0720
Pull Tabs
(Order Separately)
3490-X
TS-0718-04
Sheet 2 of 2
3M Interconnect Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
For technical, sales or ordering information call
800-225-5373
