CD4050BK datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> CD4050BK

Preview

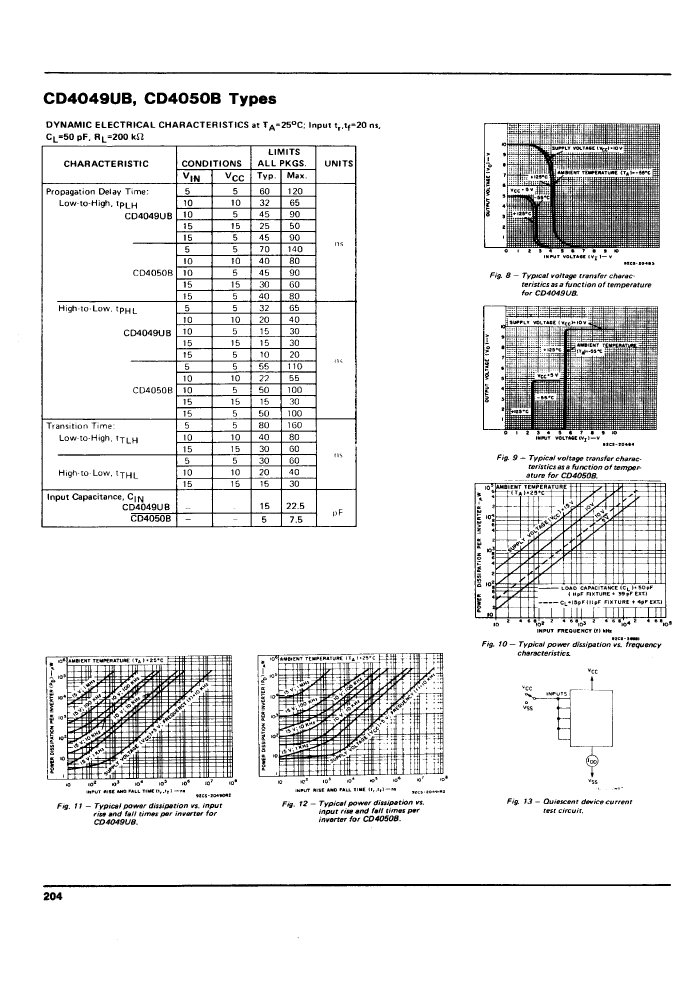

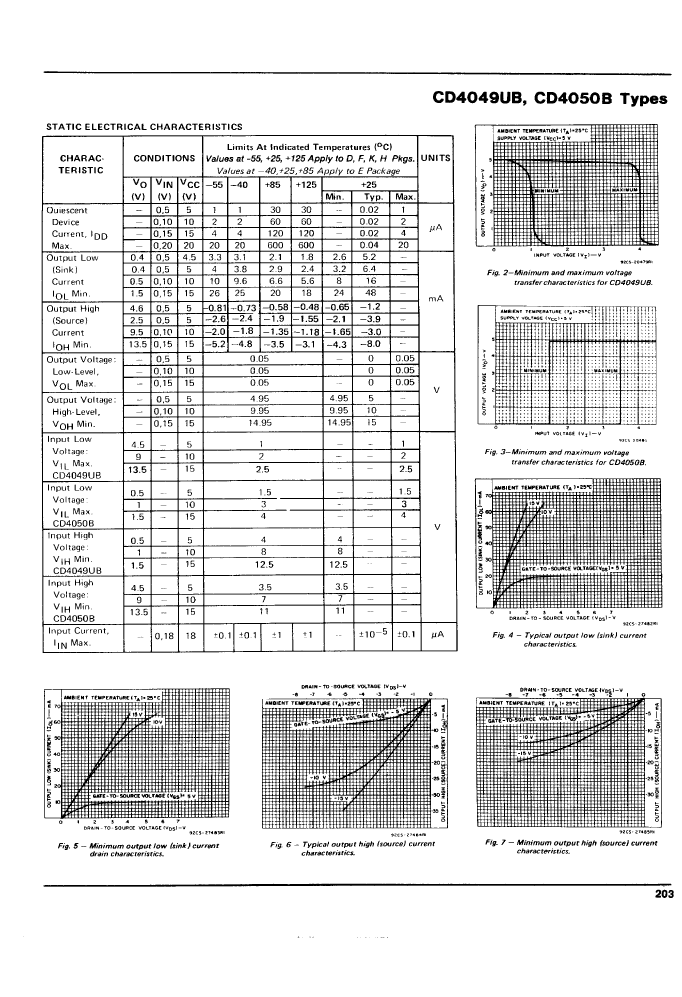

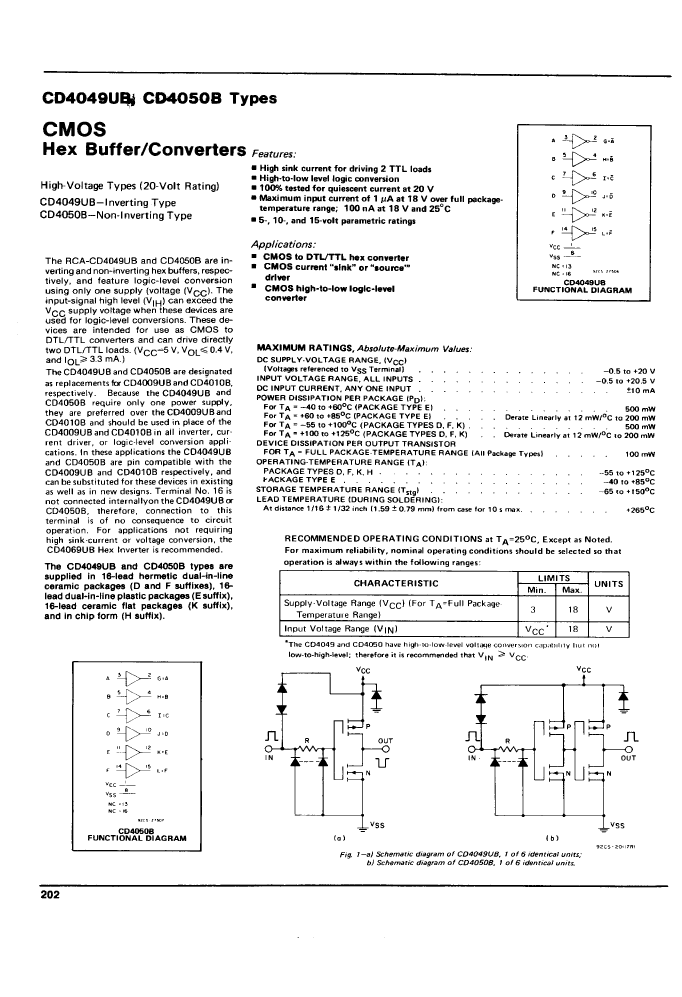

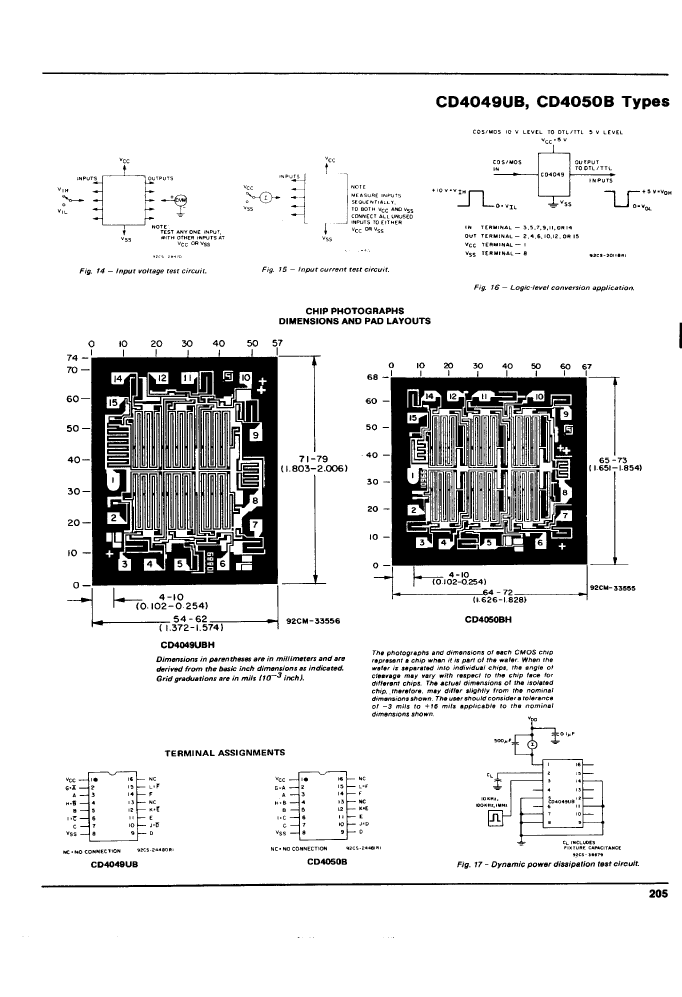

CD4050BK: DescriptionBuffer, CMOS, CDFP16,; Categorylogic logic; File Size254KB，4 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

CD4050BK Overview

Buffer, CMOS, CDFP16,

CD4050BK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	RCA
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	BUFFER
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5/15 V
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

CD4050BK Related Products

	CD4050BK	CD4049UBE	CD4050BE	CD4050BD	CD4049UBF	CD4049UBH	CD4049UBK	CD4050BF	CD4050BH
Description	Buffer, CMOS, CDFP16,	Inverter, CMOS, PDIP16,	Buffer, CMOS, PDIP16,	Buffer, CMOS, CDIP16,	Inverter, CMOS, CDIP16,	Inverter, CMOS,	Inverter, CMOS, CDFP16,	Buffer, CMOS, CDIP16,	Buffer, CMOS,
package instruction	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DIP, DIP16,.3	, DIE OR CHIP	DFP, FL16,.3	DIP, DIP16,.3	, DIE OR CHIP
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknow	unknown	unknown
Logic integrated circuit type	BUFFER	INVERTER	BUFFER	BUFFER	INVERTER	INVERTER	INVERTER	BUFFER	BUFFER
Maximum operating temperature	125 °C	85 °C	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Encapsulate equivalent code	FL16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIP16,.3	DIE OR CHIP	FL16,.3	DIP16,.3	DIE OR CHIP
power supply	5/15 V	4.5/15 V	5/15 V	5/15 V	4.5/15 V	5/15 V	4.5/15 V	5/15 V	5/15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible	-
Maker	RCA	-	RCA	RCA	RCA	RCA	RCA	RCA	RCA
JESD-30 code	R-XDFP-F16	R-PDIP-T16	R-PDIP-T16	R-XDIP-T16	R-XDIP-T16	-	R-XDFP-F16	R-XDIP-T16	-
JESD-609 code	e0	e0	e0	e0	e0	-	e0	e0	-
Number of terminals	16	16	16	16	16	-	16	16	-
Package body material	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	-	CERAMIC	CERAMIC	-
encapsulated code	DFP	DIP	DIP	DIP	DIP	-	DFP	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	-
Package form	FLATPACK	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-	FLATPACK	IN-LINE	-
surface mount	YES	NO	NO	NO	NO	-	YES	NO	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	FLAT	THROUGH-HOLE	-
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	1.27 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL	-
