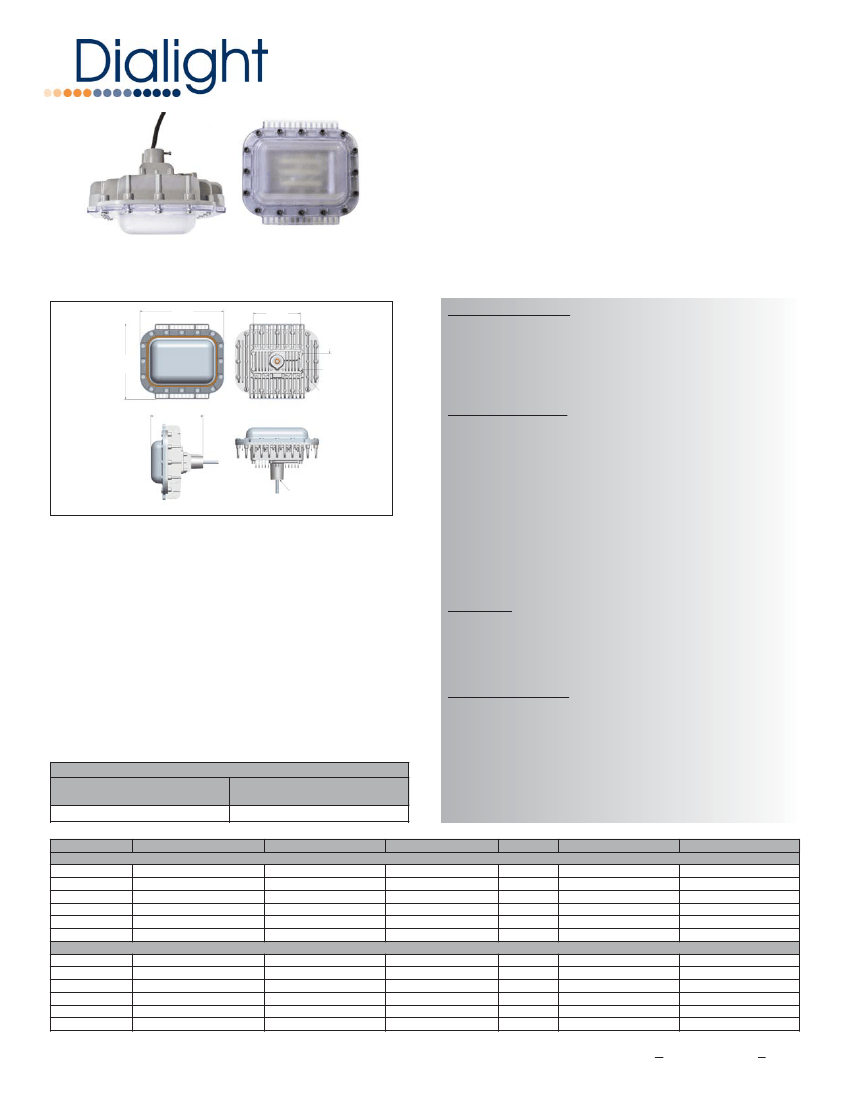

Patent Pending
Application:
The SafeSite
®
Series LED area light represents the future of energy
efficient facility illumination for hazardous locations worldwide. The Class
I, Div 2 LED area lighting fixture consumes at least 50% energy compared
to traditional HID light sources, while reducing maintenance and carbon
emissions. This light incorporates both cutting edge LED technology
along with proprietary optics to achieve area lighting comparable with
other traditional light sources.
Whether your application is in a refinery, oil platform, chemical plant or
any other Class I, Div 2 application, this fixture offers improved
performance across the board.
Mechanical Information
Fixture Weight:
10lb (4.5 kg)
12lb (5.44 kg)
(1) Threaded 3/4” NPT rear
10' (3.5m) SOOW Power Cord
SafeSite
®
Series LED Area Light
Class 1, Div. 2 Version
10.6
[270]
6.0
[152]
9.7
[245]
2.0
[51]
Ø.213
[5,41]
4 PLACES
Shipping Weight:
Mounting:
Cabling:
Electrical specifications
Operating Voltage:
Power Consumption:
Operating Temp:
6.6
[169]
See table
43W / 55W / 70W
-40°F to +149°F (-40°C to +65°C)
FCC Title 47, Subpart B, Section 15, class A
device. RF Immunity; 10V/m, 80MHz-1GHz
1 kV line to line
2 kV line to ground
<15%
> 0.9
Powder coated aluminum
Polyester / epoxy powder coat gray RAL
7040 for superior corrosion resistance
Polycarbonate - UL1598A wet location
3/4” NPT REAR
ENTRANCE
Dimensions in Inches [mm]
Noise Requirements/
EMC:
Surge Protection:
THD:
Power Factor:
Construction
Housing:
Finish:
Lens:
Photometric Information
CRI:
CCT:
Optics:
IES Files:
Certifications
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Class I, Div 2, Groups A,B,C,D
UL 844
UL 1598/A
CSA 22.2 No. 137-M1981
IP66 (pending)
NEMA 4X (pending)
5 year full performance warranty
Instant on/off operation
Universal input (100-277 VAC), 50/60Hz
Superior color rendition index compared to HPS, LPS, MV
Mercury free
Resistant to shock and vibration
Temperature compensation technology for longer life
L70 rated for >100,000 hours @ 25°C
Factory sealed
Low T rating compared to traditional fixtures
Features & Benefits
> 70
5,700K (cool white)
4,300K (neutral white)
180° f o r w a r d t h r o w
360° c i r c u l a r p a t t e r n
Available upon request
Temperature Ratings
Ambient Temperature Range
Ambient Temperature Range
T4a Temperature Code
T5 Temperature Code
-40°F to +149°F (-40°C to +65°C) -40°F to +113°F (-40°C to +45°C)
Ordering Codes:
Part Number
Optical Pattern
1
Color
2
All values typical unless otherwise state
Lumens
Watts
Lumens Per Watt
Replaces Up To
100-277VAC
HZD2C2N
180
Cool White
3,500
43
81
70W HID
HZD3C2N
360
Cool White
3,500
43
81
70W HID
HZD4C2N
180
Cool White
4,500
55
82
175W HID
HZD5C2N
360
Cool White
4,500
55
82
175W HID
HZD8C2N
180
Cool White
5,800
70
83
250W HID
HZD9C2N
360
Cool White
5,800
70
83
250W HID
347-480VAC
HZD2C9N
180
Cool White
3,500
43
81
70W HID
HZD3C9N
360
Cool White
3,500
43
81
70W HID
HZD4C9N
180
Cool White
4,500
55
82
175W HID
HZD5C9N
360
Cool White
4,500
55
82
175W HID
HZD8C9N
180
Cool White
5,800
70
83
250W HID
HZD9C9N
360
Cool White
5,800
70
83
250W HID
1
180° optical pattern versions are optimized for a 45° mounting angle
2
Part numbers listed in the above table are cool white. For neutral white version replace the 5th character with N Ex: HZD2C2N becomes HZD2N2N
www.dialight.com
SafeSite
®
LED Area Light

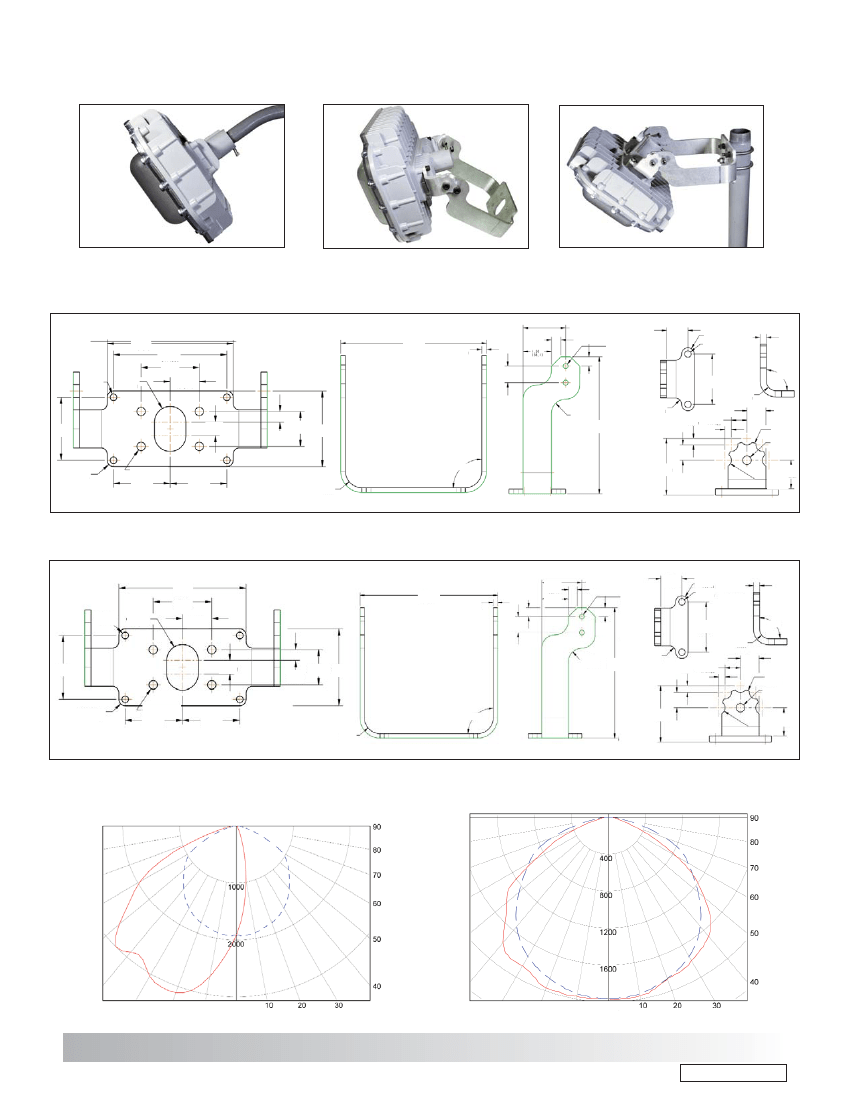

Mounting Options
Conduit Mount
Swing Bracket
Swing Bracket with Stanchion Mount
Swing Bracket Dimensions
HZXW2
A standard duty Aluminum bracket, .25" thick 6061-T6 and powder coated.
5.00
(127)
7.70
(195,6)
.50
(12,7)
.25±.01
(6,4±0.2)
.88
(22,21)
.5
(12,7)
2.25
(57,2)
Ø.266 (6,76)
DRILL AND TAP
M8 x 1.25
2 PLACES
BOTH SIDES
.85
(21.6)
Ø.50
(12,7) .25±.01
Ø.261 (6,4±0.2)
(6,63)
Ø.265
(6,73)
Ø1.25
(31,75)
4.50
(114,3)
2.31
(58,7)
1.155
(29,34)
2.0
(50.8)
R.38
(9,5)
90°
2.50
(63,5)
.53
(13,5)
.42
(10,8)
1.38
(35,05) 3.00
(76,2)
R.75
(19,1) 7.3
(184)
R.25
(6,4)
.256 .619
(6,51) (15,72)
2.26
(6,51)
.619
(15,72)
.75
(19,11)
Ø1.5
(38,1)
Ø.344
(8,74)
1.13
(28.6)
Ø.52
(13,31)
R.25 (6,4)
TYP
Ø.335 (8,51)
4 PLACES
2.250
(57,15)
90°
2.250
(57,15)
R.88
(22,2)
2.25
(57,15)
Dimensions in Inches [mm]
HZXW4
A standard duty Aluminum bracket, .25" thick 6061-T6 and powder coated. This bracket will mount to 1.5" conduit and comes with pipe mount clamps.
2.25
(57,2)
Ø.266
(6,76)
DRILL
AND
TAP
M8 x 1.25
2 PLACES
BOTH
SIDES
R.25
(6,4)
.85
(21.6)
Ø.50
(12,7) .25±.01
Ø.261 (6,4±0.2)
(6,63)
5.00
(127)
2.31
(58,7)
1.155
(29,34)
7.70
(195,6)
.25±.01
(6,4±0.2)
.50
(12,7)
.5
(12,7)
1.5
(38,1)
Ø.265
(6,73)
Ø1.25
(31,75)
.875
(22,23)
.5
(12,7)
2.0
(50.8)
R.38
(9,5)
.256 .619
(6,51) (15,72)
2.26
(6,51)
90°
2.50
(63,5)
.53
(13,5)
.42
(10,8)
1.38 3.00
(35,05) (76,2)
R.75
(19,1)
7.3
(184)
.75
(19,11)
Ø1.5
(38,1)
Ø.344
(8,74)
1.13
Ø.52 (28.6)
(13,31)
R.25 (6,4)
TYP
Ø.335 (8,51)
4 PLACES
2.250
(57,15)
2.250
(57,15)
R.88
(22,2)
90°
.619
(15,72)
2.25
(57,15)
Dimensions in Inches [mm]
Candela Plots
180° Optical Pattern Mounted at 45°
360° Optical Pattern
Dialight reserves the right to make changes at any time in order to supply the best product possible. The most current version of this
document will always be available at: www.dialight.com/Assets/Brochures_And_Catalogs/Illumination/MDTFHZDALX001.pdf
www.dialight.com
MDTFHZDALX001_F
