DA1-R-010-H-9-1: Description10 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE; CategoryThe connector The connector; File Size1003KB，9 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric Compare View All

DA1-R-010-H-9-1 Overview

10 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE

DA1-R-010-H-9-1 Parametric

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown
Other features	EMI SHIELDED, LOW PROFILE
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	DA1
Plug information	DA1-P-010-M-9-4
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	NICKEL
Shell material	STEEL
Termination type	SURFACE MOUNT
Total number of contacts	10
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

DA1 SERIES CONNECTORS

0.6mm (.024") Contact Spacing, PCB-to-Cable Connectors

• • • • • • • • • • • • • •

DA1 Series connectors are low profile SMT compact interface

connectors for use in compact and slim mobile information

terminal devices such as PDAs, HPCs, and notebook PCs.

GENERAL SPECIFICATIONS

Number of Contacts

Contact Spacing

Current Rating

Dielectric Withstanding Voltage

Insulation Resistance

Contact Resistance

Operating Temperature

Applicable Wire Sizes

10, 18, and 26

0.6mm (.024")

0.5 Amps

250 VAC r.m.s. (one minute)

100 megohms min.

50 milliohms max.

-25°C +75°C

AWG #28 max.

FEATURES

• Mating height 3mm (.01"), mounting space

reduced, 0.6mm (.024") pitch single line SMT

interface connector

• Metal shell provides shielding against EMI

and static electricity

• Side locking system

• Board mounting plug for cradle (catcher)

available for 18 contact version

• Receptacles and cradles available in embossed

tape for automatic SMT mounting

MATERIALS AND FINISHES

Description

Insulator

Pin Contact

Lead Contact

Shell

Materials/Finishes

Nylon (UL94V-0, Black)

Copper Alloy, Gold plating over lead-nickel

Tin-lead plating

Steel, Nickel plating

ORDERING INFORMATION

DA1 – * – 0** – * – 9 – *

Series

Contact Type

R – Receptacle

P – Plug

B – Cradle

No. of Contacts

10, 18 and 26

Termination

H – Right angle with Hold-down

(10 and 18 position only)

L – Right angle without Hold-down

(26 position only)

M – Cable Plug

Contact Finish

9 – Gold plating 0.1µm (.000004") min. over

Palladium Nickel

Modification Code

Consult JAE

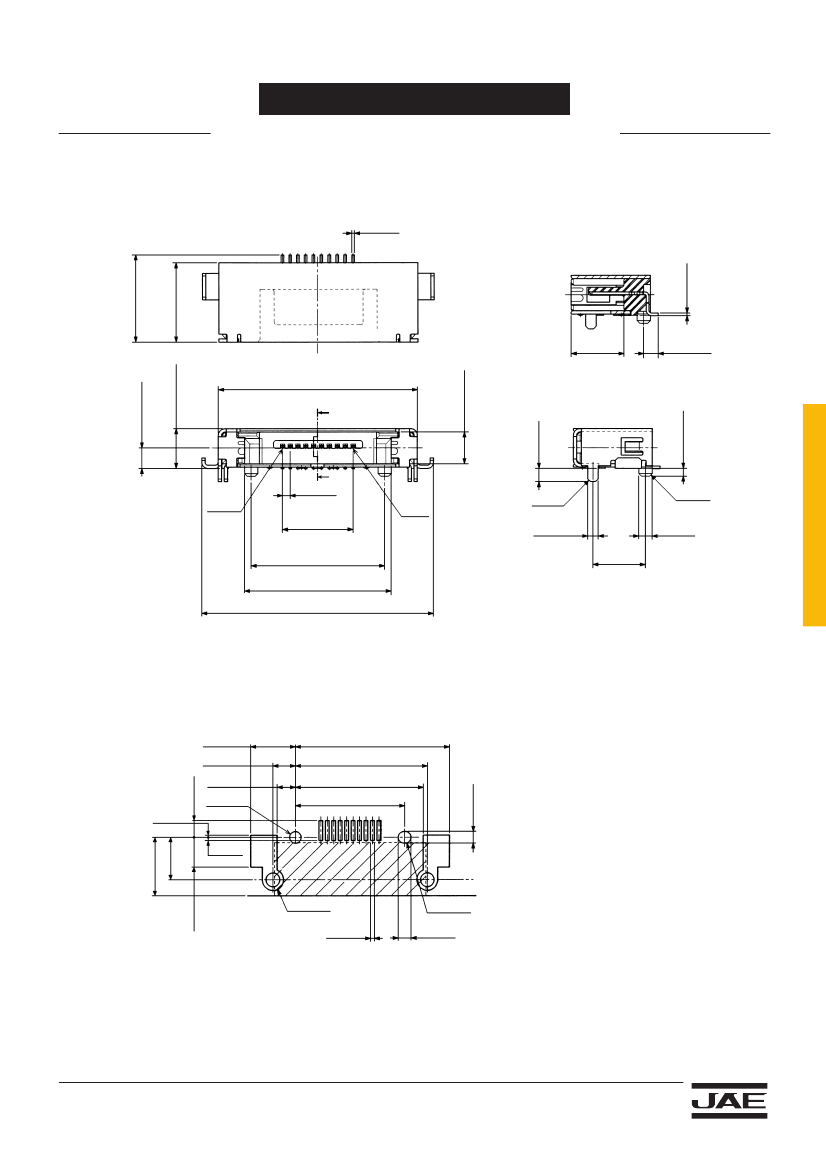

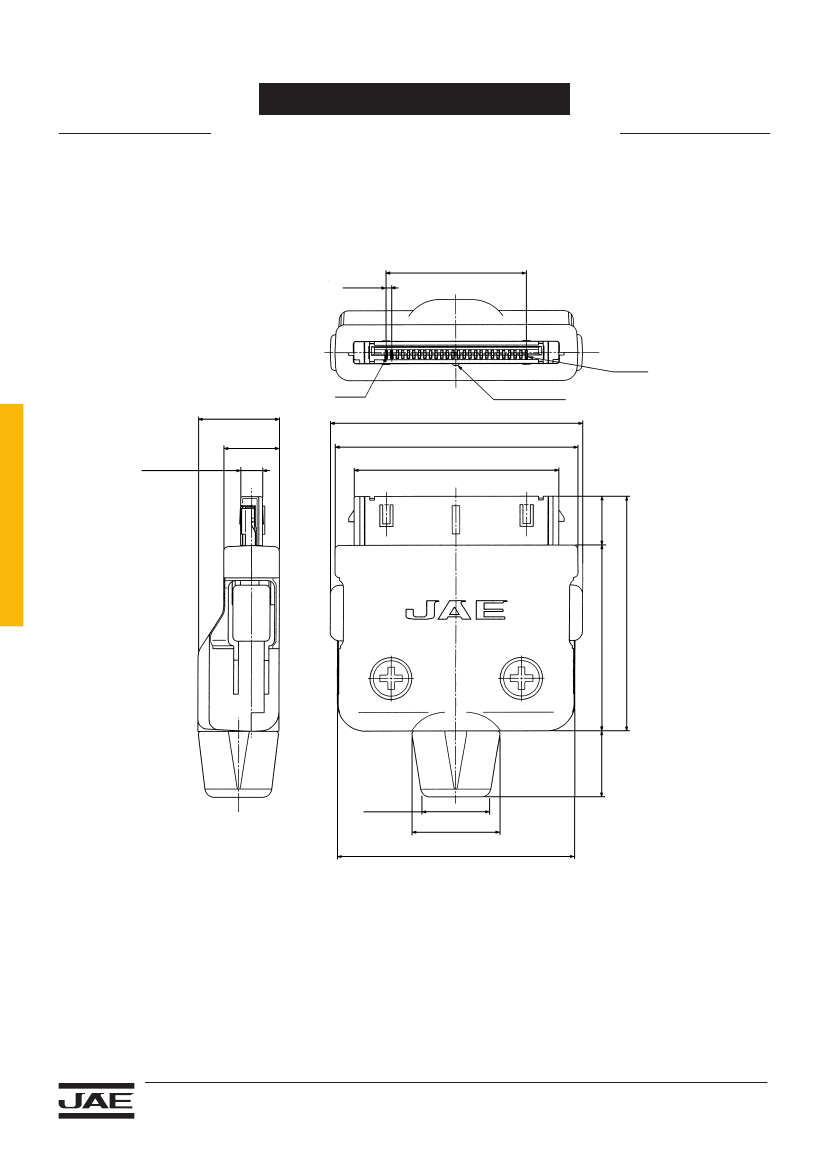

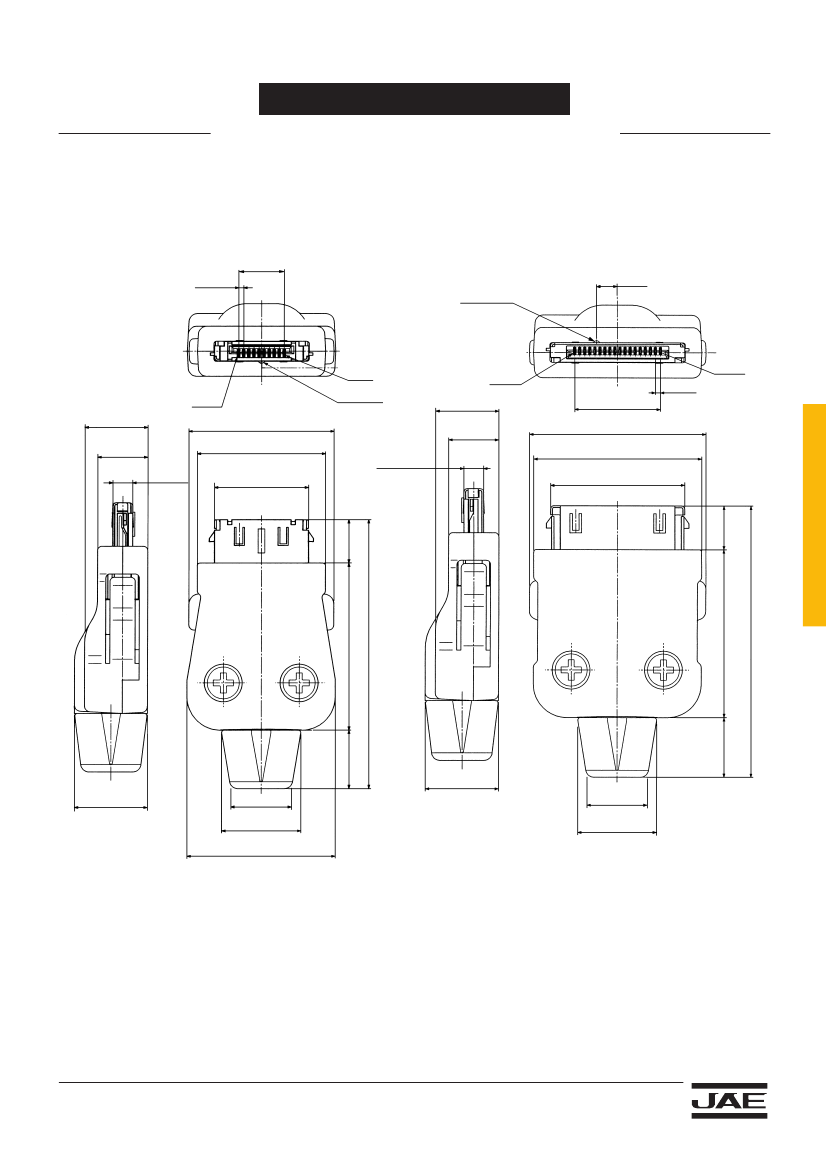

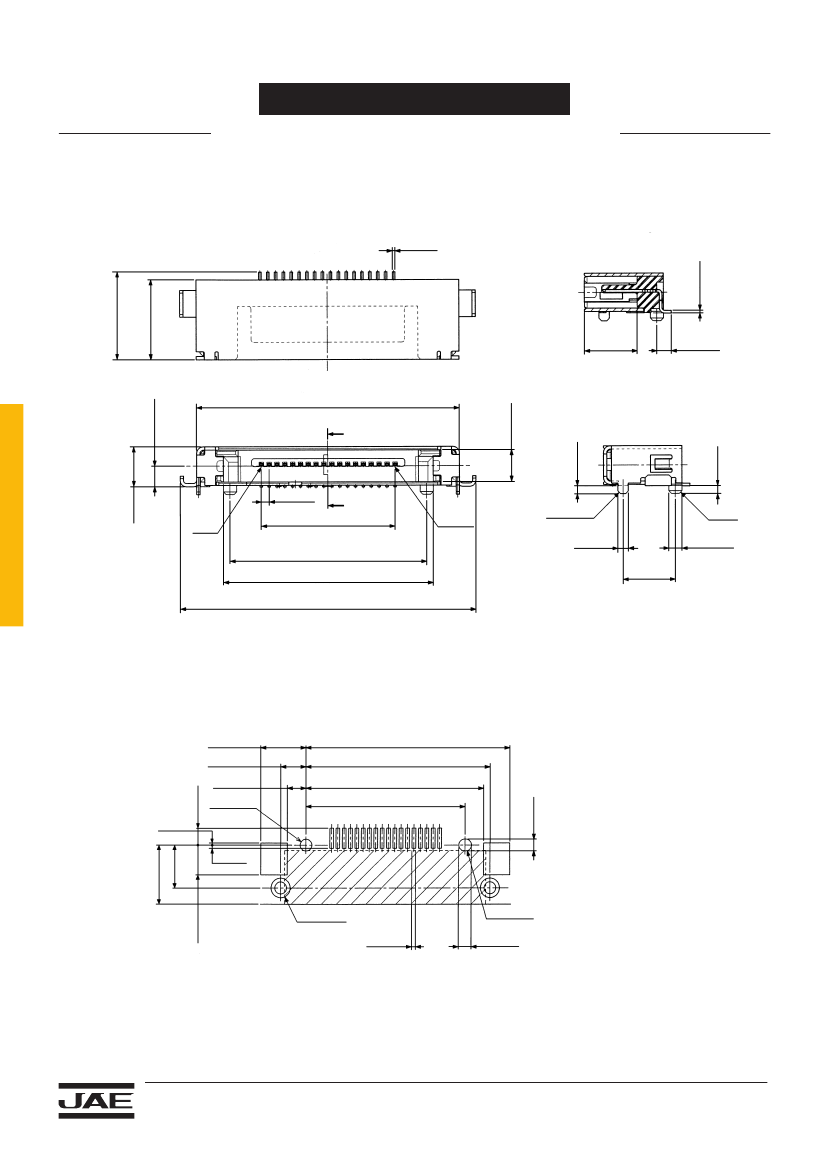

Connector Profile (Ref.)

19.1

(.752)

Ref.

(.118)

1.2

(.047)

Ref.

(.118)

34.2

(1.346)

Ref.

8.7

(.343)

Dimensions and specifications subject to change in mm (inches).

Dimensions without notice.

208

DA1-R-010-H-9-1 Related Products

	DA1-R-010-H-9-1	DA1-P-010-M-9-4	DA1-R-018-H-9-1	DA1-P-026-M-9-2	DA1-P-018-M-9-1	DA1-B-010-H-9-1	DA1-B-026-H-9-1	DA1-R-026-L-9-1	DA1-B-018-H-9-1
Description	10 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE	10 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, PLUG	18 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE	26 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, PLUG	18 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, PLUG	10 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT	Telecom and Datacom Connector, 26 Contact(s), Female, Surface Mount Terminal	26 CONTACT(S), MALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT, RECEPTACLE	18 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, SURFACE MOUNT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	EMI SHIELDED, LOW PROFILE	EMI SHIELDED, LOW PROFILE, POLARIZED	EMI SHIELDED, LOW PROFILE	EMI SHIELDED, LOW PROFILE, POLARIZED	EMI SHIELDED, LOW PROFILE, POLARIZED	EMI SHIELDED, LOW PROFILE	EMI SHIELDED, LOW PROFILE	EMI SHIELDED, LOW PROFILE	EMI SHIELDED, LOW PROFILE
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE	MALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE	POLYAMIDE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	DA1	DA1	DA1	DA1	DA1	DA1	DA1	DA1	DA1
Plug information	DA1-P-010-M-9-4	DA1-R-010-H-9-1	DA1-P-018-M-9-1	DA1-R-026-L-9-1	DA1-R-018-H-9-1	DA1-R-010-H-9-1	DA1-R-026-L-9-1	DA1-P-026-M-9-2	DA1-R-018-H-9-1
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation type	BOARD	CABLE	BOARD	CABLE	CABLE	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Total number of contacts	10	10	18	26	18	10	26	26	18
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Body/casing type	RECEPTACLE	PLUG	RECEPTACLE	PLUG	PLUG	-	-	RECEPTACLE	-
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	-	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Base Number Matches	-	1	1	1	1	1	-	-	-
