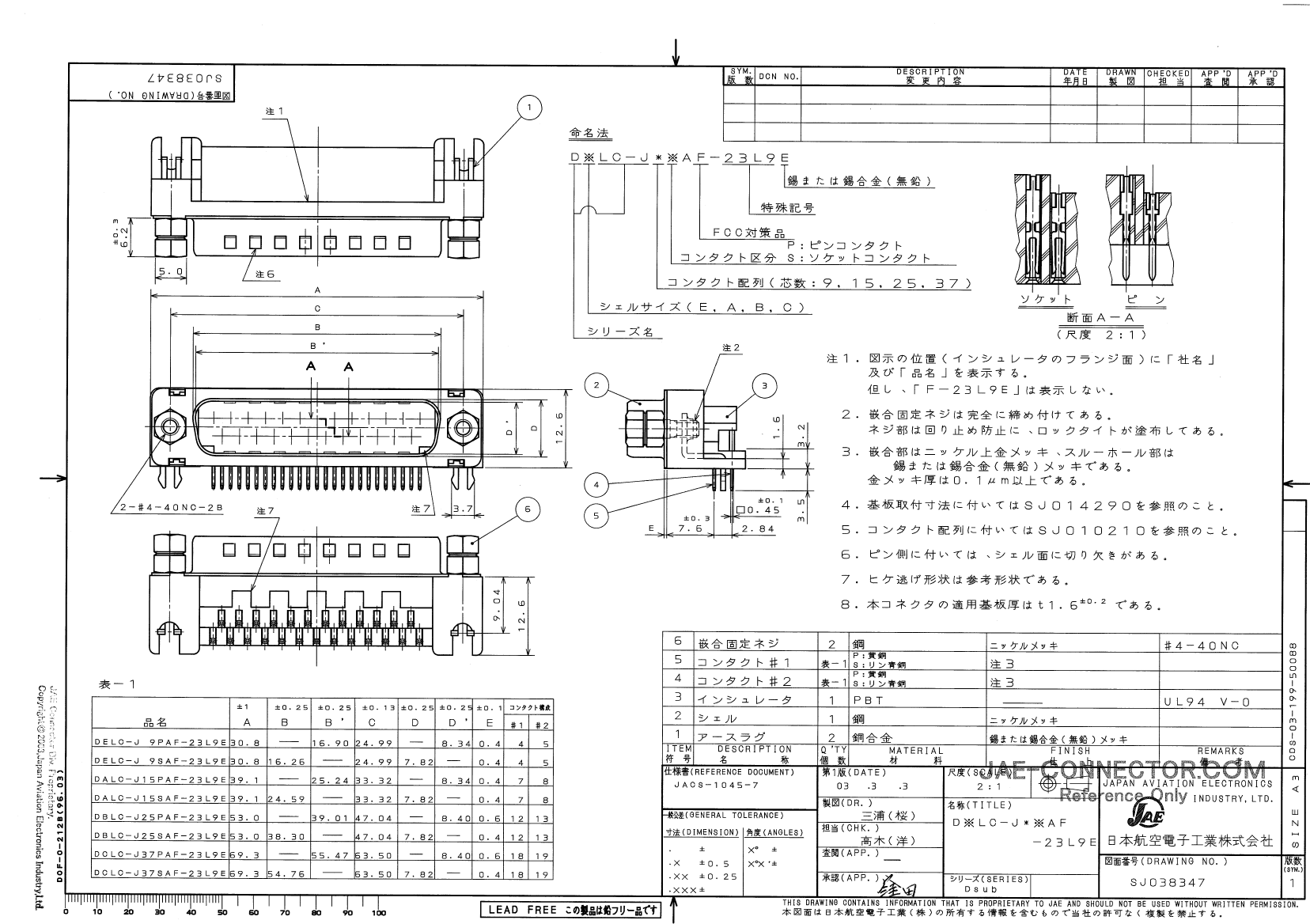

D Subminiature Connector, 15 Contact(s), Female, Solder Terminal,
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | Japan Aviation Electronics Industry Limited |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | EMI SHIELDED |
| Connector type | D SUBMINIATURE CONNECTOR |
| Contact to complete cooperation | GOLD |
| Contact completed and terminated | Tin (Sn) |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| DIN compliance | NO |
| empty shell | NO |
| Filter function | NO |
| IEC compliance | NO |
| insulator material | SYNTHETIC RESIN |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Mixed contacts | NO |
| Installation type | BOARD |
| Options | GENERAL PURPOSE |
| Housing size | 2/A |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| UL Flammability Code | 94V-0 |
| DALC-J15SAF-23L9E | DELC-J9PAF-23L9E | DELC-J9SAF-23L9E | |
|---|---|---|---|
| Description | D Subminiature Connector, 15 Contact(s), Female, Solder Terminal, | D Type Connector, 9 Contact(s), Male, Solder Terminal, #4-40 | D Type Connector, 9 Contact(s), Female, Solder Terminal, #4-40 |
| Is it Rohs certified? | conform to | conform to | conform to |
| Maker | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited | Japan Aviation Electronics Industry Limited |
| Reach Compliance Code | unknown | unknown | unknown |
| Contact to complete cooperation | GOLD | AU | AU |
| Contact point gender | FEMALE | MALE | FEMALE |
| insulator material | SYNTHETIC RESIN | SYNTHETIC RESIN | SYNTHETIC RESIN |
| Installation type | BOARD | BOARD | BOARD |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 15 | 9 | 9 |
| body width | - | 0.496 inch | 0.496 inch |
| subject depth | - | 0.496 inch | 0.496 inch |
| body length | - | 1.213 inch | 1.213 inch |
| contact mode | - | STAGGERED | STAGGERED |
| Contact resistance | - | 13 mΩ | 13 mΩ |
| Dielectric withstand voltage | - | 1700VAC V | 1700VAC V |
| Insulation resistance | - | 5000000000 Ω | 5000000000 Ω |
| Insulator color | - | BLACK | BLACK |
| Manufacturer's serial number | - | D-SUB | D |
| Installation option 1 | - | #4-40 | #4-40 |
| Installation option 2 | - | LOCKING | LOCKING |
| Installation method | - | RIGHT ANGLE | RIGHT ANGLE |
| Maximum operating temperature | - | 105 °C | 105 °C |
| Minimum operating temperature | - | -55 °C | -55 °C |
| Rated current (signal) | - | 5 A | 5 A |
| Guideline | - | UL | UL |
| reliability | - | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.138 inch | 0.138 inch |
| Base Number Matches | - | 1 | 1 |
