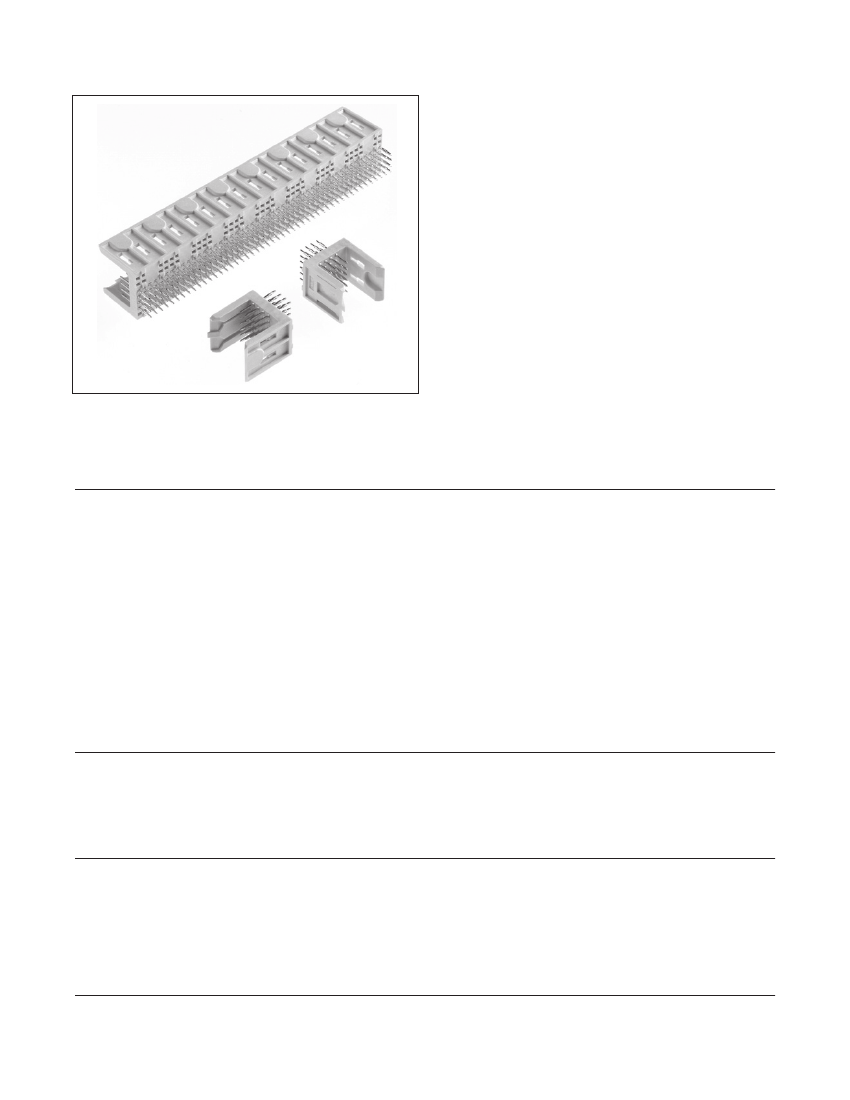

2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
MP2 Series
Solder Tail
• End-to-end stackable
• Select load capability
• Monoblockable
• Shoulder Pin
Press Fit
• End-to-end stackable
• Early mate late break for hot swapping (press-fit EMLB
adjusted by application tooling)
• Select load capability
• Monoblockable
• Push-on shoulder pin
• Optional feed-through tail for rear plug-up midplane
applications
• Accepts Universal Tooling
• RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3M.com/Interconnects for compliance information
(RIA E1 & C1 apply)
Date Modified: September 9, 2009
TS-1120-C
Sheet 1 of 4
Physical
Insulation:
Material: High Temp LCP
Flammability: UL 94V-0
Color: Beige
Color:
Material: Phosphor Bronze
Plating:
Underplating: 50 μ” [1.27 μm] Nickel
Wiping Area: See Ordering Information
Solder Tails: See Ordering Information
Electrical
Current Rating:
Signal: 1.5 A - All contacts simultaneously
Insulation Resistance:
10
3
MΩ
Withstanding Voltage:
1,000 V
AC
Environmental
Temperature Rating:
-55°C to +125°C
Process Temperature Rating:
260°C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Header

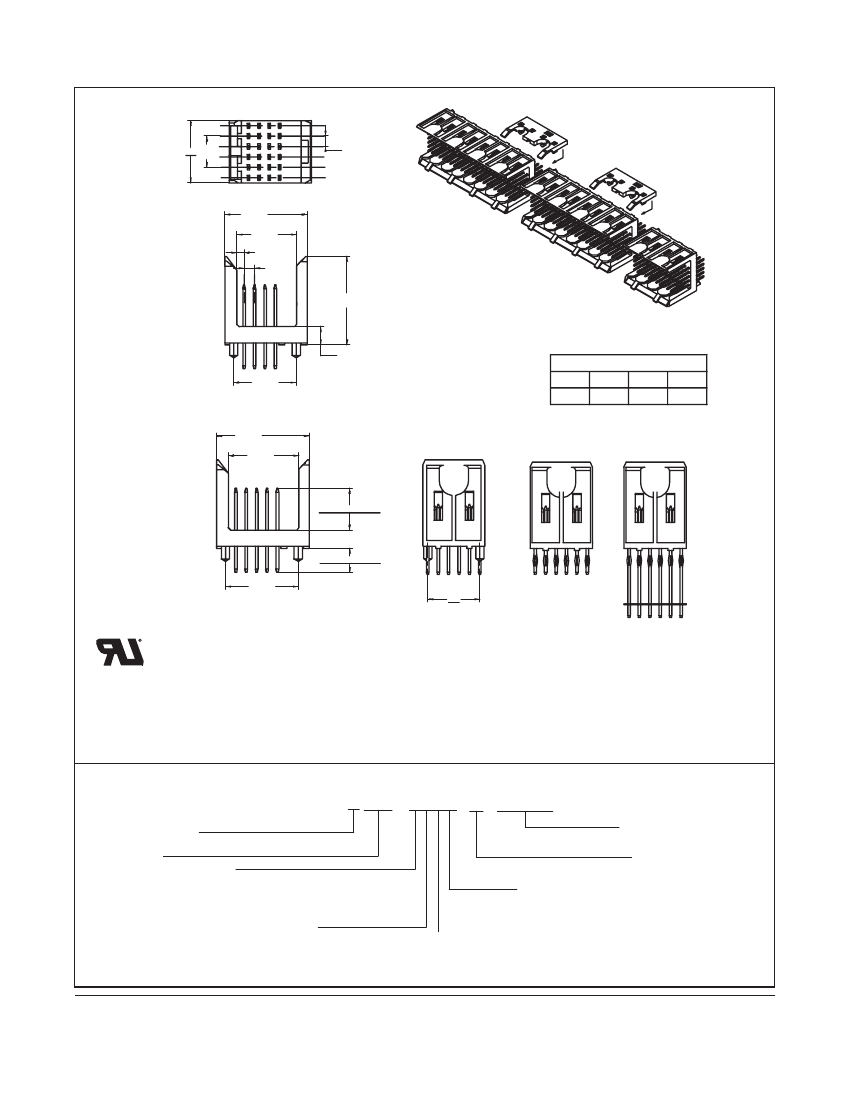

2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
POSITION X
"A" 6.00
.236
2.00
.079
MP2 Series
POSITION 2
POSITION 1
15.80
.622
11.50
.453
1.40
.055
2.00
.079
17.00
.669
FOR SPECIAL MONOBLOCKS
AND PIN ARRANGEMENTS
CONTACT 3M SALES
REPRESENTATIVE
mm
[inch]
3.50
.138
12.00
.472
Tolerance Unless Noted
0
mm
±3
0.0
±0.3
0.00
±0.13
4 ROW PRODUCT
17.80
.701
13.52
.532
[ ] Dimensions for Reference Only
MATING LENGTH
"B" TAIL LENGTH
14.00
.551
E D C B A
ROW
"C"
5 ROW PRODUCT
SOLDER TAIL
PRODUCT
PRESS-FIT
PRODUCT
PRESS-FIT
PRODUCT
REAR
PLUG-UP
Note:
1. Refer to IEC 61076-4-104 Futurebus+
®
global standard.
2. “Press Fit” describes a contact tail having a compliant section designed to make a reliable electrical connection with a
plated through-hole (PTH) in a printed circuit board, typically a “back plane.”
Ordering Information
MP2 - HXXX - XXXX - S - XXXXX
H = Header
Pin Count
(See Table 1)
Rows
4 = 4 Rows
5 = 5 Rows
Loading Pattern
(See Table 2)
Plating Options:
(See Table 4)
Shouldered Pins
Tail Length
(See Table 3)
Termination Style
P = Press-Fit
S = Solder Tail
TS-1120-C
Sheet 2 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Header
2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
Table 1 - Connector & Row Lengths
Pin
Count
024
048
072
096
120
144
168
192
030
060
090
120
150
180
210
240
Dim. “A”
mm [inch]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.889]
59.95 [2.36]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
11.95 [0.471]
23.95 [0.943]
35.95 [1.415]
47.95 [1.888]
59.95 [2.361]
71.95 [2.833]
83.95 [3.305]
95.95 [3.778]
Dim “C”
mm [inch]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
10.00 [0.394]
22.00 [0.866]
34.00 [1.339]
46.00 [1.811]
58.00 [2.283]
70.00 [2.756]
82.00 [3.228]
94.00 [3.701]
Rows
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
RF
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
KR
FJ
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
TR40B
TR30
MP2 Series
Solder
Tails
(RIA E3 &
C2 apply)
(RIA E3 &
C2 apply)
(RIA E3 &
C2 apply)
Table 4 - Plating Options
Plating
Suffix
TG
TG30
Press-Fit
Tails*
(RIA E2 &
C2 apply)
(RIA E2 &
C2 apply)
(RIA E2 &
C2 apply)
Plating Composition
0.25 μm [10 μ”] Min. Au Contact Area
2.54 μm [100 μ”] Min. SnPb Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.76 μm [30 μ”] Min. Au Contact Area
2.54 μm [100 μ”] Min. SnPb Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.08 μm [3 μ”] Min. Au Contact Area
0.67 μm [27 μ”] Min. PdNi Contact Area
2.54 μm [100 μ”] Min. SnPb Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.13 μm [5 μ”] Min. Hard Au Contact Area,
Lubricated
1.02 μm [40 μ”] Min. PdNi Contact Area
0.10 μm [4 μ”] Min. Pd Contact Area
2.54 μm [100 μ”] Min. SnPb Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.25 μm [10 μ”] Min. Au Contact Area
5.08 μm [200 μ”] Min. Matt Whisker Mitigating
Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.76 μm [30 μ”] Min. Au Contact Area
5.08 μm [200 μ”] Min. Matt Whisker Mitigating
Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
1.27 μm [50 μ”] Min. Au Contact Area, Lubri-
cated
5.08 μm [200 μ”] Min. Matt Whisker Mitigating
Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.08 μm [3 μ”] Min. Au Contact Area
0.67 μm [27 μ”] Min. PdNi Contact Area
5.08 μm [200 μ”] Min. Matt Whisker Mitigating
Sn Tail Area
1.27 μm [50 μ”] Min. Ni all over
0.13 μm [5 μ”] Min. Hard Au Contact Area,
Lubricated
1.02 μm [40 μ”] Min. PdNi Contact Area
0.10 μm [4 μ”] Min. Pd Contact Area
5.08 μm [200 μ”] Min. Matt Whisker Mitigating
Sn Tail Area
0.76 μm [30 μ”] Min. Au Dual Contact Areas
0.10 μm [4 μ”] Min. Au Needle Eye
1.27 μm [50 μ”] Min. Ni all over
(RIA E2 &
C2 apply)
(RIA E3 &
C2 apply)
Table 3 - Tail Length Options
Termination Option No.
Solder Tail
1
2
3
Press-Fit* Tail
1
4.60 [0.181]
3.53 [0.139]
Dim. “B”
LR
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
*Compliant-Pin Tail
5 (Contact 3M)
7 (Contact 3M)
2.72 [0.107]
13.60 [0.535]
17.00 [0.669]
PD
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
KV
(RIA E1 &
C1 apply)
(RIA E1 &
C1 apply)
Table 2 - Mate Length vs. Loading Pattern
Loading Pattern
Code
1
2
3
4
5
6
7
8
9
A
B
C
D
E
G
H
J
K
Description
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
All Positions Filled
Mate length
Row A
5.00 [0.197]
6.50 [0.256]
6.50 [0.256]
6.50 [0.256]
5.75 [0.226]
7.25 [0.285]
6.50 [0.256]
6.50 [0.256]
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
7.25 [0.285]
5.00 [0.197]
8.00 [0.315]
5.00 [0.197]
Mate length
Row B
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
6.50 [0.256]
7.25 [0.285]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
5.75 [0.226]
5.75 [0.226]
8.00 [0.315]
6.50 [0.256]
Mate length
Row C
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.00 [0.197]
6.50 [0.256]
5.75 [0.226]
6.50 [0.256]
7.25 [0.285]
7.25 [0.285]
5.75 [0.226]
5.75 [0.226]
8.00 [0.315]
7.25 [0.285]
Mate length
Row D
5.00 [0.197]
5.00 [0.197]
6.50 [0.256]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.00 [0.197]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
5.00 [0.197]
7.25 [0.285]
8.00 [0.315]
6.50 [0.256]
Mate length
Row E
(5-Row Prod. Only)
5.00 [0.197]
5.00 [0.197]
6.50 [0.256]
6.50 [0.256]
5.75 [0.226]
5.75 [0.226]
5.00 [0.197]
6.50 [0.256]
5.00 [0.197]
5.00 [0.197]
5.75 [0.226]
5.00 [0.197]
5.75 [0.226]
7.25 [0.285]
5.00 [0.197]
7.25 [0.285]
8.00 [0.315]
5.00 [0.197]
TS-1120-C
Sheet 3 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
MetPak
™
2-FB Header
2 mm 4/5-Row, Vertical, Solder or Press-Fit Tail, Shouldered Pin
12.00
.472
16.00 MIN
.630
2.00
.079
2.00
.079
MP2 Series
1 6 .0 0 M IN
.6 3 0
A1
12.00
.472
"C"
12.00
.472
"D" PLATED THRU HO LE
Ø
0.10
2.00
.079
1.50
+.10
-.00
6.00
.236
UNPLATED
CENTER HOLES OPTIONAL
FOR 3M PRODUCT
Ø
.059
+.004
-.000
Ø
0.10
"D " P L A T E D T H R U H O L E
Ø
0 .1 0

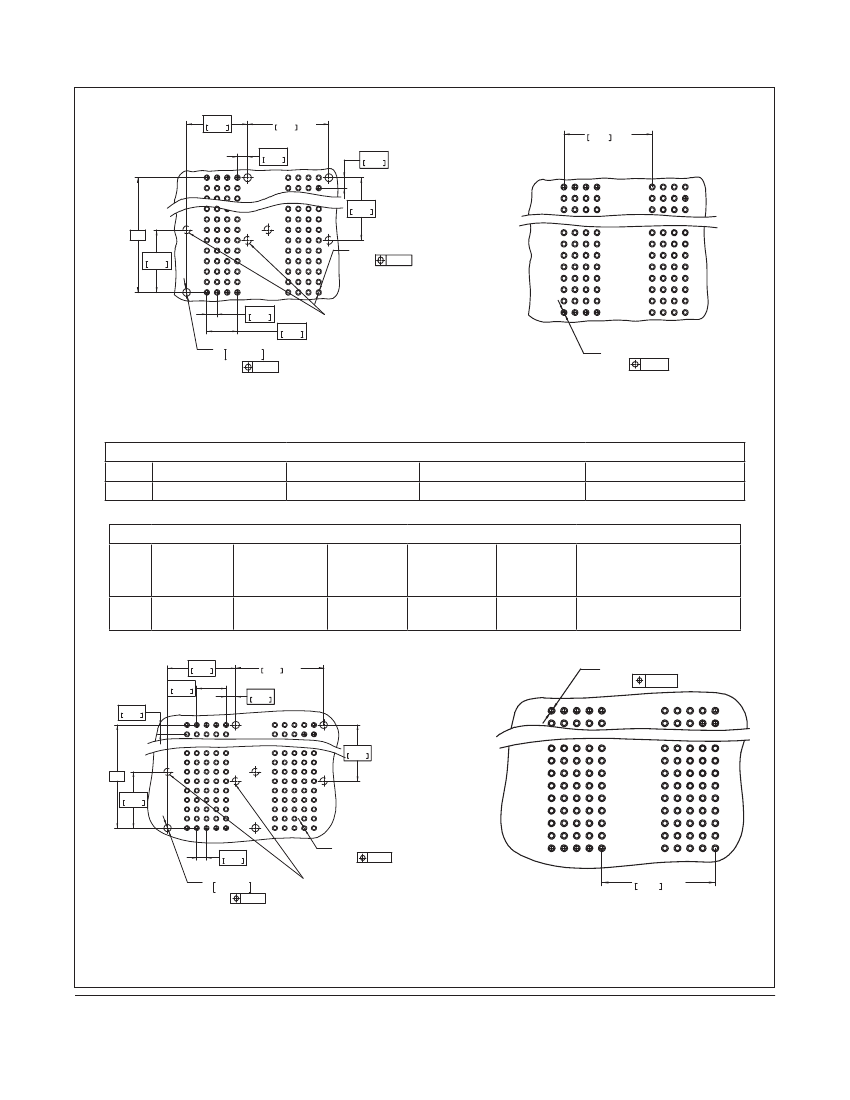

RECOMMENDED 4 ROW SOLDER
TAIL PCB HOLE MOUNTING PATTERN
RECOMMENDED 4 ROW PRESS-FIT
Table 5 -- HOLE PLATING For TG, TG30, TR30, TR40B FINISHES ONLY
HOLE
“D”
Finished Dia. mm [in]
0.65-0.80 [.0256-.0315]
Cu Thickness mm [in]
0.025 [.001] min.
SnPb Thickness microns [μ”]
15 [600] max.
Drilled Hole Dia. mm [in]
0.81-0.86 [.0319-.0339]
Table 6 -- HOLE PLATING For FJ, KR, RF, LR, and PD FINISHES ONLY
Hole
“D”
Finished Dia.
mm [in]
0.700-0.800
[.0276-.0315]
Cu Thickness
mm [in]
0.025-0.045
[0.001-0.002]
Immersion
Matte Sn
Thickness
microns [μ”]
0.5 - 2.5
[20 - 100]
Electrolitic Au
Thickness
microns [μ”]
0.1 - 0.5
[4 - 20]
OSP ENTEK
Thickness
microns [μ”]
0.2 - 0.5
[8 - 20]
Drilled Hole Dia.
mm [in]
0.830-0.860 [.0330-.0340] or
0.85mm [ #66] TWIST DRILL
14.00
.551
6.00
.236
2.00
.079
18.00 MIN
.709
2.00
.079
"D " P L A T E D T H R U H O L E
Ø
0 .1 0
A1
12.00
.472
"C"
12.00
.472
2.00
.079
Ø
1.50
.059
+.10
-.00
+.004
-.000
"D" PLATED THRU HOLE
Ø 0.10
UNPLATED
CENTER HOLES OPTIONAL
FOR 3M PRODUCT
Ø 0.10
1 8 .0 0 M IN
.7 0 9
RECOMMENDED 5 ROW SOLDER
TAIL PCB HOLE MOUNTING PATTERN
RECOMMENDED 5 ROW PRESS-FIT
PCB HOLE MOUNTING PATTERN
TS-1120-C
Sheet 4 of 4
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
First, download the relevant software, drivers and firmware, refer to the sharing on the forum, follow the instructions to connect and download the firmware. Then I wanted to try the effect after down...
It's still the problem of the LC measurement circuit. I suspect it's the problem of the crystal oscillator circuit, for the following reasons: 1. I used the STC microcontroller, and at the beginning I...
I want to make a USB flash drive filter driver to disable the USB flash drive based on the serial number. Now I can disable the USB flash drive. I want to know how to read the serial number of the USB...
I have recently ported a program from VC++ to wince, and encountered many problems. I have solved some of them, but the mapping mode for drawing is not always correct. When compiling, it always shows ...
Live playback: The most important component of the analog world - signal chain and power supply: LED driver : https://training.eeworld.com.cn/course/67754...
At present, the development of wireless power supply technology for electric vehicles (EVs) is becoming more and more active. In 2012, Volvo of Sweden established Volvo Technology Japan in Tokyo as...[Details]
With the promotion of the construction of intelligent communities in the country, anti-theft systems have become essential equipment for intelligent communities. Especially in recent years, the urg...[Details]
Microchip's PIC18F46J50 is a low-power, high-performance 8-bit USB microcontroller (MCU) using nanoWatt XLP technology. The current in deep sleep mode can be as low as 13nA, the operating voltage i...[Details]
Automotive applications are particularly sensitive to EMI events, which are unavoidable in a noisy electrical environment consisting of a central battery, bundled wiring harnesses, various inductiv...[Details]
The Mobile Industry Processor Interface (MIPI) Alliance is an organization responsible for promoting the standardization of software and hardware in mobile devices. It has released the D-PHY specif...[Details]
In order to highlight the concept of "energy saving and environmental protection" of intelligent buildings, solar street lights are designed for intelligent communities. The inclination and capacit...[Details]
Two simple circuits are implemented to drive two LEDs from a battery powered microprocessor.
This design is based on a circuit that uses three resistors and a microprocessor I/O pin as an input h...[Details]
1 Introduction
Ultrasonic waves have strong directivity, slow energy consumption, and can propagate over long distances in a medium, so they are used for distance measurement. Ultrasonic detec...[Details]
Although it is relatively easy to check the stability of a simple amplifier at lower frequencies, it may be much more difficult to evaluate the stability of a more complex circuit. This artic...[Details]
We know that microcontroller development tools generally include real-time online emulators and programmers. Among them, online emulators are very good tools, but they are also more expensive...[Details]
Microcalorimetry
is used to determine energy relationships. Microcalorimetry techniques are often required when performing calorimetric experiments with small sample sizes or slow heating rat...[Details]
Since the No. 4 blast furnace of Handan Iron and Steel was put into operation in 1993, its external equipment has been seriously aged, and the original PLC control system TDC3000 of the hot blast furn...[Details]
We know that the inverter consists of two parts: the main circuit and the control circuit. Due to the nonlinearity of the main circuit (switching action), the inverter itself is a source of harmoni...[Details]
In today's body control module (BCM) designs, savvy engineers are moving away from electromechanical relays whenever possible. Their next step is to eliminate fuses. But is eliminating fuses a nece...[Details]
MEMS sensors
京公网安备 11010802033920号
EEWORLD
