53001020061E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 53001020061E

53001020061E: DescriptionTerminal and Terminal Block,; CategoryThe connector; File Size759KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

53001020061E Overview

Terminal and Terminal Block,

53001020061E Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compli
ECCN code	EAR99

Preview

Download Datasheet

View All

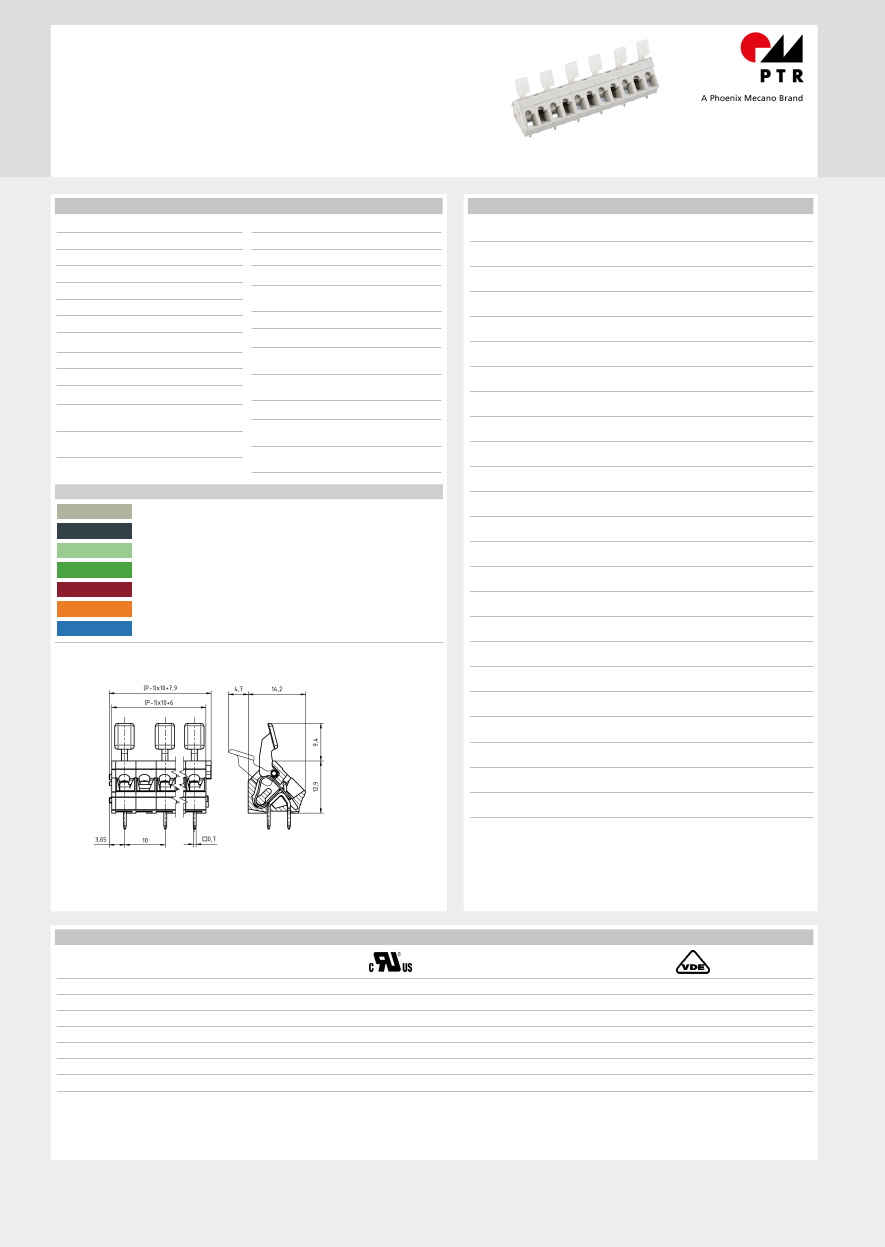

Tension Spring |

Spacing 10.0 mm

AK3001/..FD-10.0-PEBBLE GREY

- 2 to n poles

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.08 mm²

2.5 mm²

0.14mm²

2.5 mm²

0.14 mm²

1.5 mm²

Order Data (Spacing 10.0 mm)

Insulating Material

Material

Flammability Class

PA 6.6

17.90

27.90

37.90

47.90

57.90

67.90

77.90

87.90

97.90

107.90

117.90

127.90

137.90

147.90

157.90

167.90

177.90

187.90

197.90

207.90

217.90

227.90

237.90

Poles

Width (mm)

Article Designation

AK3001/2FD-10.0-PEBBLE

GREY

AK3001/3FD-10.0-PEBBLE

GREY

AK3001/4FD-10.0-PEBBLE

GREY

AK3001/5FD-10.0-PEBBLE

GREY

AK3001/6FD-10.0-PEBBLE

GREY

AK3001/7FD-10.0-PEBBLE

GREY

AK3001/8FD-10.0-PEBBLE

GREY

AK3001/9FD-10.0-PEBBLE

GREY

AK3001/10FD-10.0-PEBBLE

GREY

AK3001/11FD-10.0-PEBBLE

GREY

AK3001/12FD-10.0-PEBBLE

GREY

AK3001/13FD-10.0-PEBBLE

GREY

AK3001/14FD-10.0-PEBBLE

GREY

AK3001/15FD-10.0-PEBBLE

GREY

AK3001/16FD-10.0-PEBBLE

GREY

AK3001/17FD-10.0-PEBBLE

GREY

AK3001/18FD-10.0-PEBBLE

GREY

AK3001/19FD-10.0-PEBBLE

GREY

AK3001/20FD-10.0-PEBBLE

GREY

AK3001/21FD-10.0-PEBBLE

GREY

AK3001/22FD-10.0-PEBBLE

GREY

AK3001/23FD-10.0-PEBBLE

GREY

AK3001/24FD-10.0-PEBBLE

GREY

Article

Number

53001020061 E

53001030061 E

53001040061 E

53001050061 E

53001060061 D

53001070061 D

53001080061 D

53001090061 D

53001100061 D

53001110061 D

53001120061 D

53001130061 D

53001140061 D

53001150061 D

53001160061 D

53001170061 D

53001180061 D

53001190061 D

53001200061 D

53001210061 D

53001220061 D

53001230061 D

53001240061 D

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

PCB Hole Diameter

6.0 mm

1.1 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Solder Tab

Tension Spring

Copper

Alloy

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

PEBBLE GREY, RAL 7032

GREY, RAL 7016

LIGHT GREEN, similar RAL 6018

GREEN, RAL 6018

RED, RAL 3003

ORANGE, RAL 2011

BLUE, RAL 5015

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Ratings

UseGroup

Rated Voltage

Rated Current

Rated Wire Size

- solid

- stranded

Test Voltage

300 V

15 A

300 V

15 A

min

1000 V

24 A

max

2.5 mm²

3.5 kV

AWG 28-14

1.60 kV

AWG 28-14

1.60 kV

0.5 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

53001020061E Related Products

	53001020061E	53001120061D	53001220061D	AK3001/16FD-10.0-PEBBLEGREY
Description	Terminal and Terminal Block,	Terminal and Terminal Block,	Terminal and Terminal Block,	Terminal and Terminal Block,
Reach Compliance Code	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maker	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	-
