High Current Metallized Polypropylene
R
Film Capacitors
TYPE
P702
P704
P706
P708
DESIGN
Radial Box
Radial Epoxy Dip
Axial Oval Wrap & Fill
Axial Round Wrap & Fill
CAPACITANCE
(mfd)
0.01 To 2.2
0.01 To 4.7
0.01 To 10.0
0.01 To 10.0
TOLERANCE
±5% To ±20%
±5% To ±20%
±5% To ±20%
±5% To ±20%
PAGE
NO.
3-145
3-147
3-149
3-151
Features
1) Extended double sided metallized film, non-
inductive construction
2) High contact reliability and self healing
properties
3) Low DF, Low ESR, and high insulation
resistance
4) Suitable for high frequency
5) Negative temperature coefficient of
capacitance
Applications
1) High current and high pulse
operations
2) Timing circuits
3) Integrating circuits
4) Coupling circuits
5) Resonant circuits
6) Deflection circuits
7) Ignition processes
Part Numbering System
103
Capacitance Code
(EIA Standard)
P
Series
702
Type
A
A= DC / B= AC
161
Rated Voltage
161 = 160V
251 = 250V
401 = 400V
631 = 630V
K
Tolerance Code
J=5%
K=10%
M=20%
-00
Special
Customer
Options
Specifications
1) Operating Temperature Range:
2) Dissipation Factor:
3) Rated Voltage:
4) Dielectric Strength:
5) Insulation Resistance:
-55°C To +105°C with full Rated Voltage applied
0.1% Maximum at +25°C and 1Khz
160VDC, 250VDC, 400VDC, 630VDC
200% of rated voltage for 5 seconds
At +25°C after 2 minutes electrification at rated DC voltage
or 500VDC, the minimum IR shall be
≥
100,000 Megohms
for C
≤
0.33uF,
≥
30,000 Megohms X MFD(sec) C>0.33uF
Temperature coefficient -200 (+50, -100) PPM/°C
6) Capacitance Change:
3-112
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
R
High Current Metallized Polypropylene
TYPE: P702, P704, P706, P708 Series

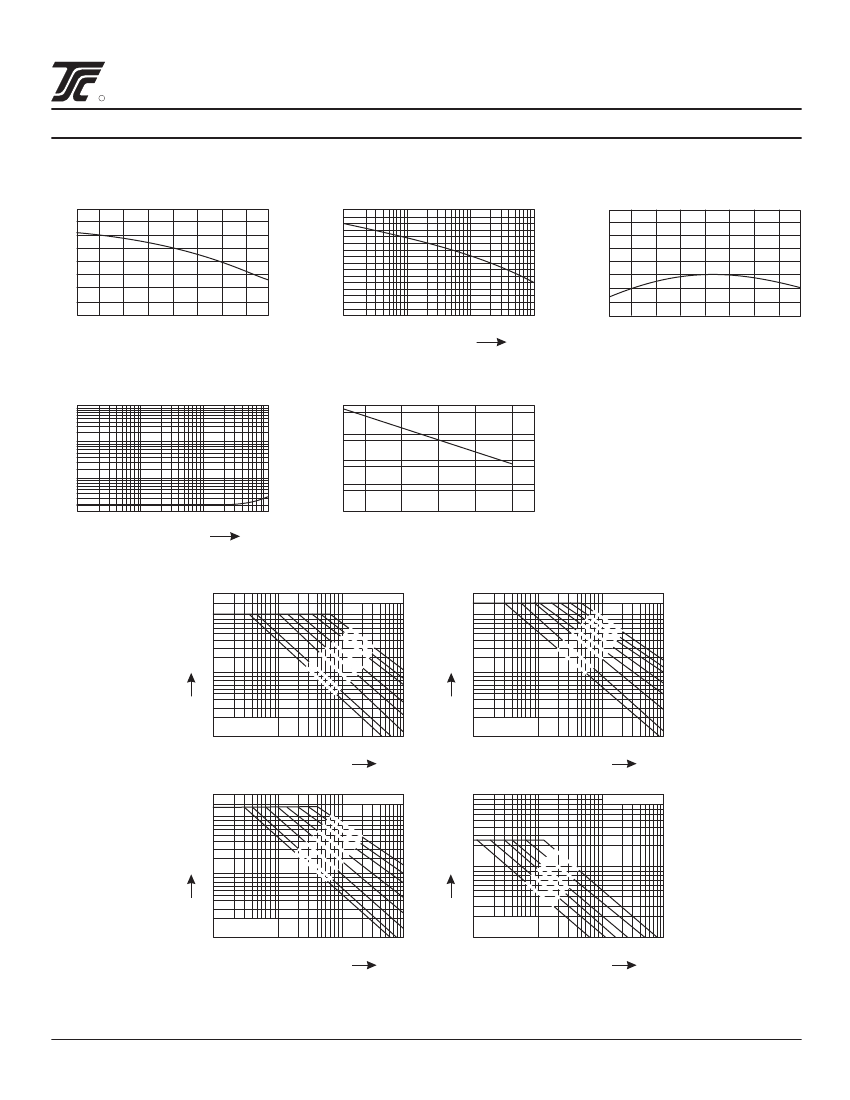

Capacitance Change vs. Temperature At 1KHz
Capacitance Change vs. Frequency (Room Temp.)
+0.2
Dissipation Factor vs. Temperature At 1KHz
.08
.07
% Capacitance Change
% Capacitance Change
+3
+2
+1
0
-1
-2
-3
-4
-5
-55 -35
-15
5
+25
+45
+65
+85 +105
% Dissipation Factor
0
-0.2
-0.4
-0.6
2
10
2 3
5 7
3
10
2 3
5 7
4
10
2 3
5 7
5
10
.06
.05
.04
.03
.02
.01
0
-55 -35
-15
5
+25
+45
+65
+85 +105
Degrees Centigrade
f [Hz]
Degrees Centigrade
Dissipation Factor vs. Frequency (Room Temp.)
Insulation Resistance vs. Temperature
Megohms X Microfarads (sec.)
10.0
7
5
3
2
1.0
7
5
3
2
0.1
7
5
3
2
0.01
10
6
% Dissipation Factor
10
5
10
10
4
3
2
10
2 3
5 7
3
10
2 3
5 7
4
10
2 3
5 7
5
10
10
2
+25
+45
+65
+85
+105
f [Hz]
Degrees Centigrade
Permissible AC Voltage vs. Frequency
3
2
100
7
5
Vr.m.s.
Capacitance in µF
Permissible AC Voltage vs. Frequency
3
2
100
7
5
Vr.m.s.
Capacitance in µF
0.
0. 01
0.0 022
0.1 47
0.
0.4 22
7
3
2
10
7
5
3
2
2.
4. 2
7
1
0
0. .22
47
0.
0 02
0. .47 2
1
3
2
10
7
5
3
2
1
2.2
160 VDC
1
3
10
2 3 5 7
4
10
2 3 5 7
5
10
2 3 5 7
6
10
1
3
10
400 VDC
2 3 5 7
4
10
2 3 5 7
5
10
2 3 5 7
6
10
f [Hz]
Permissible AC Voltage vs. Frequency
3
2
100
7
5
Vr.m.s.
Capacitance in µF
f [Hz]
Permissible AC Voltage vs. Frequency
1000
7
5
Vr.m.s.
Capacitance in µF
3
2
10
7
5
3
2
0.0
0. 22
0.1 47
0.
22
0.
47
1
2
3. .2
3
3
2
100
7
5
3
2
1
2.
2
0.
0. 1
22
0.
0.
01
00
33
250 VDC
1
3
10
2 3 5 7
4
10
2 3 5 7
5
10
2 3 5 7
6
10
10
3
10
630 VDC
2 3 5 7
4
10
2 3 5 7
5
10
2 3 5 7
6
10
f [Hz]
f [Hz]
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
3-113
High Current Metallized Polypropylene
R
Radial Box
TYPE: P702 Series
H max
25 min
T
max
L 13.0 18.0 26.5 32.0
S 10.0 15.0 22.5 27.5
L
max
R
S ±0.5
d
ød
0.6
0.8
0.8
0.8
(mm)
160 VDC
CAP. (µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
T
H
L
Part No.
T
4.0
4.0
5.0
5.0
6.0
6.0
6.0
5.0
5.0
6.0
6.0
6.0
7.5
7.5
8.5
7.0
7.0
8.5
8.5
10.0
13.0
11.0
13.0
15.0
15.0
18.0
18.0
H
9.0
9.0
11.0
11.0
12.0
12.0
12.0
11.0
11.0
12.0
12.0
12.0
13.5
13.5
15.0
16.5
16.5
17.0
17.0
19.0
22.0
20.0
22.0
25.0
25.0
30.0
30.0
250 VDC
L
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
103P702A251K
123P702A251K
153P702A251K
183P702A251K
223P702A251K
273P702A251K
333P702A251K
393P702A251K
473P702A251K
563P702A251K
683P702A251K
823P702A251K
104P702A251K
124P702A251K
154P702A251K
184P702A251K
224P702A251K
274P702A251K
334P702A251K
394P702A251K
474P702A251K
564P702A251K
684P702A251K
824P702A251K
105P702A251K
125P702A251K
155P702A251K
4.0
4.0
5.0
5.0
6.0
6.0
6.0
5.0
5.0
6.0
6.0
7.5
7.5
8.5
8.5
7.0
8.5
8.5
10.0
13.0
13.0
13.0
15.0
18.0
18.0
9.0
9.0
11.0
11.0
12.0
12.0
12.0
11.0
11.0
12.0
12.0
13.5
13.5
15.0
15.0
16.5
17.0
17.0
19.0
22.0
22.0
22.0
25.0
30.0
30.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
223P702A161K
273P702A161K
333P702A161K
393P702A161K
473P702A161K
563P702A161K
683P702A161K
823P702A161K
104P702A161K
124P702A161K
154P702A161K
184P702A161K
224P702A161K
274P702A161K
334P702A161K
394P702A161K
474P702A161K
564P702A161K
684P702A161K
824P702A161K
105P702A161K
125P702A161K
155P702A161K
185P702A161K
225P702A161K
400 VDC
CAP. (µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
T
5.0
5.0
6.0
6.0
6.0
5.0
5.0
6.0
6.0
7.5
7.5
8.5
8.5
7.0
7.0
8.5
8.5
10.0
13.0
11.0
13.0
15.0
15.0
18.0
18.0
H
11.0
11.0
12.0
12.0
12.0
11.0
11.0
12.0
12.0
13.5
13.5
15.0
15.0
16.5
16.5
17.0
17.0
19.0
22.0
20.0
22.0
25.0
25.0
30.0
30.0
L
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
103P702A401K
123P702A401K
153P702A401K
183P702A401K
223P702A401K
273P702A401K
333P702A401K
393P702A401K
473P702A401K
563P702A401K
683P702A401K
823P702A401K
104P702A401K
124P702A401K
154P702A401K
184P702A401K
224P702A401K
274P702A401K
334P702A401K
394P702A401K
474P702A401K
564P702A401K
684P702A401K
824P702A401K
105P702A401K
T
5.0
5.0
5.0
6.0
6.0
6.0
7.5
7.5
8.5
7.0
7.0
8.5
8.5
10.0
10.0
11.0
13.0
15.0
15.0
18.0
18.0
H
11.0
11.0
11.0
12.0
12.0
12.0
13.5
13.5
15.0
16.5
16.5
17.0
17.0
19.0
19.0
20.0
22.0
25.0
25.0
30.0
30.0
630 VDC
L
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
103P702A631K
123P702A631K
153P702A631K
183P702A631K
223P702A631K
273P702A631K
333P702A631K
393P702A631K
473P702A631K
563P702A631K
683P702A631K
823P702A631K
104P702A631K
124P702A631K
154P702A631K
184P702A631K
224P702A631K
274P702A631K
334P702A631K
394P702A631K
474P702A631K
*Other Values, Voltages, And Dimensions Are Available On Request
3-114
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
High Current Metallized Polypropylene
R
Radial Epoxy Dipped
TYPE: P704 Series
H max
25 min
T
max
L
S
10.0 12.5 18.0 26.0 31.0 44.0
7.5 10.0 15.0 22.5 27.5 38.0
0.6
0.6
0.8
0.8
0.8
0.8
(mm)
L
max
S ±1.5
R
d
ød
160 VDC
CAP. (µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
T
H
L
Part No.
T
4.0
4.5
5.0
5.5
6.0
6.5
6.5
5.5
6.0
6.5
6.5
7.0
7.5
8.0
8.5
7.5
8.5
9.0
9.5
10.0
11.0
11.0
12.5
13.0
15.0
16.5
18.0
16.5
17.5
H
8.0
8.5
9.0
10.0
11.0
12.0
12.5
11.0
11.5
12.0
12.5
13.0
13.5
14.0
15.0
13.5
15.5
16.5
17.0
18.5
20.0
20.0
22.0
24.0
27.0
30.0
33.0
30.0
32.0
250 VDC
L
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
44.0
44.0
Part No.
103P704A251K
123P704A251K
153P704A251K
183P704A251K
223P704A251K
273P704A251K
333P704A251K
393P704A251K
473P704A251K
563P704A251K
683P704A251K
823P704A251K
104P704A251K
124P704A251K
154P704A251K
184P704A251K
224P704A251K
274P704A251K
334P704A251K
394P704A251K
474P704A251K
564P704A251K
684P704A251K
824P704A251K
105P704A251K
125P704A251K
155P704A251K
185P704A251K
225P704A251K
4.5
5.0
5.5
5.5
6.0
6.5
7.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.5
8.5
9.0
9.5
10.0
11.5
13.0
13.0
14.0
15.5
18.0
14.5
16.0
17.5
19.0
8.5
9.5
10.5
11.0
12.0
12.5
13.0
10.5
11.0
12.5
13.0
13.5
14.5
15.5
16.5
15.5
16.5
17.0
19.0
21.0
24.0
24.0
26.0
28.0
32.0
26.0
28.0
30.0
32.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
44.0
44.0
44.0
44.0
223P704A161K
273P704A161K
333P704A161K
393P704A161K
473P704A161K
563P704A161K
683P704A161K
823P704A161K
104P704A161K
124P704A161K
154P704A161K
184P704A161K
224P704A161K
274P704A161K
334P704A161K
394P704A161K
474P704A161K
564P704A161K
684P704A161K
824P704A161K
105P704A161K
125P704A161K
155P704A161K
185P704A161K
225P704A161K
275P704A161K
335P704A161K
395P704A161K
475P704A161K
400 VDC
CAP. (µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
T
5.0
5.5
6.0
6.0
6.5
5.5
6.0
6.5
6.5
7.0
7.5
8.0
8.5
8.0
8.5
9.0
9.5
10.0
11.0
11.0
12.5
13.5
15.0
16.5
17.5
16.0
17.5
19.0
22.0
H
9.5
10.0
11.0
12.0
12.5
10.5
11.0
12.0
12.5
13.0
13.5
14.5
15.0
14.5
15.0
16.0
17.0
18.5
20.5
20.5
22.5
24.0
26.0
30.0
32.0
28.0
30.0
33.0
36.0
L
13.0
13.0
13.0
13.0
13.0
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
44.0
44.0
44.0
44.0
Part No.
103P704A401K
123P704A401K
153P704A401K
183P704A401K
223P704A401K
273P704A401K
333P704A401K
393P704A401K
473P704A401K
563P704A401K
683P704A401K
823P704A401K
104P704A401K
124P704A401K
154P704A401K
184P704A401K
224P704A401K
274P704A401K
334P704A401K
394P704A401K
474P704A401K
564P704A401K
684P704A401K
824P704A401K
105P704A401K
125P704A401K
155P704A401K
185P704A401K
225P704A401K
T
4.5
5.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
7.5
8.0
8.5
9.0
9.5
10.5
11.0
12.0
13.0
14.5
15.5
17.5
15.0
16.5
18.0
20.5
H
9.0
9.5
10.5
12.0
12.5
13.0
13.5
14.0
16.0
13.5
14.0
15.0
17.0
18.0
20.0
20.5
22.0
24.0
26.0
28.0
31.0
27.0
30.0
32.0
35.0
630 VDC
L
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
18.5
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
44.0
44.0
44.0
44.0
Part No.
103P704A631K
123P704A631K
153P704A631K
183P704A631K
223P704A631K
273P704A631K
333P704A631K
393P704A631K
473P704A631K
563P704A631K
683P704A631K
823P704A631K
104P704A631K
124P704A631K
154P704A631K
184P704A631K
224P704A631K
274P704A631K
334P704A631K
394P704A631K
474P704A631K
564P704A631K
684P704A631K
824P704A631K
105P704A631K
*Other Values, Voltages, And Dimensions Are Available On Request
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
3-115
High Current Metallized Polypropylene
R
Axial Oval Wrap & Fill
TYPE: P706 Series
ø
d
H
MAX
38
MIN
L
MAX
38
MIN
T
MAX
L
d
14.0 19.0 26.5 32.0 45.0
0.6
0.8
0.8
0.8
1.0
(mm)
160 VDC
CAP. (µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
T
H
L
Part No.
T
3.5
3.5
4.0
4.5
5.0
5.5
5.5
4.5
5.0
5.0
5.5
5.5
6.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.0
9.5
10.5
12.5
11.0
12.0
13.0
15.0
17.5
19.0
21.0
23.5
H
6.0
6.5
7.0
8.0
9.0
10.0
10.5
8.5
9.0
9.5
10.0
10.5
12.0
10.5
12.0
12.5
13.0
13.5
14.0
15.0
16.5
16.5
18.0
20.0
22.0
20.5
22.0
23.0
25.0
28.0
30.0
33.0
36.0
250 VDC
L
14.0
14.0
14.0
14.0
14.0
14.0
14.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
Part No.
103P706A251K
123P706A251K
153P706A251K
183P706A251K
223P706A251K
273P706A251K
333P706A251K
393P706A251K
473P706A251K
563P706A251K
683P706A251K
823P706A251K
104P706A251K
124P706A251K
154P706A251K
184P706A251K
224P706A251K
274P706A251K
334P706A251K
394P706A251K
474P706A251K
564P706A251K
684P706A251K
824P706A251K
105P706A251K
125P706A251K
155P706A251K
185P706A251K
225P706A251K
275P706A251K
335P706A251K
395P706A251K
475P706A251K
3.5
4.0
4.5
4.5
5.0
5.0
5.5
4.5
5.0
5.0
5.5
6.0
6.5
6.0
6.5
7.0
7.5
8.0
8.5
8.5
9.5
10.0
11.5
9.5
10.5
11.5
13.0
14.5
16.0
18.0
20.5
22.0
25.0
6.5
7.0
8.0
8.5
9.0
9.5
10.0
8.5
9.0
10.0
11.0
12.0
12.5
12.0
12.5
13.0
13.5
14.0
15.0
15.0
17.5
19.0
21.0
17.5
20.0
21.0
23.0
25.0
27.0
29.0
32.0
34.0
38.0
14.0
14.0
14.0
14.0
14.0
14.0
14.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
223P706A161K
273P706A161K
333P706A161K
393P706A161K
473P706A161K
563P706A161K
683P706A161K
823P706A161K
104P706A161K
124P706A161K
154P706A161K
184P706A161K
224P706A161K
274P706A161K
334P706A161K
394P706A161K
474P706A161K
564P706A161K
684P706A161K
824P706A161K
105P706A161K
125P706A161K
155P706A161K
185P706A161K
225P706A161K
275P706A161K
335P706A161K
395P706A161K
475P706A161K
565P706A161K
685P706A161K
825P706A161K
106P706A161K
400 VDC
CAP. (µF)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
T
4.0
4.5
5.0
5.0
5.5
4.5
5.0
5.0
5.5
5.5
6.0
5.5
6.0
6.5
7.0
7.5
8.0
8.5
9.0
9.5
10.0
11.0
12.0
11.0
12.0
13.0
15.0
17.0
19.5
21.0
23.0
H
7.0
8.0
9.0
9.5
10.0
8.5
9.0
10.0
10.5
11.0
11.5
11.0
12.0
12.5
13.0
13.5
14.0
15.0
16.5
18.0
19.0
20.5
22.0
21.0
21.5
23.0
25.0
27.0
30.0
32.0
35.0
L
14.0
14.0
14.0
14.0
14.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
Part No.
103P706A401K
123P706A401K
153P706A401K
183P706A401K
223P706A401K
273P706A401K
333P706A401K
393P706A401K
473P706A401K
563P706A401K
683P706A401K
823P706A401K
104P706A401K
124P706A401K
154P706A401K
184P706A401K
224P706A401K
274P706A401K
334P706A401K
394P706A401K
474P706A401K
564P706A401K
684P706A401K
824P706A401K
105P706A401K
125P706A401K
155P706A401K
185P706A401K
225P706A401K
275P706A401K
335P706A401K
T
4.0
4.5
4.5
4.5
5.0
5.5
6.0
5.0
5.5
6.0
6.5
7.0
7.5
7.5
8.5
9.0
9.5
10.5
11.5
10.5
11.5
12.5
13.5
15.0
17.5
19.5
22.0
23.5
26.0
H
7.0
8.0
8.5
9.0
10.0
10.5
11.0
10.0
10.5
11.0
12.0
13.0
13.5
13.5
15.0
16.5
18.0
20.0
21.5
20.0
21.0
22.5
24.5
26.0
28.0
30.0
32.0
35.0
38.0
630 VDC
L
19.0
19.0
19.0
19.0
19.0
19.0
19.0
26.5
26.5
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
45.0
Part No.
103P706A631K
123P706A631K
153P706A631K
183P706A631K
223P706A631K
273P706A631K
333P706A631K
393P706A631K
473P706A631K
563P706A631K
683P706A631K
823P706A631K
104P706A631K
124P706A631K
154P706A631K
184P706A631K
224P706A631K
274P706A631K
334P706A631K
394P706A631K
474P706A631K
564P706A631K
684P706A631K
824P706A631K
105P706A631K
125P706A631K
155P706A631K
185P706A631K
225P706A631K
*Other Values, Voltages, And Dimensions Are Available On Request
3-116
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
京公网安备 11010802033920号
EEWORLD
