R
Metallized Polyester
Film Capacitors
n
TYPE
M102
M104
M106
M108
DESIGN
Radial Box
Radial Epoxy Dip
Axial Oval Wrap & Fill
Axial Round Wrap & Fill
CAPACITANCE
(mfd)
0.001 To 22.0
0.001 To 22.0
0.001 To 22.0
0.001 To 22.0
TOLERANCE
±1% To ±20%
±1% To ±20%
±1% To ±20%
±1% To ±20%
PAGE
NO.
3 - 10
3 - 12
3 - 14
3 - 16
Features
1) Extended foil, non-inductive construction
2) Very small size and self healing properties
3) Low dissipation factor and high stability of
capacitance
4) High insulation resistance and high humidity
resistance
5) Wide temperature range
Applications
Filtering
Timing
Blocking
Coupling and decoupling
Bypassing and low pulse
operations
6) Interference suppression in
low voltage
7) Industrial electronics and
commercial equipment
1)
2)
3)
4)
5)
Part Numbering System
102
Capacitance Code
(EIA Standard)
M
Series
102
Type
A
A= DC / B= AC
630
Rated Voltage
630 = 63V
100 = 101V
251 = 250V
401 = 400V
631 = 630V
102 = 1000V
K
Tolerance Code
F=1%
G=2%
H=3%
J=5%
K=10%
M=20%
-00
Special
Customer
Options
Specifications
1) Operating Temperature Range:
2) Dissipation Factor:
3) Rated Voltage:
4) Dielectric Strength:
5) Insulation Resistance:
-55°C To +85°C with full Rated Voltage applied, to +125°C with
50% of rated voltage
1.0% Maximum at +25°C and 1Khz
63VDC, 100VDC, 250VDC, 400VDC, 630VDC, 1000VDC
200% of rated voltage for 5 seconds
At +25°C after 2 minutes electrification at rated DC voltage or
500VDC, the minimum IR shall be
≥
30,000 Megohms for C
≤
0.33uF and rated voltage >100VDC,
≥
15,000 Megohms for C
≤
0.33uF and rated voltage
≤
100VDC,
≥
10,000 Megohms x MFD(sec) for C>0.33uF and rated voltage
>100VDC,
≥
5,000 Megohms x MFD(sec) for C> 0.33uF and rated voltage
≤
100VDC
0.5% Maximum at +25°C
<±3% at -25°C to +85°C
6) Dielectric Absorption:
7) Capacitance Change:
3-6
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
R
Metallized Polyester
TYPE: M102, M104, M106, M108 Series

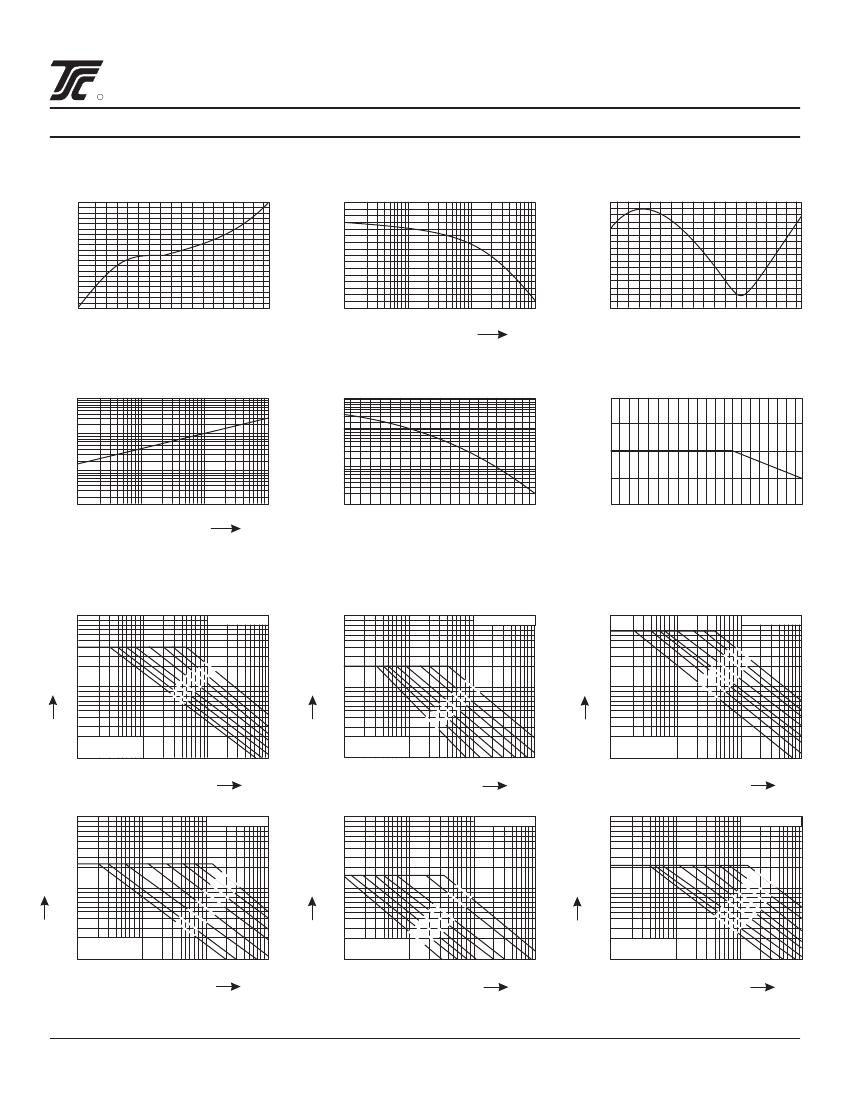

Capacitance Change vs. Temperature At 1KHz
Capacitance Change vs. Frequency (Room Temp.)
+2
1.6
1.4
Dissipation vs. Temperature At 1KHz
% Capacitance Change
% Capacitance Change
% Dissipation Factor
2 3
5 7
3
10
2 3
5 7
4
10
5 7
5
10
+5
+4
+3
+2
+1
+0
-1
-2
-3
-4
-5
-55 -40
+1
0
-1
-2
-3
-4
-5
-6
2
10
1.2
1.0
0.8
0.6
0.4
0.2
0
-55 -40
-20
0
+20
+40
+60
+80 +100 +125
-20
0
+20
+40
+60
+80 +100 +125
Degrees Centigrade
f [Hz]
Degrees Centigrade
Dissipation Factor vs. Frequency (Room Temp.)
Insulation Resistance vs. Temperature
Voltage Derating vs. Temperature
200
150
Megohms X Microfarads (sec.)
10.0
% Dissipation Factor
7
5
3
2
1.0
7
5
3
2
0.1
7
5
3
2
0.01
2
10
2
5 7
3
10
2 3
5 7
4
10
2 3
5 7
5
10
10 20 30
5
7
5
3
2
4
7
5
3
2
3
7
5
3
2
2
%
40
50
60
70
80
90
100 110 125
100
50
0
20 30
40
50
60
70
80
90 100 110
125
f [Hz]
Degrees Centigrade
Degrees Centigrade
Permissible AC Voltage vs. Frequency
100
7
5
Vr.m.s.
Vr.m.s.
Capacitance in µF
Permissible AC Voltage vs. Frequency
1000
7
5
Capacitance in µF
Permissible AC Voltage vs. Frequency
100
7
5
Vr.m.s.
Capacitance in µF
3
2
10
7
5
3
2
15
0.
0. 33
47
1
2.
4 2
10 .7
15
0.
3
2
100
7
5
3
2
2.
0.
0
0 .1
0 .22
1 .47
2
0.
0.
02
00
68
3
2
10
7
5
3
2
10
0.
0. 068
0. 15
22
0.
1 47
2.
2
4.
7
04 2
7
63 VDC
1
2
10
2 3 5 7
3
10
2 3 5 7
4
10
2 3 5 7
5
10
10
2
10
400 VDC
2 3 5 7
3
10
2 3 5 7
4
10
2 3 5 7
5
10
1
2
10
100 VDC
2 3 5 7
3
10
2 3 5 7
4
10
2 3 5 7
5
10
f [Hz]
Permissible AC Voltage vs. Frequency
1000
7
5
Vr.m.s.
Capacitance in µF
f [Hz]
f [Hz]
Permissible AC Voltage vs. Frequency
1000
7
5
Vr.m.s.
Vr.m.s.
Capacitance in µF
Permissible AC Voltage vs. Frequency
1000
7
5
3
2
100
7
5
3
2
Capacitance in µF
3
2
100
7
5
3
2
0.
0.
0.
2
1. 2
0
1
0.
0
0. 01
00
0.
00 22
0.
01 47
03
3
3
2
100
7
5
3
2
1
2.
4.7 2
10
0.1
0.3 5
3
0.0
4
0.0
15
7
0.0
0
0.0 1
0.0 022
04
0.0
7
0.0 1
22
0.0
0. 47
0 1
0.4.22
7
630 VDC
10
2
10
2 3 5 7
3
10
2 3 5 7
4
10
2 3 5 7
5
10
250 VDC
10
2
10
2 3 5 7
3
10
2 3 5 7
4
10
2 3 5 7
5
10
10
2
10
1000 VDC
2 3 5 7
3
10
2 3 5 7
4
10
2 3 5 7
5
10
f [Hz]
f [Hz]
f [Hz]
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
3-7
R
Metallized Polyester
n
Radial Box
TYPE: M102 Series
H max
25 min
T
max
L
S
10.5 13.0 18.0 26.5 32.0
7.5 10.0 15.0 22.5 27.5
0.6
0.6
0.8
0.8
0.8
(mm)
L
max
R
S ±1.5
d
ød
63 VDC
CAP.
(µF)
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
6.0
6.0
6.0
6.0
7.5
7.5
6.0
7.0
8.5
8.5
10.0
10.0
11.0
11.0
11.0
13.0
13.0
15.0
H
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
12.0
12.0
12.0
12.0
13.5
13.5
15.0
16.5
17.0
17.0
19.0
19.0
20.0
20.0
20.0
22.0
22.0
25.0
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
102 M102A630K
122 M102A630K
152 M102A630K
182 M102A630K
222 M102A630K
272 M102A630K
332 M102A630K
392 M102A630K
472 M102A630K
562 M102A630K
682 M102A630K
822 M102A630K
103 M102A630K
123 M102A630K
153 M102A630K
183 M102A630K
223 M102A630K
273 M102A630K
333 M102A630K
393 M102A630K
473 M102A630K
563 M102A630K
683 M102A630K
823 M102A630K
104 M102A630K
124 M102A630K
154 M102A630K
184 M102A630K
224 M102A630K
274 M102A630K
334 M102A630K
394 M102A630K
474 M102A630K
564 M102A630K
684 M102A630K
824 M102A630K
105 M102A630K
125 M102A630K
155 M102A630K
185 M102A630K
225 M102A630K
275 M102A630K
335 M102A630K
395 M102A630K
475 M102A630K
565 M102A630K
685 M102A630K
825 M102A630K
106 M102A630K
126 M102A630K
156 M102A630K
186 M102A630K
226 M102A630K
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
6.0
6.0
5.0
5.0
6.0
6.0
7.5
7.5
7.0
7.0
8.5
8.5
10.0
10.0
11.0
11.0
13.0
13.0
15.0
18.0
H
100 VDC
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
102 M102A101K
122 M102A101K
152 M102A101K
182 M102A101K
222 M102A101K
272 M102A101K
332 M102A101K
392 M102A101K
472 M102A101K
562 M102A101K
682 M102A101K
822 M102A101K
103 M102A101K
123 M102A101K
153 M102A101K
183 M102A101K
223 M102A101K
273 M102A101K
333 M102A101K
393 M102A101K
473 M102A101K
563 M102A101K
683 M102A101K
823 M102A101K
104 M102A101K
124 M102A101K
154 M102A101K
184 M102A101K
224 M102A101K
274 M102A101K
334 M102A101K
394 M102A101K
474 M102A101K
564 M102A101K
684 M102A101K
824 M102A101K
105 M102A101K
125 M102A101K
155 M102A101K
185 M102A101K
225 M102A101K
275 M102A101K
335 M102A101K
395 M102A101K
475 M102A101K
565 M102A101K
685 M102A101K
825 M102A101K
106 M102A101K
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
6.0
6.0
5.0
5.0
6.0
6.0
7.5
7.5
6.0
7.0
8.5
8.5
10.0
10.0
11.0
11.0
13.0
13.0
15.0
18.0
H
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
12.0
12.0
11.0
11.0
12.0
12.0
13.5
13.5
15.0
16.5
17.0
17.0
19.0
19.0
20.0
20.0
22.0
22.0
25.0
30.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
12.0
12.0
11.0
11.0
12.0
12.0
13.5
13.5
16.5
16.5
17.0
17.0
19.0
19.0
20.0
20.0
22.0
22.0
25.0
30.0
250 VDC
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
102 M102A251K
122 M102A251K
152 M102A251K
182 M102A251K
222 M102A251K
272 M102A251K
332 M102A251K
392 M102A251K
472 M102A251K
562 M102A251K
682 M102A251K
822 M102A251K
103 M102A251K
123 M102A251K
153 M102A251K
183 M102A251K
223 M102A251K
273 M102A251K
333 M102A251K
393 M102A251K
473 M102A251K
563 M102A251K
683 M102A251K
823 M102A251K
104 M102A251K
124 M102A251K
154 M102A251K
184 M102A251K
224 M102A251K
274 M102A251K
334 M102A251K
394 M102A251K
474 M102A251K
564 M102A251K
684 M102A251K
824 M102A251K
105 M102A251K
125 M102A251K
155 M102A251K
185 M102A251K
225 M102A251K
275 M102A251K
335 M102A251K
395 M102A251K
475 M102A251K
*Other Values, Voltages, And Dimensions Are Available On Request
3-8
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
R
Metallized Polyester
n
Radial Box
TYPE: M102 Series
(mm)
400 VDC
CAP.
(µF)
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
6.0
6.0
5.0
5.0
6.0
6.0
7.5
7.5
6.0
7.0
7.0
8.5
8.5
10.0
11.0
11.0
13.0
13.0
15.0
15.0
18.0
18.0
H
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
12.0
12.0
11.0
11.0
12.0
12.0
13.5
13.5
15.0
16.5
16.5
17.0
17.0
19.0
20.0
20.0
22.0
22.0
25.0
25.0
30.0
30.0
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
102 M102A401K
122 M102A401K
152 M102A401K
182 M102A401K
222 M102A401K
272 M102A401K
332 M102A401K
392 M102A401K
472 M102A401K
562 M102A401K
682 M102A401K
822 M102A401K
103 M102A401K
123 M102A401K
153 M102A401K
183 M102A401K
223 M102A401K
273 M102A401K
333 M102A401K
393 M102A401K
473 M102A401K
563 M102A401K
683 M102A401K
823 M102A401K
104 M102A401K
124 M102A401K
154 M102A401K
184 M102A401K
224 M102A401K
274 M102A401K
334 M102A401K
394 M102A401K
474 M102A401K
564 M102A401K
684 M102A401K
824 M102A401K
105 M102A401K
125 M102A401K
155 M102A401K
185 M102A401K
225 M102A401K
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
5.0
6.0
5.0
5.0
6.0
6.0
6.0
7.5
6.0
6.0
7.0
7.0
8.5
10.0
11.0
11.0
11.0
13.0
15.0
15.0
18.0
18.0
H
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
11.0
12.0
11.0
11.0
12.0
12.0
12.0
13.5
15.0
15.0
16.5
16.5
17.0
19.0
20.0
20.0
20.0
22.0
25.0
25.0
30.0
30.0
630 VDC
L
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
10.5
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
102 M102A631K
122 M102A631K
152 M102A631K
182 M102A631K
222 M102A631K
272 M102A631K
332 M102A631K
392 M102A631K
472 M102A631K
562 M102A631K
682 M102A631K
822 M102A631K
103 M102A631K
123 M102A631K
153 M102A631K
183 M102A631K
223 M102A631K
273 M102A631K
333 M102A631K
393 M102A631K
473 M102A631K
563 M102A631K
683 M102A631K
823 M102A631K
104 M102A631K
124 M102A631K
154 M102A631K
184 M102A631K
224 M102A631K
274 M102A631K
334 M102A631K
394 M102A631K
474 M102A631K
564 M102A631K
684 M102A631K
824 M102A631K
105 M102A631K
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
5.0
5.0
6.0
5.0
5.0
5.0
6.0
6.0
7.5
6.0
7.0
7.0
8.5
8.5
10.0
11.0
11.0
11.0
13.0
15.0
15.0
18.0
18.0
H
1000 VDC
L
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
13.0
18.0
18.0
18.0
18.0
18.0
18.0
26.5
26.5
26.5
26.5
26.5
26.5
32.0
32.0
32.0
32.0
32.0
32.0
32.0
32.0
Part No.
102 M102A102K
122 M102A102K
152 M102A102K
182 M102A102K
222 M102A102K
272 M102A102K
332 M102A102K
392 M102A102K
472 M102A102K
562 M102A102K
682 M102A102K
822 M102A102K
103 M102A102K
123 M102A102K
153 M102A102K
183 M102A102K
223 M102A102K
273 M102A102K
333 M102A102K
393 M102A102K
473 M102A102K
563 M102A102K
683 M102A102K
823 M102A102K
104 M102A102K
124 M102A102K
154 M102A102K
184 M102A102K
224 M102A102K
274 M102A102K
334 M102A102K
394 M102A102K
474 M102A102K
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
9.0
11.0
11.0
12.0
11.0
11.0
11.0
12.0
12.0
13.5
15.0
16.5
16.5
17.0
17.0
19.0
20.0
20.0
20.0
22.0
25.0
25.0
30.0
30.0
*Other Values, Voltages, And Dimensions Are Available On Request
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
3-9
R
Metallized Polyester
n
Radial Epoxy Dipped
TYPE: M104 Series
H max
25 min
T
max
L
S
10.0 12.5 18.0 26.0 31.0 44.0
7.5 10.0 15.0 22.5 27.5 38.0
0.6
0.6
0.8
0.8
0.8
0.8
(mm)
L
max
S ±1.5
R
d
ød
63 VDC
CAP.
(µF)
0.001
0.0012
0.0015
0.0018
0.0022
0.0027
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10.0
12.0
15.0
18.0
22.0
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.5
5.0
5.5
6.0
6.5
6.0
6.5
7.0
7.5
7.0
7.5
8.0
8.5
9.0
9.5
9.0
9.5
10.0
11.5
12.5
14.0
H
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.5
8.5
8.5
9.0
9.0
9.5
10.0
10.5
11.5
12.0
12.0
12.5
13.0
13.5
13.0
13.5
14.5
16.0
17.0
18.0
17.0
18.0
19.0
21.0
23.0
25.0
L
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
12.5
12.5
12.5
12.5
12.5
12.5
18.0
18.0
18.0
18.0
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
Part No.
102 M104A630K
122 M104A630K
152 M104A630K
182 M104A630K
222 M104A630K
272 M104A630K
332 M104A630K
392 M104A630K
472 M104A630K
562 M104A630K
682 M104A630K
822 M104A630K
103 M104A630K
123 M104A630K
153 M104A630K
183 M104A630K
223 M104A630K
273 M104A630K
333 M104A630K
393 M104A630K
473 M104A630K
563 M104A630K
683 M104A630K
823 M104A630K
104 M104A630K
124 M104A630K
154 M104A630K
184 M104A630K
224 M104A630K
274 M104A630K
334 M104A630K
394 M104A630K
474 M104A630K
564 M104A630K
684 M104A630K
824 M104A630K
105 M104A630K
125 M104A630K
155 M104A630K
185 M104A630K
225 M104A630K
275 M104A630K
335 M104A630K
395 M104A630K
475 M104A630K
565 M104A630K
685 M104A630K
825 M104A630K
106 M104A630K
126 M104A630K
156 M104A630K
186 M104A630K
226 M104A630K
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.5
4.5
5.0
5.5
6.0
5.0
5.5
6.0
7.0
7.5
8.0
7.5
8.0
8.5
9.0
9.5
10.5
10.0
11.0
12.0
13.0
14.0
16.5
15.5
16.5
17.5
20.0
H
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.5
9.0
8.5
9.0
9.5
10.0
11.0
12.0
10.0
11.0
12.0
13.0
13.5
14.0
13.5
14.0
15.5
17.0
18.0
20.0
19.0
21.0
22.0
24.0
26.0
30.0
28.0
30.0
32.0
35.0
100 VDC
L
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
12.5
12.5
12.5
12.5
12.5
12.5
18.0
18.0
18.0
18.0
18.0
18.0
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
44.0
44.0
44.0
44.0
Part No.
102 M104A101K
122 M104A101K
152 M104A101K
182 M104A101K
222 M104A101K
272 M104A101K
332 M104A101K
392 M104A101K
472 M104A101K
562 M104A101K
682 M104A101K
822 M104A101K
103 M104A101K
123 M104A101K
153 M104A101K
183 M104A101K
223 M104A101K
273 M104A101K
333 M104A101K
393 M104A101K
473 M104A101K
563 M104A101K
683 M104A101K
823 M104A101K
104 M104A101K
124 M104A101K
154 M104A101K
184 M104A101K
224 M104A101K
274 M104A101K
334 M104A101K
394 M104A101K
474 M104A101K
564 M104A101K
684 M104A101K
824 M104A101K
105 M104A101K
125 M104A101K
155 M104A101K
185 M104A101K
225 M104A101K
275 M104A101K
335 M104A101K
395 M104A101K
475 M104A101K
565 M104A101K
685 M104A101K
825 M104A101K
106 M104A101K
126 M104A101K
156 M104A101K
186 M104A101K
226 M104A101K
T
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.5
4.0
4.5
4.5
5.0
5.5
6.0
5.0
5.5
6.0
6.5
7.0
7.5
7.0
8.0
8.5
9.0
9.5
10.0
9.5
10.0
11.5
12.5
13.5
15.0
14.5
16.0
16.5
18.0
250 VDC
H
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.0
8.5
9.0
9.0
9.0
9.0
9.5
10.0
11.0
12.0
10.0
11.0
12.0
12.5
13.0
13.5
13.0
14.0
15.5
16.5
17.0
19.0
17.0
19.0
21.0
23.0
25.0
26.0
25.0
30.0
32.0
34.0
L
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
10.0
12.5
12.5
12.5
12.5
12.5
12.5
18.0
18.0
18.0
18.0
18.0
18.0
26.0
26.0
26.0
26.0
26.0
26.0
31.0
31.0
31.0
31.0
31.0
31.0
44.0
44.0
44.0
44.0
Part No.
102 M104A251K
122 M104A251K
152 M104A251K
182 M104A251K
222 M104A251K
272 M104A251K
332 M104A251K
392 M104A251K
472 M104A251K
562 M104A251K
682 M104A251K
822 M104A251K
103 M104A251K
123 M104A251K
153 M104A251K
183 M104A251K
223 M104A251K
273 M104A251K
333 M104A251K
393 M104A251K
473 M104A251K
563 M104A251K
683 M104A251K
823 M104A251K
104 M104A251K
124 M104A251K
154 M104A251K
184 M104A251K
224 M104A251K
274 M104A251K
334 M104A251K
394 M104A251K
474 M104A251K
564 M104A251K
684 M104A251K
824 M104A251K
105 M104A251K
125 M104A251K
155 M104A251K
185 M104A251K
225 M104A251K
275 M104A251K
335 M104A251K
395 M104A251K
475 M104A251K
565 M104A251K
685 M104A251K
825 M104A251K
106 M104A251K
*Other Values, Voltages, And Dimensions Are Available On Request
3-10
TSC Electronics, Ltd.
Tel: (310) 534-2738 • Fax: (310) 534-3216 • http://www.tscgroup.com
京公网安备 11010802033920号
EEWORLD
