2500 Series Card Edge Connector, High Profile
SLC 96,
.125” X .125” Contact Spacing, Press Fit
Features
• Flat Plate Installation eliminates the need for
secondary operation tooling which can damage
the connector.
• Extra large chamfered entry
• Conforms to Bell-core spec TR-TSY-00078
• Extended card scoops available
• Replaceable contacts
• Molded in polarization available between
contact, or on contact position.
• De-population of contacts per
customer specification.
• Available in selective gold plate at contact point
• Many other custom options available, including,
but not limited to:
• Single or Both Ends Open
• Shorting Contacts
Specifications
Insulator Material: Glass filled polyester, type PBT,
94 V-O, UL Rated.
Contact Material: Phosphor Bronze Alloy
Contact Plating: Gold and/or Tin over .000050” Nickel,
(See Contact Plating Options).
Current Rating:
3 amps at 30°C
Contact Resistance:
Contact to Daughter Card:
10 m
W
max.
Compliant section to P.T.H.:
2 m
W
max.
Insulation Resistance:
5000 M
W
min.
Dielectric Withstand Voltage:
1500 V AC
Daughter Board Insertion Force:
16 oz max. per contact pair
when tested with a .071” thick
gage.
Daughter Board Withdrawal Force:
1 oz min. per contact pair
when tested with a .054” thick
gage.
Compliant Section Insertion Force:
40 lbs max per contact
Compliant Section Withdrawal Force:
10 lbs min. per contact
Recommended Board Thickness:
.093”+
Recommended PCB Layout Page A-33
Operating Temperature:
-54
B
C to +125
B
C
For drawings, technical data or samples,
contact E.C.S. at (714) 895-6351
Recommended Hole Size
.040 ±.003 [1.02]
.0453 ±.001 [1.15]
.0040 [.10] min.
.0003 [.008] min.
R
C
R
Dimensions are in inch [mm]
Drilled Hole
Diameter
Plating
Thickness
.001-.003 [.03-.08]
.0003 [.008]min.
.001-.003 [.03-.08]
Hole
Diameter
Pad
Diameter
Recognized under the recognized component
Program of Underwriters Laboratories, Inc.
File Numbers: E146967 and E176234
.0453±.001
[1.15]
Copper
Tin / Lead
After Plating
.040±.003
[1.02]
.065 [1.65]
NO. OF POS./CONTACTS
25/50
27/54
30/60
50/100
A
3.400 [86.34]
3.650 [92.71]
4.025 [102.24]
6.525 [165.74]
B
3.230 [82.04]
3.480 [88.39]
3.855 [97.92]
6.355 [161.42]
C
3.000 [76.20]
3.250 [82.55]
3.625 [92.08]
6.125 [155.58]
Dimensions are in inch [mm]
For reference only, can go 1 through 50 positions.
ELECTRONIC CONNECTOR SERVICE INC.
11880 WESTERN AVE. STANTON, CA 90680 TOLL FREE (877) ECS-CONN TEL (714) 895-6351 FAX (714) 894-1858
WWW.ECSCONN.COM

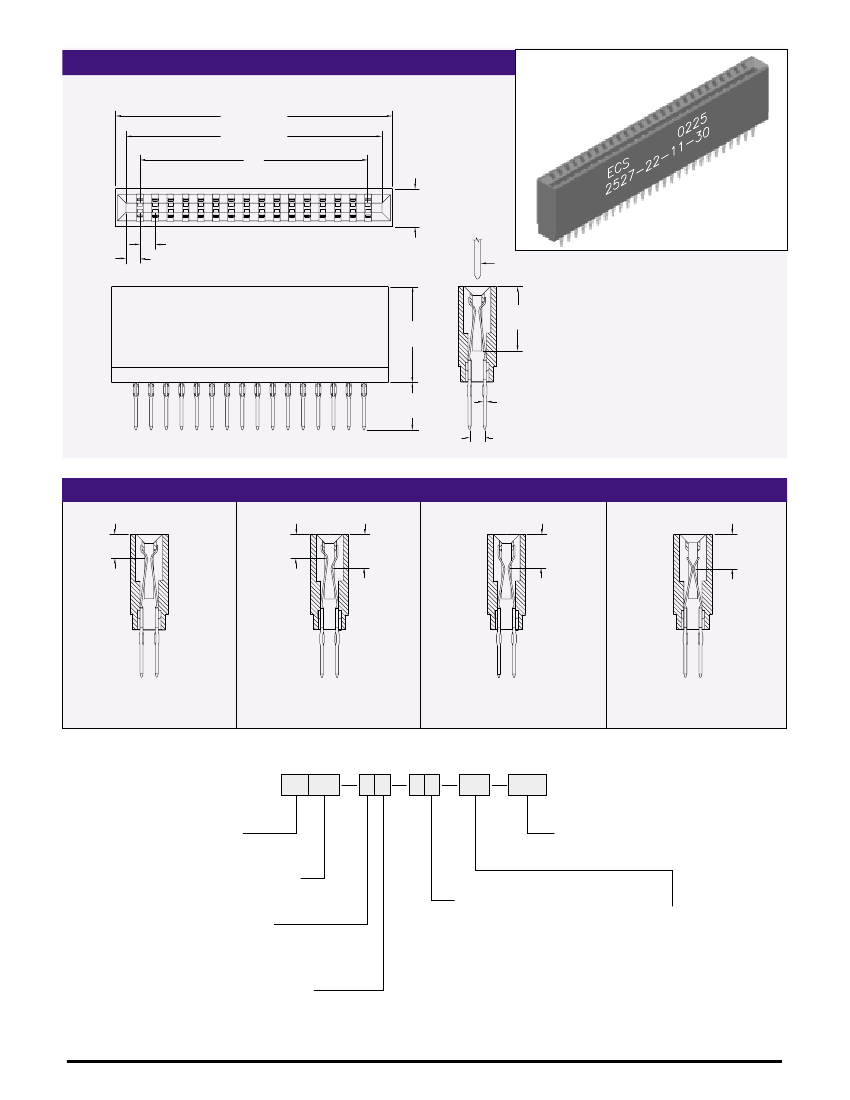

.125” x .125” Contact Spacing, High Profile
A
±.010[0.25]
B
±.005[0.13]
C
.315
[8.00]
.125
[3.18]
TYPICAL
.115
[2.92]
ACCEPTS .054 - .071
[1.37 - 1.80]
P.C. BOARD
.785
[19.94]
.530
[13.46]
TYP.
TAIL LENGTH
±.010[0.25]
.025
[0.64]
.125
[3.18]
Dimensions are in inch [mm]
CONTACT STYLE
.201
[5.11]
.201
[5.11]
.281
[7.14]
.281
[7.14]
.281
[7.14]
1
= EARLY MAKE CONTACTS
2
= EARLY / LATE MAKE CONTACTS
3
= LATE MAKE CONTACTS
SHORTING CONTACTS
25 XX
SERIES CODE
PART NUMBERING
XX
1X
XX
XXX
CUSTOM VARIATION
CONSULT FACTORY
.125” X .125” Centers, SLC High Profile
NO. CONTACT PAIRS
01
-
50
TAIL LENGTH
1
= .180
[4.57]
2
= .634
[16.10]
CONTACT STYLE
1
= Early Make Contacts
2
= Early/Late Make Contacts
3
= Late Make Contacts
CONTACT
10
= 10µ” Au
20
= 15µ” Au
30
= 30µ” Au
40
= 10µ” Au
50
= 15µ” Au
60
= 30µ” Au
50µ” Nickel Underplate
PLATING
SHORTING CONTACTS
1
= Without
2
= With
100µ” Sn
100µ” Sn
100µ” Sn
5µ” Au
5µ” Au
5µ” Au
TAIL
CONSULT FACTORY FOR CONNECTORS BUILT TO YOUR SPECIFICATION
