HV1C1206102F201NT datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> HV1C1206102F201NT

Preview

HV1C1206102F201NT: DescriptionCeramic Capacitor, Ceramic, 200V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 1206,; CategoryPassive components capacitor; File Size361KB，1 Pages; ManufacturerNorth West Components Inc

Download Datasheet Parametric View All

HV1C1206102F201NT Overview

Ceramic Capacitor, Ceramic, 200V, 1% +Tol, 1% -Tol, C0G, -/+30ppm/Cel TC, 0.001uF, 1206,

HV1C1206102F201NT Parametric

Parameter Name	Attribute value
Maker	North West Components Inc
package instruction	, 1206
Reach Compliance Code	unknow
ECCN code	EAR99
capacitance	0.001 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	1.5 mm
length	3.2 mm
negative tolerance	1%
Number of terminals	2
Package form	SMT
method of packing	TR
positive tolerance	1%
Rated (DC) voltage (URdc)	200 V
series	HV1
size code	1206
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
width	1.6 mm

Preview

Download Datasheet

View All

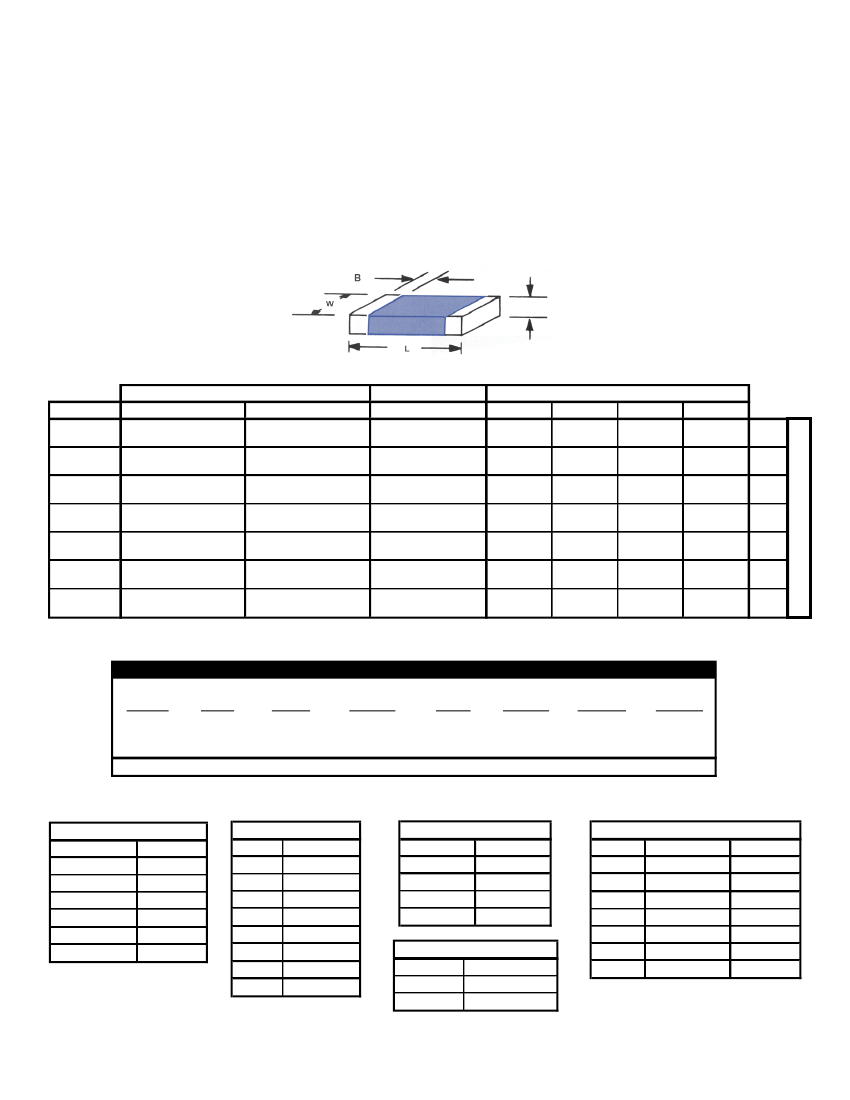

HV1 Series - Chip Ceramic Capacitors

COG (NPO) Dielectric

HV1 Series: The HV1 Series has a linear temperature coefficient, low loss, stable electrical

properties with time, voltage and frequency. Designed for surface mount application with

nickel barrier termination suitable for sollder wave, vapor phase or reflow solder board

attachment. Also, available with silver-palladium terminations for hybrid use with conductive

epoxy. COG (NPO) chips are used in precision circuitry requiring Class I stability.

Dimensions (mm/in)

Case Size

L

0402

0603

0805

1206

1210

1812

1825

1.0±0.1 (0.039±0.004)

1.6±0.15 (0.063±0.006)

2.0±0.2 (0.079±0.008)

3.2±0.2 (0.126±0.008)

4.5±0.3 (0.177±0.012)

W

0.5±0.1 (0.020±0.004)

0.8±0.15 (0.031±0.006)

1.25±0.2 (0.049±0.008)

1.6±0.2 (0.063±0.008)

2.5±0.2 (0.098±0.008)

3.2±0.2 (0.126±0.008)

6.4±0.4 (0.252±0.016)

T

0.6 max. (0.024 max.)

0.9 max. (0.035 max.)

1.3 max. (0.051 max.)

1.5 max. (0.059 max.)

1.7 max. (0.067 max.)

25V

0.5pF

220pF

0.5pF

1000pF

0.5pF

4700pF

0.5pF

0.1µF

560pF

.01µF

1000pF

.015µF

Voltage

50V

100V

0.5pF

120pF

0.5pF

1000pF

0.5pF

2200pF

0.5pF

4700pF

560pF

.01µF

1000pF

.01µF

1000pF

.022µF

200V

-

0.5pF

330pF

0.5pF

1000pF

0.5pF

2200pF

560pF

3900pF

1000pF

4700pF

1000pF

.012µF

-

0.5pF

470pF

0.5pF

1000pF

560pF

1500pF

1000pF

3300pF

1000pF

6800pF

-

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Max.

Capacitance Range

HOW TO ORDER

HV1

Series

C

0805

102

M

Dielectric Size Code Capacitance Tolerance

2

significant digits

+ multiplyer

201

Voltage

N

T

Termination Packaging

Please refer to corresponding charts

Capacitance Codes

9.1pF

9R1

10pF

100

100pF

101

1,000pF

102

22,000pF

223

220,000pF

224

1µF

105

Tolerance Codes

A

± 0.05pF

B

± 0.1pF

C

± 0.25pF

D

± 0.5pF

F

± 1%

G

± 2%

J

± 5%

K

± 10%

M

± 20%

Rated Voltage Codes

16V

160

25V

250

50V

500

100V

101

200V

201

Termination

S

AgPd

N

Nickel Barrier

C

Cu/n

Size

0402

0603

0805

1206

1210

1812

1825

Packaging

Reel

10,000

4,000

1,500

1,000

Bulk

50,000

12,000

3,000

1
