HV1C1825162C101NT

Description
Ceramic Capacitor, Ceramic, 100V, 0.0156% +Tol, 0.0156% -Tol, C0G, -/+30ppm/Cel TC, 0.0016uF, 1825,
CategoryPassive components    capacitor
File Size346KB,1 Pages
ManufacturerNorth West Components Inc
Download Datasheet Parametric View All

HV1C1825162C101NT Overview

Ceramic Capacitor, Ceramic, 100V, 0.0156% +Tol, 0.0156% -Tol, C0G, -/+30ppm/Cel TC, 0.0016uF, 1825,

HV1C1825162C101NT Parametric

Parameter NameAttribute value
MakerNorth West Components Inc
package instruction, 1825
Reach Compliance Codeunknow
ECCN codeEAR99
capacitance0.0016 µF
Capacitor typeCERAMIC CAPACITOR
dielectric materialsCERAMIC
high1.7 mm
length4.5 mm
negative tolerance0.0156%
Number of terminals2
Package formSMT
method of packingTR
positive tolerance0.0156%
Rated (DC) voltage (URdc)100 V
seriesHV1C1825(100V)
size code1825
Temperature characteristic codeC0G
Temperature Coefficient-/+30ppm/Cel ppm/°C
width6.4 mm
North West Components: 1 (866) NWC-2051

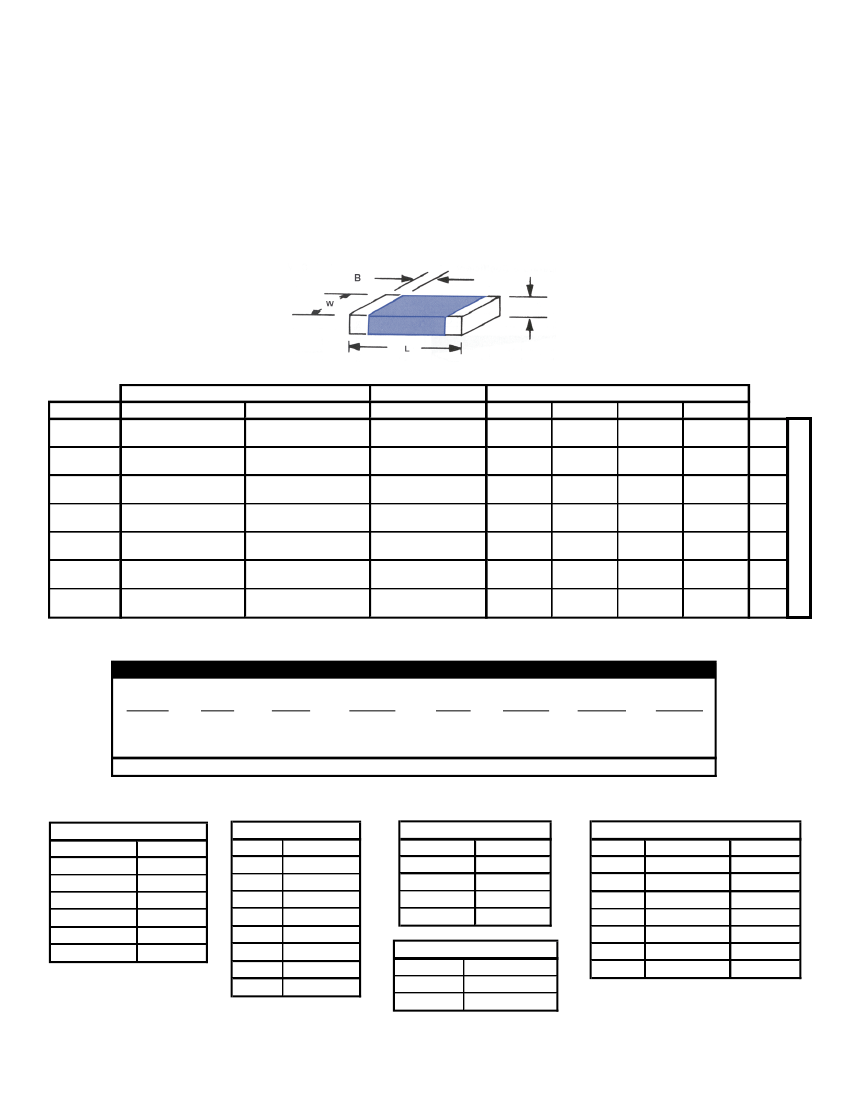

HV1 Series - Chip Ceramic Capacitors
COG (NPO) Dielectric
HV1 Series: The HV1 Series has a linear temperature coefficient, low loss, stable electrical
properties with time, voltage and frequency. Designed for surface mount application with
nickel barrier termination suitable for sollder wave, vapor phase or reflow solder board
attachment. Also, available with silver-palladium terminations for hybrid use with conductive
epoxy. COG (NPO) chips are used in precision circuitry requiring Class I stability.
Dimensions (mm/in)
Case Size
L
0402
0603
0805
1206
1210
1812
1825
1.0±0.1 (0.039±0.004)
1.6±0.15 (0.063±0.006)
2.0±0.2 (0.079±0.008)
3.2±0.2 (0.126±0.008)
3.2±0.2 (0.126±0.008)
4.5±0.3 (0.177±0.012)
4.5±0.3 (0.177±0.012)
W
0.5±0.1 (0.020±0.004)
0.8±0.15 (0.031±0.006)
1.25±0.2 (0.049±0.008)
1.6±0.2 (0.063±0.008)
2.5±0.2 (0.098±0.008)
3.2±0.2 (0.126±0.008)
6.4±0.4 (0.252±0.016)
T
0.6 max. (0.024 max.)
0.9 max. (0.035 max.)
1.3 max. (0.051 max.)
1.5 max. (0.059 max.)
1.7 max. (0.067 max.)
1.7 max. (0.067 max.)
1.7 max. (0.067 max.)
25V
0.5pF
220pF
0.5pF
1000pF
0.5pF
4700pF
0.5pF
0.1µF
560pF
.01µF
1000pF
.015µF
Voltage
50V
100V
0.5pF
120pF
0.5pF
1000pF
0.5pF
2200pF
0.5pF
4700pF
560pF
.01µF
1000pF
.01µF
1000pF
.022µF
200V
-
0.5pF
330pF
0.5pF
1000pF
0.5pF
2200pF
560pF
3900pF
1000pF
4700pF
1000pF
.012µF
-
-
0.5pF
470pF
0.5pF
1000pF
560pF
1500pF
1000pF
3300pF
1000pF
6800pF
-
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Min.
Max.
Capacitance Range
HOW TO ORDER
HV1
Series
C
0805
102
M
Dielectric Size Code Capacitance Tolerance
2
significant digits
+ multiplyer
201
Voltage
N
T
Termination Packaging
Please refer to corresponding charts
Capacitance Codes
9.1pF
9R1
10pF
100
100pF
101
1,000pF
102
22,000pF
223
220,000pF
224
1µF
105
Tolerance Codes
A
± 0.05pF
B
± 0.1pF
C
± 0.25pF
D
± 0.5pF
F
± 1%
G
± 2%
J
± 5%
K
± 10%
M
± 20%
Rated Voltage Codes
16V
160
25V
250
50V
500
100V
101
200V
201
Termination
S
AgPd
N
Nickel Barrier
C
Cu/n
Size
0402
0603
0805
1206
1210
1812
1825
Packaging
Reel
10,000
4,000
4,000
4,000
4,000
1,500
1,000
Bulk
50,000
12,000
12,000
12,000
12,000
3,000
3,000
