3-802525-1

Description
D Type Connector, 25 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug
CategoryThe connector    The connector
File Size306KB,3 Pages
ManufacturerI C C Inc
Download Datasheet Parametric Compare View All

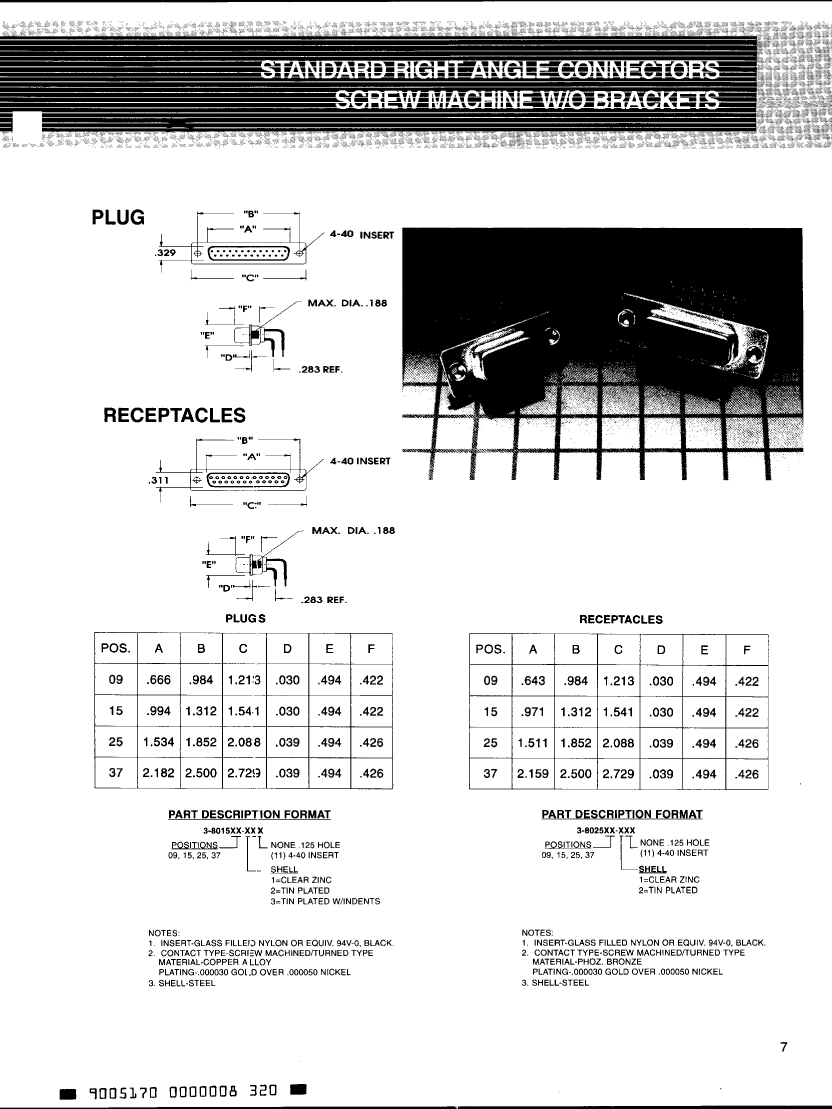

3-802525-1 Overview

D Type Connector, 25 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug

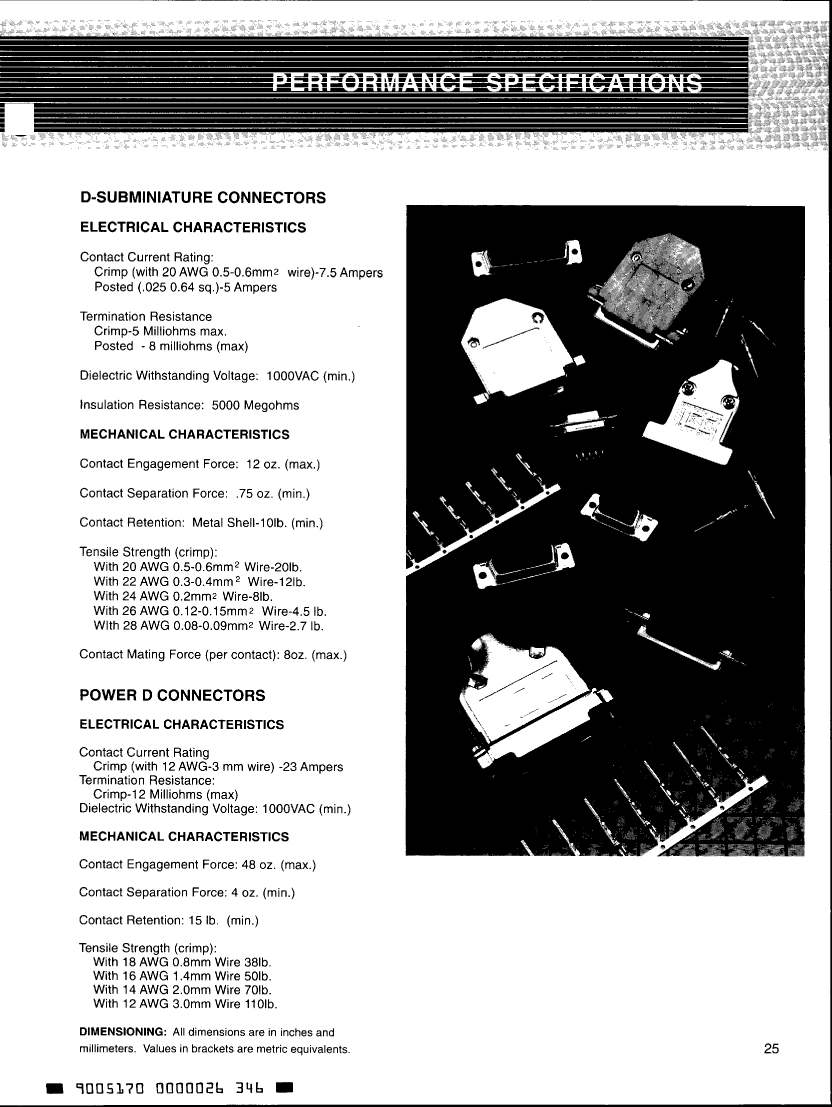

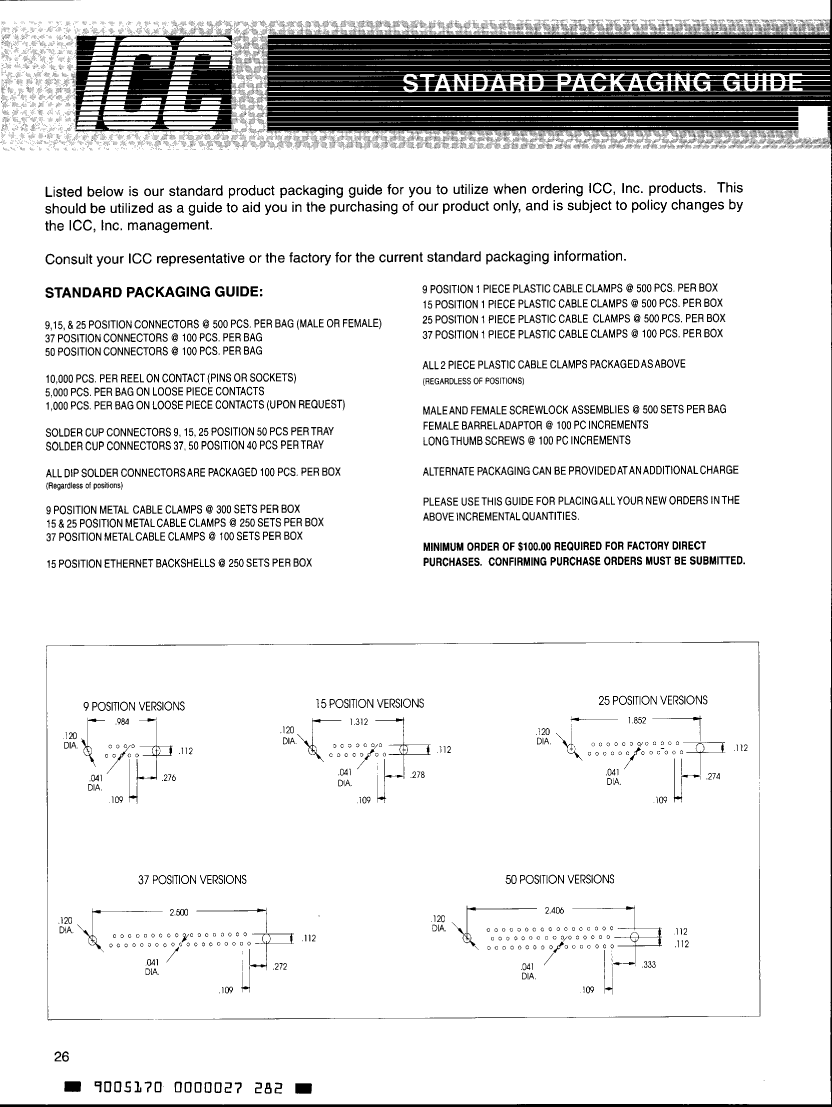

3-802525-1 Parametric

Parameter NameAttribute value
MakerI C C Inc
Reach Compliance Codeunknow
ECCN codeEAR99
body width0.494 inch
body length2.088 inch
Body/casing typePLUG
Contact to complete cooperationAU ON NI
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeSTAGGERED
Contact resistance8 mΩ
Contact styleRND PIN-SKT
Dielectric withstand voltage1000VAC V
maximum insertion force3.336 N
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number802
Installation option 1HOLE .112-.124
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness30u inch
Rated current (signal)5 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Shell surfaceZINC
Shell materialSTEEL
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25
Evacuation force-minimum value.2224 N

3-802525-1 Related Products

3-802525-1 3-802515-211
Description D Type Connector, 25 Contact(s), Female, Solder Terminal, Hole .112-.124, Plug D Type Connector, 15 Contact(s), Female, Solder Terminal, #4-40, Plug
Maker I C C Inc I C C Inc
Reach Compliance Code unknow unknow
ECCN code EAR99 EAR99
body width 0.494 inch 0.494 inch
body length 2.088 inch 1.541 inch
Body/casing type PLUG PLUG
Contact to complete cooperation AU ON NI AU ON NI
Contact point gender FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode STAGGERED STAGGERED
Contact resistance 8 mΩ 8 mΩ
Contact style RND PIN-SKT RND PIN-SKT
Dielectric withstand voltage 1000VAC V 1000VAC V
maximum insertion force 3.336 N 3.336 N
Insulation resistance 5000000000 Ω 5000000000 Ω
Insulator color BLACK BLACK
insulator material GLASS FILLED NYLON GLASS FILLED NYLON
Manufacturer's serial number 802 802
Installation option 1 HOLE .112-.124 #4-40
Installation method RIGHT ANGLE RIGHT ANGLE
Installation type BOARD BOARD
PCB row number 2 2
Number of rows loaded 2 2
PCB contact pattern STAGGERED STAGGERED
PCB contact row spacing 2.8448 mm 2.8448 mm
Plating thickness 30u inch 30u inch
Rated current (signal) 5 A 5 A
Guideline UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL
Shell surface ZINC TIN
Shell material STEEL STEEL
Terminal pitch 2.7686 mm 2.7686 mm
Termination type SOLDER SOLDER
Total number of contacts 25 15
Evacuation force-minimum value .2224 N .2224 N
