EURO
QUARTZ
12 x 4.5mm Compatible SMD Crystal
Low frequencies from 3.5MHz to 70.0MHZ
Fully RoHS compliant
Two height profiles available, 4.8 or 3.8mm
Standard EIA tape and reel supply
DESCRIPTION
MP4 and MP5 crystals provide clock signals (from 3.2MHz) in a low-
profile SMD package. The part is electrically and mechanically
compatible with traditional industry SMD packages and may be used
as a 'drop-in' replacement.
USE WITH DOUBLE-SIDED PCBs
MP4 and MP5 crystals are designed for top board assembly and one
solder reflow process. Do not reflow this part with the can inverted.
MP4, MP5 CRYSTALS
3.2MHz to 70MHz

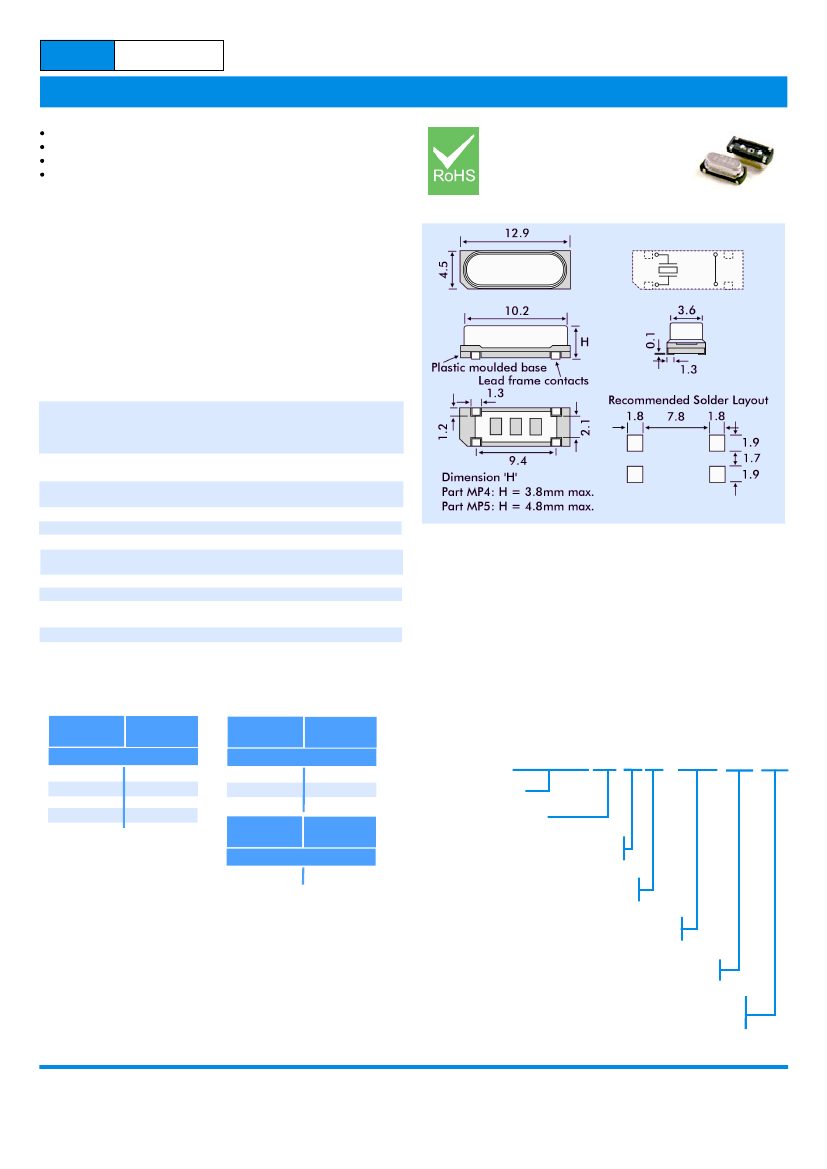

OUTLINE & DIMENSIONS
SPECIFICATION
Frequency Range
AT-Cut Fundamental:
AT-Cut 3rd Overtone:
BT-Cut Fundamental:
Calibration Tolerance at 25ºC*:
Frequency stability:
Storage Temperature:
Equivalent Series Resistance:
Shunt Capacitance (C0):
Load Capacitance (CL):
Ageing:
Drive level:
Reflow Soldering:
Packaging:
3.2MHz to 48.0MHz
27.0MHz to 70.0MHz
24.0MHz to 48.0MHz
±5, ±10, ±20 or ±30ppm
at 25°C
from ±10ppm over-10° to +60°C
from ±15ppm over -40° to +85°C
-50°~+105°C
See table
7pF maximum
Series or from 8pF to 32pF
(Customer specified CL)
<±3ppm per year at +25°C
100µW typical, µW maximum
10s maximum at 260°C twice
or 180s at 230°C, once.
24mm EIA tape and reel, 1k per.
EQUIVALENT SERIES RESISTANCE
Frequency
Range MHz
3.2~3.4
3.5~6.0
6.1~10.0
10.1~30.0
ESR
Ω Max.
300
120
60
40
Frequency
Range MHz
27.0~30.0
30.1~50.0
50.1~70.0
Frequency
Range MHz
24.0~48.0
ESR
Ω Max.
150
100
80
ESR
Ω Max.
40
PART NUMBER GENERATION
Part numbers for MP4 and MP5 crystals are generated as follows:
Example:
AT-Cut Fundamental
AT-Cut 3rd Overtone
3.5000MHz MP4 30/50/-10+60/12pF/60R
Nominal Frequency
Package MP4 or MP5
Calibration tolerance
at 25°C (±ppm)
Temperature Stability
over temp. range (±ppm)
Operating Temp. Range (°C)
(Lower and upper limits)
Load Capacitance
(Either SR for series or CL in pF)
Equivalent Series Resistance
(Optional - use when special
value is required)
BT-Cut Fundamental
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
