Y1600-B56-10.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> Y1600-B56-10.0MHZ

Y1600-B56-10.0MHZ: DescriptionHCMOS Output Clock Oscillator, ROHS COMPLIANT, DIL-14/4; CategoryPassive components oscillator; File Size69KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric Compare View All

Y1600-B56-10.0MHZ Overview

HCMOS Output Clock Oscillator, ROHS COMPLIANT, DIL-14/4

Y1600-B56-10.0MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	DIP4/14,.5,300
Reach Compliance Code	compliant
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	10 ppm
frequency stability	5%
Installation features	THROUGH HOLE MOUNT
Number of terminals	14
Nominal operating frequency	10 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
Encapsulate equivalent code	DIP4/14,.5,300
physical size	20.4mm X 12.8mm X 9.4mm
Maximum slew rate	15 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

EURO

QUARTZ

Rugged XO/Low Phase Noise

Rugged construction

Low Phase Noise

HCMOS output

Industry-standard dual-in-line package

Y1600 Series XO

10.0MHz to 50.0MHz

DESCRIPTION

Y1600 series XOs are packaged in the industry-standard 14 pin DIL

package. The part has a rugged onstruction and excellent shock and

vibration performance.

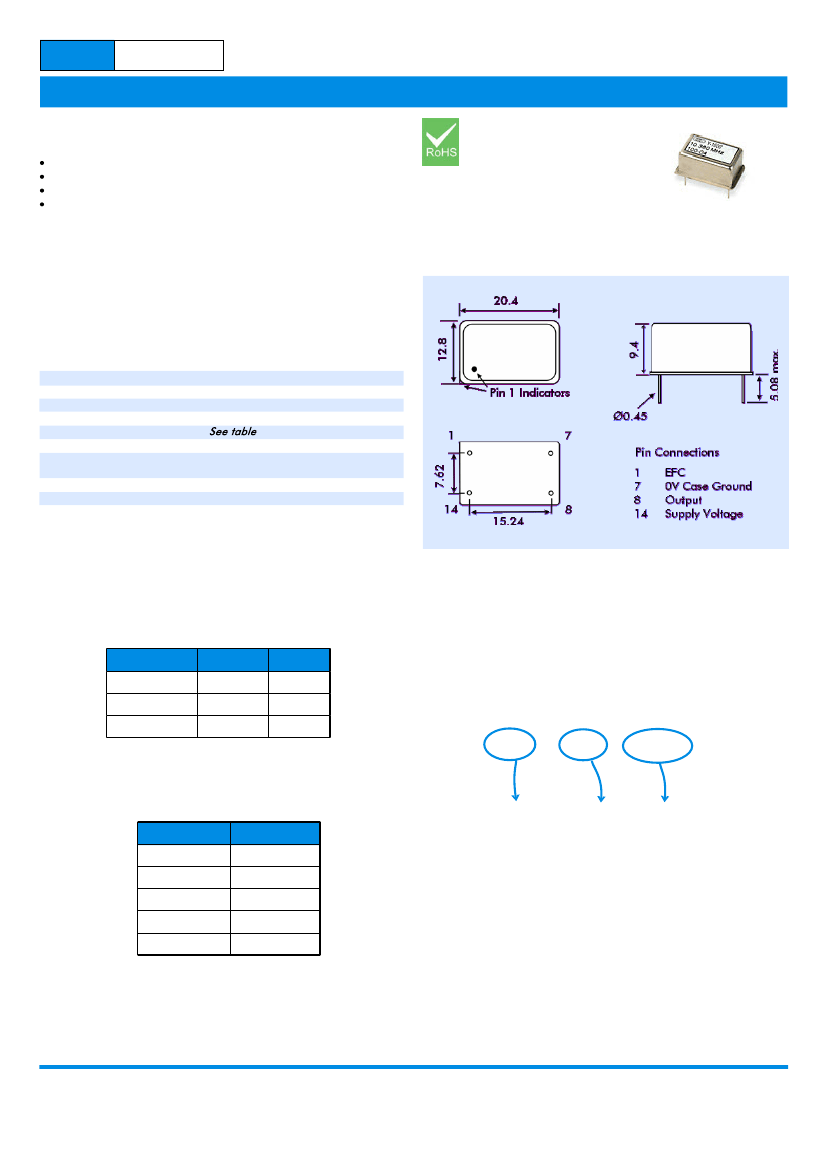

OUTLINES AND DIMENSIONS

GENERAL SPECIFICATION

Frequency Range:

Output:

Load:

Symmetry:

Temperature Stability:

Initial Accuracy:

Ageing:

Input Voltage:

Current Consumption:

Frequency Adjust:

10.0MHz to 50.0MHz

HCMOS

10 to 15pF

50%±5%

with ±3ppm of nominal & +2.5V EFC

<±1ppm/year first year

<±3ppm for 10 years (10MHZ)

+5.0DC±5%

<15mA (10MHz)

±10ppm typ, positive slope

0.5V to +4.5V EFC

TEMPERATURE STABILITY

Temp. Range

0° to +50°C

-20° to +70°C

-40° to +85°C

Tolerance

±5 x 10

-6

±10x 10

-6

±15 x 10

-6

Option

B56

N106

T156

PART NUMBERING

Example:

Y1600-N106-10.0MHz

Y1600

PHASE NOISE

(At 10.0MHz, Typical)

- N106 - 10.0MHz

Model number - Stability - Frequency

Offset

10Hz

100Hz

1kHz

10kHz

100kHz

dBc/Hz

-100

-135

-150

-160

-165

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk

Y1600-B56-10.0MHZ Related Products

	Y1600-B56-10.0MHZ	Y1600-T156-10.0MHZ
Description	HCMOS Output Clock Oscillator, ROHS COMPLIANT, DIL-14/4	HCMOS Output Clock Oscillator, ROHS COMPLIANT, DIL-14/4
Is it Rohs certified?	conform to	conform to
Maker	Euroquartz	Euroquartz
package instruction	DIP4/14,.5,300	DIP4/14,.5,300
Reach Compliance Code	compliant	compliant
Maximum control voltage	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V
Frequency Adjustment - Mechanical	NO	NO
Frequency offset/pull rate	10 ppm	10 ppm
frequency stability	5%	15%
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	14	14
Nominal operating frequency	10 MHz	10 MHz
Maximum operating temperature	50 °C	85 °C
Oscillator type	HCMOS	HCMOS
Output load	15 pF	15 pF
Encapsulate equivalent code	DIP4/14,.5,300	DIP4/14,.5,300
physical size	20.4mm X 12.8mm X 9.4mm	20.4mm X 12.8mm X 9.4mm
Maximum slew rate	15 mA	15 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
maximum symmetry	55/45 %	55/45 %
