2N4124D74Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> 2N4124D74Z

2N4124D74Z: DescriptionSmall Signal Bipolar Transistor, 0.2A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size729KB，14 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

2N4124D74Z Overview

Small Signal Bipolar Transistor, 0.2A I(C), 25V V(BR)CEO, 1-Element, NPN, Silicon, TO-92

2N4124D74Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.35 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	300 MHz

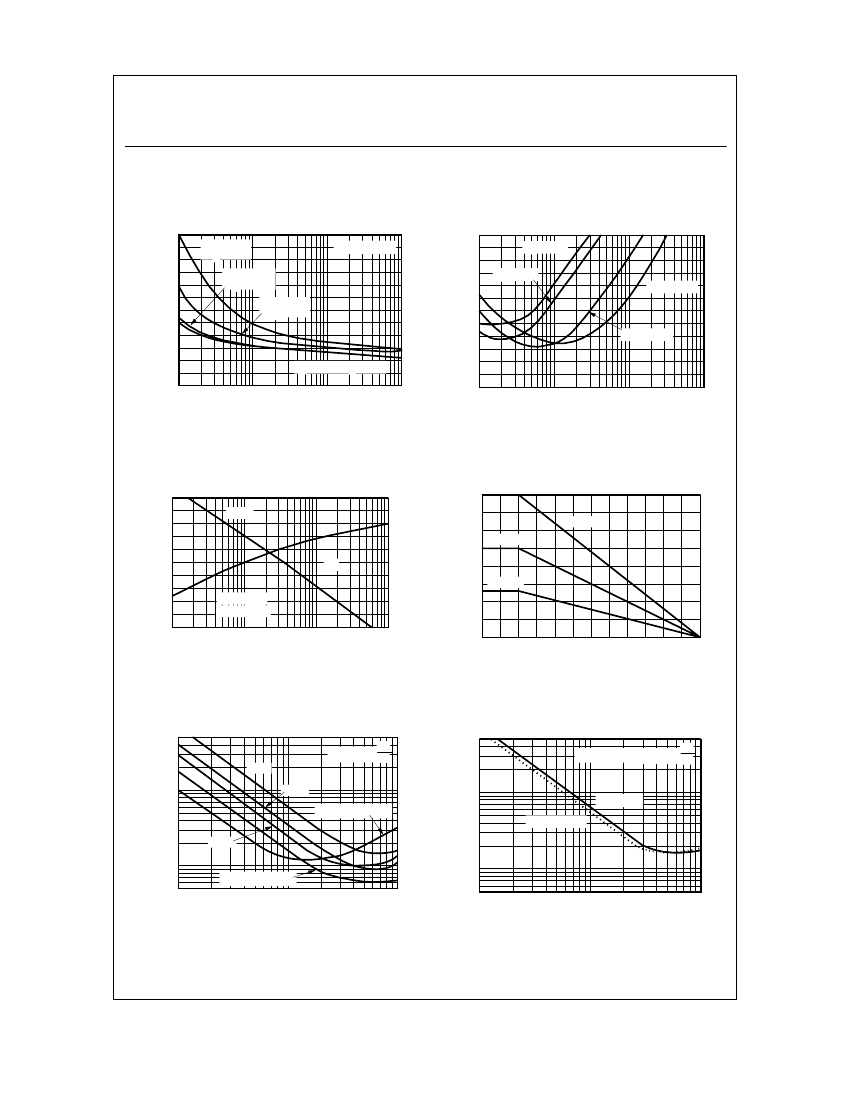

Preview

Download Datasheet

View All

2N4124 / MMBT4124

2N4124

MMBT4124

TO-92

SOT-23

Mark: ZC

NPN General Purpose Amplifier

This device is designed as a general purpose amplifier and switch.

The useful dynamic range extends to 100 mA as a switch and to

100 MHz as an amplifier.

Absolute Maximum Ratings*

Symbol

CEO

CBO

EBO

, T

stg

Collector-Emitter Voltage

Collector-Base Voltage

Emitter-Base Voltage

Collector Current - Continuous

TA = 25°C unless otherwise noted

Parameter

Value

5.0

200

-55 to +150

Units

°C

Operating and Storage Junction Temperature Range

These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

These ratings are based on a maximum junction temperature of 150 degrees C.

These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics

Symbol

θJC

θJA

TA = 25°C unless otherwise noted

Characteristic

Total Device Dissipation

Derate above 25°C

Thermal Resistance, Junction to Case

Thermal Resistance, Junction to Ambient

2N4124

625

5.0

83.3

200

Max

*MMBT4124

350

2.8

357

Units

mW/°C

°C/W

Device mounted on FR-4 PCB 1.6" X 1.6" X 0.06."



2001 Fairchild Semiconductor Corporation

2N4124/MMBT4124, Rev A
