55452BRMQB datasheet, PDF - EEWORLD Datasheet

55452BRMQB: DescriptionNAND Gate Based Peripheral Driver, 2 Driver, BIPolar, DIP-8; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size356KB，14 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

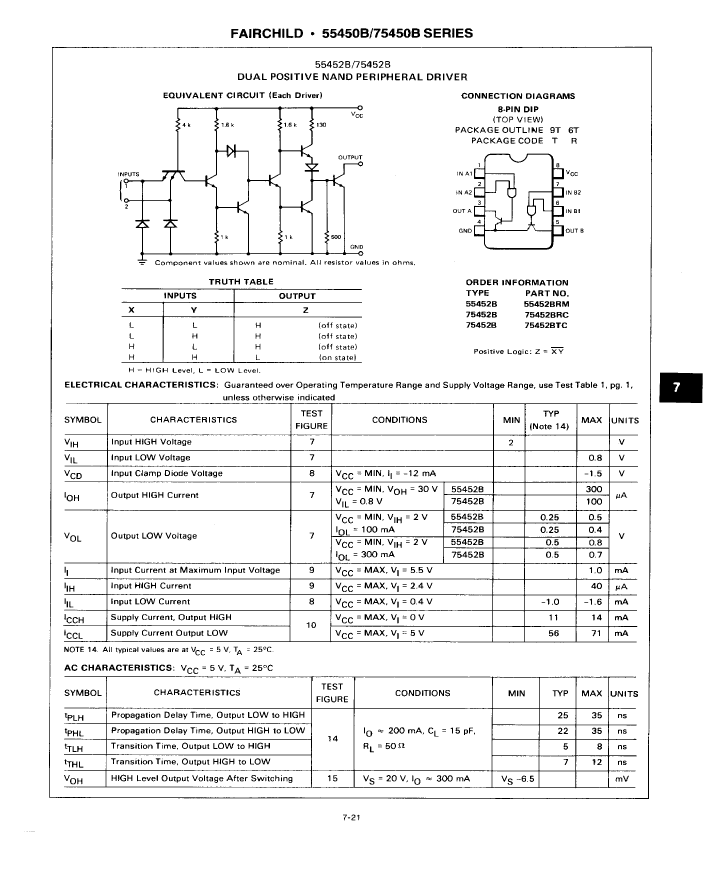

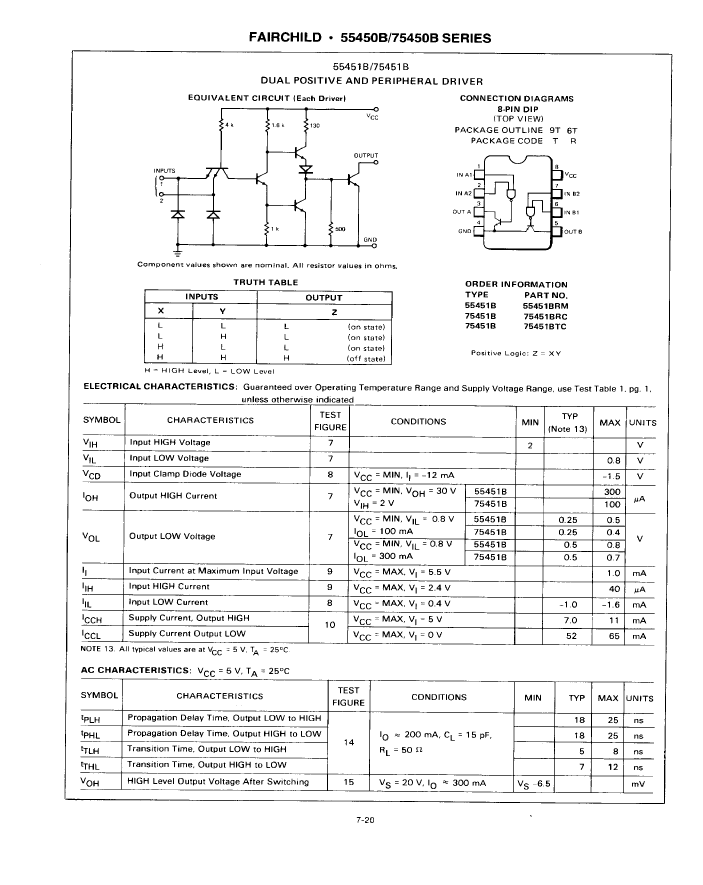

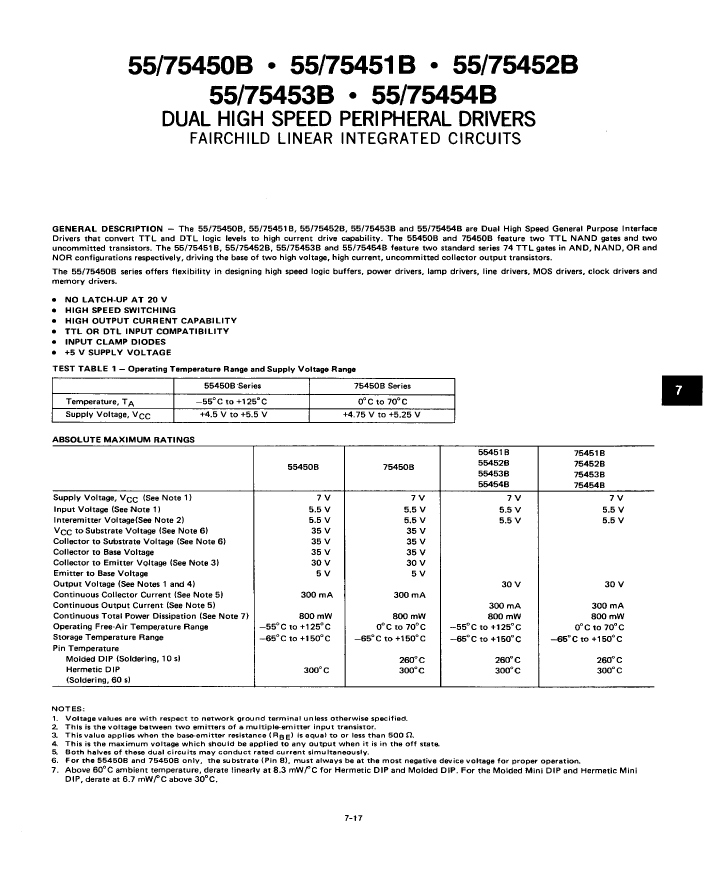

55452BRMQB Overview

NAND Gate Based Peripheral Driver, 2 Driver, BIPolar, DIP-8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP8,.3
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Number of drives	2
Interface integrated circuit type	NAND GATE BASED PERIPHERAL DRIVER
JESD-30 code	R-XDIP-T8
JESD-609 code	e0
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output current flow direction	SOURCE AND SINK
Package body material	UNSPECIFIED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Disconnect time	0.035 µs
connection time	0.035 µs

This Material Copyrighted By Its Respective Manufacturer

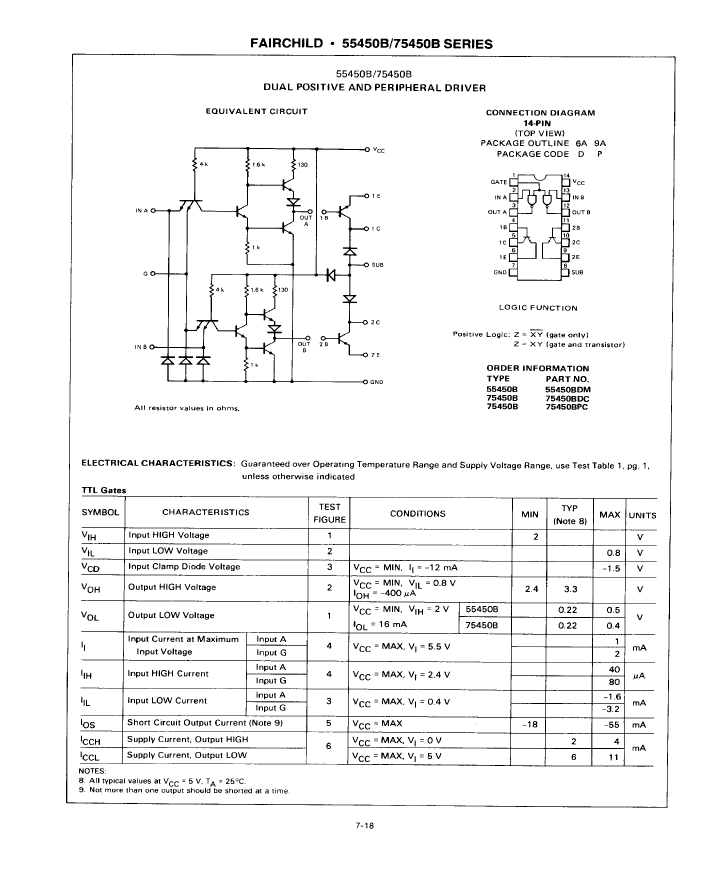

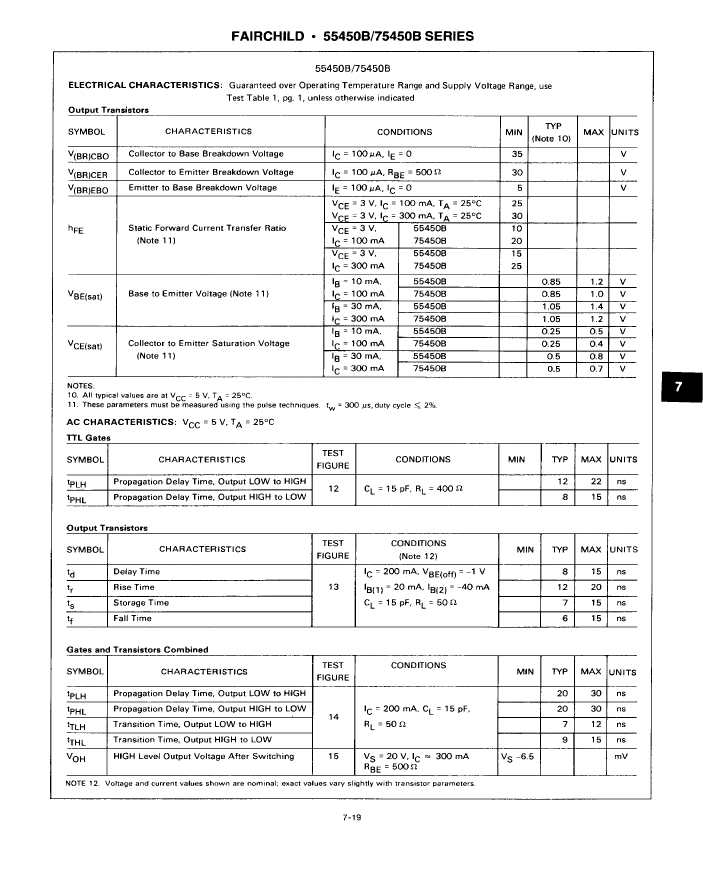

	55452BRMQB	55450BDMQB	55452BRM	75452BTC
Description	NAND Gate Based Peripheral Driver, 2 Driver, BIPolar, DIP-8	And Gate Based Peripheral Driver, 2 Driver, BIPolar, DIP-14	Peripheral Driver, 2 Driver, BIPolar, CDIP8,	Peripheral Driver, 2 Driver, BIPolar, PDIP8,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compliant	compliant	compliant
Number of drives	2	2	2	2
JESD-30 code	R-XDIP-T8	R-XDIP-T14	R-XDIP-T8	R-PDIP-T8
JESD-609 code	e0	e0	e0	e0
Number of terminals	8	14	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
Package body material	UNSPECIFIED	UNSPECIFIED	CERAMIC	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP8,.3	DIP14,.3	DIP8,.3	DIP8,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP8,.3	DIP-14	-	DIP, DIP8,.3
ECCN code	EAR99	EAR99	-	EAR99
