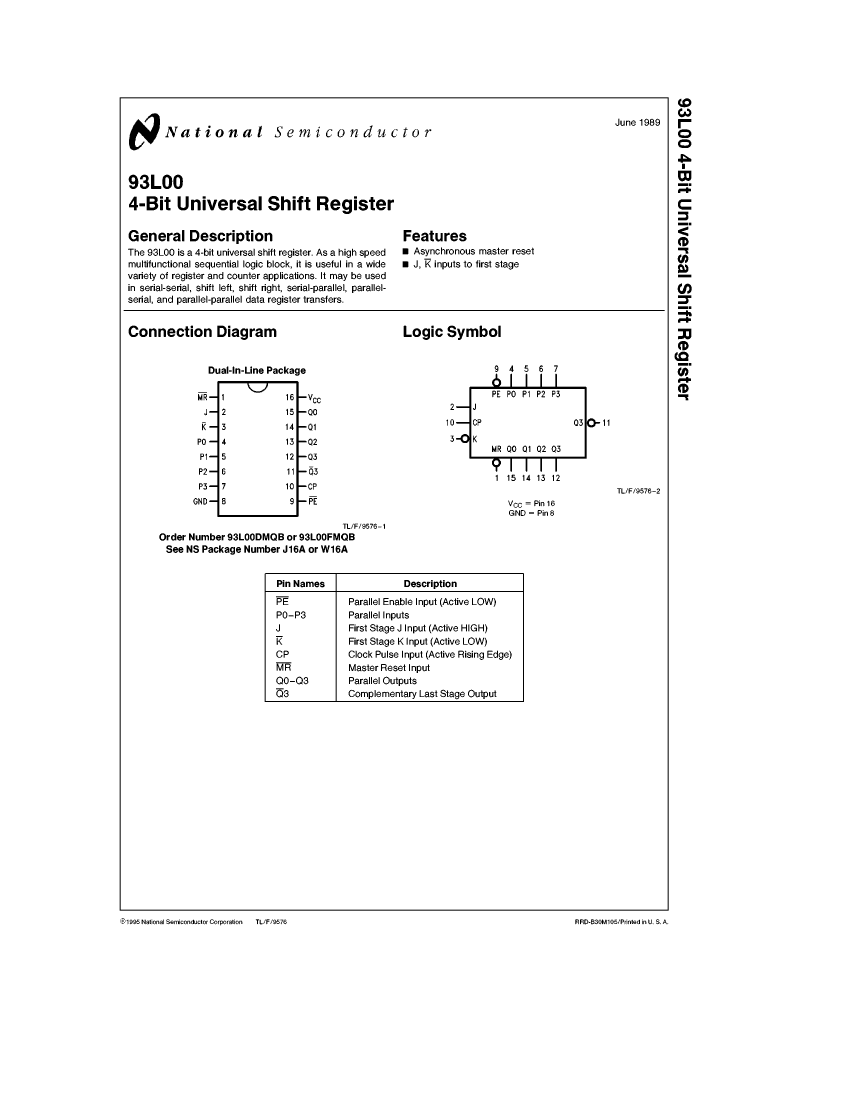

Shift Register, 4-Bit, TTL, CDIP16,

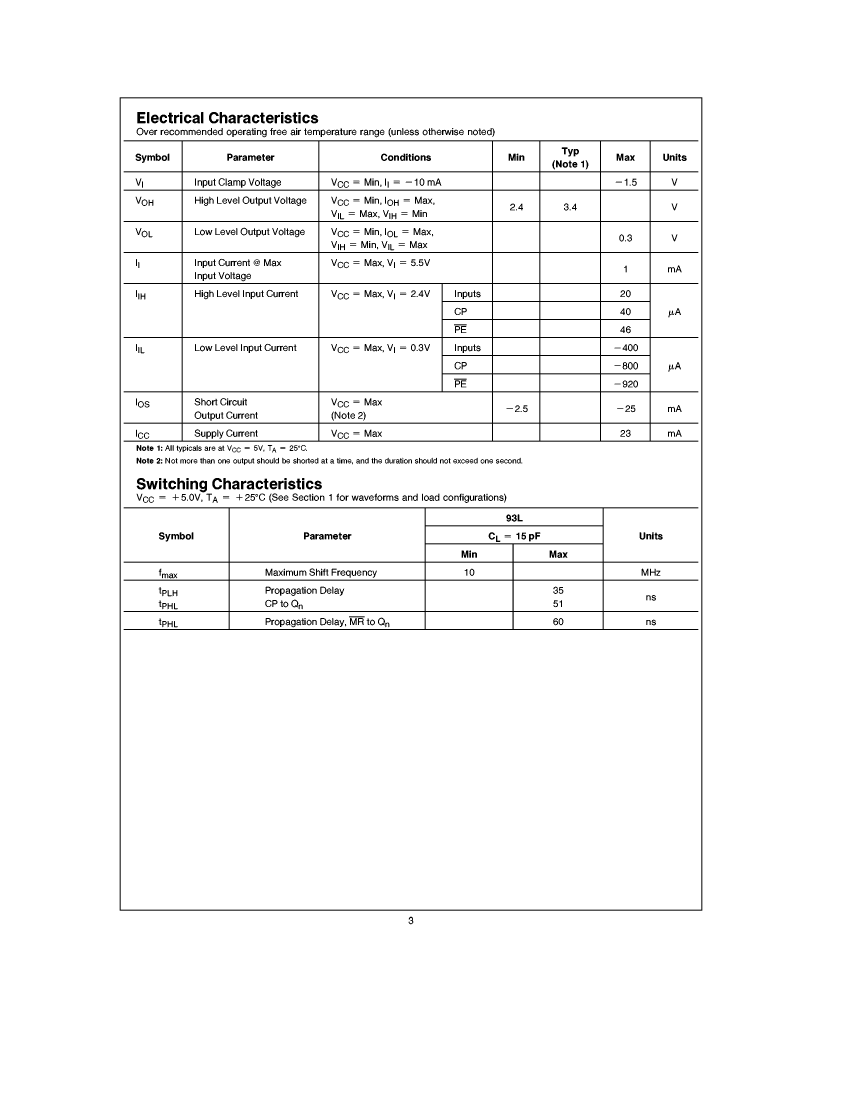

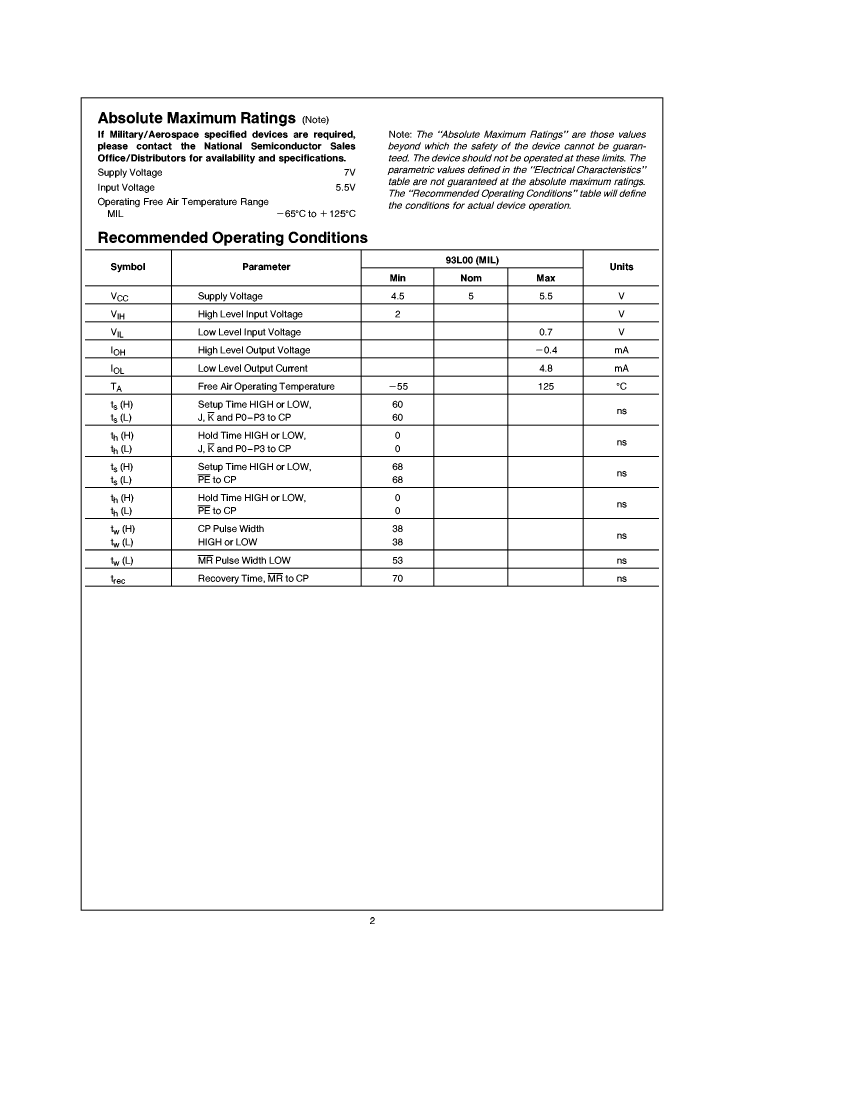

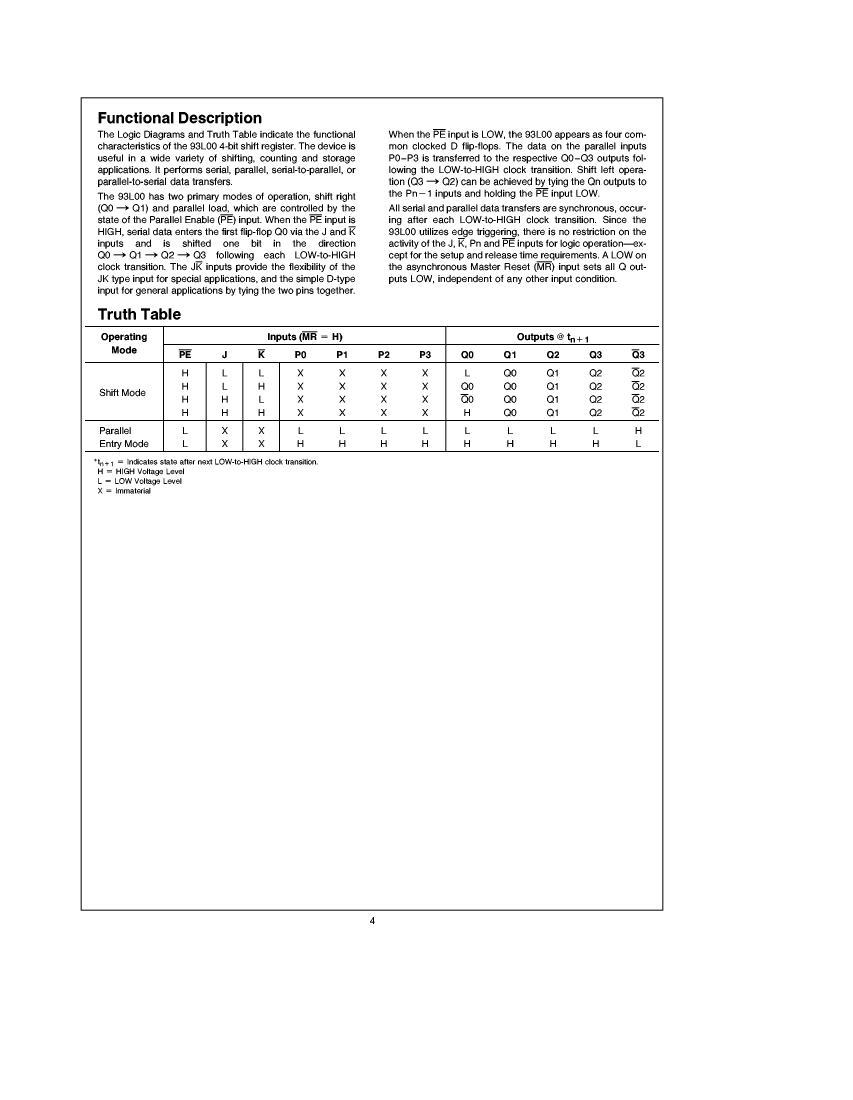

| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DIP, DIP16,.3 |
| Reach Compliance Code | compli |
| JESD-30 code | R-XDIP-T16 |
| Humidity sensitivity level | 2A |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| 5962-00-490-3898 | 5962-01-032-6855 | 5962-00-223-1655 | 5962-01-006-3618 | 93L00PCQR | 93L00PCQM | 93L00FCQR | 93L00FCQM | 93L00DCQR | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Shift Register, 4-Bit, TTL, CDIP16, | Shift Register, 4-Bit, TTL, CDFP16, | Shift Register, 4-Bit, TTL, CDIP16, | Shift Register, 4-Bit, TTL, CDIP16, | Shift Register, 4-Bit, TTL, PDIP16, | Shift Register, 4-Bit, TTL, PDIP16, | Shift Register, 4-Bit, TTL, CDFP16, | Shift Register, 4-Bit, TTL, CDFP16, | Shift Register, 4-Bit, TTL, CDIP16, |
| Is it lead-free? | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead | Contains lead |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild |
| package instruction | DIP, DIP16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | compli | compliant | compliant | compliant | compliant | compliant | compliant | compliant | compliant |
| JESD-30 code | R-XDIP-T16 | R-XDFP-F16 | R-XDIP-T16 | R-XDIP-T16 | R-PDIP-T16 | R-PDIP-T16 | R-XDFP-F16 | R-XDFP-F16 | R-XDIP-T16 |
| Humidity sensitivity level | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A | 2A |
| Number of digits | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| Package body material | CERAMIC | CERAMIC | CERAMIC | CERAMIC | PLASTIC/EPOXY | PLASTIC/EPOXY | CERAMIC | CERAMIC | CERAMIC |
| encapsulated code | DIP | DFP | DIP | DIP | DIP | DIP | DFP | DFP | DIP |
| Encapsulate equivalent code | DIP16,.3 | FL16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | FL16,.3 | FL16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | IN-LINE | IN-LINE | IN-LINE | IN-LINE | FLATPACK | FLATPACK | IN-LINE |
| Peak Reflow Temperature (Celsius) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | NO | YES | NO | NO | NO | NO | YES | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT | FLAT | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | - | Not Qualified | - | Not Qualified | - |
| JESD-609 code | - | - | - | - | e0 | e0 | e0 | e0 | e0 |
| Terminal surface | - | - | - | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
