5962-01-082-0443 datasheet, PDF

Datasheet> All Categories > logic> logic> 5962-01-082-0443

5962-01-082-0443: DescriptionD Latch, 1-Func, 8-Bit, CMOS, CDFP16,; Categorylogic logic; File Size272KB，7 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

5962-01-082-0443 Overview

D Latch, 1-Func, 8-Bit, CMOS, CDFP16,

5962-01-082-0443 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DFP, FL16,.3
Reach Compliance Code	compli
JESD-30 code	R-XDFP-F16
Logic integrated circuit type	D LATCH
Humidity sensitivity level	2A
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
Peak Reflow Temperature (Celsius)	250
power supply	5/15 V
Certification status	Not Qualified
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30

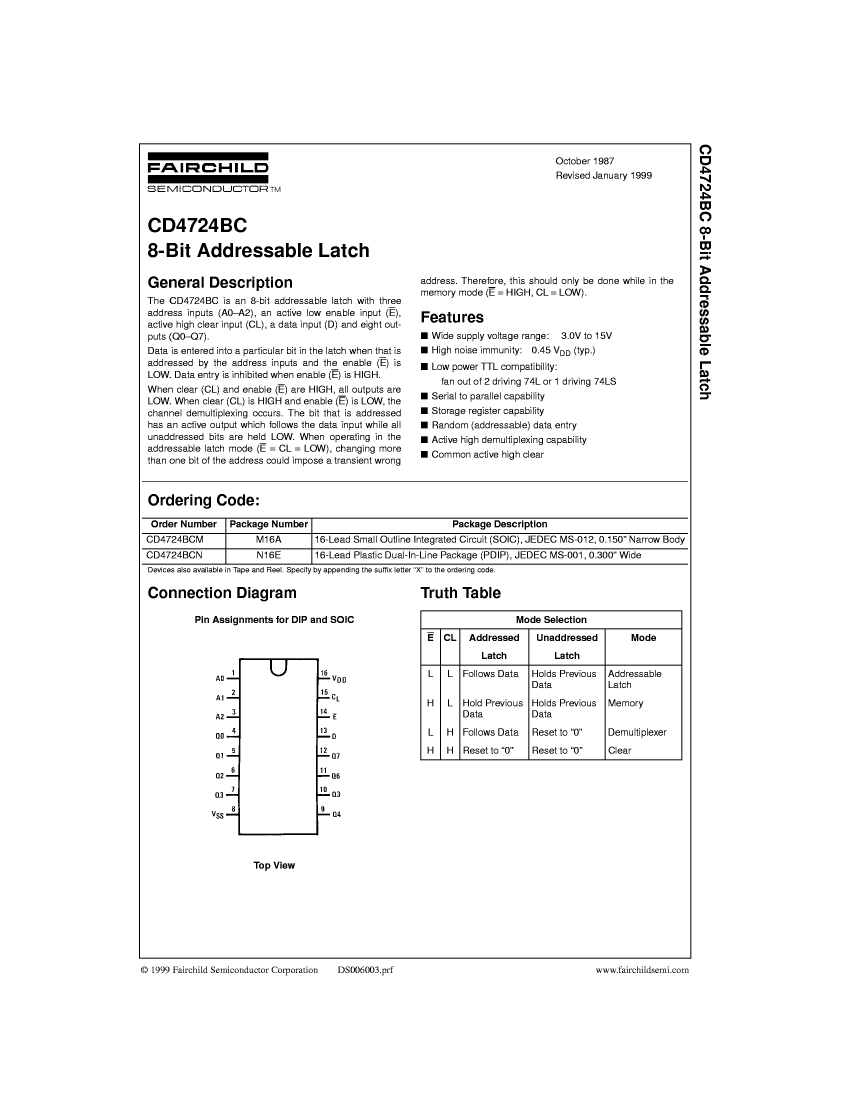

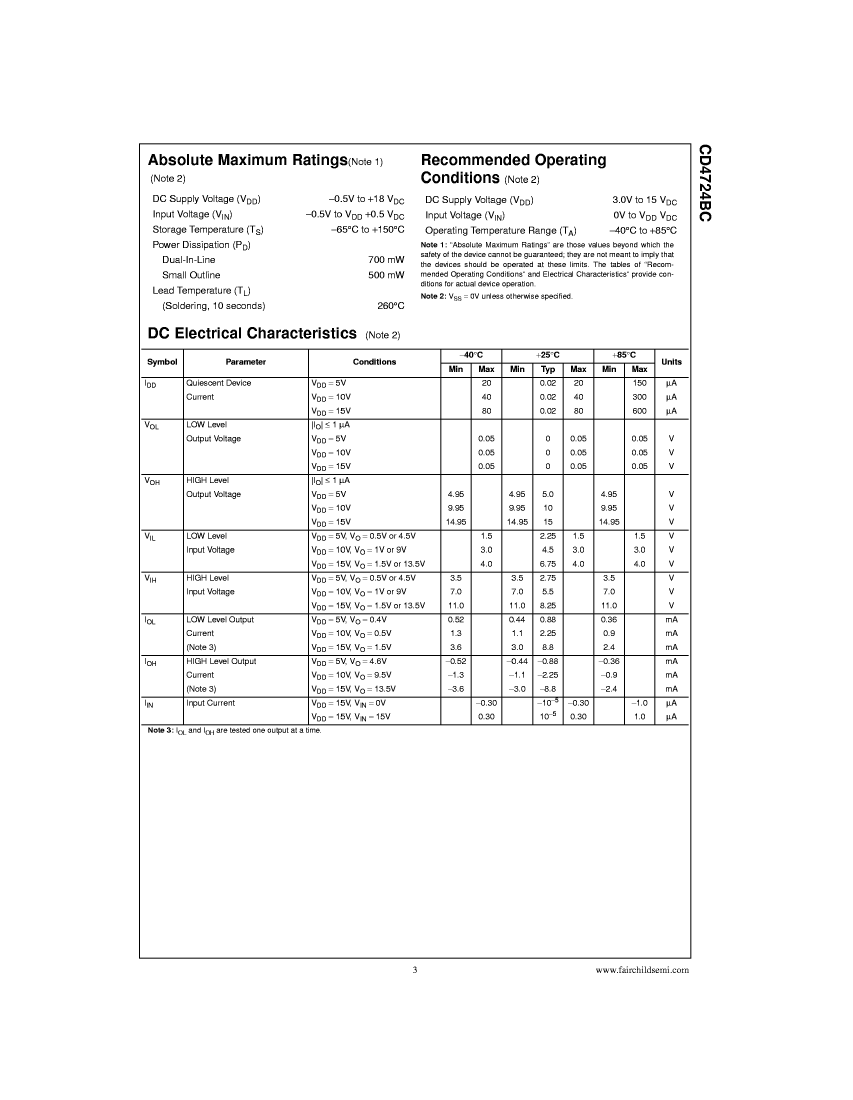

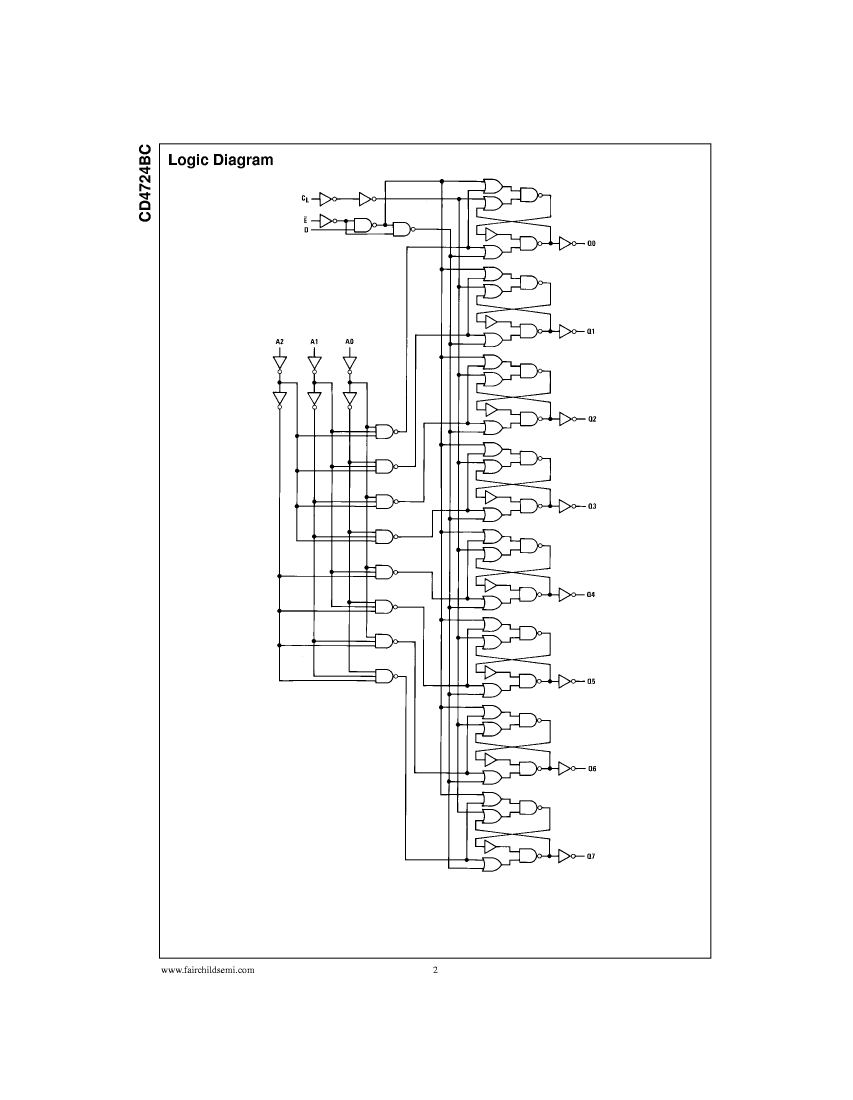

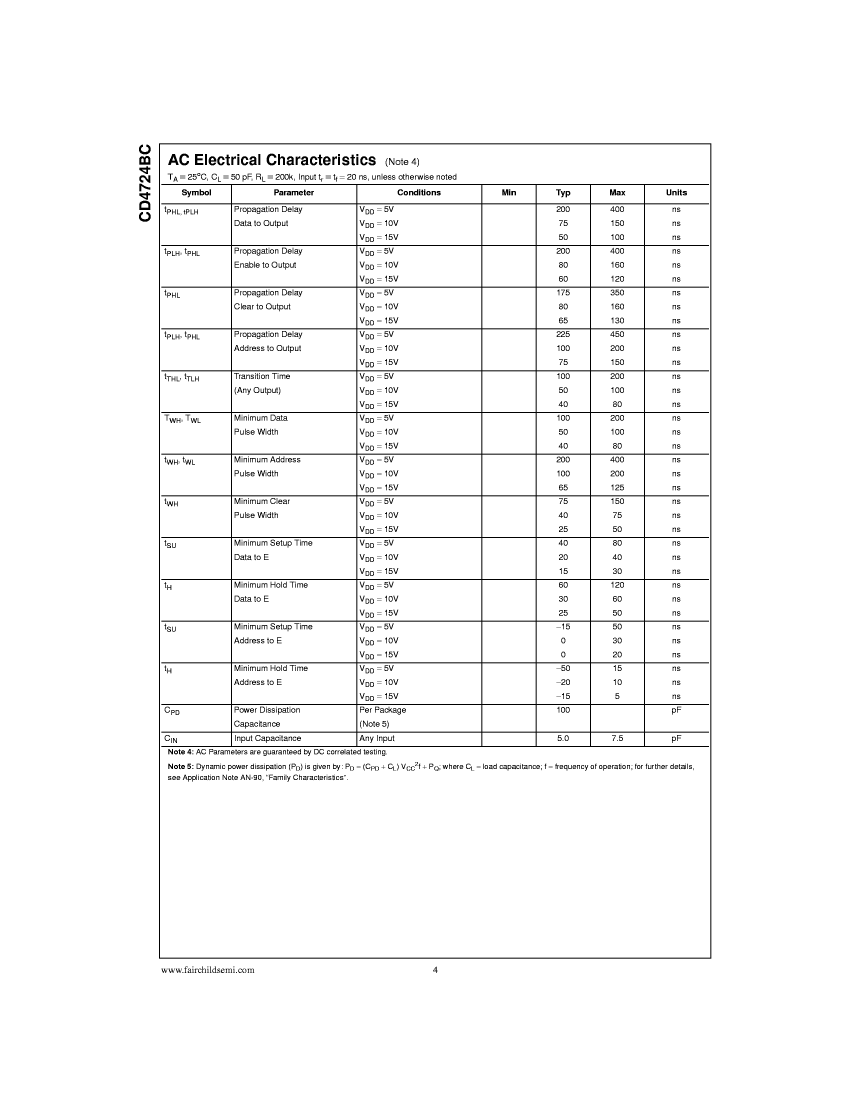

Preview

Download Datasheet

View All

5962-01-082-0443 Related Products

	5962-01-082-0443	4724BDC	4724BDCQR	4724BDCQM	4724BDM	4724BDMQB
Description	D Latch, 1-Func, 8-Bit, CMOS, CDFP16,	D Latch, 1-Func, 8-Bit, CMOS, CDFP16,	D Latch, 1-Func, 8-Bit, CMOS, CDFP16,	D Latch, 1-Func, 8-Bit, CMOS, CDFP16,	D Latch, 1-Func, 8-Bit, CMOS, CDIP16,	D Latch, 1-Func, 8-Bit, CMOS, CDIP16,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	DFP, FL16,.3	DFP, FL16,.3	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant
JESD-30 code	R-XDFP-F16	R-XDFP-F16	R-XDFP-F16	R-XDFP-F16	R-XDIP-T16	R-XDIP-T16
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Humidity sensitivity level	2A	2A	2A	2A	2A	2A
Number of digits	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1
Number of terminals	16	16	16	16	16	16
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DFP	DFP	DFP	DFP	DIP	DIP
Encapsulate equivalent code	FL16,.3	FL16,.3	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250	250	250	250
power supply	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V	5/15 V
surface mount	YES	YES	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal form	FLAT	FLAT	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30	30	30	30
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
JESD-609 code	-	e0	e0	e0	e0	e0
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	-	1	1	1	1	1
