MK0513G Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

MK0513G Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fischer Elektronik
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	MK
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	13

Preview

Download Datasheet

View All

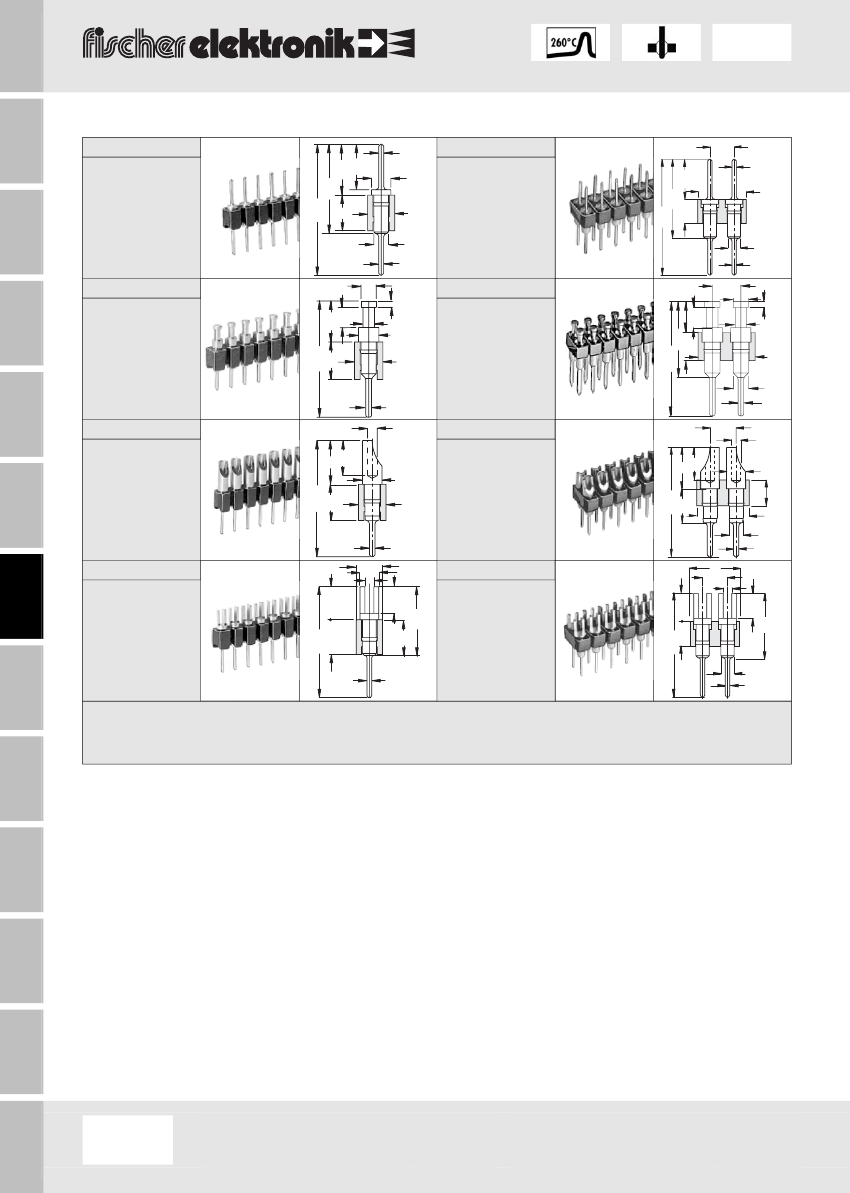

A

High-precision male headers soldering technique

Solder and plug pins, Ø 0.5 mm

2.54

B

art. no.

4,7

4,2

8,1

Ø 0,5

Ø 1,8

art. no.

8,1

2,5

4,2

2,54

Ø 0,5

5

12,1

2,5

Ø 1,35

Ø 0,5

C

MK 05 ...

art. no.

Ø 1,35

12,1

3,3

Ø 1,35

0,5

2,8

MK 205 ...

art. no.

Ø1

Ø 1,8

2,5

Ø 0,5

2,54

Ø 1,35

Ø1

5

0,5

Ø 1,35

Ø 0,5

3,6

1,8

10,2

3,3

E

MK 03 ...

art. no.

4

3,2

Ø 0,5

Ø 0,9

MK 203 ...

art. no.

4

3,2

10,2

6,7

2,5

D

1,8

2,54

Ø 0,9

Ø 1,8

2,5

5

Ø 1,35

Ø 0,5

Ø 1,8

10,6

3,3

F

MK 04 ...

art. no.

2,5

Ø 0,5

2,5

0,85

3,2

Ø 1,8

2,5

MK 204 ...

art. no.

2,8

10,6

3,3

5

2,54

0,85

6,6

2,5

Ø 1,35

Ø 0,45

G

H

MK 02 ...

please indicate:

... no. of contacts

one row 1-50

two rows 2-100

Ø 0,45

MK 202 ...

... surface

G=gold-plated

Z =tin-plated

I

Also available as single contact, SK ...

version:

MK 05 / MK 205: contact pin on both sides

MK 03 / MK 203: with solder button

MK 04 / MK 204: with diagonal solder bucket

MK 02 / MK 202: with solder fork

K

L

M

High-prec. fem. headers 1.27 solder

➔

Special male & female headers

➔

Technical data

➔

High-prec. male headers 2.54 solder

➔

G

72

19

75 - 80

21 - 24

High-prec. fem. headers 2.54 sold.

Male headers 2.54 solder

Male headers 2.54 SMD

Single precision contacts

10,6

2,5

10,6

3,3

3,4

N

G3

➔

G 31 - 34

G8

G 37 - 42

F2-3

6,6
