FXA5032AG-15.999999MHZ-CAW00011000 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FXA5032AG-15.999999MHZ-CAW00011000

FXA5032AG-15.999999MHZ-CAW00011000: DescriptionSeries - Fundamental Quartz Crystal, 15.999999MHz Nom, ROHS COMPLIANT PACKAGE-4; CategoryPassive components Crystal/resonator; File Size164KB，2 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FXA5032AG-15.999999MHZ-CAW00011000 Overview

Series - Fundamental Quartz Crystal, 15.999999MHz Nom, ROHS COMPLIANT PACKAGE-4

FXA5032AG-15.999999MHZ-CAW00011000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	30 ppm
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	15.999999 MHz
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
physical size	L5.15XB3.35XH1.3 (mm)/L0.203XB0.132XH0.051 (inch)
Series resistance	60 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

Extended Temp High Reliability Crystal

Model: FXA5032_G Series

Page 1 of 2

RoHS Compliant

Rev. 2/27/2009

http://www.foxonline.com/need_a_sample.htm

FEATURES

• Meets AEC-Q200 Requirements

• 1.3mm Height

• Tape and Reel (1,000 pcs. STD)

• PART NUMBER

Learn More - Internet Required

Part Number

419AG-Frequency-xxxxx

419BG-Frequency-xxxxx

Model Number

FXA5032AG

FXA5032BG

Frequency Range (MHz)

8.000 ~ 40.000 MHz

• STANDARD SPECIFICATIONS

PARAMETERS

Frequency

Frequency Tolerance @ 25ºC

Frequency Stability @ 25ºC

-40 ~ +125ºC

-40 ~ +85ºC

Temperature Range

Operating (T

OPR

)

Storage

STG

)

Shunt Capacitance (C

)

Load Capacitance

)

Drive Level

Aging per year

Maximum Soldering Temp / Time

Moisture Sensitivity Level (MSL)

Termination Finish

Seal Method

Frequency Range

(MHz)

8.000 ~ 9.999999

10.000 ~ 15.999999

16.000 ~ 40.000000

MAX

(unless otherwise noted)

8.000 ~ 40.000 MHz

±30 PPM, ±50 PPM

±100 PPM

±50 PPM

-40ºC ~ +125ºC

5pF

10pF~Series

100µW

±5 PPM

260ºC / 10 Seconds

Glass

Max ESR

Ω

300

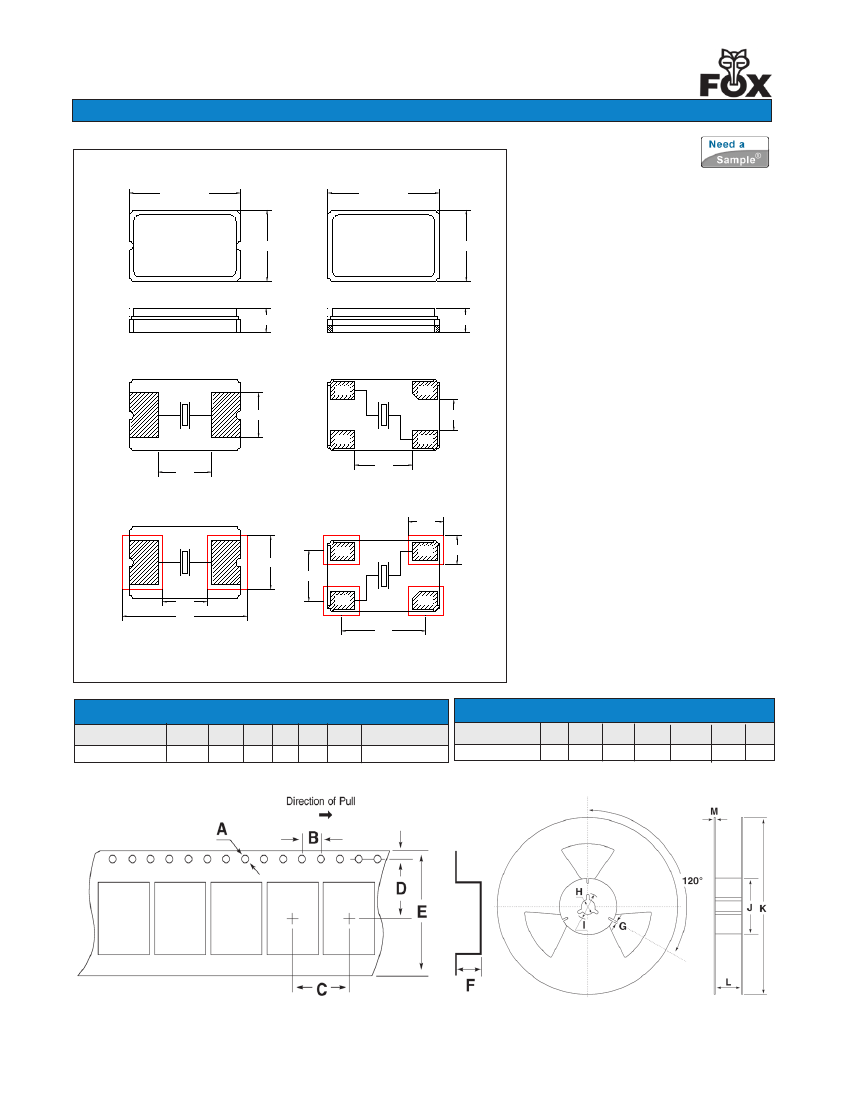

See dimensional drawings on page 2.

Operating Mode

Fundamental

Note: Dimensional drawing is for reference to critical specifications defined by size measurements.

Certain non-critical visual attributes, such as side castellations, etc. may vary.

The above specifications, having been carefully prepared and checked, are believed to be accurate at the time

of publication; however, no responsibility is assumed by Fox Electronics for inaccuracies.

FOXElectronics

5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554

http://www.foxonline.com

EMEA

Tel/Fax: +44 .1767.312632 |

Asia

Hong Kong Tel: +852.2854.4285 Fax +852.2854.4282 |

Japan

Tel: +81.3.3374.2079 Fax: +81.3.3374.5221
