FXU-LC515-0.016 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> FXU-LC515-0.016

FXU-LC515-0.016: DescriptionLVDS Output Clock Oscillator, 0.016MHz Nom; CategoryPassive components oscillator; File Size640KB，11 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric Compare View All

FXU-LC515-0.016 Overview

LVDS Output Clock Oscillator, 0.016MHz Nom

FXU-LC515-0.016 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 7/10 INCH
maximum descent time	0.315 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	0.016 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	100 OHM
physical size	5.0mm x 3.2mm x 1.1mm
longest rise time	0.315 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

PRELIMINARY SPECIFICATIONS

Model: FXU-LC51 SERIES

LVDS

5 x 3.2mm 1.8V Oscillator

Features

ULTRA Low Jitter

Low Cost

PRESS

Delivery

Frequency Resolution to six decimal places

Stabilities to ±

PPM

-20 to +70°C or -40 to +85°C operating temperatures

Tri-State Enable / Disable Feature

Industry Standard Package, Footprint & Pin-Out

Fully RoHS compliant

Gold over Nickel Termination Finish

Serial ID with Comprehensive Traceability

Enable / Disable

Freq: 0.016 MHz to 1.0 GHz*

Rev. 02/13/2014

Applications



ANY application requiring a high

performance LVDS oscillator



SONET



Ethernet



Storage Area Network



Broadband Access



Microprocessors / DSP / FPGA



Industrial Controllers



Test and Measurement Equipment

PRESS

ASICs

GND

FOX

OUTPUT

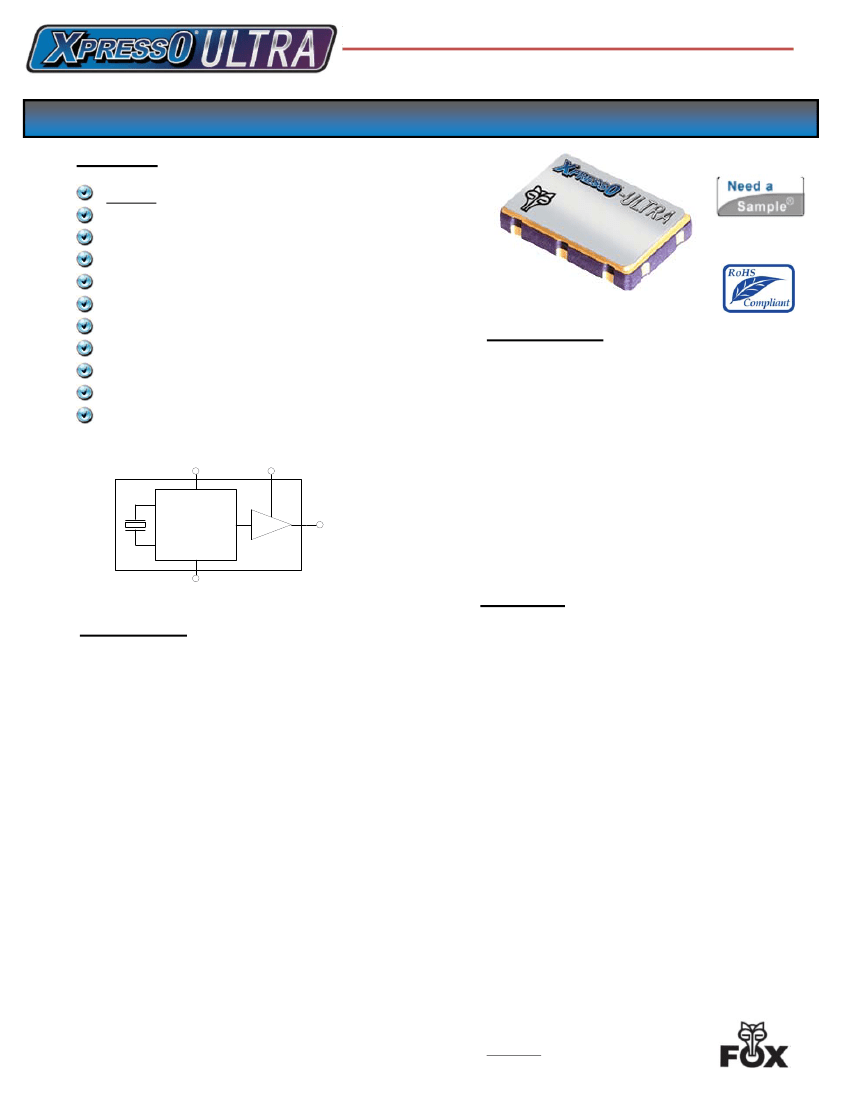

For more information -- Click on the drawing

Contents

page

Description

The Fox X

PRESS

O-ULTRA Crystal Oscillator is a

breakthrough in configurable Frequency Control

Solutions. X

PRESS

O-ULTRA utilizes a family of

proprietary ASICs, designed and developed by Fox,

with a key focus on noise reduction technologies.

The 4

order Delta Sigma Modulator reduces noise to

the levels that are comparable to traditional Bulk

Quartz and SAW oscillators. The ASICs family has

the ability to select the output type and supply

voltage.

With the X

PRESS

O-ULTRA lead-time, low cost, low

noise, wide frequency range, excellent ambient

performance, X

PRESS

O-ULTRA is an excellent choice

over the conventional technologies.

Finished X

PRESS

O-ULTRA parts are 100% final

tested.

Note * – Higher frequencies are available.

Contact Fox Technical Support for details.

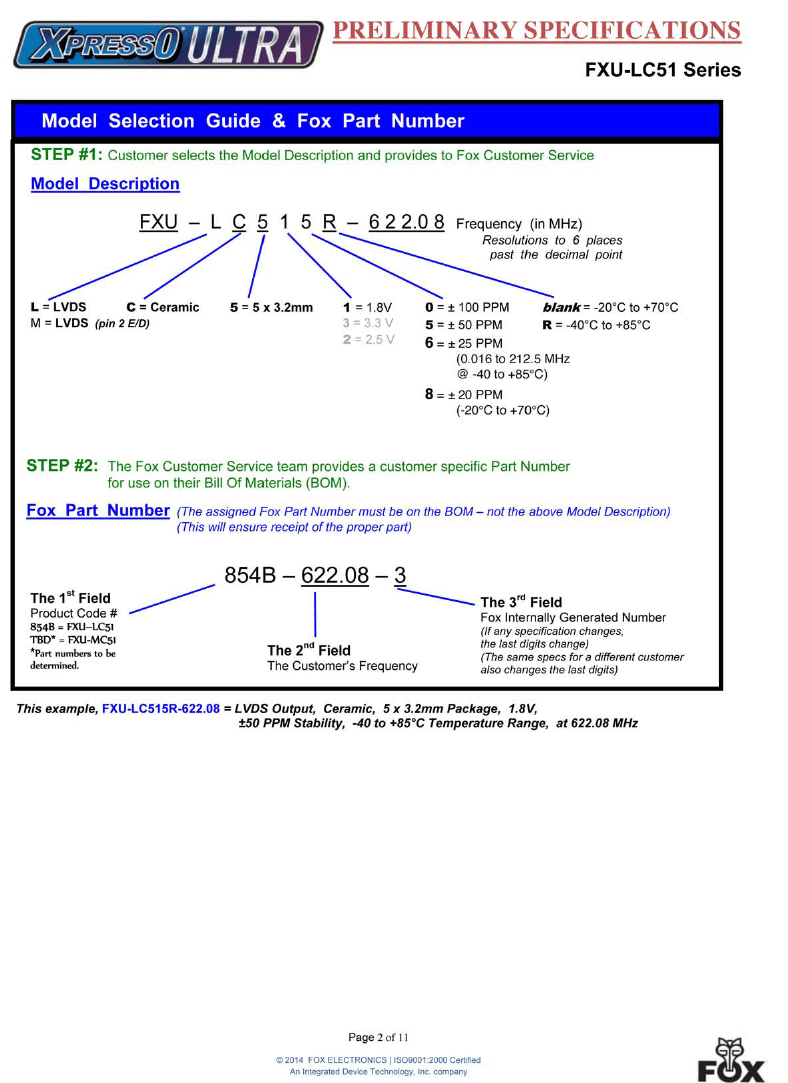

Model Selection & Part Number Guide

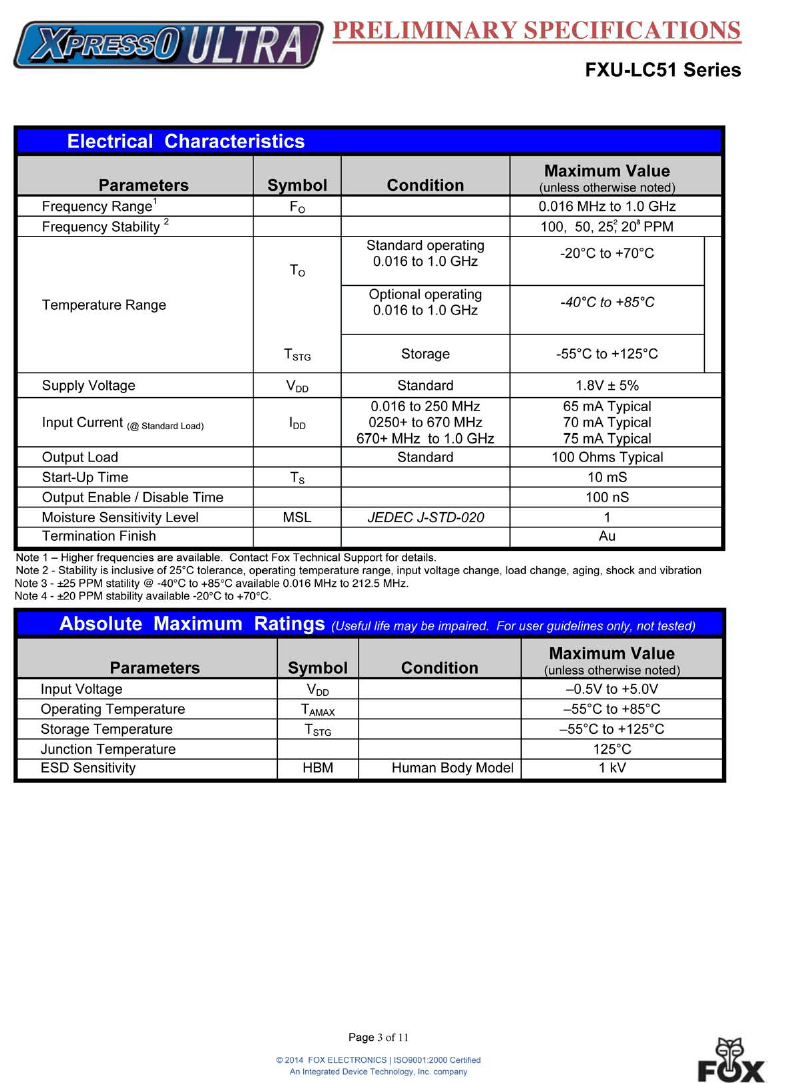

Electrical Characteristic

Absolute Maximums

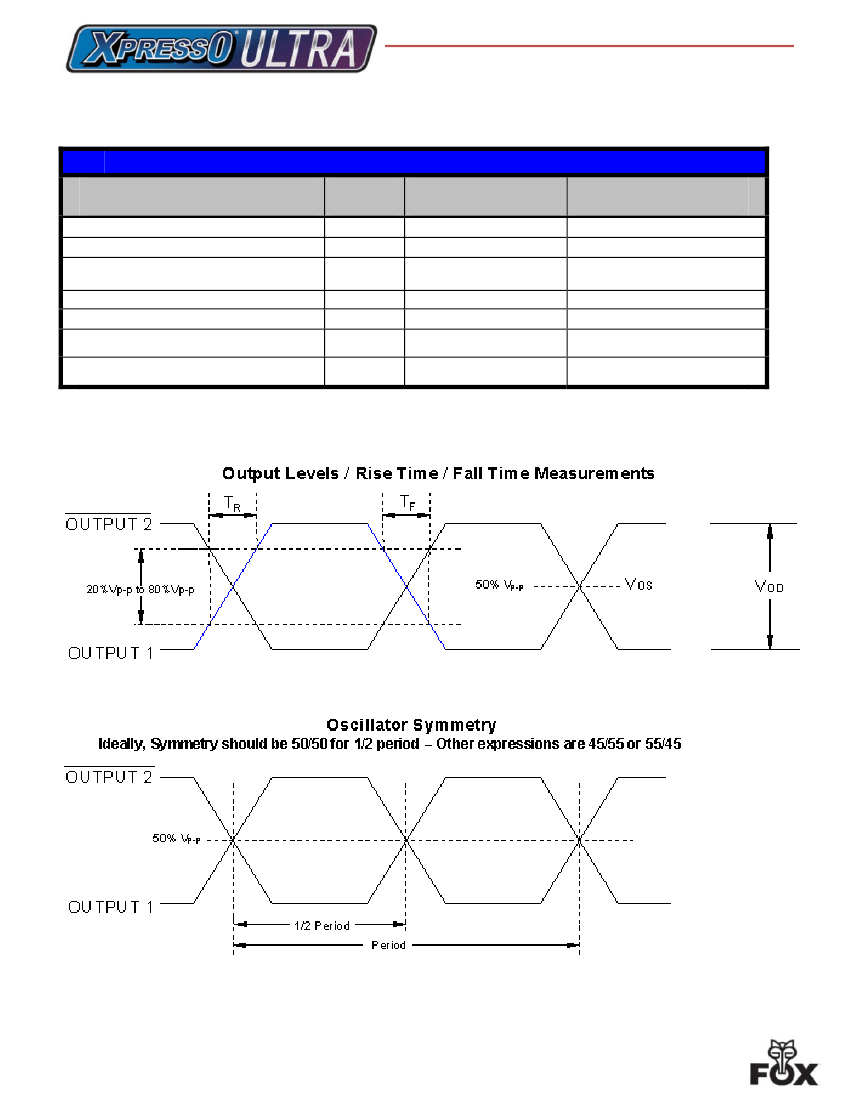

Output Wave Characteristics

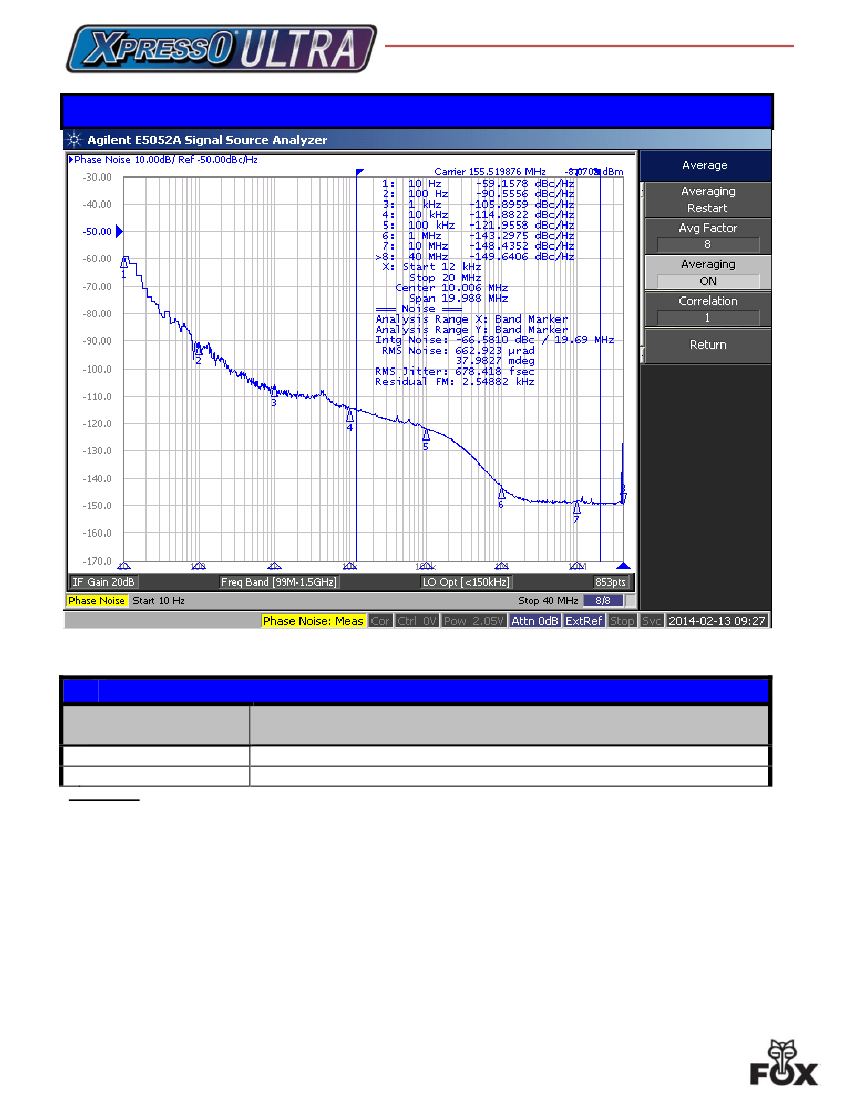

Phase Noise

Jitter

Pin Assignment

Recommended Circuit

Reflow

Mechanical Drawing and Pad Layout

Tape and Reel Specification

Label

Traceability – LOT Number & Serial Identification 9

Mechanical Test

Other X

PRESS

O Series Links

Fox Contact Information

Page 1 of 11
