PRELIMINARY SPECIFICATIONS
Model: FXU-PC53 SERIES
LVPECL
5 x 3.2mm 3.3V Oscillator
Features
ULTRA Low Jitter
Low Cost
X
PRESS
Delivery
Frequency Resolution to six decimal places
Stabilities to ± 50 PPM
-20 to +70°C or -40 to +85°C operating temperatures
Tri-State Enable / Disable Feature
Industry Standard Package, Footprint & Pin-Out
Fully RoHS compliant
Gold over Nickel Termination Finish
Serial ID with Comprehensive Traceability
V
DD
Enable / Disable
Freq: 0.016 MHz to 670 MHz
Rev. 1/14/2014
Applications
ANY application requiring a high
performance LVPECL oscillator
SONET
Ethernet
Storage Area Network
Broadband Access
Microprocessors / DSP / FPGA
Industrial Controllers
Test and Measurement Equipment
X
PRESS
O
ASICs
GND
FOX
OUTPUT

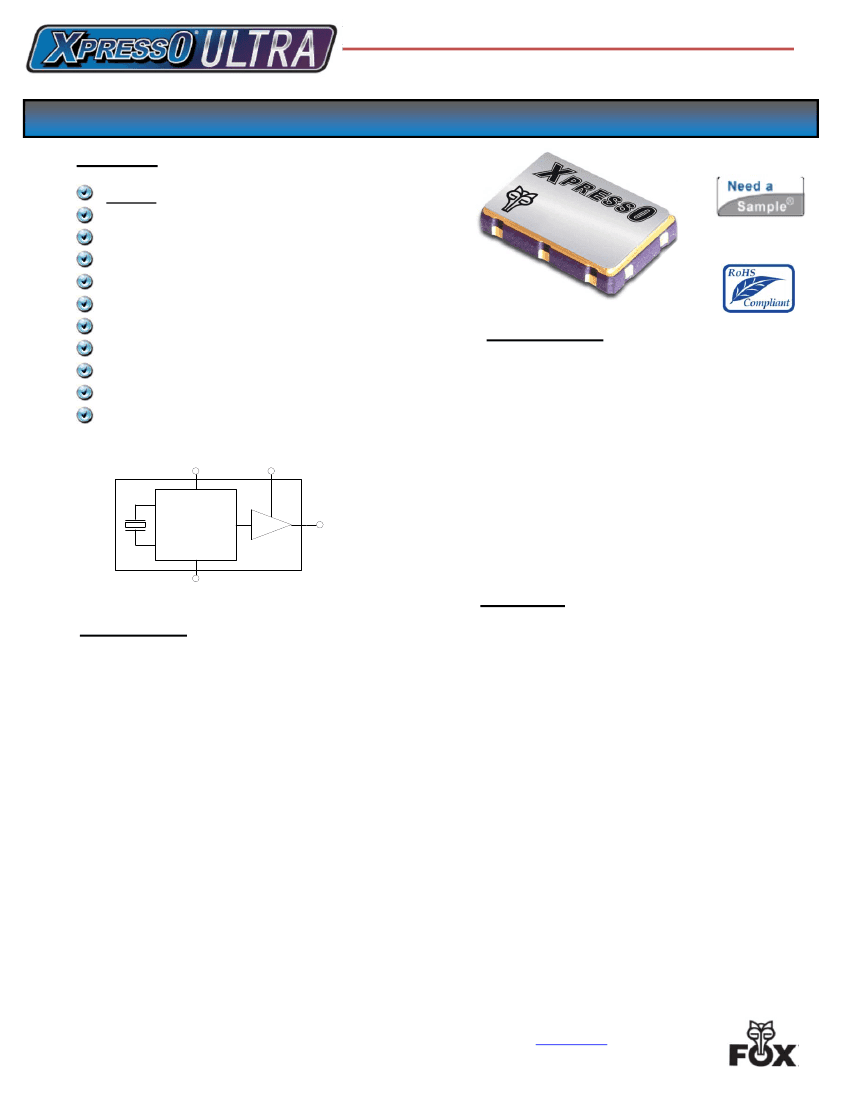

For more information -- Click on the drawing
Contents
page
Description
The Fox X
PRESS
O-ULTRA Crystal Oscillator is a
breakthrough in configurable Frequency Control
Solutions. X
PRESS
O-ULTRA utilizes a family of
proprietary ASICs, designed and developed by Fox,
with a key focus on noise reduction technologies.
The 4
th
order Delta Sigma Modulator reduces noise to
the levels that are comparable to traditional Bulk
Quartz and SAW oscillators. The ASICs family has
the ability to select the output type and supply
voltage.
With the X
PRESS
O-ULTRA lead-time, low cost, low
noise, wide frequency range, excellent ambient
performance, X
PRESS
O-ULTRA is an excellent choice
over the conventional technologies.
Finished X
PRESS
O-ULTRA parts are 100% final
tested.
Model Selection & Part Number Guide
2
Electrical Characteristic
3
Absolute Maximums
3
Output Wave Characteristics
4
Phase Noise
5
Jitter
5
Pin Assignment
6
Recommended Circuit
6
Reflow
6
Mechanical Drawing and Pad Layout
7
Tape and Reel Specification
8
Label
8
Traceability – LOT Number & Serial Identification 9
Mechanical Test
10
Other X
PRESS
O Series Links
11
Fox Contact Information
11
Page 1 of 11
Fox Electronics 5570 Enterprise Parkway Fort Myers, Florida 33905 USA +1.239.693.0099 FAX +1.239.693.1554
EMEA Tel: +44 .1283.568153 | Canada +1.888.438.2369 | Japan Tel: +81.3.3374.2079 | Singapore Tel: +65.68447989
An Integrated Device Technology, Inc. company | ISO9001:2008 Certified |
www.foxonline.com
©2014 FOX ELECTRONICS
PRELIMINARY SPECIFICATIONS
FXU-PC53 Series
Model Selection Guide & Fox Part Number
STEP #1:
Customer selects the Model Description and provides to Fox Customer Service
Model Description
FXU – P C 5 3 5 R – 156.25
Frequency (in MHz)
Resolutions to 6 places
past the decimal point
P
=
LVPECL
C
= Ceramic
Q
=
LVPECL
(pin 2 E/D)
5
=
5 x 3.2mm
3
= 3.3 V
2
= 2.5 V
0
= ± 100 PPM
5
= ± 50 PPM
blank
= -20°C to +70°C
R
= -40°C to +85°C
STEP #2:
The Fox Customer Service team provides a customer specific Part Number
for use on their Bill Of Materials (BOM).
Fox Part Number
(The assigned Fox Part Number must be on the BOM – not the above Model Description)
(This will ensure receipt of the proper part)
852 – 156.25 – 3
The 1 Field
Product Code #
852 = FXU–PC5
TBD* = FXU-QC5
*
Part numbers to be
determined.
st
The 3
rd
Field
Fox Internally Generated Number
nd
The 2
Field
The Customer’s Frequency
(If any specification changes,
the last digits change)
(The same specs for a different customer
also changes the last digits)
This example,
FXU-PC535R-622.08
= LVPECL Output, Ceramic, 5 x 3.2mm Package, 3.3V,
±50 PPM Stability, -40 to +85°C Temperature Range, at 156.25 MHz
Page
2 of 11
© 2014 FOX ELECTRONICS | ISO9001:2008 Certified
An Integrated Device Technology, Inc. company
PRELIMINARY SPECIFICATIONS
FXU-PC53 Series
Electrical Characteristics
Parameters
Frequency Range
Frequency Stability
1
Symbol
F
O
Condition
Maximum Value
(unless otherwise noted)
0.016 MHz to 670MHz
100, 50 PPM
Standard operating
0.016 to 670 MHz
Optional operating
0.016 to 320 MHz
-20°C to +70°C
T
O
Temperature Range
-40°C to +85°C
-55°C to +125°C
3.3 V ± 5%
80 mA Typical
84 mA Typical
87 mA Typical
103 mA Typical
50 Ohms into V
DD
-2V
DC
. T
YP.
10 mS
100 nS
1
Au
T
STG
Supply Voltage
Input Current
(@ Standard Load)
Output Load
Start-Up Time
Output Enable / Disable Time
Moisture Sensitivity Level
Termination Finish
V
DD
I
DD
Storage
Standard
62.5 MHz
100 MHz
156.25 MHz
212.5 MHz
Standard
T
S
MSL
JEDEC J-STD-020
Note 1 – Stability is inclusive of 25°C tolerance, operating temperature range, input voltage change, load change, aging, shock and vibration.
Absolute Maximum Ratings
(Useful life may be impaired.
Parameters
Input Voltage
Operating Temperature
Storage Temperature
Junction Temperature
ESD Sensitivity
For user guidelines only, not tested)
Symbol
V
DD
T
AMAX
T
STG
HBM
Condition
Maximum Value
(unless otherwise noted)
Human Body Model
–0.5V to +5.0V
–55°C to +85°C
–55°C to +125°C
125°C
1 kV
Page
3 of 11
© 2014 FOX ELECTRONICS | ISO9001:2008 Certified
An Integrated Device Technology, Inc. company
PRELIMINARY SPECIFICATIONS
FXU-PC53 Series
Output Wave Characteristics
Parameters
Low Output Voltage
High Output Voltage
Output Voltage Swing (single ended)
Output Symmetry
@ 50% V
P-P
Level
Symbol
V
OL
V
OH
Condition
0.016 MHz to 670 MHz
0.016 MHz to 670 MHz
0.016 MHz to 670 MHz
62.5 MHz
100 MHz
156.25 MHz
212.5 MHz
Maximum Value
(unless otherwise noted)
(See Drawing Below)
Output Enable
Note1 (PIN # 1)
Voltage
Output Disable
Note1 (PIN # 1)
Voltage
Cycle Rise Time
(20%~80%V
P-P
- See Drawing Below)
V
IH
V
IL
T
R
62.5 MHz
100 MHz
156.25 MHz
212.5 MHz
62.5 MHz
100 MHz
156.25 MHz
212.5 MHz
Cycle Fall Time
(80%~20%V
P-P
- See Drawing Below)
Note1
T
F
1.305V ~ 1.65V
2.055V ~ 2.405V
0.750 V
P-P
Typ
49.5% ~ 50.5% Typical
49.5% ~ 50.5% Typical
49.5% ~ 50.5% Typical
49.5% ~ 50.5% Typicall
≥
70% V
DD
≤
30% V
DD
200 pS Typical
224 pS Typical
135 pS Typical
155 pS Typical
230 pS Typical
237 pS Typical
185 pS Typical
192 pS Typical
An optional PIN # 2 as Enable / Disable is available – see Model Selection Guide (page 2)

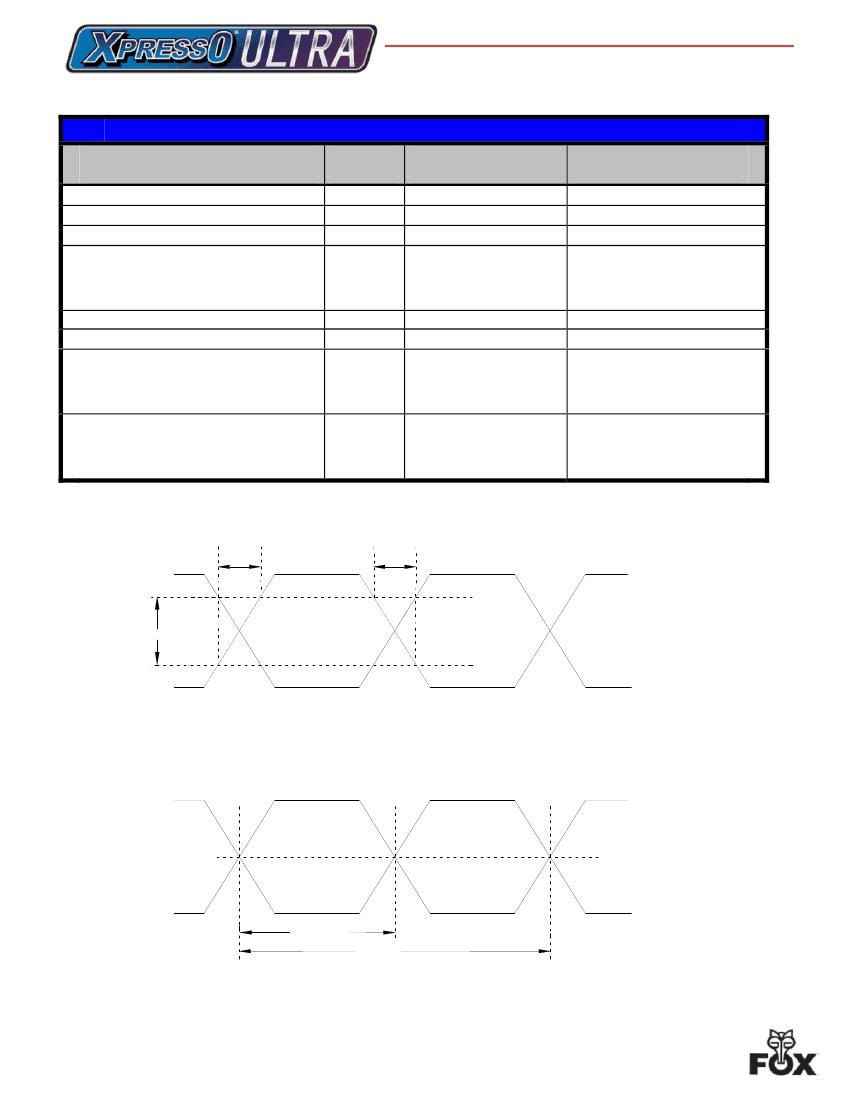

Rise Time / Fall Time Measurements
OUTPUT 2
T
R
T
F
2.055V ~ 2.405V
20% to 80%
OUTPUT 1
1.305V ~ 1.65V
Oscillator Symmetry
Ideally, Symmetry should be 50/50 for 1/2 period -- Other expressions are 45/55 or 55/45
OUTPUT 2
50% V
DD
2.055V ~ 2.405V
OUTPUT 1
1/2 Period
Period
1.305V ~ 1.65V
Page
4 of 11
© 2014 FOX ELECTRONICS | ISO9001:2008 Certified
An Integrated Device Technology, Inc. company
PRELIMINARY SPECIFICATIONS
FXU-PC53 Series

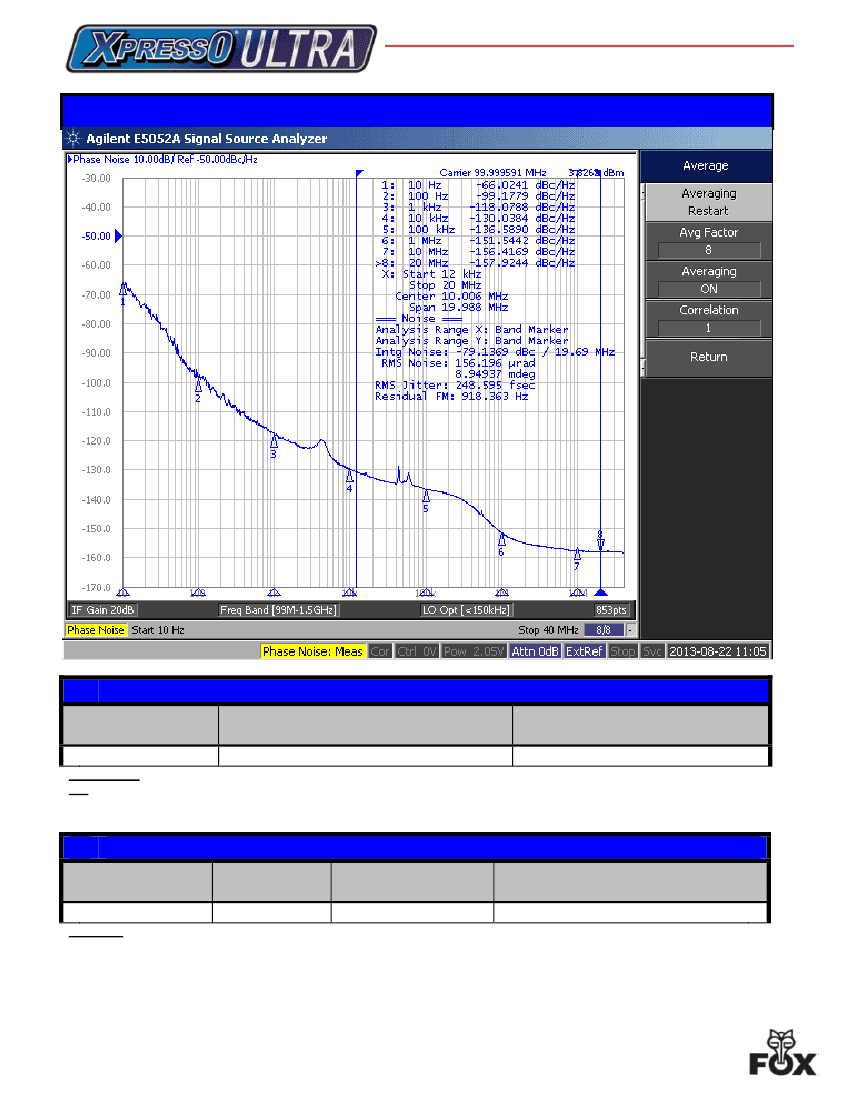

Phase Noise (typical measurements at 100 MHz)
.
LVPECL Phase Jitter & Time Interval Error (TIE)
Frequency
100 MHz
Phase Jitter (pS)
(12kHz to 20MHz)
TIE (pS)
(sigma of jitter distribution)
0.248
2.1
Phase Jitter
is integrated from Agilent 5052A Signal Noise Analyzer; measured directly into 50 ohm input; V
DD
= 3.3V.
TIE
was measured on LeCroy LC684 Digital Storage Scope, directly into 50 ohm input, with Amherst M1 software; V
DD
= 3.3V.
Per
MJSQ
spec (Methodologies for Jitter and Signal Quality specifications)
LVPECL Random & Deterministic Jitter Composition
Frequency
100 MHz
Random (Rj)
(pS RMS)
Deterministic (Dj)
(pS P-P)
Total Jitter (Tj)
(14 x Rj) + Dj
22.9
1.2
5.5
Rj and Dj
, measured on LeCroy LC684 Digital Storage Scope, directly into 50 ohm input, with Amherst M1 software.
Per
MJSQ
spec (Methodologies for Jitter and Signal Quality specifications)
Page
5 of 11
© 2014 FOX ELECTRONICS | ISO9001:2008 Certified
An Integrated Device Technology, Inc. company
