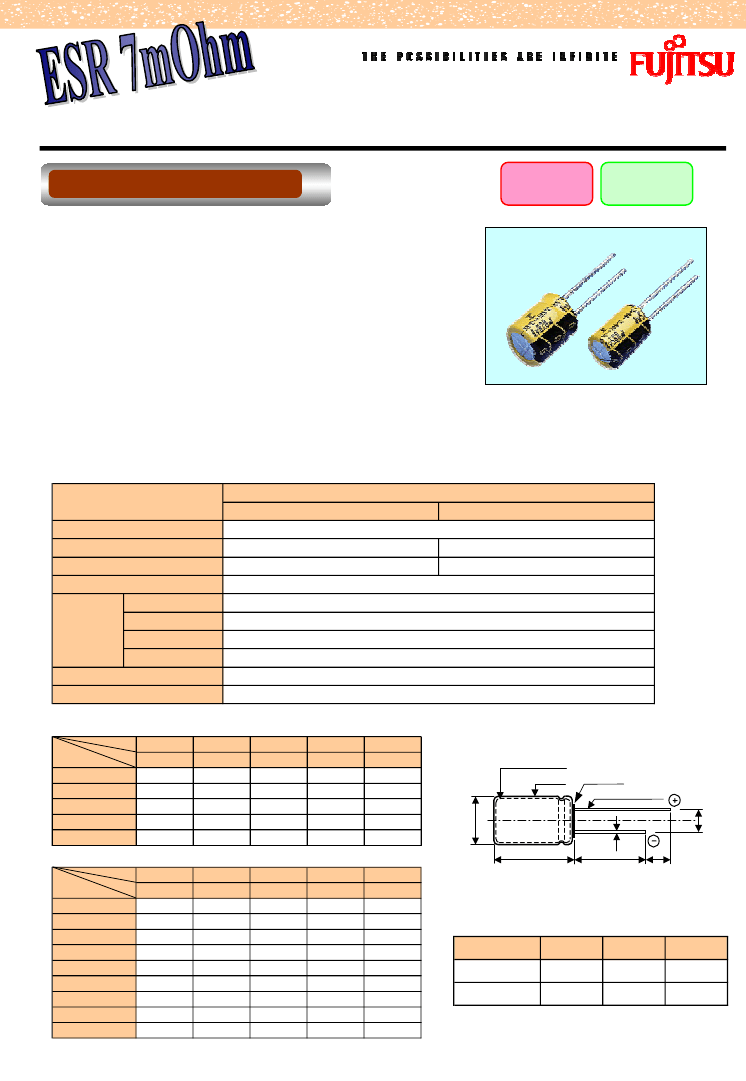

Functional Polymer Capacitors
Solid Electrolytic Capacitors with Functional Polymer
FPCAP
FPCAP
Ultra
Low ESR
RE
Series
0U, SU
Features
Type
Lead Free
By using Functional Polymer cathode, Frequency & Temp.
characteristics are greatly improved.
· Low ESR at a high frequency range.
· High ripple current capability.
· Long life and high reliability.(Reliability:0.1%/1000Hrs)
· Switching Power Supply and DC/DC Converter.
· Buck up Power Supplies of CPU(VRM etc.)
· Miniature high Power Supply.
Applications
Environmental correspondence
Specifications
Items
Operating T emp. Range
Rated Voltage Range
Capacitance Range
Capacitance T olerance
Condition
Capacitance
Endurance
Leakage Current
Dissipation Factor
Reliability
Others
Any environmental hazardous substances are not used.
¯
The lead free of terminal plating (Sn 100%)
Standard type (0U)
6.3 to 16 V·DC
68 to 330
m
F
Characteristics
Extended capacitance type (SU)
- 55 to + 105°C
2.5 to 16 V·DC
330 to 1500
m
F
± 20% (M)
105°C 2,000Hrs at rated voltage
Within ± 20% of the value before test
Not to exceed the value specified
Not to exceed 150% of the value specified
0.1% / 1,000Hrs. Max (60%CL)
JIS-C-5101-4
(f D´L)
Dimensions
R.V.(V)
S.V.(
V)
Cap(mF)
<Standard type : 0U>
4.0
4.6
6.3
7.2
10
11.5
8×11.5
8×11.5
8×11.5
10×12.5
10×12.5
2.5
2.8
fD+0.5Max
68
100
150
220
330
R.V.(V)
S.V.(
V)
Cap(mF)
<Extended capacitance type : SU>
2.5
2.8
4.0
4.6
6.3
7.2
8×11.5
10×12.5
8×11.5
8×11.5
8×11.5
10×12.5
10×12.5
10×12.5
10×12.5
10×12.5
10×12.5
10
11.5
(f D´L)
f
d
L+a Max
15Min
5Min
330
390
470
560
680
820
1000
1200
1500
16
18.4
10×12.5
(Unit : mm)
f
D×L
8×11.5
10×12.5
f
d
0.6
0.6
P
3.5
5.0
a
1.5
1.5
FUJITSU MEDIA DEVICES LIMITED
P± 0.5
16
18.4
8×11.5
8×11.5
10×12.5
Aluminum Case
Sleeve
Stand off
Wire (Lead free)
Part number & Specifications
Rated
Voltage
(V)
2.5
C apacitance
(
m
F, at120H z)
680
820
1500
560
4.0
820
1200
150
220
330
6.3
390
680
820
1000
100
10.0
220
470
68
16.0
100
150
330
FP-2R5RE681M -SU
oo
FP-2R5RE821M -SU
oo
FP-2R5RE152M -SU
oo
FP-4R0RE561M -SU
oo
FP-4R0RE821M -SU
oo
FP-4R0RE122M -SU
oo
FP-6R3RE151M -0U
oo
FP-6R3RE221M -0U
oo
FP-6R3RE331M -0U
oo
FP-6R3RE391M -SU
oo
FP-6R3RE681M -SU
oo
FP-6R3RE821M -SU
oo
FP-6R3RE102M -SU
oo
FP-010RE101M -0U
oo
FP-010RE221M -0U
oo
FP-010RE471M -SU
oo
FP-016RE680M -0U
oo
FP-016RE101M -0U
oo
FP-016RE151M -0U
oo
FP-016RE331M -SU
oo
Part N umber
Leakage C urrent
(
m
A, 2 minutes)
425.0
512.5
937.5
224.0
328.0
960.0
47.2
69.3
103.9
245.7
428.4
516.6
630.0
50.0
110.0
470.0
54.4
80.0
120.0
792.0
Functional Polymer Capacitors (FPCAP)
tan
d
0.080
0.080
0.080
0.080
0.080
0.150
0.070
0.070
0.070
0.080
0.080
0.120
0.120
0.070
0.070
0.080
0.060
0.060
0.060
0.080
ESR
(m
W
, at100kH z)
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
Max mun permissible
Ripple C urrent
(mA, r.m.s.)
5600
5600
6100
5600
6100
6100
5600
5600
6100
5600
6100
6100
6100
5600
6100
6100
5600
5600
6100
6100
C ase Size
f
D×L(mm)
8×11.5
8×11.5
10×12.5
8×11.5
10×12.5
10×12.5
8×11.5
8×11.5
10×12.5
8×11.5
10×12.5
10×12.5
10×12.5
8×11.5
10×12.5
10×12.5
8×11.5
8×11.5
10×12.5
10×12.5

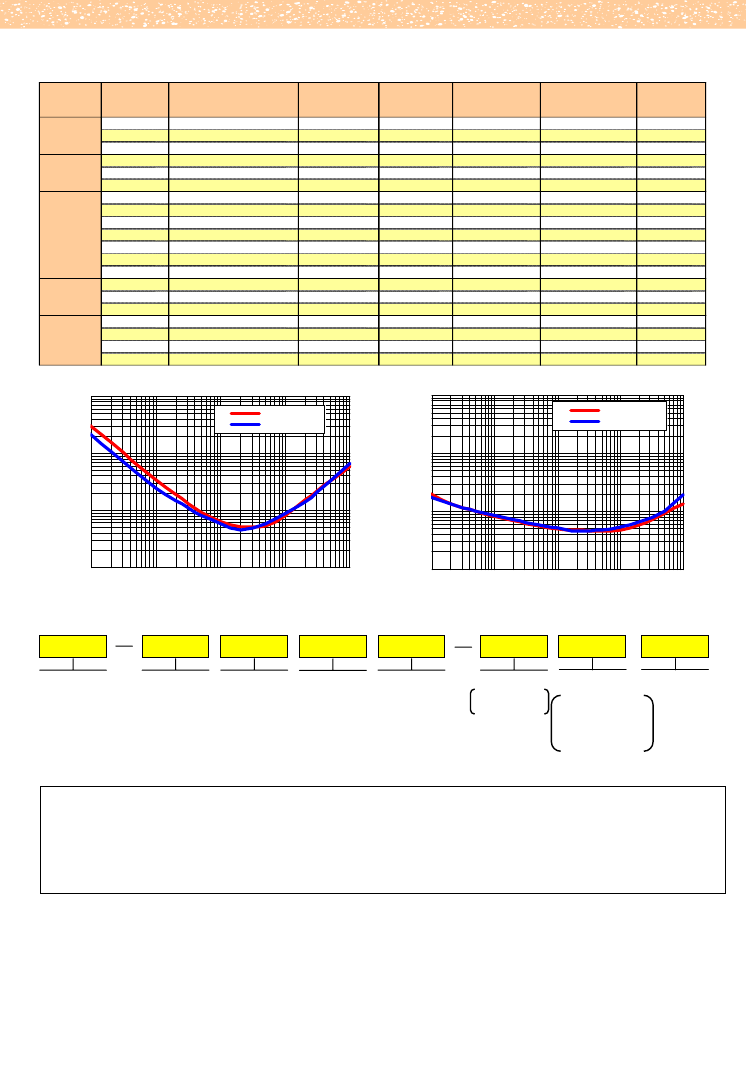

Frequency Characteristics
1000
4V 560uF
2.5V 820uF
1000
4V 560uF
2.5V 820uF
Impedance (mW)
10
ESR (mW)
1
10
100
1000
10000
100
100
10
1
1
Part Number
(EX)
FP
Community
Mark
Frequency (kHz)
1
10
100
1000
Frequency (kHz)
10000
4R0
Rated
Voltage
4V560mF
RE
561
M
SU
Type Symbol
0U:Standard Cap.
SU:Extended Cap.
R
Lead
Forming
Management
number
Series
Name
Capacitance Capacitance
Tolerance
FUJITSU MEDIA DEVICES LIMITED
http://jp.fujitsu.com/fmd/en/
North and South America
FUJITSU MEDIA DEVICES OF AMERICA, INC.
Tel: +1-408-746-7500
Fax: +1-408-746-7555
http://www.fmda.fujitsu.com/
Europe
FUJITSU MICROELECTRONICS
EUROPE GmbH
Tel: +49-6103-690-0
Fax: +49-6103-690-122
http://www.fme.fujitsu.com/
Japan
Global Sales
Shin-Yokohama Square Bldg., 14F Shin-Yokohama 2-3-12, Kohoku-ku, Yokohama,
Kanagawa 222-0033, Japan
Tel: +81-45-471-0061 Fax: +81-45-471-0076
Asia Pacific
FUJITSU MEDIA DEVICES HONG KONG LTD.
Tel: +852-2866-8509
Fax: +852-2866-8287
(Taiwan Representative office)
Tel: +886-2-2311-2255
Fax: +886-2-2371-8347
FUJITSU MEDIA DEVICES TRADING (SHANGHAI) LTD.
Tel: +86-21-6323-4560
Fax: +86-21-6323-4510
R: Bulk Long lead
K: 3.5mm pitch taping
P: 8f
-5mm
pitch taping
PH: 10f
-5mm
pitch taping
CG: Bulk cut lead
.
Specifications are subject to change without notice. For further information please contact each office.
The contents of this document are subject to change without notice.
Customers are advised to consult with FUJITSU MEDIA DEVICES sales representatives before ordering.
