AM10CW-2412D-FZ

Description
DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): ±0.41; Efficiency (%): 88; Max Capacitive load (µF): ±470; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1
CategoryPower/power management    The power supply circuit
File Size386KB，3 Pages
ManufacturerAimtec
Websitehttp://www.aimtec.ca/
Environmental Compliance
Download Datasheet Parametric Compare View All

AM10CW-2412D-FZ Overview

DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): ±0.41; Efficiency (%): 88; Max Capacitive load (µF): ±470; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1

AM10CW-2412D-FZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerAimtec
package instruction,
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresALSO OPERATES WITH -12 OUTPUT VOLTAGE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage36 V
Minimum input voltage9 V
Nominal input voltage24 V
JESD-30 codeS-XDMA-T6
length25.4 mm
Number of functions1
Output times2
Number of terminals6
Maximum operating temperature60 °C
Minimum operating temperature-40 °C
Maximum output voltage12.12 V
Minimum output voltage11.88 V
Nominal output voltage12 V
Package body materialUNSPECIFIED
Package shapeSQUARE
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum seat height10.4 mm
surface mountNO
technologyHYBRID
Temperature levelOTHER
Terminal formTHROUGH-HOLE
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output10 W
Fine-tuning/adjustable outputNO
width25.4 mm

Preview

Download Datasheet
NRND; EOL by December 31st, 2017
For new designs, please see
AM10CW-NZ
series

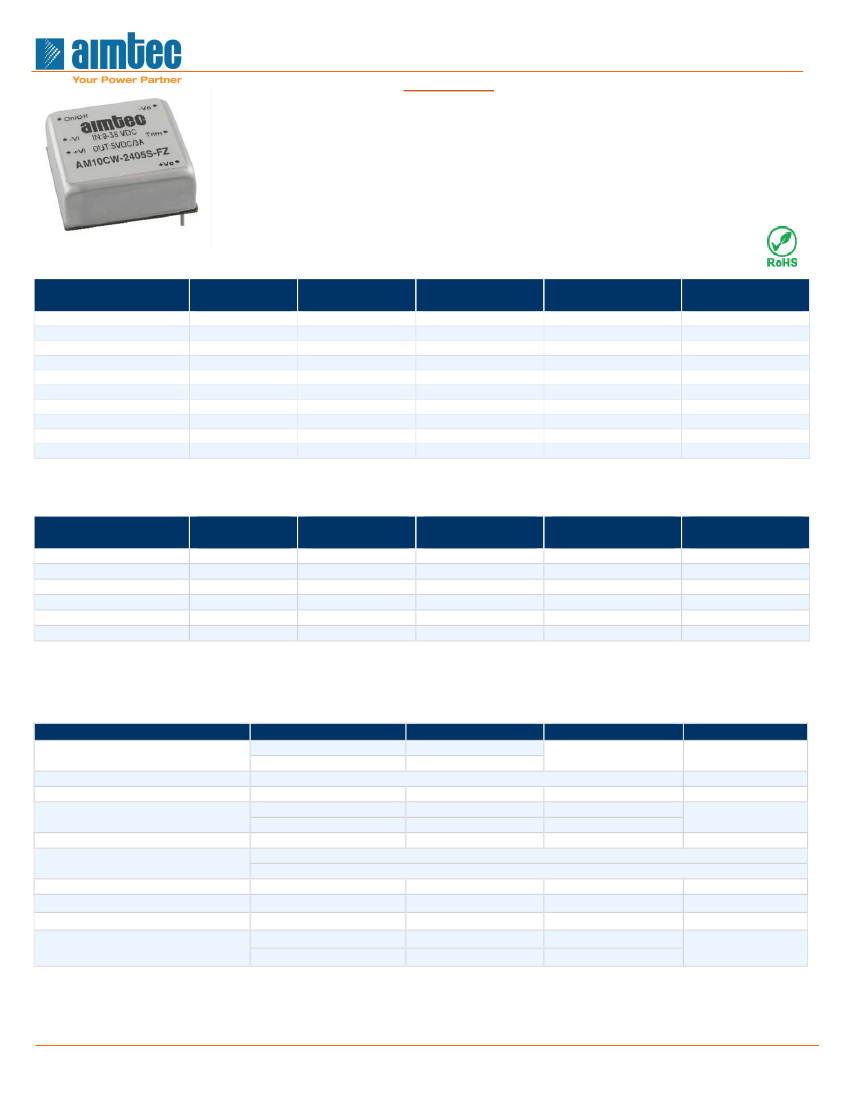

FEATURES:
•
•
•
•
Wide 4:1 Input Voltage Range
High efficiency up to 88%
Remote On/Off
Standard 1”x1” Package
•
•
•
•
Series AM10CW-FZ
10 Watt | DC-DC Converter
1500 VDC Isolation
Operating Temperature -40ºC to +85ºC
Over Voltage, Over load protection
Output Short Circuit Protection
Models
Single output
Model
AM10CW-2403S-FZ
AM10CW-2405S-FZ
AM10CW-2412S-FZ
AM10CW-2415S-FZ
AM10CW-2424S-FZ
AM10CW-4803S-FZ
AM10CW-4805S-FZ
AM10CW-4812S-FZ
AM10CW-4815S-FZ
AM10CW-4824S-FZ
Input Voltage
(V)
9-36
9-36
9-36
9-36
9-36
18-75
18-75
18-75
18-75
18-75
Output Voltage
(V)
3.3
5
12
15
24
3.3
5
12
15
24
Output Current
max
(mA)
2200
2000
830
660
410
2200
2000
830
660
410
Max Capacitive
Load(uF)
3300
2200
680
330
100
3300
2200
680
330
100
Efficiency
(%)
82
85
88
88
87
80
84
87
87
87
Models
Dual output
Model
AM10CW-2405D-FZ
AM10CW-2412D-FZ
AM10CW-2415D-FZ
AM10CW-4805D-FZ
AM10CW-4812D-FZ
AM10CW-4815D-FZ
Input Voltage
(V)
9-36
9-36
9-36
18-75
18-75
18-75
Output Voltage
(V)
±5
±12
±15
±5
±12
±15
Output Current
max
(mA)
±1000
±410
±330
±1000
±410
±330
Max Capacitive
Load(uF)
±1000
±470
±220
±1000
±470
±220
Efficiency
(%)
85
88
87
84
87
87
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at
rated output load unless otherwise specified.
Input Specifications
Parameters
Voltage range
Filter
Start up time
Absolute Maximum Rating
Peak Input Voltage time
On/Off control
Idle Input Current
Input reflected current
Transient response settling time
Transient response deviation
At OFF state
50% load step change
di/dt=0.8A/µs
3.3Vou
24
48
Nominal
24
48
Typical
9-36
18-75
Pi
77
Maximum
Units
VDC
ms
VDC
ms
50
100
100
ON –Open or 3.5 to 12V/<0.2mA
OFF –Short to pin 2 (-Vin) or 0 to 0.7V
12
62
550
≤5
≤6
mA
mA p-p
µs
%
www.aimtec.com
F 051e R14
Tel: +1 514 620 2722
1 of 3
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only

AM10CW-2412D-FZ Related Products

AM10CW-2412D-FZ AM10CW-2415D-FZ AM10CW-4805D-FZ AM10CW-4805S-FZ AM10CW-4815D-FZ
Description DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): ±0.41; Efficiency (%): 88; Max Capacitive load (µF): ±470; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1 DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 9; Input voltage max (V): 36; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): ±0.33; Efficiency (%): 87; Max Capacitive load (µF): ±220; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1 DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 18; Input voltage max (V): 75; Output voltage min: 5; Output voltage max: 5; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): ±1; Efficiency (%): 84; Max Capacitive load (µF): ±1000; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1 DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 18; Input voltage max (V): 75; Output voltage min: 5; Output voltage max: 5; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): 2; Efficiency (%): 84; Max Capacitive load (µF): 2200; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1 DC/DC Converter; Product Weight (grams): 17.4; Input voltage min (V): 18; Input voltage max (V): 75; Output voltage min: 15; Output voltage max: 15; Output voltage dual assymetric (y/n): Single; Output Power (W): 10; Max Output current (A): ±0.33; Efficiency (%): 87; Max Capacitive load (µF): ±220; Package type: 1x1; Mounting: PCB; W (in): 1; L (in): 1; H (in): 0.4; W (mm): 25.4; L (mm): 25.4; H (mm): 10.2; Min Operating temperature: -40; Max operating temperature (°C): 85; Isolation (VDC): 1500; Case material: Copper ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1580000; Derating : 60; Voltage Accuracy (%): ±1; Line Regulation (% of Vin): ±1; Load Regulation %: ±1; Ripple & Noise (mV p-p): 80; Switching Frequency typ (KHz): 330; Short circuit protection: Continuous; On/Off Control: 1
Is it lead-free? Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to conform to
Maker Aimtec Aimtec Aimtec Aimtec Aimtec
Reach Compliance Code compli compliant compliant compliant compliant
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 36 V 36 V 75 V 75 V 75 V
Minimum input voltage 9 V 9 V 18 V 18 V 18 V
Nominal input voltage 24 V 24 V 48 V 48 V 48 V
JESD-30 code S-XDMA-T6 S-XDMA-T6 S-XDMA-T6 S-XDMA-T6 S-XDMA-T6
length 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm
Number of functions 1 1 1 1 1
Output times 2 2 2 1 2
Number of terminals 6 6 6 6 6
Maximum operating temperature 60 °C 60 °C 60 °C 60 °C 60 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C
Maximum output voltage 12.12 V 15.15 V 5.05 V 5.05 V 15.15 V
Minimum output voltage 11.88 V 14.85 V 4.95 V 4.95 V 14.85 V
Nominal output voltage 12 V 15 V 5 V 5 V 15 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape SQUARE SQUARE SQUARE SQUARE SQUARE
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum seat height 10.4 mm 10.4 mm 10.4 mm 10.4 mm 10.4 mm
surface mount NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level OTHER OTHER OTHER OTHER OTHER
Terminal form THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE
Terminal location DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum total power output 10 W 10 W 10 W 10 W 10 W
Fine-tuning/adjustable output NO NO NO NO NO
width 25.4 mm 25.4 mm 25.4 mm 25.4 mm 25.4 mm
Other features ALSO OPERATES WITH -12 OUTPUT VOLTAGE ALSO OPERATES WITH -15 OUTPUT VOLTAGE ALSO OPERATES WITH -5 OUTPUT VOLTAGE - ALSO OPERATES WITH -15 OUTPUT VOLTAGE
