5962-8762501EA datasheet, PDF - EEWORLD Datasheet

5962-8762501EA: DescriptionMultiplexer, AC Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size27KB，1 Pages; ManufacturerGE Solid State

Download Datasheet Parametric View All

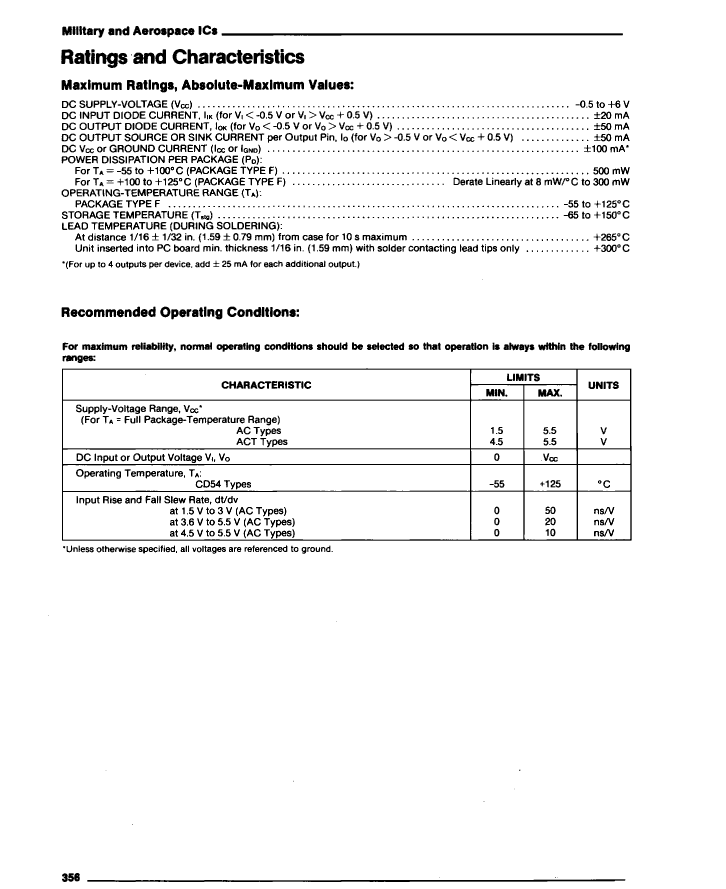

5962-8762501EA Overview

Multiplexer, AC Series, 2-Func, 4 Line Input, 1 Line Output, True Output, CMOS, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Maker	GE Solid State
package instruction	DIP,
Reach Compliance Code	unknow
series	AC
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	20.13 mm
Logic integrated circuit type	MULTIPLEXER
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.33 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
