DB-122-104-187-JP00 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> DB-122-104-187-JP00

DB-122-104-187-JP00: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size1010KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

DB-122-104-187-JP00 Overview

Connector Accessory

DB-122-104-187-JP00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	DB

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

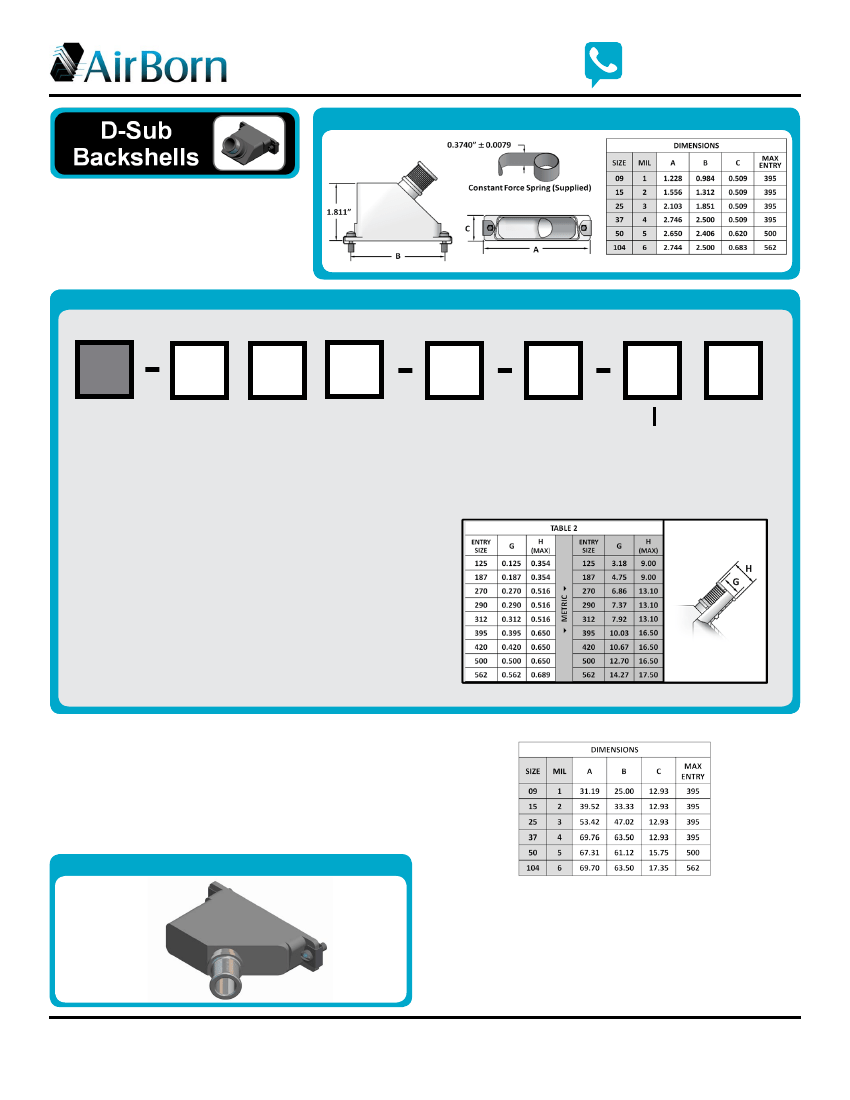

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

DB 2 – Spring Banding Backshell

with Boot Groove and Circular,

45° Right End Entry

For use with D-Subminiature and

MIL-DTL-24308 connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: DB-122-015-XXX-SH00

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Spring Banding

Backshells with

Boot Groove for

D-Subminiature

Connectors

MATERIAL

1 – Aluminum

alloy

STYLE

2 – 45° circular,

right end

entry

PLATING

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum ‡

D – Cadmium, olive

drab ‡

Z – Zinc cobalt over

nickel

SIZE

009 – 9 Contacts

015 – 15 Contacts

025 – 25 Contacts

037 – 37 Contacts

050 – 50 Contacts

104 – 104 Contacts

ENTRY SIZE

See Table 2 below

OPTIONS

00 – None

HARDWARE

00 – None

SH – Slot head screw with clip

AH – Allen head screw with clip

ES – Extended slot head screw with clip

JP – Jackpost

TH – Threaded hole

NOTES

‡ Option not RoHS-compliant

Stainless steel microband: CDG10026 (sold separately)

Band-It application tool: CDG10027

Reference PTB44 for Band-It termination installation

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel

Zinc cobalt over electroless nickel with olive drab chromate conversion

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or

AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

DB-122-015-XXX-SH00

DB2-PNB-1

www.airborn.com

(512 ) 863-5585
