MB-245-015-125-4A00 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> MB-245-015-125-4A00

MB-245-015-125-4A00: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size865KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

MB-245-015-125-4A00 Overview

Connector Accessory

MB-245-015-125-4A00 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compli
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	MB

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

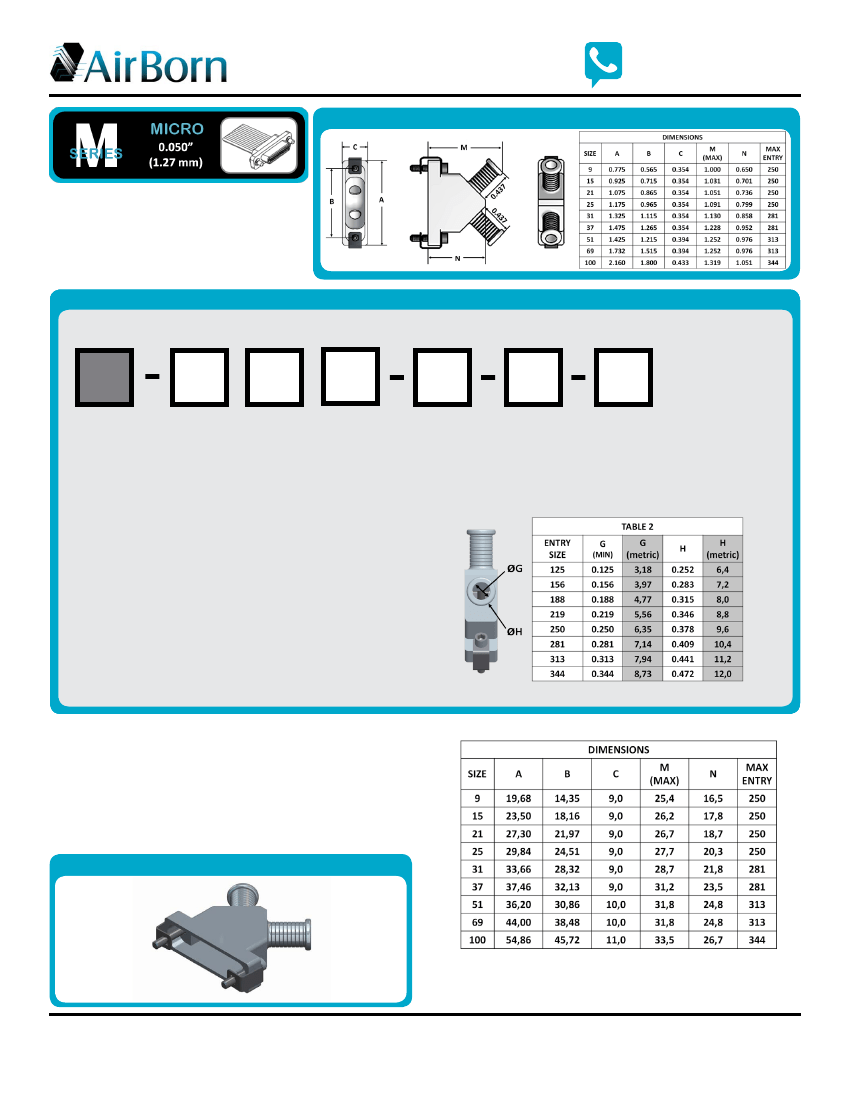

MB 4 – Banding Backshell with 45°

Circular Dual Entry

For use with AirBorn rugged M-Series (MM)

and MIL-DTL-83513 style connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: MB-242-031-XXX-4A00

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Micro Connector

Backshells

BODY STYLE

ROWS

4 – 45° circular

2 – 2-Row

dual entry

(Sizes 9-37)

3 – 3-Row

(Sizes 51 & 69)

4 – 4-Row

(Size 100)

BODY MATERIAL

2 – Nickel-plated

aluminum

3 – Cadmium-plated

aluminum *

5 – Passivated

stainless steel

SIZE

009 – 9 Contacts

015 – 15 Contacts

021 – 21 Contacts

025 – 25 Contacts

031 – 31 Contacts

037 – 37 Contacts

051 – 51 Contacts

069 – 69 Contacts

100 – 100 Contacts

ENTRY SIZE

See Table 2 below

HARDWARE

0000 – None

2200 – Jackpost, 2-56 (sizes 9-69, only)

4A00 – Allen head jackscrew, 2-56 (sizes 9-69, only)

4B00 – Slot head jackscrew, 2-56 (sizes 9-69, only)

6200 – Jackpost, 4-40 (size 100, only)

8A00 – Allen head jackscrew, 4-40 (size 100, only)

8C00 – Slot head jackscrew, 4-40 (size 100, only)

NOTES

* Option not RoHS-compliant

Band-It application tool: CDG10027

Stainless steel microband: CDG10026 (sold separately)

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640,

Type 1 or AISI-303 or EN 10088-3 1½4305

Passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

MB-242-031-XXX-4A00

MB4-PNB-1

www.airborn.com

(512 ) 863-5585
