440HS084NF2516-2AI datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> 440HS084NF2516-2AI

440HS084NF2516-2AI: DescriptionConnector Accessory,; CategoryThe connector Connector bracket; File Size169KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

440HS084NF2516-2AI Overview

Connector Accessory,

440HS084NF2516-2AI Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	unknow

Preview

Download Datasheet

View All

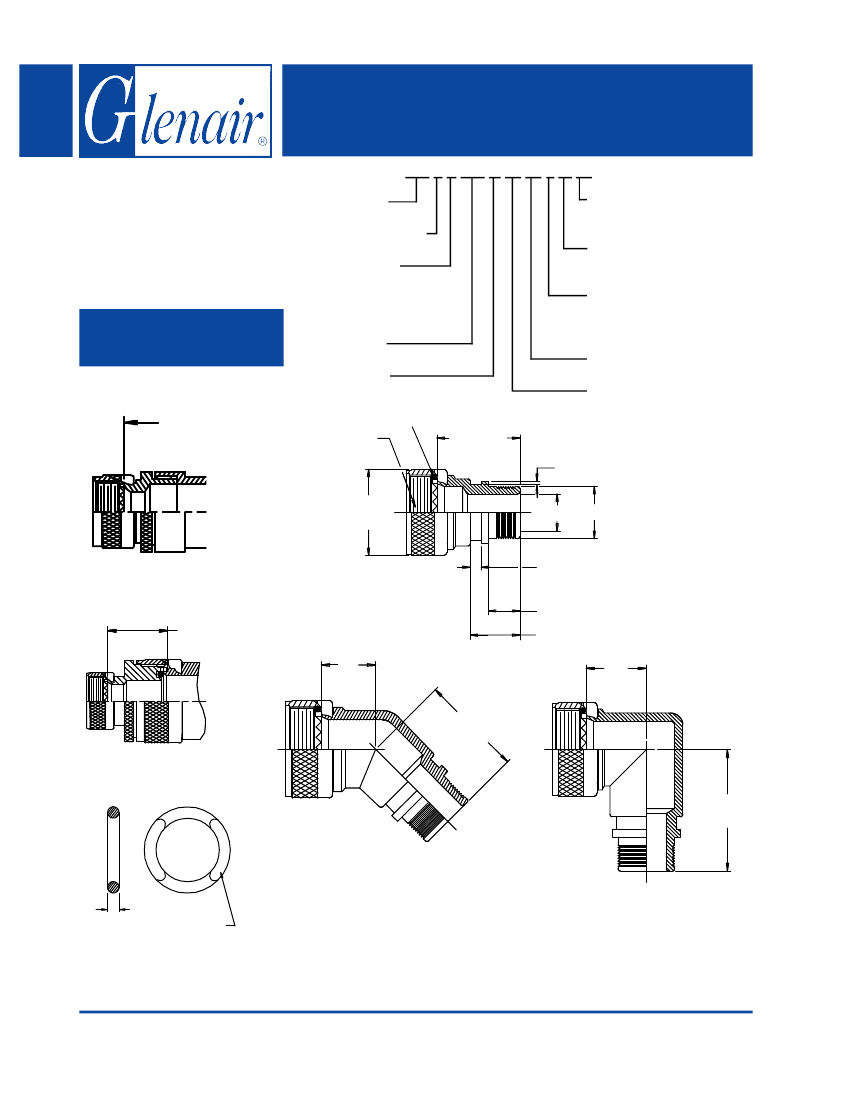

440-084

EMI/RFI Tinel-Lock

Ring Adapter

Rotatable Coupling - Standard Profile

440

CONNECTOR

DESIGNATORS

440 F S 084 M 20 12-8 AI T1

Product Series

Connector Designator

Angle and Profile

H = 45

J = 90

S = Straight

Basic Part No.

Cable Entry (Table IV)

Finish (Table II)

Shell Size (Table I)

O-Ring

A Thread

(Table I)

Length **

** Length ± .060 (1.52)

Min. Order Length 1.0 inch

(See Note 4)

L (Table IV)

* (Table IV)

.135 (3.4)

±.005 (.1)

.272 (6.9) Ref.

Tinel-Lock

ﬁ

Ring Supplied

(Table V - Omit for none)

Length: S only

(1/2 inch increments,

e.g. 8 = 4.000 inches)

Shrink Boot Options

(Table IV - Omit for none)

A-F-H-L-S

ROTATABLE

COUPLING

FOR TINEL-LOCK

RING TERMINATIONS

Length ± .060 (1.52)

Min. Order

Length 1.5 inch

C Typ.

(Table I)

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

(Table III)

.525 (13.3)

(Table III)

F (Table III)

STYLE 2

(45° & 90°

See Note 1)

(Table III)

.070 (1.8)

Thermochromic

Paint (Note 6)

Tinel-Lock

Ring

Option (See Table V)

Tinel-Lock

is a registered trademark of Tyco

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 440 - Page 60

Rev. 07.28.20
