M22-7140242 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M22-7140242

M22-7140242: DescriptionBoard Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

M22-7140242 Overview

Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

M22-7140242 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Harwin
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.173 inch
body length	0.157 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Matte Tin (Sn)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	M22
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	4

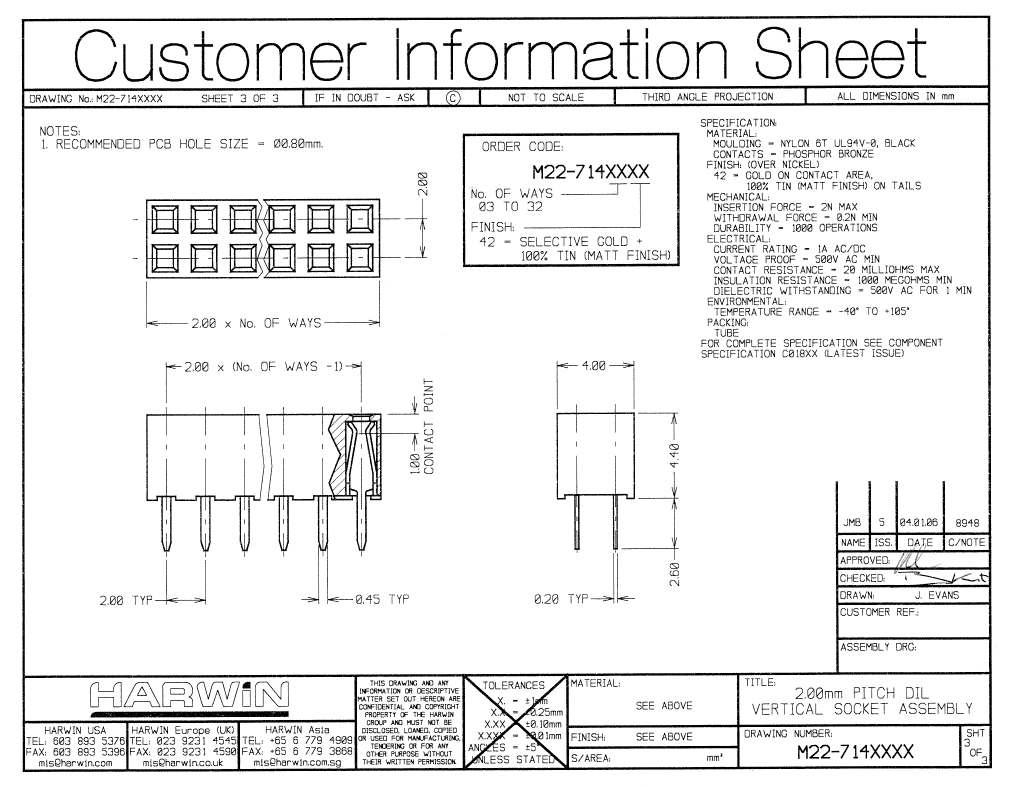

Preview

Download Datasheet

View All

M22-7140242 Related Products

	M22-7140242	M22-7142642	M22-7142742	M22-7142842	M22-7142942	M22-7143042	M22-7143142
Description	Board Connector, 4 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug	Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE	Board Connector, 54 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE	Board Connector, 56 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE	Board Connector, 58 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE	Board Connector, 62 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Socket, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	unknow	compliant	compliant	compliant	compliant	compliant	compliant
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
subject depth	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch
body length	0.157 inch	2.047 inch	2.126 inch	2.205 inch	2.283 inch	2.362 inch	2.441 inch
Body/casing type	PLUG	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	M22	M22-71	M22-71	M22-71	M22-71	M22-71	M22-71
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch	0.102 inch
Terminal pitch	2.0066 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	52	54	56	58	60	62
Is it lead-free?	-	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
package instruction	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
DIN compliance	-	NO	NO	NO	NO	NO	NO
Filter function	-	NO	NO	NO	NO	NO	NO
IEC compliance	-	NO	NO	NO	NO	NO	NO
MIL compliance	-	NO	NO	NO	NO	NO	NO
Mixed contacts	-	NO	NO	NO	NO	NO	NO
Options	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
UL Flammability Code	-	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
