M80-4T24801 datasheet, PDF - EEWORLD Datasheet

M80-4T24801: DescriptionBoard Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator; CategoryThe connector The connector; File Size103KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

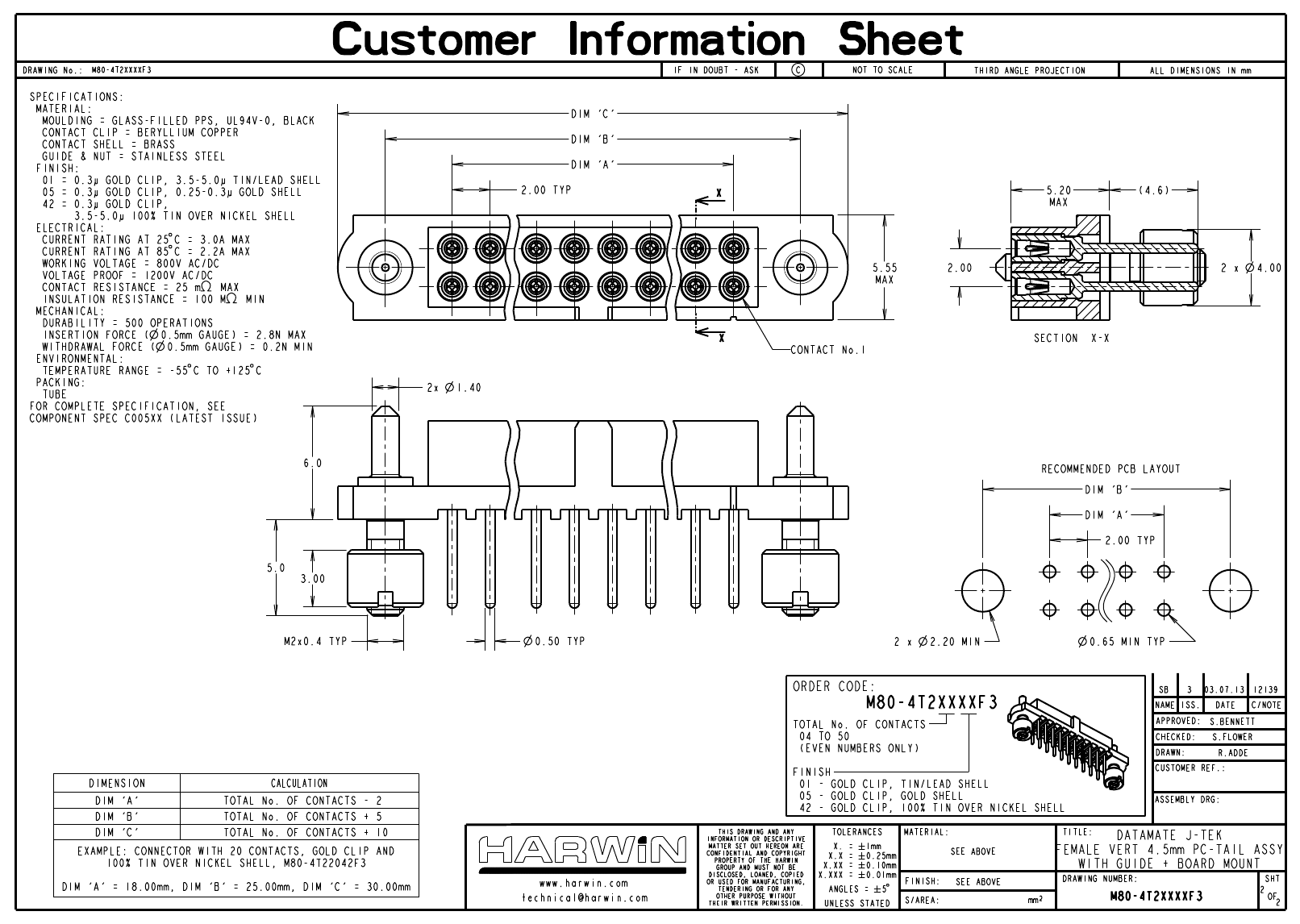

Download Datasheet Parametric View All

M80-4T24801 Overview

Board Connector, 48 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, M2x0.4, Black Insulator

Parameter Name	Attribute value
Maker	Harwin
Reach Compliance Code	compli
ECCN code	EAR99
body width	0.219 inch
subject depth	0.205 inch
body length	2.283 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
maximum insertion force	2.78 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	M80
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	M2X0.4
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	11u inch
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.181 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	48
Evacuation force-minimum value	.199882 N
