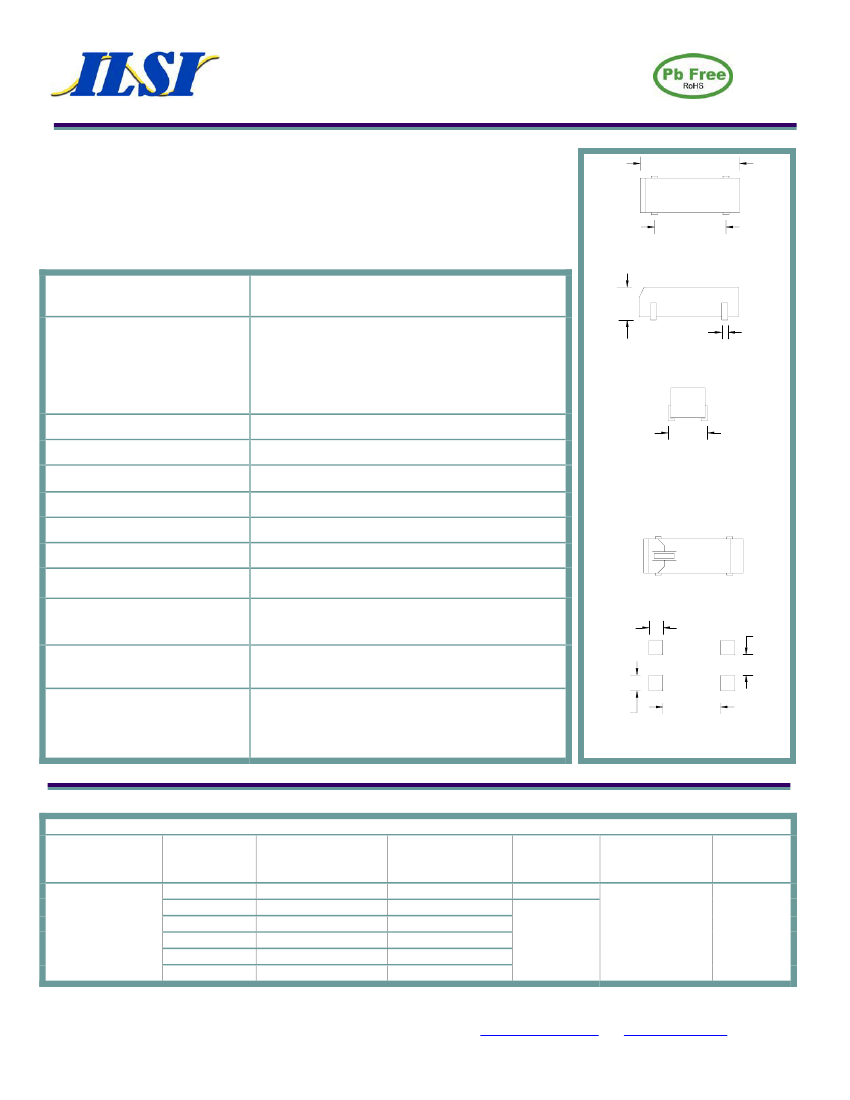

4 Pad Plastic Package Quartz Crystal, 4.6 mm x 12.5 mm
Product Features:
Low Cost SMD Package
RoHs Compliant
Compatible with Leadfree Processing
IL3S Series
Applications:
Fibre Channel
Server & Storage
Sonet /SDH
802.11 / Wifi
T1/E1, T3/E3
System Clock
12.5 Max.
9.4
Frequency
ESR (Equivalent Series Resistance)
3.5 MHz to 35 MHz
0.8
3.7 Max.
3.5 MHz – 3.99 MHz
4.0 MHz – 5.99 MHz
6.0 MHz – 9.99 MHz
10.0 MHz – 35 MHz
Shunt Capacitance (C0)
Frequency Tolerance @ 25
C
Frequency Stability over
Temperature
Crystal Cut
Load Capacitance
Drive Level
Aging
200
150
100
50
Max.
Max.
Max.
Max.
7 pF Max.
30 ppm Standard (see Part Number Guide for more options)
50 ppm Standard (see Part Number Guide for more options)
AT Cut
Connection Diagram
4.6 Max.
18 pF Standard (see Part Number Guide for more options)
1 mW Max.
5 ppm Max. / Year Standard
Temperature
1.8
1.7
Operating
0 C to +70 C Standard (see Part Number Guide for more
options)
7.6
1.8
Storage
-40 C to +85 C Standard
Dimension Units: mm
Part Number Guide
Package
Stability
(ppm) at Room
Temperature
B = ±50 ppm
F = ±30 ppm
IL3S -
G = ±25 ppm
H = ±20 ppm
I = ±15 ppm
J = ±10 ppm*
Sample Part Number:
Stability
(ppm) over Operating
Temperature
B = ±50 ppm
F = ±30 ppm
G = ±25 ppm
H = ±20 ppm
I = ±15 ppm**
J = ±10 ppm**
IL3S - FB1F18 - 20.000
Operating
Temperature Range
0 = 0°C to +50°C
1 = 0°C to +70°C
2 = -10°C to +60°C
3 = -20°C to +70°C
5 = -40°C to +85°C
9 = -10°C to +50°C
18 pF Standard.
Or Specify
- 20.000 MHz
Mode
(overtone)
F = Fundamental
Load Capacitance
(pF)
Frequency
* Not available at all frequencies. ** Not available for all temperature ranges.
e-mail@ilsiamerica.com
•
www.ilsiamerica.com
ILSI
America
Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com
2/09
Specifications subject to change without notice
Page 1

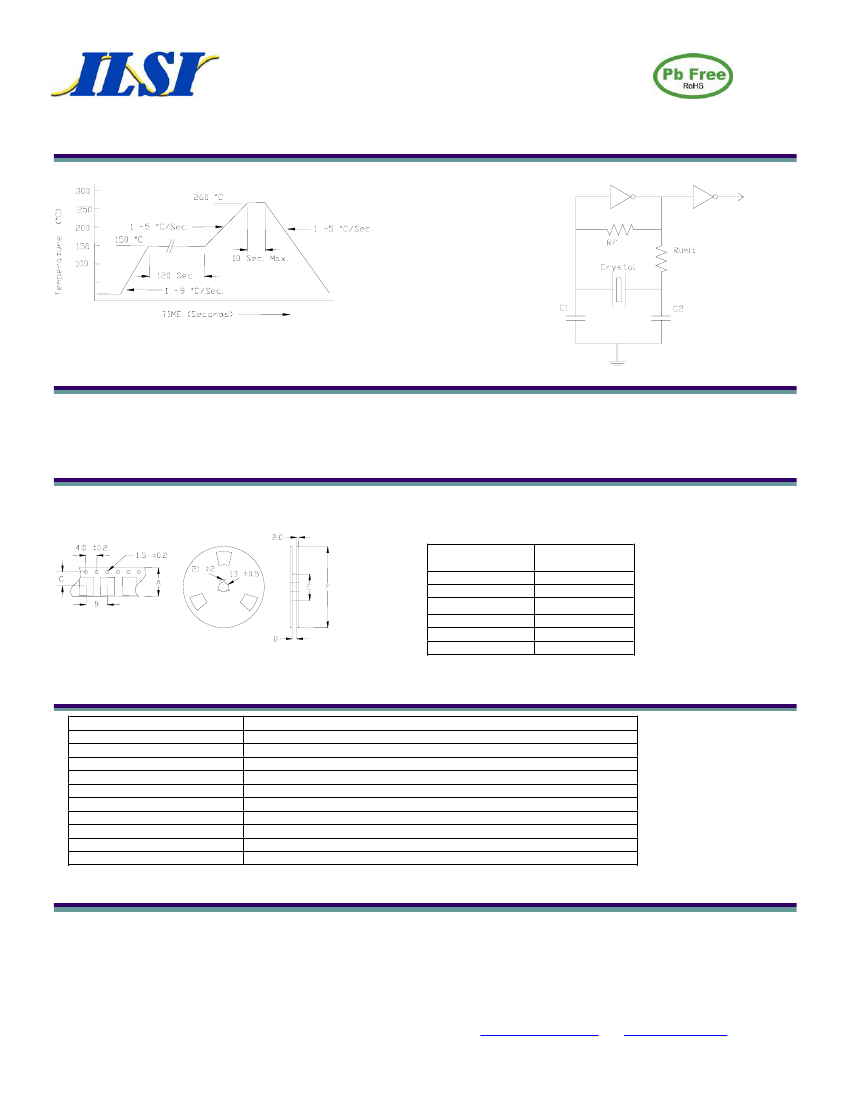

4 Pad Plastic Package Quartz Crystal, 4.6 mm x 12.5 mm
Pb Free Solder Reflow Profile:
Typical Circuit:
IL3S Series
*Units are backward compatible with 240C reflow processes
Package Information:
MSL = 2a
Termination = e1 (Sn/Cu/Ag over Ni over Kovar base metal)
Tape and Reel Information:
Quantity per
Reel
A
B
C
D
E
F
1000
24 +/-.3
12 +/-.2
11.5 +/-.2
25 +/-1.5
80 / 100
330
Environmental Specifications
Thermal Shock
Moisture Resistance
Mechanical Shock
Mechanical Vibration
Resistance to Soldering Heat
Hazardous Substance
Solderability
Terminal Strength
Gross Leak
Fine Leak
Solvent Resistance
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2002, Condition B
MIL-STD-883, Method 2007, Condition A
J-STD-020C, Table 5-2 Pb-free devices (except 2 cycles max)
Pb-Free / RoHS / Green Compliant
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Test Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2, R1=2x10-8 atm cc/s
MIL-STD-202, Method 215
Marking
Line 1: I- Frequency
e-mail@ilsiamerica.com
•
www.ilsiamerica.com
ILSI
America
Phone: 775-851-8880 • Fax: 775-851-8882• e-mail: e-mail@ilsiamerica.com • www.ilsiamerica.com
2/09
Specifications subject to change without notice
Page 2
