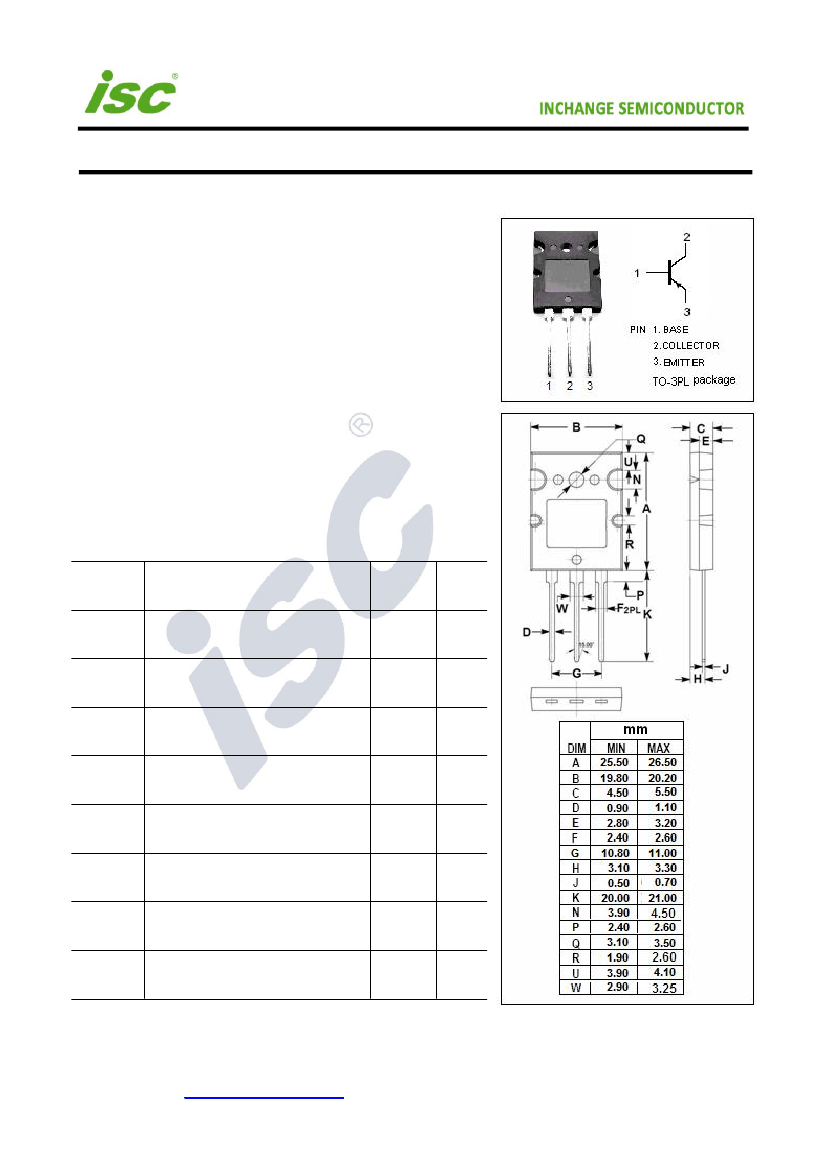

Silicon PNP Power Transistor
2SA1301
DESCRIPTION
·High
Power Dissipation
·Collector-Emitter
Breakdown Voltage-
: V
(BR)CEO
= -160V(Min)
·Complement
to Type 2SC3280
·Minimum
Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS
·Power
amplifier applications
·Recommend
for 80W high fidelity audio frequency amplifier
output stage applications
ABSOLUTE MAXIMUM RATINGS(Ta=25
℃)
SYMBOL
V
CBO
PARAMETER
Collector-Base Voltage
VALUE
-160
UNIT
V
V
CEO
Collector-Emitter Voltage
-160
V
V
EBO
Emitter-Base Voltage
-5
V
I
C
Collector Current-Continuous
-12
A
I
B
Base Current-Continuous
Collector Power Dissipation
@ T
C
=25℃
Junction Temperature
-1.2
A
P
C
120
W
T
J
150
℃
T
stg
Storage Temperature Range
-55~150
℃
isc website
：
www.iscsemi.com
1
isc & iscsemi
is registered trademark
isc
Silicon PNP Power Transistor
ELECTRICAL CHARACTERISTICS
T
C
=25℃ unless otherwise specified
SYMBOL
V
(BR)CEO
V
CE
(sat)
V
BE(
on
)
I
CBO
I
EBO
h
FE-1
h
FE-2
C
OB
f
T
PARAMETER
Collector-Emitter Breakdown Voltage
Collector-Emitter Saturation Voltage
Base-Emitter On Voltage
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
DC Current Gain
Output Capacitance
Current-Gain—Bandwidth Product
CONDITIONS
I
C
= -50mA; I
B
= 0
I
C
= -8.0A; I
B
= -0.8A
I
C
= -6A ; V
CE
= -5V
V
CB
= -160V; I
E
= 0
V
EB
= -5V; I
C
= 0
I
C
= -1A; V
CE
= -5V
I
C
= -6A; V
CE
= -5V
I
E
= 0; V
CB
= -10V; f= 1.0MHz
I
C
=-1A ; V
CE
= -5V
55
35
MIN
-160
2SA1301
TYP.
MAX
UNIT
V
-2.5
-1.5
-5
-5
160
V
V
μA
μA
480
30
pF
MHz
h
FE-1
Classifications
R
55-110
O
80-160
NOTICE：
ISC reserves the rights to make changes of the content herein the datasheet at any time without
notification. The information contained herein is presented only as a guide for the applications of
our products.
ISC products are intended for usage in general electronic equipment. The products are not
designed for use in equipment which require specialized quality and/or reliability, or in equipment
which could have applications in hazardous environments, aerospace industry, or medical
field. Please contact us if you intend our products to be used in these special applications.
ISC makes no warranty or guarantee regarding the suitability of its products for any particular
purpose, nor does ISC assume any liability arising from the application or use of any products, and
specifically disclaims any and all liability, including without limitation special, consequential or
incidental damages.
isc website
：
www.iscsemi.com
2
isc & iscsemi
is registered trademark
