923762 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 923762

923762: Description132 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric View All

923762 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	923762	-	-	View	Buy Now

923762 Overview

132 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, PRESS FIT

923762 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Hard Metric Connectors 110P 2MM R/A M SHLD PRESSFIT DAU CARD
Other features	22 GROUND SHIELD CONTACTS IN 1 ROW ALSO AVAILABLE, POLARIZATION AVAILABLE
body width	0.583 inch
subject depth	1.091 inch
body length	1.969 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	6
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	132
Base Number Matches	1

Preview

Download Datasheet

View All

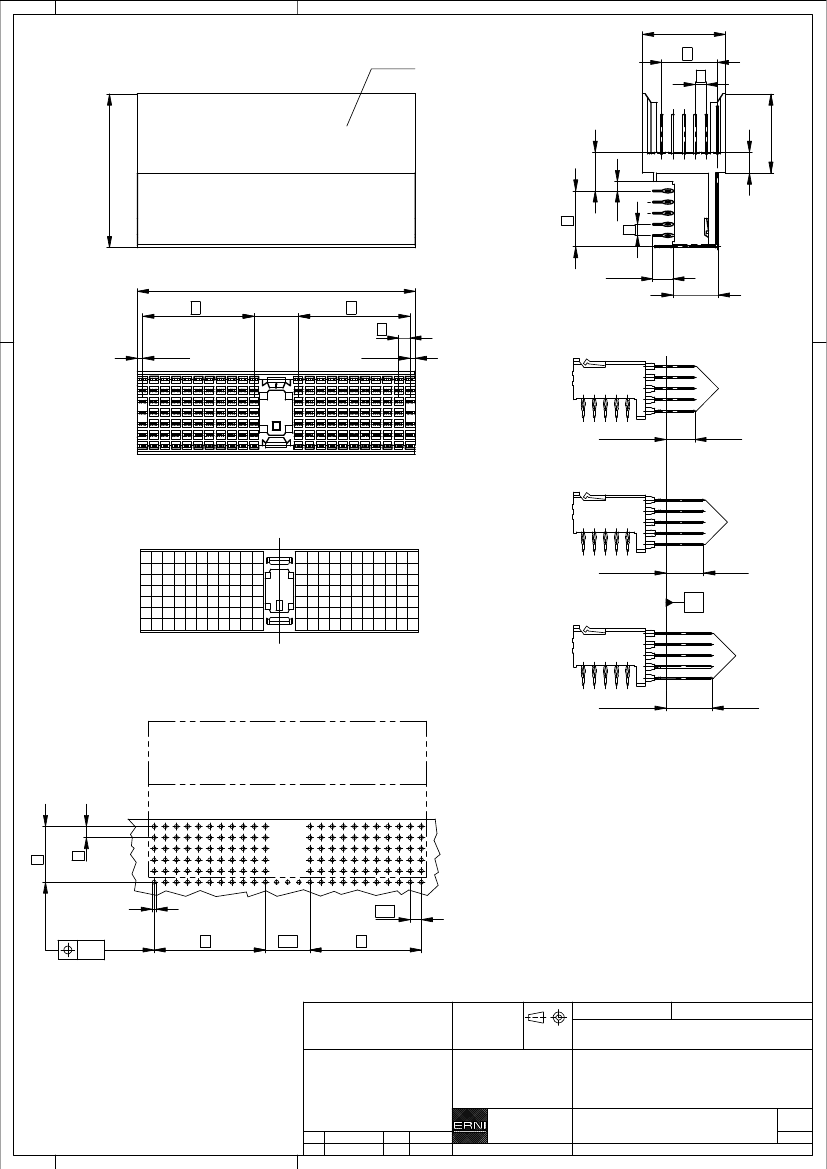

14,8

Date Code

5 x 2 = 10

27,7 max.

5 x 2 = 10

6,9

1,6

3,6

-0,4

50 max.

10 x 2 =(20)

1 max.

+0,15

8,2

CONTACT LENGTH EXAMPLES

Kontaktlänge Beispiele

LEVEL 1

5,3

±0,1

Ebene 1

CONTACT LAYOUT

25 24 23 22 21 20 19 18 17 16 15

11 10 9 8 7 6 5 4 3 2 1

LEVEL 2

6,8

±0,1

DATUM PLANE DEPTH

Ebene 2

Bezugsebene Tiefe

BOARD HOLE PATTER

(TOP VIEW)

LEVEL 3

8,3

±0,1

Ebene 3

RoHS Konform

5 x 2 = (10)

10 x 2 = (20)

RoHS compliant

0,6

±0,05

Durchmesser des metallisierten Loches

0,6

±0,05

Diameter of finished plated-through hole

0,7

±0,02

Bohrungsdurchmesser des Loches

0,7

±0,02

Diameter of drilled hole

Schichtaufbau im metallisierten Loch siehe Zeichnung 114406

Metal plating of plated-through hole see drawing 114406

Fehlende Masse und Angaben nach IEC 61076-4-101

Missing information and dimensions per IEC 61076-4-101

0,05

ALL HOLES

Proprietary notice pursuant to ISO 16016 to be observed.

Information:

Level 2,3

siehe Bestückungsplan /

see contact layout

ohne Zentrierzapfen /

without location peg

Anforderungsstufe 2 /

class 2

Mit Abschirmblech an Reihe f /

Information:

Tolerances

All Dimensions

in mm

Scale

2:1

with shielding on row f

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

05.02.2014

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

ERmet Messerleiste A, abgew

ERmet male wide A, r/a

www.ERNI.com

Class

923762

ERMA

3,7

14,2

XXXX

ERNI RC
